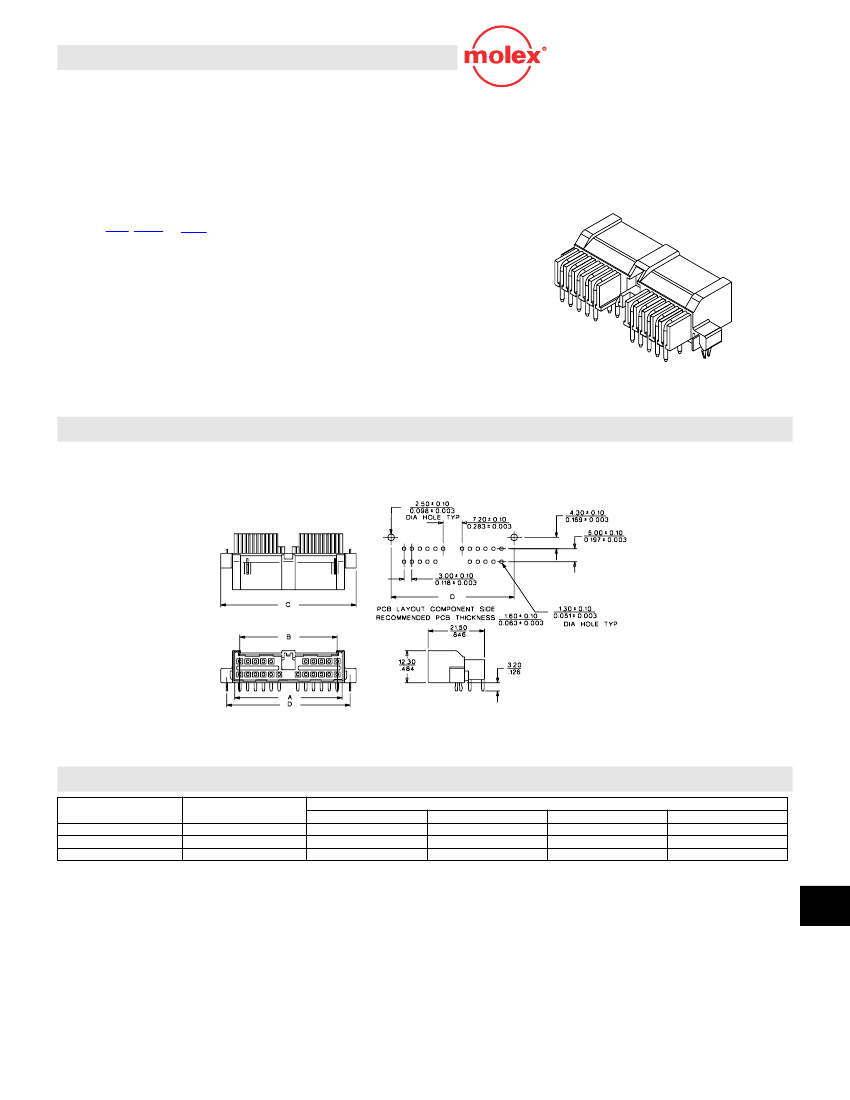

Board Connector, 22 Contact(s), 2 Row(s), Male, Right Angle, 0.118 inch Pitch, Solder Terminal, Receptacle
| Parameter Name | Attribute value |
| Is it Rohs certified? | conform to |
| Maker | Molex |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Other features | LOW PROFILE, PANEL MOUNTABLE |
| Board mount options | SPLIT BOARD LOCK |
| body width | 0.484 inch |
| subject depth | 0.846 inch |
| body length | 2.02 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact point gender | MALE |
| Contact material | NOT SPECIFIED |
| contact mode | RECTANGULAR |
| Contact resistance | 6 mΩ |
| Contact style | RND PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 1000VDC V |
| Durability | 50 Cycles |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | 5.7824 N |
| Insulation resistance | 100000000 Ω |
| insulator material | POLYESTER |
| MIL compliance | NO |
| Manufacturer's serial number | 35358 |
| Plug contact pitch | 0.118 inch |
| Match contact row spacing | 0.197 inch |
| Plug information | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO |
| Installation option 2 | SCREW |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 120 °C |
| Minimum operating temperature | -40 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 5.0038 mm |
| polarization key | ENDS |
| Rated current (signal) | 6 A |
| reliability | COMMERCIAL |
| Terminal length | 0.126 inch |
| Terminal pitch | 3 mm |
| Termination type | SOLDER |
| Total number of contacts | 22 |
| UL Flammability Code | 94-HB |
| Evacuation force-minimum value | .973 N |
| 35358-2210 | 35356-0810 | |
|---|---|---|
| Description | Board Connector, 22 Contact(s), 2 Row(s), Male, Right Angle, 0.118 inch Pitch, Solder Terminal, Receptacle | Board Connector, 8 Contact(s), 2 Row(s), Male, Right Angle, 0.118 inch Pitch, Solder Terminal, Receptacle |
| Is it Rohs certified? | conform to | incompatible |
| Maker | Molex | Molex |
| Reach Compliance Code | unknown | unknown |
| ECCN code | EAR99 | EAR99 |
| Other features | LOW PROFILE, PANEL MOUNTABLE | LOW PROFILE, PANEL MOUNTABLE |
| Board mount options | SPLIT BOARD LOCK | SPLIT BOARD LOCK |
| body width | 0.484 inch | 0.484 inch |
| subject depth | 0.846 inch | 0.846 inch |
| body length | 2.02 inch | 1.047 inch |
| Body/casing type | RECEPTACLE | RECEPTACLE |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED | NOT SPECIFIED |
| Contact point gender | MALE | MALE |
| Contact material | NOT SPECIFIED | NOT SPECIFIED |
| contact mode | RECTANGULAR | RECTANGULAR |
| Contact resistance | 6 mΩ | 6 mΩ |
| Contact style | RND PIN-SKT | RND PIN-SKT |
| DIN compliance | NO | NO |
| Dielectric withstand voltage | 1000VDC V | 1000VDC V |
| Durability | 50 Cycles | 50 Cycles |
| Filter function | NO | NO |
| IEC compliance | NO | NO |
| maximum insertion force | 5.7824 N | 5.7824 N |
| Insulation resistance | 100000000 Ω | 100000000 Ω |
| insulator material | POLYESTER | POLYESTER |
| MIL compliance | NO | NO |
| Manufacturer's serial number | 35358 | 35356 |
| Plug contact pitch | 0.118 inch | 0.118 inch |
| Match contact row spacing | 0.197 inch | 0.197 inch |
| Plug information | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO | NO |
| Installation option 2 | SCREW | SCREW |
| Installation method | RIGHT ANGLE | RIGHT ANGLE |
| Installation type | BOARD | BOARD |
| Number of connectors | ONE | ONE |
| PCB row number | 2 | 2 |
| Number of rows loaded | 2 | 2 |
| Maximum operating temperature | 120 °C | 120 °C |
| Minimum operating temperature | -40 °C | -40 °C |
| Options | GENERAL PURPOSE | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR | RECTANGULAR |
| PCB contact row spacing | 5.0038 mm | 5.0038 mm |
| polarization key | ENDS | ENDS |
| Rated current (signal) | 6 A | 6 A |
| reliability | COMMERCIAL | COMMERCIAL |
| Terminal length | 0.126 inch | 0.126 inch |
| Terminal pitch | 3 mm | 3 mm |
| Termination type | SOLDER | SOLDER |
| Total number of contacts | 22 | 8 |
| UL Flammability Code | 94-HB | 94-HB |
| Evacuation force-minimum value | .973 N | .973 N |
