38K202-302D3: DescriptionRF SSMC Connector, Female, Cable Mount, Crimp Solder Terminal, Jack; CategoryThe connector The connector; File Size142KB，4 Pages; ManufacturerRosenberger; Websitehttps://www.rosenberger.com/

Download Datasheet Parametric Compare View All

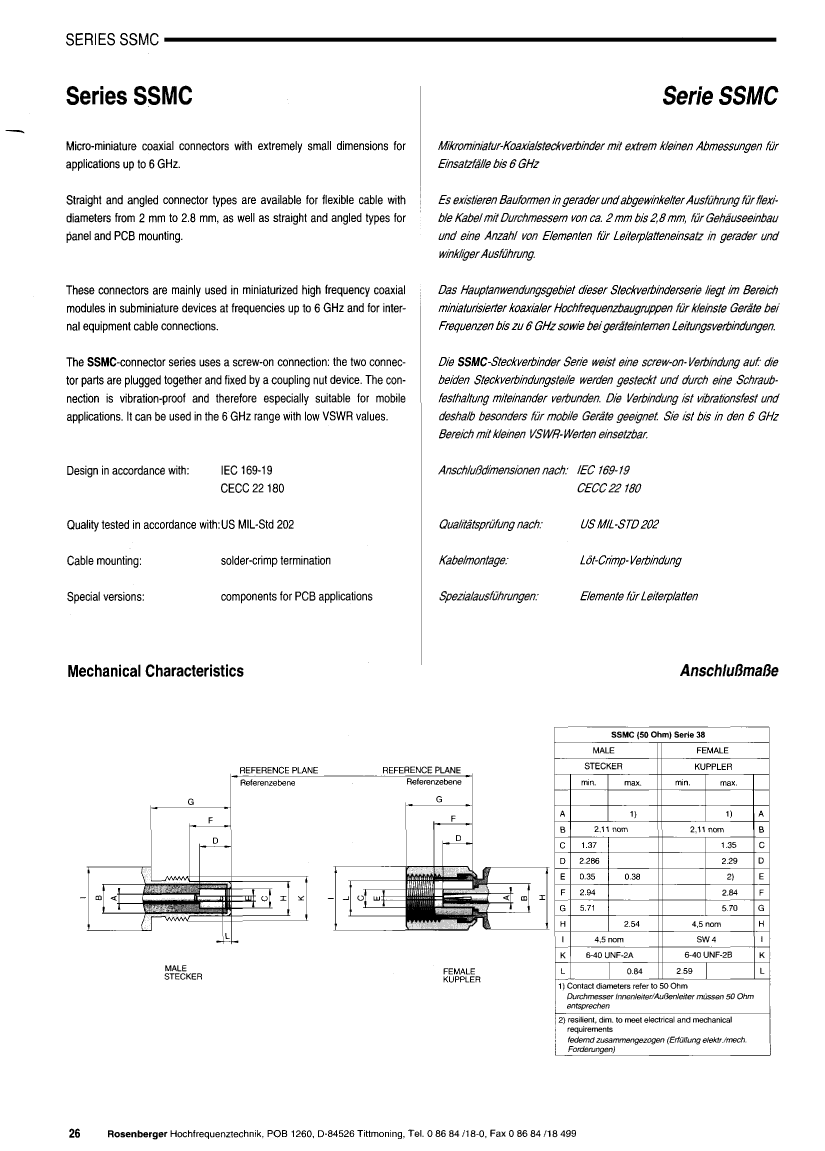

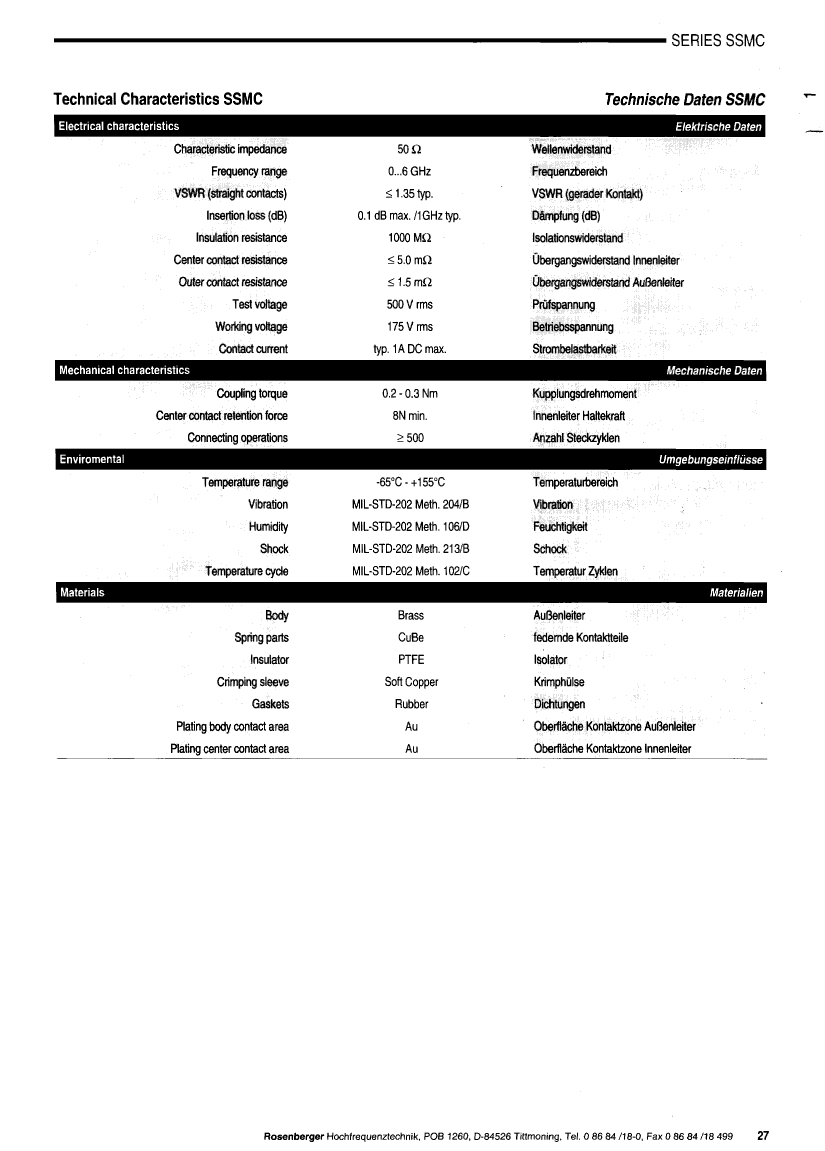

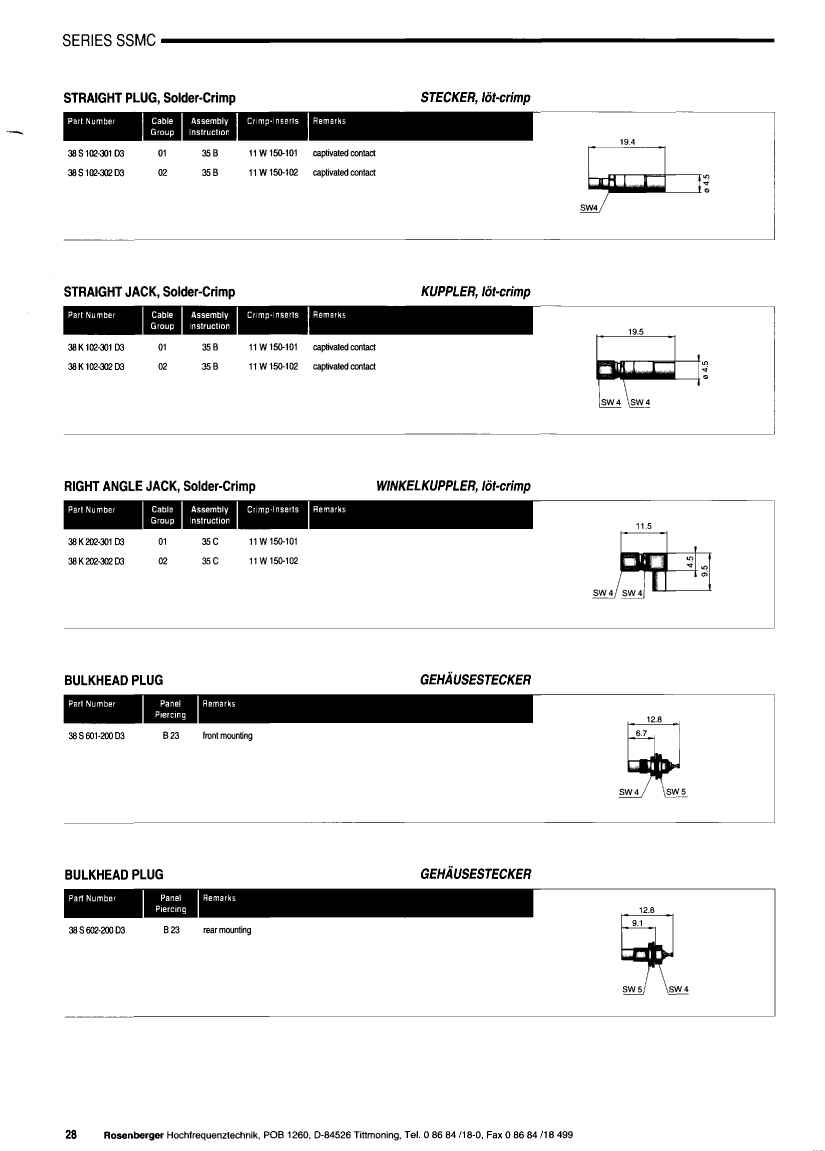

38K202-302D3 Overview

RF SSMC Connector, Female, Cable Mount, Crimp Solder Terminal, Jack

38K202-302D3 Parametric

Parameter Name	Attribute value
Maker	Rosenberger
Reach Compliance Code	unknown
Other features	INSERTION LOSS MAX AT 1GHZ, APPLICABLE CABLES:RG 174; RG 188; RG 316; K02232; G02233
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF SSMC CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.1 dB
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	SSMC
Installation method	RIGHT ANGLE
Installation type	CABLE
Maximum operating frequency	6 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CRIMP SOLDER

Preview

Download Datasheet

View All

38K202-302D3 Related Products

	38K202-302D3	38S101-400D3	38S602-200D3	38S601-200D3	38K202-301D3	38S201-400D3	38K102-301D3	38S102-301D3	38S102-302D3
Description	RF SSMC Connector, Female, Cable Mount, Crimp Solder Terminal, Jack	RF SSMC Connector, Male, Board Mount, Solder Terminal, Plug	RF SSMC Connector, Male, Panel Mount, Plug	RF SSMC Connector, Male, Panel Mount, Plug	RF SSMC Connector, Female, Cable Mount, Crimp Solder Terminal, Jack	RF SSMC Connector, Male, Board Mount, Solder Terminal, Plug	RF SSMC Connector, Female, Cable Mount, Crimp Solder Terminal, Jack	RF SSMC Connector, Male, Cable Mount, Crimp Solder Terminal, Plug	RF SSMC Connector, Male, Cable Mount, Crimp Solder Terminal, Plug
Maker	Rosenberger	Rosenberger	Rosenberger	Rosenberger	Rosenberger	Rosenberger	Rosenberger	Rosenberger	Rosenberger
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	INSERTION LOSS MAX AT 1GHZ, APPLICABLE CABLES:RG 174; RG 188; RG 316; K02232; G02233	INSERTION LOSS MAX AT 1GHZ	INSERTION LOSS MAX AT 1GHZ, INDUSTRY STANDARD:MIL-C-39012	INSERTION LOSS MAX AT 1GHZ, INDUSTRY STANDARD:MIL-C-39012	INSERTION LOSS MAX AT 1GHZ, APPLICABLE CABLES:RG 178; RG 196	INSERTION LOSS MAX AT 1GHZ	CAPTIVE CONTACT, INSERTION LOSS MAX AT 1GHZ, APPLICABLE CABLES:RG 178; RG 196	CAPTIVE CONTACT, INSERTION LOSS MAX AT 1GHZ, APPLICABLE CABLES:RG 178; RG 196	CAPTIVE CONT, INSERTION LOSS MAX AT 1GHZ, APPLICABLE CABLES:RG 174; RG 188; RG 316; K02232, G02233
Body/casing type	JACK	PLUG	PLUG	PLUG	JACK	PLUG	JACK	PLUG	PLUG
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF SSMC CONNECTOR	RF SSMC CONNECTOR	RF SSMC CONNECTOR	RF SSMC CONNECTOR	RF SSMC CONNECTOR	RF SSMC CONNECTOR	RF SSMC CONNECTOR	RF SSMC CONNECTOR	RF SSMC CONNECTOR
Contact to complete cooperation	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Contact point gender	FEMALE	MALE	MALE	MALE	FEMALE	MALE	FEMALE	MALE	MALE
Coupling type	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Insertion loss	0.1 dB	0.1 dB	0.1 dB	0.1 dB	0.1 dB	0.1 dB	0.1 dB	0.1 dB	0.1 dB
insulator material	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4	e4
MIL compliance	NO	NO	YES	YES	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	STRAIGHT	STRAIGHT	STRAIGHT	RIGHT ANGLE	RIGHT ANGLE	STRAIGHT	STRAIGHT	STRAIGHT
Maximum operating frequency	6 GHz	6 GHz	6 GHz	6 GHz	6 GHz	6 GHz	6 GHz	6 GHz	6 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO	YES	YES	NO	NO	NO	NO	NO
Manufacturer's serial number	SSMC	SSMC	SSMC	SSMC	SSMC	-	SSMC	SSMC	SSMC
Installation type	CABLE	BOARD	-	-	CABLE	BOARD	CABLE	CABLE	CABLE
Termination type	CRIMP SOLDER	SOLDER	-	-	CRIMP SOLDER	SOLDER	CRIMP SOLDER	CRIMP SOLDER	CRIMP SOLDER
voltage standing wave ratio	-	1.3	1.3	1.3	-	-	1.35	1.35	1.35
