03 = Solder Tail for .094 to .125 [2.39 to 3.18] Thick Board
RB = 30μ” [0.76μm] Gold with Matte Tin Tails (App. E1 & C1 Apply)
Blank or UB = 30μ” [0.76μm] Gold with Tin Lead Tails (App. E3 & C2 Apply)
TS-0773-H
Sheet 3 of 4
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™

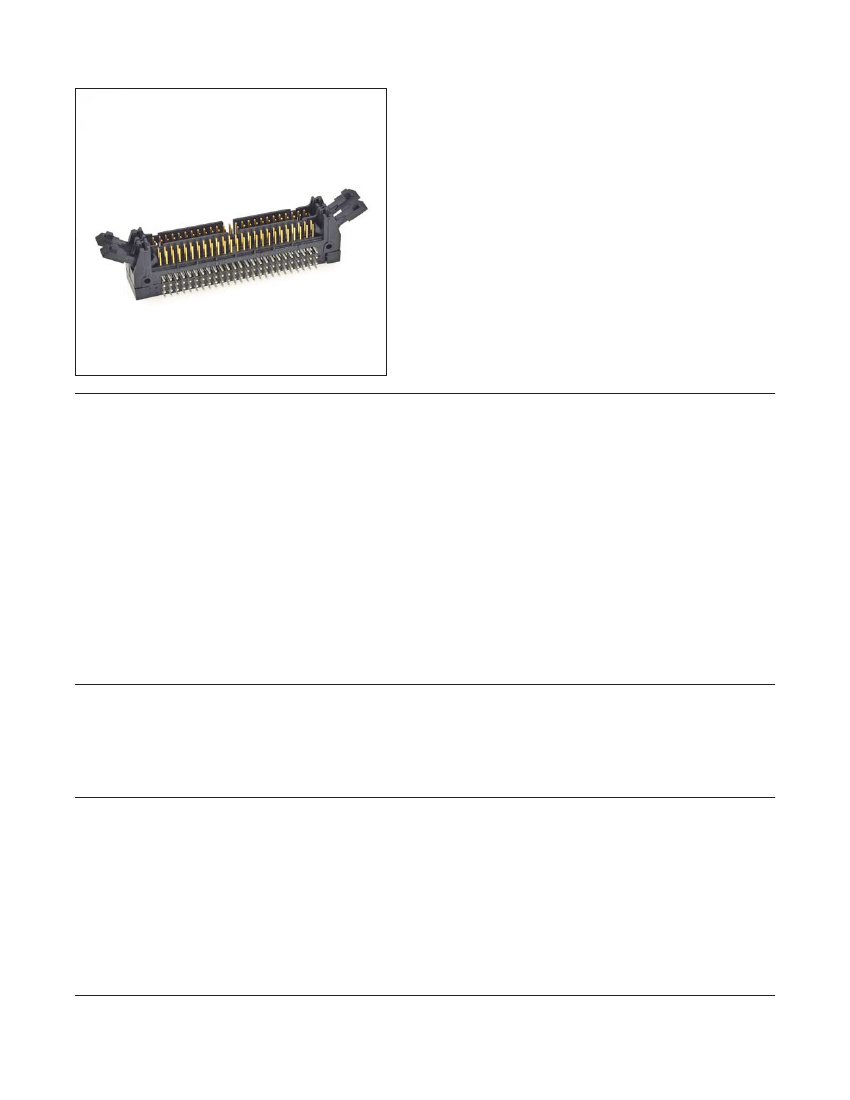

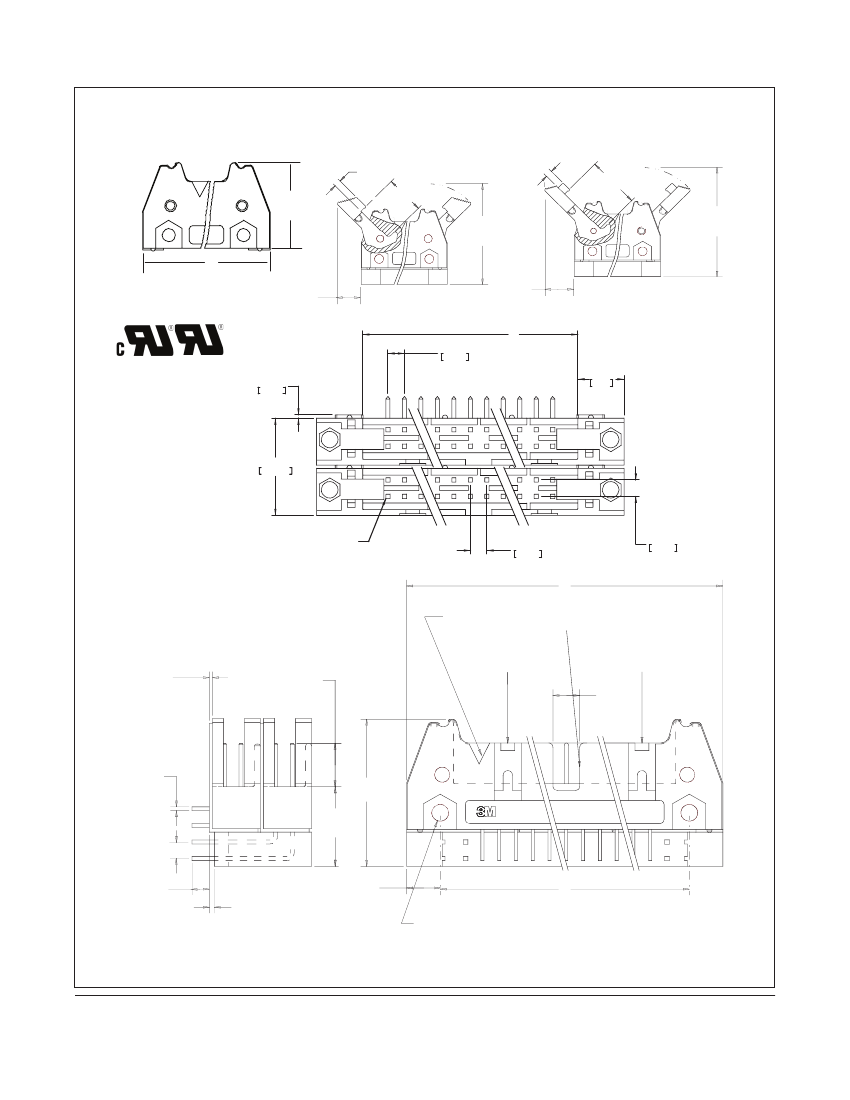

Three-Wall Condo Header
.100 × .100 Right Angle
Polarizing Post
.318
[8.08]
.100 Dia
[2.54]
Note: Insert Post into one mounting hardware hole on
bottom of header. Set post to protrude .115” [2.92]
3000 Series
3 2 0 1 -4
3 2 0 1 -5
LCP
PBT
B la c k
G ra y
Polarizing Keys
Dim A
N3518
3518
LCP
PBT
Blac k
Gray
.02
.02
Breakaway Tab
.34 Ref
[8.6]
.15
[3.8]
A
.09
[2.3]
Note: #2216 B/A Scotchweld can be used to adhere keys.

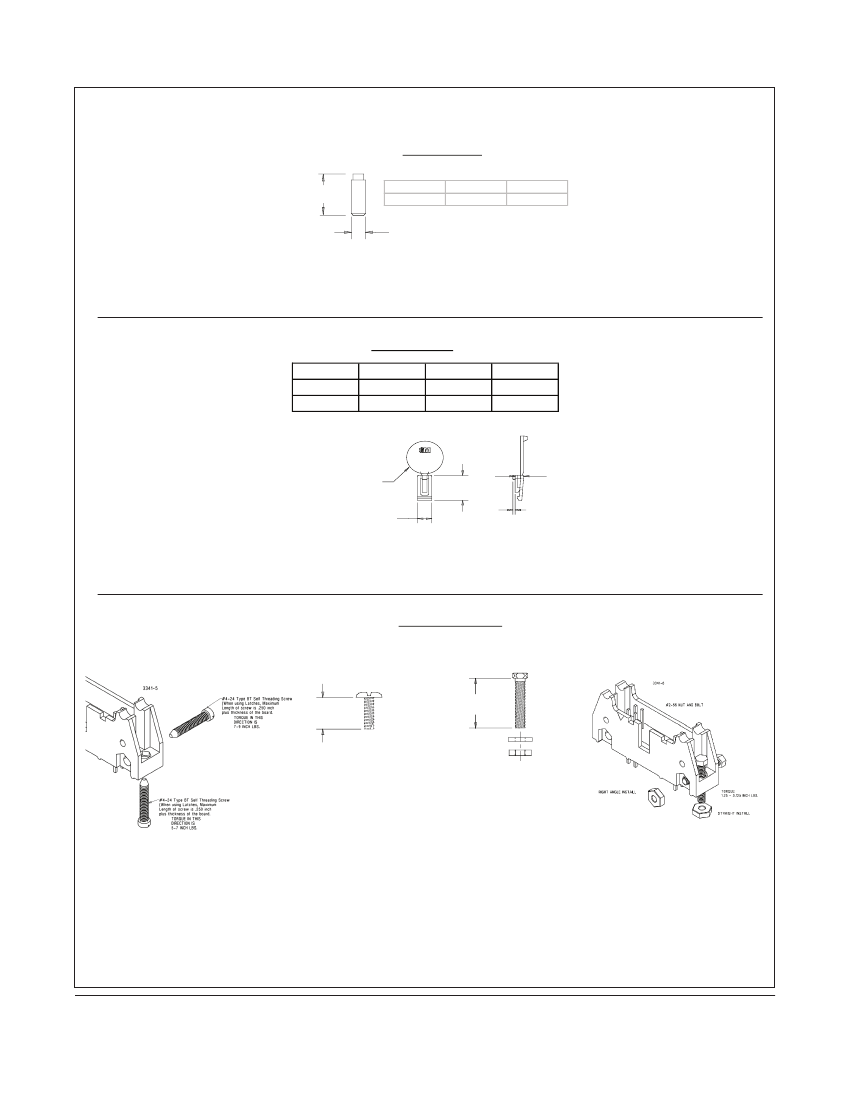

Mounting Hardware
3341-5
(Installed from bottom of board)
3341-6
(Must be inserted prior to latch on
vertical headers)
.31
[7.9]
.50
[12.7]
Panhead Thread Cutting Screw:
#4-24 X 5/16”
Type: USA Std BT, Federal BG
Hex Head Bolt, Nut and Washer
Bolt - #2-56 X 1/2”
3341-5 & 6
Material - Stainless Steel
TS-0773-H
Sheet 4 of 4
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M is a trademark of 3M Company.
Important Notice
All statements, technical information, and recommendations related to 3M’s products are based on information believed to be reliable, but the accuracy or completeness
is not guaranteed. Before using this product, you must evaluate it and determine if it is suitable for your intended application. You assume all risks and liability associated
with such use. Any statements related to the product which are not contained in 3M’s current publications, or any contrary statements contained on your purchase order
shall have no force or effect unless expressly agreed upon, in writing, by an authorized officer of 3M.
Warranty; Limited Remedy; Limited Liability.
This product will be free from defects in material and manufacture for a period of one (1) year from the time of purchase.
3M MAKES NO OTHER WARRANTIES
INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
If this product is defective within the
warranty period stated above, your exclusive remedy shall be, at 3M’s option, to replace or repair the 3M product or refund the purchase price of the 3M product.
Except
where prohibited by law, 3M will not be liable for any indirect, special, incidental or consequential loss or damage arising from this 3M product, regardless of
