35802-0311 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 35802-0311

35802-0311: DescriptionCard Edge Connector, 3 Contact(s), 1 Row(s), Female, Straight, Solder Terminal; CategoryThe connector The connector; File Size263KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

35802-0311 Overview

Card Edge Connector, 3 Contact(s), 1 Row(s), Female, Straight, Solder Terminal

35802-0311 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Other features	STAGGERED CONFIGURATION
Connector type	FFC/FPC CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	3
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

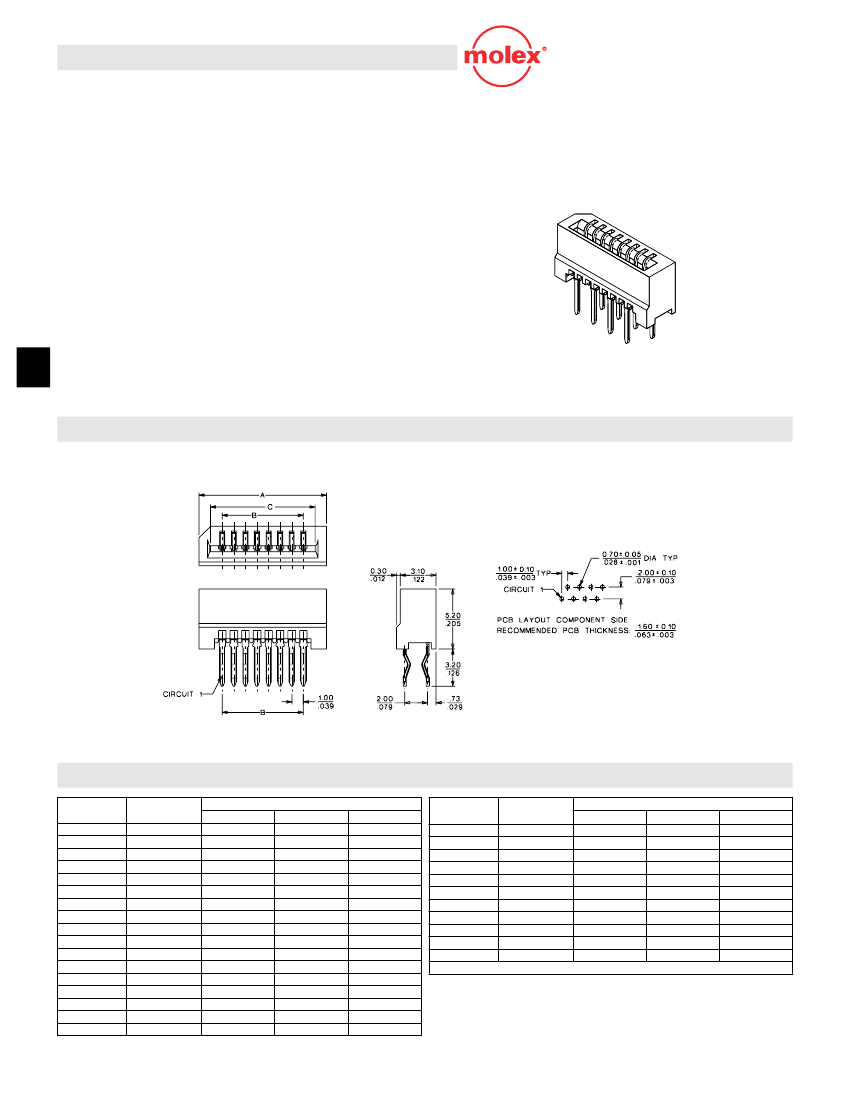

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

Sizes 3 to 30 circuits

For 0.30mm thick FFC/FPC

Two types of solder tail lengths: 2.80 and 3.20mm

Kinked solder tail option available

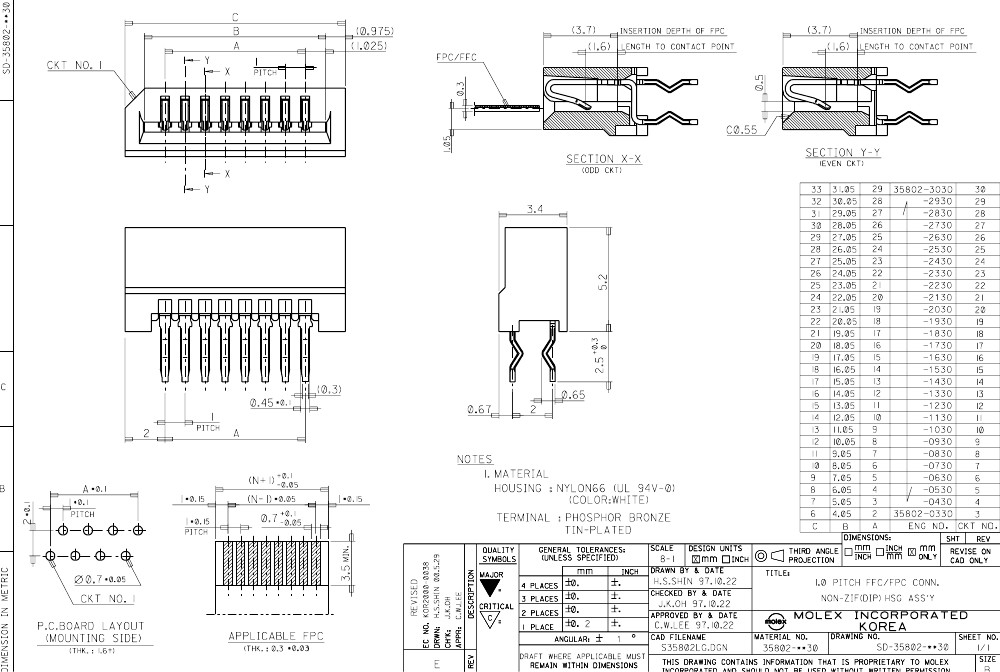

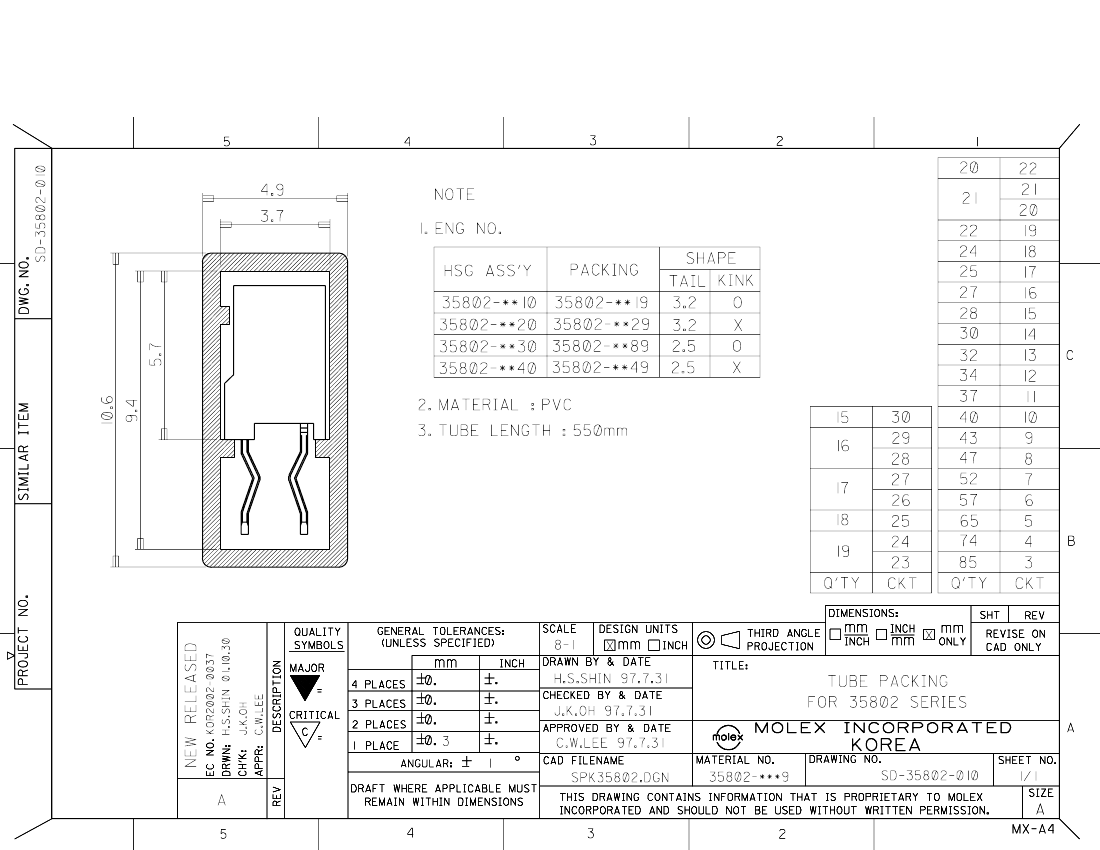

CATALOG DRAWING (FOR REFERENCE ONLY)

FFC/FPC Connectors

Reference Information

Product Speciﬁcation: PS-35802

Packaging: Tube

Designed In: Millimeters

Electrical

Voltage: 50V

Current: 0.5A max.

Contact Resistance: 30m

Ω

max.

Dielectric Withstanding Voltage: 1500V

Insulation Resistance: 100 M

Ω

min.

Physical

Housing: Polyamide, UL 94V-0

Contact: Phosphor Bronze

Plating: Tin

Operating Temperature: -20 to +80˚C

1.00mm (.039") Pitch

FFC/FPC Connector

35802

Vertical

Non-ZIF

ORDERING INFORMATION AND DIMENSIONS

Circuits

Order No.

35802-03X1

35802-04X1

35802-05X1

35802-06X1

35802-07X1

35802-08X1

35802-09X1

35802-10X1

35802-11X1

35802-12X1

35802-13X1

35802-14X1

35802-15X1

35802-16X1

35802-17X1

35802-18X1

35802-19X1

6.00

7.00

8.00

9.00

10.00

11.00

12.00

13.00

14.00

15.00

16.05

17.00

18.00

19.00

20.00

21.00

22.00

(.236)

(.276)

(.315)

(.354)

(.394)

(.433)

(.472)

(.512)

(.551)

(.591)

(.632)

(.669)

(.709)

(.748)

(.787)

(.827)

(.866)

Dimension

2.00 (.079)

3.00 (.118)

4.00 (.157)

5.00 (.197)

6.00 (.236)

7.00 (.276)

8.00 (.315)

9.00 (.354)

10.00 (.394)

11.00 (.433)

12.00 (.472)

13.00 (.512)

14.00 (.551)

15.00 (.591)

16.00 (.630)

17.00 (.669)

18.00 (.709)

(.159)

(.199)

(.238)

(.278)

(.317)

(.356)

(.396)

(.435)

(.474)

(.514)

(.531)

(.593)

(.632)

(.671)

(.711)

(.750)

(.789)

Circuits

Dimension

35802-20X1

23.00 (.906)

19.00 (.748)

35802-21X1

24.00 (.945)

20.00 (.787)

35802-22X1

25.00 (.984)

21.00 (.827)

35802-23X1

26.00 (1.024)

22.00 (.866)

35802-24X1

27.00 (1.063)

23.00 (.906)

35802-25X1

28.00 (1.102)

24.00 (.945)

35802-26X1

29.00 (1.142)

25.00 (.984)

35802-27X1

30.00 (1.181)

26.00 (1.024)

35802-28X1

31.00 (1.220)

27.00 (1.063)

35802-29X1

32.00 (1.230)

28.00 (1.102)

35802-30X1

33.00 (1.299)

29.00 (1.142)

Replace X with solder tail option no., 1-4

Order No.

(.829)

(.868)

(.907)

(.947)

(.986)

(1.026)

(1.065)

(1.104)

(1.144)

(1.183)

(1.222)

4.05

5.05

6.05

7.05

8.05

9.05

10.05

11.05

12.05

13.05

14.05

15.05

16.05

17.05

18.05

19.05

20.05

21.05

22.05

23.05

24.05

25.05

26.05

27.05

28.05

29.05

30.05

31.05

Solder Tail Option No. 1: Kink and tail length 3.2mm

Solder Tail Option No. 2: Non-kink and tail length 3.2mm

Solder Tail Option No. 3: Kink and tail length 2.8mm

Solder Tail Option No. 4: Non-kink and tail length 2.8mm

Note: For cable speciﬁcation dimensions, see cable pages at end of section

G-36

MX01
