30968-1062 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 30968-1062

30968-1062: DescriptionBoard Connector, 6 Contact(s), 2 Row(s), Male, 0.1 inch Pitch, Crimp Terminal, Locking, Gray Insulator, Receptacle,; CategoryThe connector The connector; File Size207KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

30968-1062 Overview

Board Connector, 6 Contact(s), 2 Row(s), Male, 0.1 inch Pitch, Crimp Terminal, Locking, Gray Insulator, Receptacle,

30968-1062 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	POLARIZED
body width	0.779 inch
subject depth	1.372 inch
body length	0.615 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	250VDC V
Durability	25 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	75.1712 N
Insulator color	GRAY
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO
Manufacturer's serial number	30968
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	FRICTION LOCK
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
polarization key	POLARIZED HOUSING
Rated current (signal)	7 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	CRIMP
Total number of contacts	6
Maximum wire diameter	18 AWG
Minimum wire diameter	22 AWG
Evacuation force-minimum value	109.8656 N

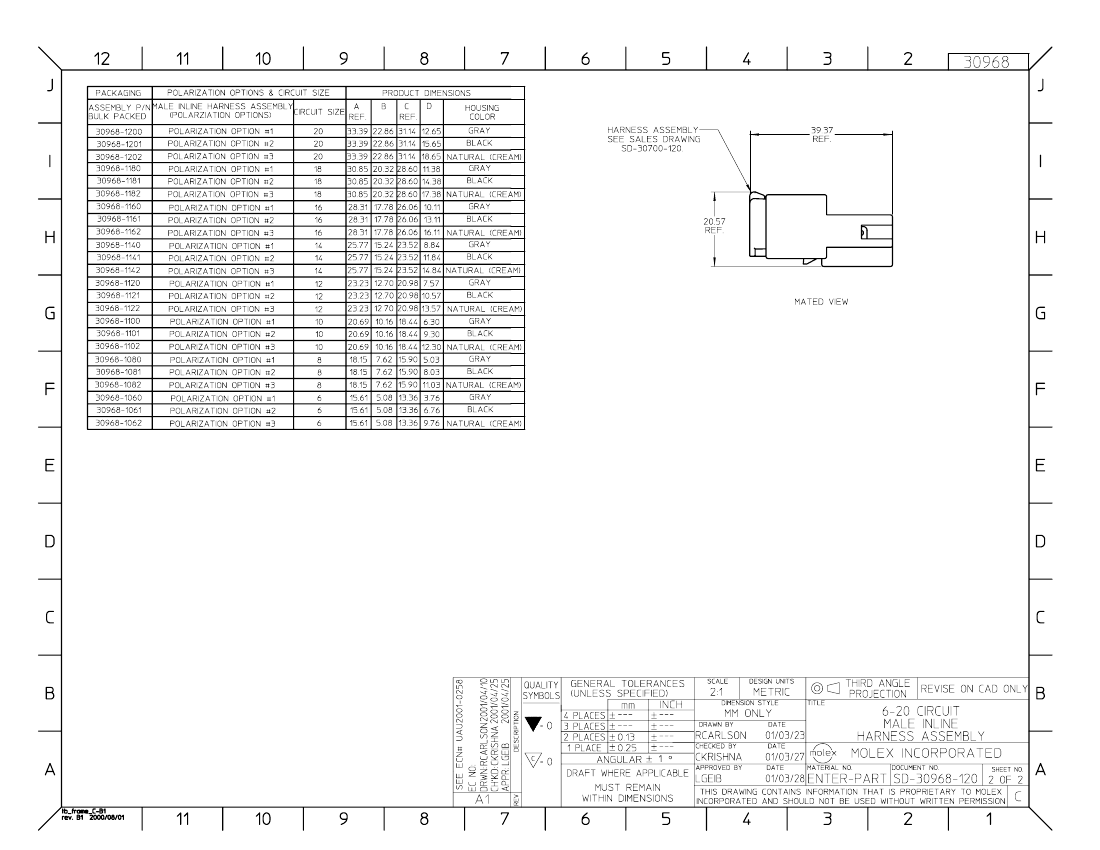

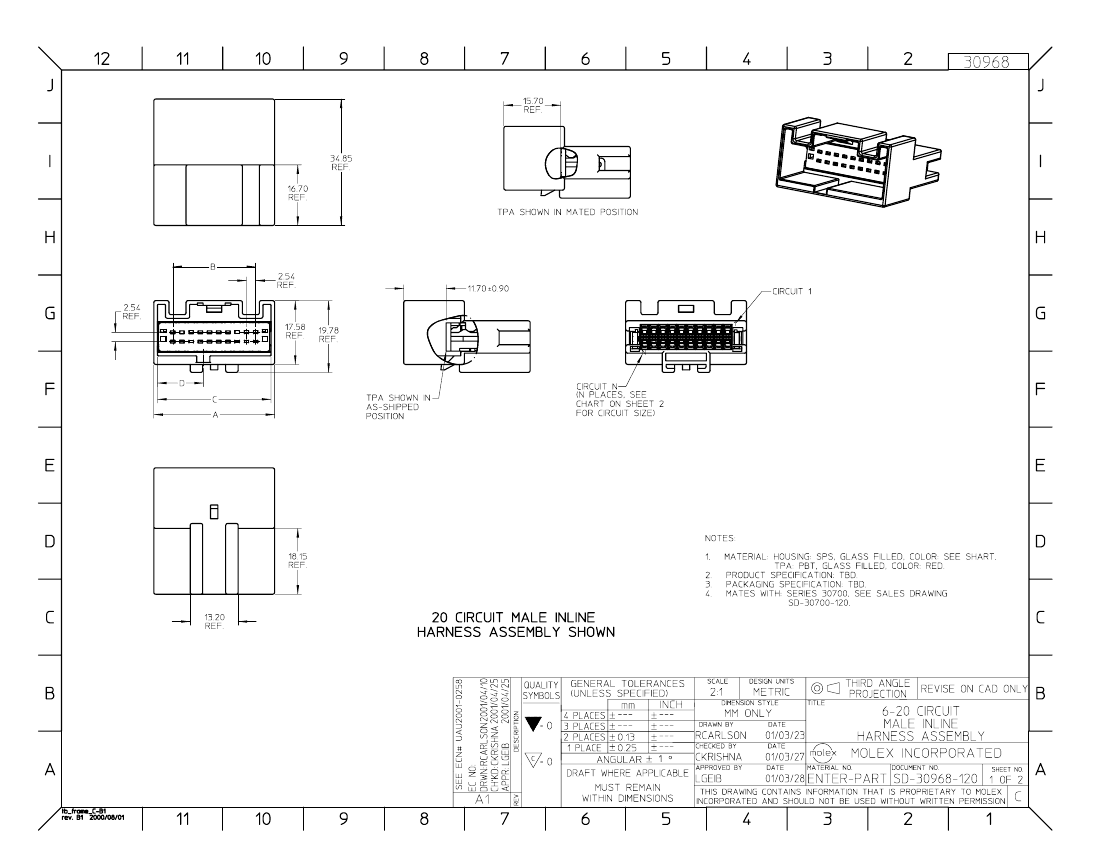

Preview

Download Datasheet

View All

30968-1062 Related Products

	30968-1062	30968-1202	30968-1201	30968-1160	30968-1120	30968-1140	30968-1102
Description	Board Connector, 6 Contact(s), 2 Row(s), Male, 0.1 inch Pitch, Crimp Terminal, Locking, Gray Insulator, Receptacle,	Combination Line Connector, 20 Contact(s), Male, Crimp Terminal, Receptacle	Combination Line Connector, 20 Contact(s), Male, Crimp Terminal, Receptacle	Combination Line Connector, 16 Contact(s), Male, Crimp Terminal, Receptacle	Combination Line Connector, 12 Contact(s), Male, Crimp Terminal, Receptacle	Combination Line Connector, 14 Contact(s), Male, Crimp Terminal, Receptacle	Combination Line Connector, 10 Contact(s), 2 Row(s), Male, 0.1 inch Pitch, Crimp Terminal, Locking, Gray Insulator, Receptacle,
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Molex	Molex	Molex	Molex	Molex	Molex	Molex
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	POLARIZED	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
body width	0.779 inch	0.779 inch	0.779 inch	0.779 inch	0.779 inch	0.779 inch	0.779 inch
subject depth	1.372 inch	1.372 inch	1.372 inch	1.372 inch	1.372 inch	1.372 inch	1.372 inch
body length	0.615 inch	1.315 inch	1.315 inch	1.115 inch	0.915 inch	1.015 inch	0.815 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	NO	NO	NO	NO	NO	NO	NO
Dielectric withstand voltage	250VDC V	250VDC V	250VDC V	250VDC V	250VDC V	250VDC V	250VDC V
Durability	25 Cycles	25 Cycles	25 Cycles	25 Cycles	25 Cycles	25 Cycles	25 Cycles
Filter function	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO
maximum insertion force	75.1712 N	75.1712 N	75.1712 N	75.1712 N	75.1712 N	75.1712 N	75.1712 N
Insulator color	GRAY	GRAY	GRAY	GRAY	GRAY	GRAY	GRAY
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO	NO	NO	NO	NO	NO	NO
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation option 2	FRICTION LOCK	FRICTION LOCK	FRICTION LOCK	FRICTION LOCK	FRICTION LOCK	FRICTION LOCK	FRICTION LOCK
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	2	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	7 A	7 A	7 A	7 A	7 A	7 A	7 A
Guideline	UL, CSA	CSA, UL	CSA, UL	CSA, UL	CSA, UL	CSA, UL	CSA, UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Termination type	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP
Total number of contacts	6	20	20	16	12	14	10
Maximum wire diameter	18 AWG	18 AWG	18 AWG	18 AWG	18 AWG	18 AWG	18 AWG
Minimum wire diameter	22 AWG	22 AWG	22 AWG	22 AWG	22 AWG	22 AWG	22 AWG
Evacuation force-minimum value	109.8656 N	109.8656 N	109.8656 N	109.8656 N	109.8656 N	109.8656 N	109.8656 N
empty shell	-	NO	NO	NO	NO	NO	NO
Shell material	-	GLASS FILLED SYNDIOTACTIC POLYSTYRENE	GLASS FILLED SYNDIOTACTIC POLYSTYRENE	GLASS FILLED SYNDIOTACTIC POLYSTYRENE	GLASS FILLED SYNDIOTACTIC POLYSTYRENE	GLASS FILLED SYNDIOTACTIC POLYSTYRENE	GLASS FILLED SYNDIOTACTIC POLYSTYRENE
Base Number Matches	-	1	1	1	1	1	-
