37X-20500-85: DescriptionTelecom and Datacom Connector, 50 Contact(s), Female, Straight, Solder Terminal, Hole .112-.124, Receptacle, ROHS COMPLIANT; CategoryThe connector The connector; File Size523KB，1 Pages; ManufacturerKycon

Download Datasheet Parametric Compare View All

37X-20500-85 Overview

Telecom and Datacom Connector, 50 Contact(s), Female, Straight, Solder Terminal, Hole .112-.124, Receptacle, ROHS COMPLIANT

37X-20500-85 Parametric

Parameter Name	Attribute value
Maker	Kycon
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	POLARIZED
Board mount options	HOLE .12- .126
body length	3.259 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER NICKEL
Contact completed and terminated	GOLD FLASH OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	1400VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLUE
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE THERMOPLASTIC
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	37X
Plug contact pitch	0.085 inch
Plug information	37X-10500-73
Mixed contacts	NO
Installation option 1	HOLE .112-.124
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	FLASH inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	STEEL
Termination type	SOLDER
Total number of contacts	50
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

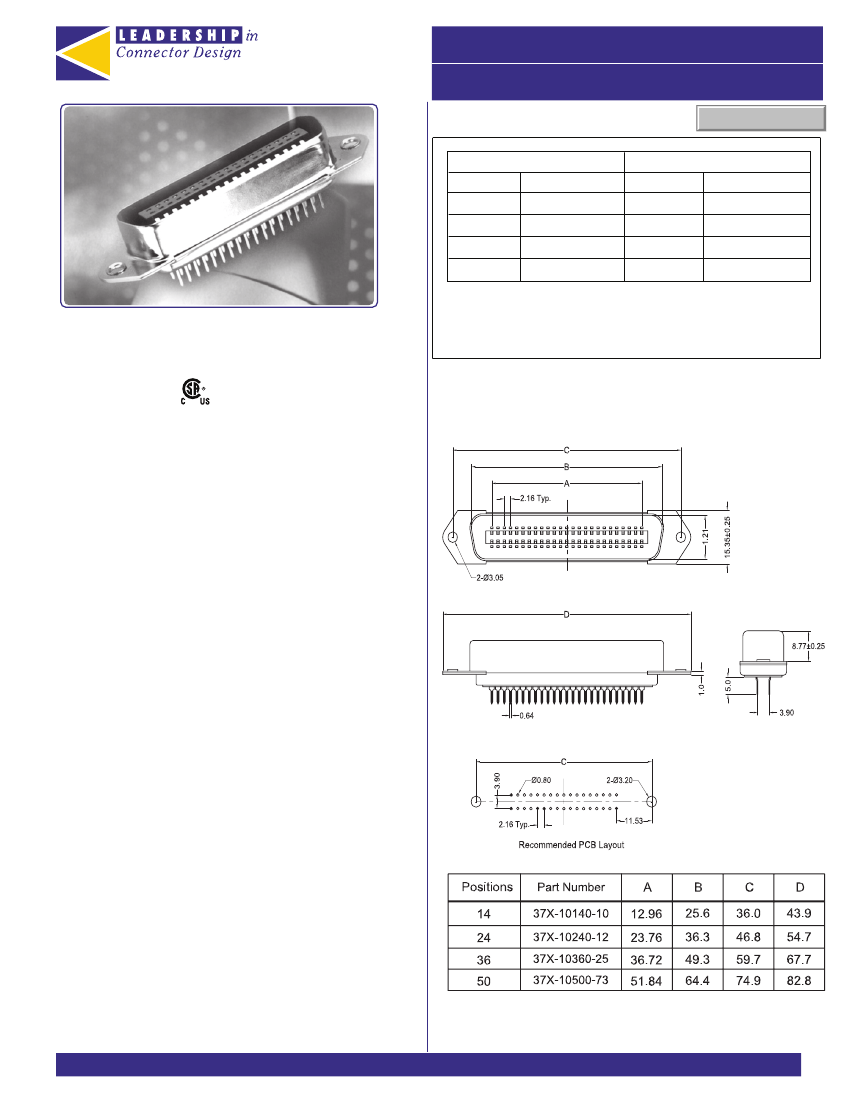

MINIATURE RIBBON CONNECTORS

KYCON

RoHS

37X Series

Ordering Information

Receptacles

Contacts

Part Number

Click here for more information

Plugs

Contacts

14

24

36

50

Part Number

14

24

36

50

37X-20140-11

37X-20240-23

37X-20360-19

37X-20500-85

37X-10140-10

37X-10240-12

37X-10360-25

37X-10500-73

Mounting Options

37X Series Vertical PCB Mount

Miniature Ribbon Connectors

Features

LR78160

K - 4-40 Threaded Bushings

KJM - 4-40 Threaded Bushings &

IEEE Standard MetricJack Screws Installed

37X Series Dimensions

Dimensions in mm

• Applications Include Computer Peripherals, Data Processing,

Telecommunications and Industrial Controls

• UL Recognized Material

• Design Meets the Requirements of IEEE-488 and SCSI

Applications

• Plug and Socket Available in 14, 24, 36, and 50 Positions

• Bright Nickel Plated Shells for EMI/RFI Shielding

• D Shaped Connector Mating and Polarization

• CSA/NRTL Certified File No. LR78160

37X-10xxx-xx

Performance Specifications

Materials and Finish

Shell :

Steel Material, Nickel Finish

Insert :

PBT Thermoplastic, Blue, 30% GlassFilled,

Self-Extinguishing, 94V-0 Rated

Contact Material :

Phosphor Bronze

Contact Finish :

Gold Flash Over 0.0001 (0.00254) Nickel

Electrical Characteristics

Contact Current Rating :1

Amps

Dielectric Withstanding Voltage :

1000 V AC Min

Insulation Resistance :

1000 Megohms Min

Temperature Rating :

-55°C to + 105°C

2

KYCON, Inc. • Tel: +1 408-494-0330 • US: 1-888-KYCON-22 • Fax: +1 408-494-0325 • www.kycon.com

2007

37X-20500-85 Related Products

	37X-20500-85	37X-10140-10	37X-10500-73	37X-20140-11	37X-10240-12	37X-20360-19
Description	Telecom and Datacom Connector, 50 Contact(s), Female, Straight, Solder Terminal, Hole .112-.124, Receptacle, ROHS COMPLIANT	Telecom and Datacom Connector, 14 Contact(s), Male, Straight, Solder Terminal, Hole .112-.124, Plug, ROHS COMPLIANT	Telecom and Datacom Connector, 50 Contact(s), Male, Straight, Solder Terminal, Hole .112-.124, Plug, ROHS COMPLIANT	Telecom and Datacom Connector, 14 Contact(s), Female, Straight, Solder Terminal, Hole .112-.124, Receptacle, ROHS COMPLIANT	Telecom and Datacom Connector, 24 Contact(s), Male, Straight, Solder Terminal, Hole .112-.124, Plug, ROHS COMPLIANT	Telecom and Datacom Connector, 36 Contact(s), Female, Straight, Solder Terminal, Hole .112-.124, Receptacle, ROHS COMPLIANT
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compli	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Base Number Matches	-	1	1	1	1	1
