33SK-PC2.4-50-1 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 33SK-PC2.4-50-1

33SK-PC2.4-50-1: DescriptionRF Connector Adapter, PC2.4-SK, Male-Female; CategoryThe connector The connector; File Size364KB，3 Pages; ManufacturerHUBER+SUHNER

Download Datasheet Parametric Compare View All

33SK-PC2.4-50-1 Overview

RF Connector Adapter, PC2.4-SK, Male-Female

33SK-PC2.4-50-1 Parametric

Parameter Name	Attribute value
Maker	HUBER+SUHNER
Reach Compliance Code	compliant
Adapter type	PC2.4-SK
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR ADAPTER
Contact point gender	MALE-FEMALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	SK
Maximum operating frequency	40 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
voltage standing wave ratio	1.12

Preview

Download Datasheet

View All

SUHNER

TEST+MEASUREMENT

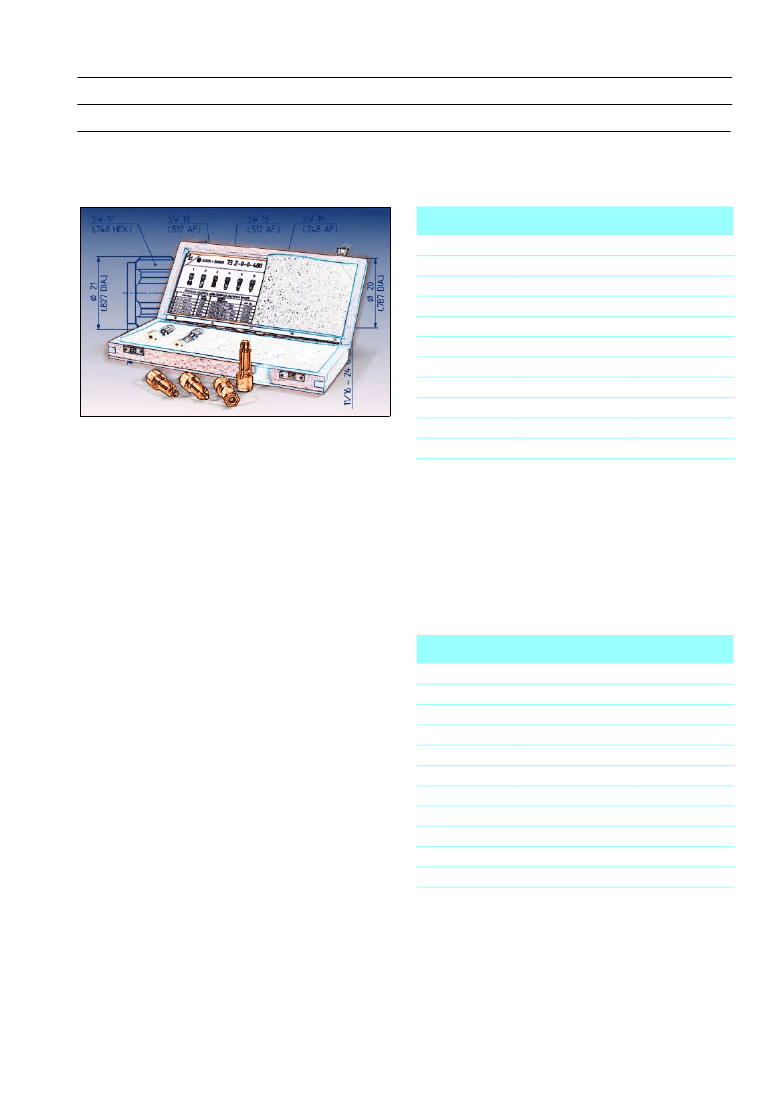

PHASE-MATCHED ADAPTORS

Complete sets of adaptors

Series PC7

185

Item

Interface 1

Interface 2

Max. frequency

23008384

PC7

Given by the adptor

18 GHz

@ 18 GHz

(193)

(194)

(195)

(196)

(197)

(198)

Type

73 Z-0-0-480

Phase matching ± 2°

Set consists of:

32 PC3.5-PC7-50-3

32 N-PC7-50-5

32 PC7-TNC-50-52

33 PC7-PC3.5-50-3

33 PC7-N-50-5

33 PC7-TNC-50-52

In phase and propagation time measurements, the

electrical length of the connection between the

measurement unit and the device under test must

be identical during calibration and the actual mea-

surement process.

For these applications,

HUBER+SUHNER

has devel-

oped the adaptors described below. Within the

series (PC7, SK), they all have the identical electri-

cal length, thereby allowing precise calibrations

during phase-critical measurements.

The adaptors are supplied in a wooden box with

a foamed plastic insert, which optimally protects

the adaptors both during handling and during

storage.

Technical data can be found on page 49.

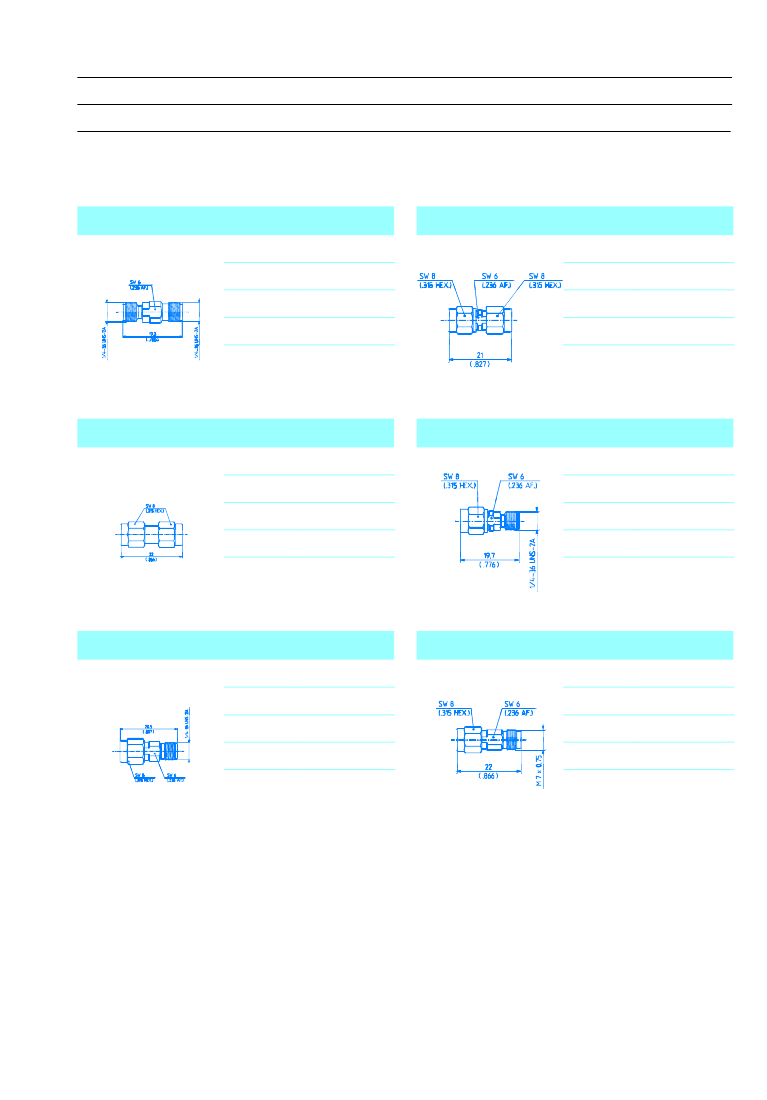

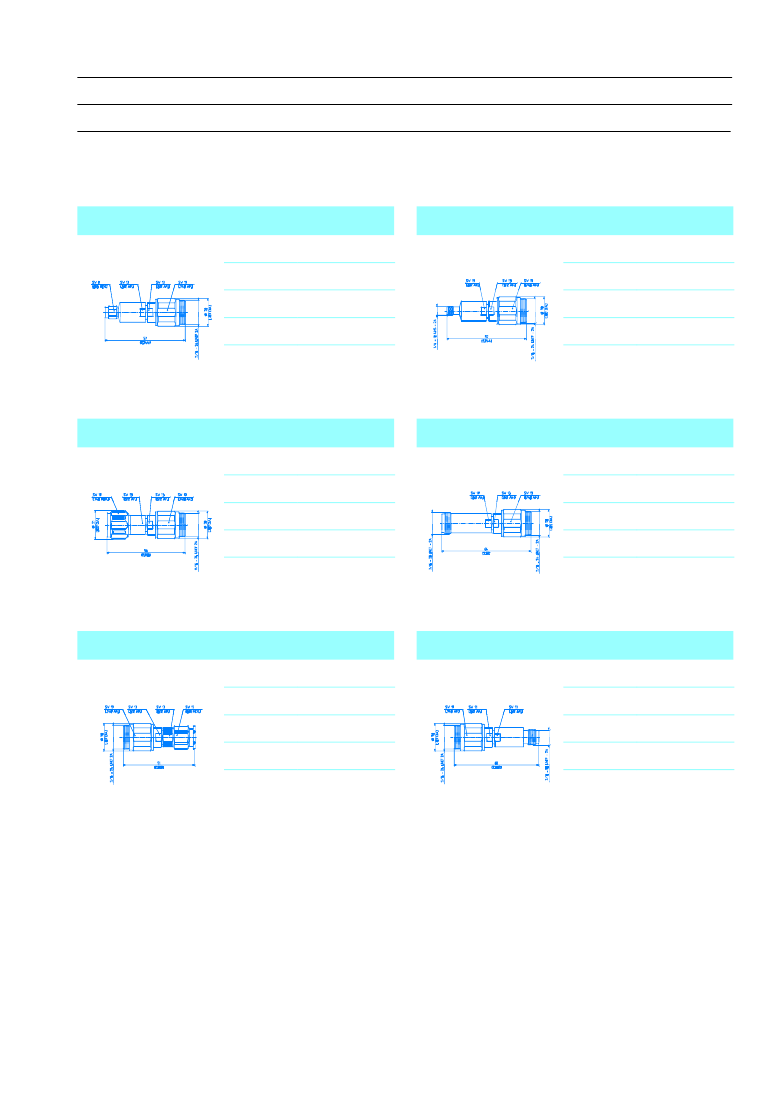

Series SK

186

Item

Interface 1

Interface 2

Max. frequency

23009292

Given by the adptor

40 GHz

@ 40 GHz

(187)

(188)

(189)

(190)

(191)

(192)

Type

73 Z-0-0-481

Phase matching ± 3.5°

Set consists of:

Empty boxes

Empty boxes 76 Z-0-0-76 (series PC7),

73 Z-0-0-479 (series SK) and matching foamed

plastic inserts are also available (see also

page 134).

31 SK-50-0-1

32 SK-50-0-1

33 SK-50-0-1

32 PC2.4-SK-50-1

33 PC2.4-SK-50-2

33 SK-PC2.4-50-1

Phase-matched adaptors with MCX or MMCX in-

terfaces are described on page 126.

Technical data can be found on page 48.

SUHNER

Test+Measurement

33SK-PC2.4-50-1 Related Products

	33SK-PC2.4-50-1	33PC2.4-SK-50-2	32N-PC7-50-5	32PC3.5-PC7-50-3	32PC7-TNC-50-52	33PC7-N-50-5	33PC7-PC3.5-50-3	33SK-50-0-1
Description	RF Connector Adapter, PC2.4-SK, Male-Female	RF Connector Adapter, PC2.4-SK, Male-Female	RF Connector Adapter, N-PC7, Male-Hermaphroditic	RF Connector Adapter, PC3.5-PC7, Male-Hermaphroditic	RF Connector Adapter, PC7-TNC, Hermaphroditic-Female	RF Connector Adapter, PC7-N, Hermaphroditic-Female	RF Connector Adapter, PC7-PC3.5, Hermaphroditic-Female	RF Connector Adapter, SK-SK, Male-Female
Maker	HUBER+SUHNER	HUBER+SUHNER	HUBER+SUHNER	HUBER+SUHNER	HUBER+SUHNER	HUBER+SUHNER	HUBER+SUHNER	HUBER+SUHNER
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Adapter type	PC2.4-SK	PC2.4-SK	N-PC7	PC3.5-PC7	PC7-TNC	PC7-N	PC7-PC3.5	SK-SK
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER
Contact point gender	MALE-FEMALE	MALE-FEMALE	MALE-HERMAPHRODITIC	MALE-HERMAPHRODITIC	HERMAPHRODITIC-FEMALE	HERMAPHRODITIC-FEMALE	HERMAPHRODITIC-FEMALE	MALE-FEMALE
Coupling type	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	SK	SK	PC7	PC7	PC7	PC7	PC7	SK
Maximum operating frequency	40 GHz	40 GHz	18 GHz	18 GHz	18 GHz	18 GHz	18 GHz	40 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO	NO	NO	NO	NO	NO	NO
voltage standing wave ratio	1.12	1.12	1.06	1.06	1.19	1.06	1.06	1.2
