384985: DescriptionD Subminiature Connector, 15 Contact(s), Male, Surface Mount Terminal,; CategoryThe connector The connector; File Size96KB，1 Pages; ManufacturerProvertha Connectors Cables & Solutions GmbH

Download Datasheet Parametric Compare View All

384985 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	384985	-	-	View	Buy Now

384985 Overview

D Subminiature Connector, 15 Contact(s), Male, Surface Mount Terminal,

384985 Parametric

Parameter Name	Attribute value
Maker	Provertha Connectors Cables & Solutions GmbH
Reach Compliance Code	compliant
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Housing size	2/A
Termination type	SURFACE MOUNT
Total number of contacts	15

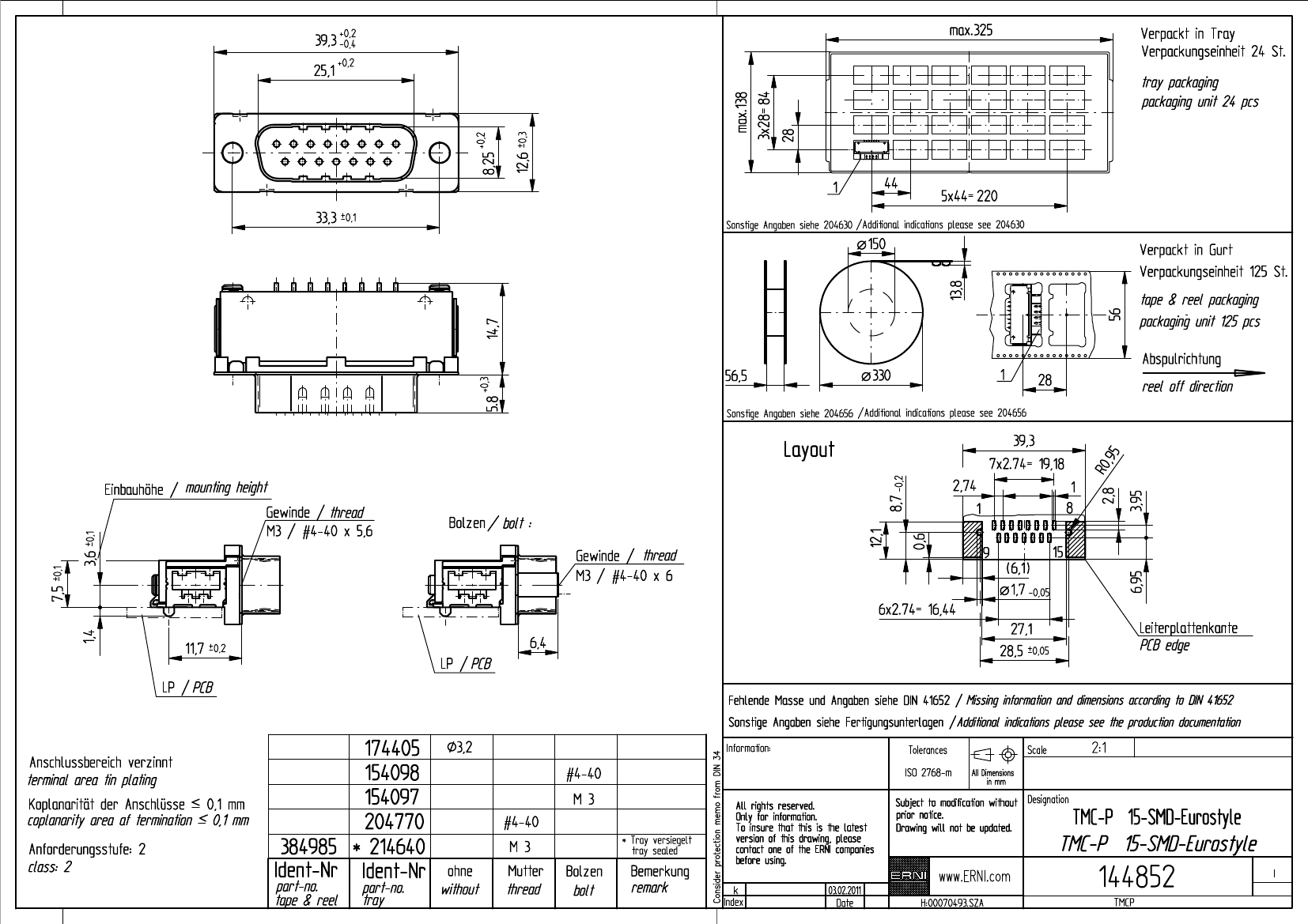

Preview

Download Datasheet

View All

384985 Related Products

	384985	214640	154098	174405
Description	D Subminiature Connector, 15 Contact(s), Male, Surface Mount Terminal,	D Subminiature Connector, 15 Contact(s), Male, Surface Mount Terminal, M3, Receptacle, ROHS COMPLIANT	D Subminiature Connector, 15 Contact(s), Male, Surface Mount Terminal, #4-40, Receptacle, ROHS COMPLIANT	D Subminiature Connector, 15 Contact(s), Male, Surface Mount Terminal, Hole .125-.137, Receptacle, ROHS COMPLIANT
Maker	Provertha Connectors Cables & Solutions GmbH	Provertha Connectors Cables & Solutions GmbH	Provertha Connectors Cables & Solutions GmbH	Provertha Connectors Cables & Solutions GmbH
Reach Compliance Code	compliant	compliant	compliant	compli
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	TIN	Tin (Sn)	Tin (Sn)	Tin (Sn)
Contact point gender	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO
empty shell	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
JESD-609 code	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO
Installation type	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Housing size	2/A	2/A	2/A	2/A
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	15	15	15	15
Is it Rohs certified?	-	conform to	conform to	conform to
package instruction	-	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Other features	-	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308
body width	-	0.496 inch	0.496 inch	0.496 inch
subject depth	-	0.579 inch	0.579 inch	0.579 inch
body length	-	1.547 inch	1.547 inch	1.547 inch
Body/casing type	-	RECEPTACLE	RECEPTACLE	RECEPTACLE
Contact material	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
contact mode	-	STAGGERED	STAGGERED	STAGGERED
Contact resistance	-	25 mΩ	25 mΩ	25 mΩ
Contact style	-	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
Dielectric withstand voltage	-	1400VAC V	1400VAC V	1400VAC V
maximum insertion force	-	3.2804 N	3.2804 N	3.2804 N
Insulation resistance	-	5000000000 Ω	5000000000 Ω	5000000000 Ω
insulator material	-	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER
Installation option 1	-	M3	#4-40	HOLE .125-.137
Installation option 2	-	THREADED	SCREW	LOCKING
Installation method	-	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
PCB row number	-	2	2	2
Number of rows loaded	-	2	2	2
Maximum operating temperature	-	125 °C	125 °C	125 °C
Minimum operating temperature	-	-55 °C	-55 °C	-55 °C
PCB contact pattern	-	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	-	3.9624 mm	3.9624 mm	3.9624 mm
Rated current (signal)	-	5 A	5 A	5 A
Guideline	-	UL	UL	UL
reliability	-	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	-	TIN	TIN	TIN
Shell material	-	STEEL	STEEL	STEEL
Terminal pitch	-	2.7432 mm	2.7432 mm	2.7432 mm
UL Flammability Code	-	94V-0	94V-0	94V-0
Evacuation force-minimum value	-	.278 N	.278 N	.278 N
