340-93-126-30-780100 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 340-93-126-30-780100

340-93-126-30-780100: DescriptionBoard Connector, 26 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal,; CategoryThe connector The connector; File Size165KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

340-93-126-30-780100 Overview

Board Connector, 26 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal,

340-93-126-30-780100 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mill-Max
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	TIN LEAD (200)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	340
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	26

Preview

Download Datasheet

View All

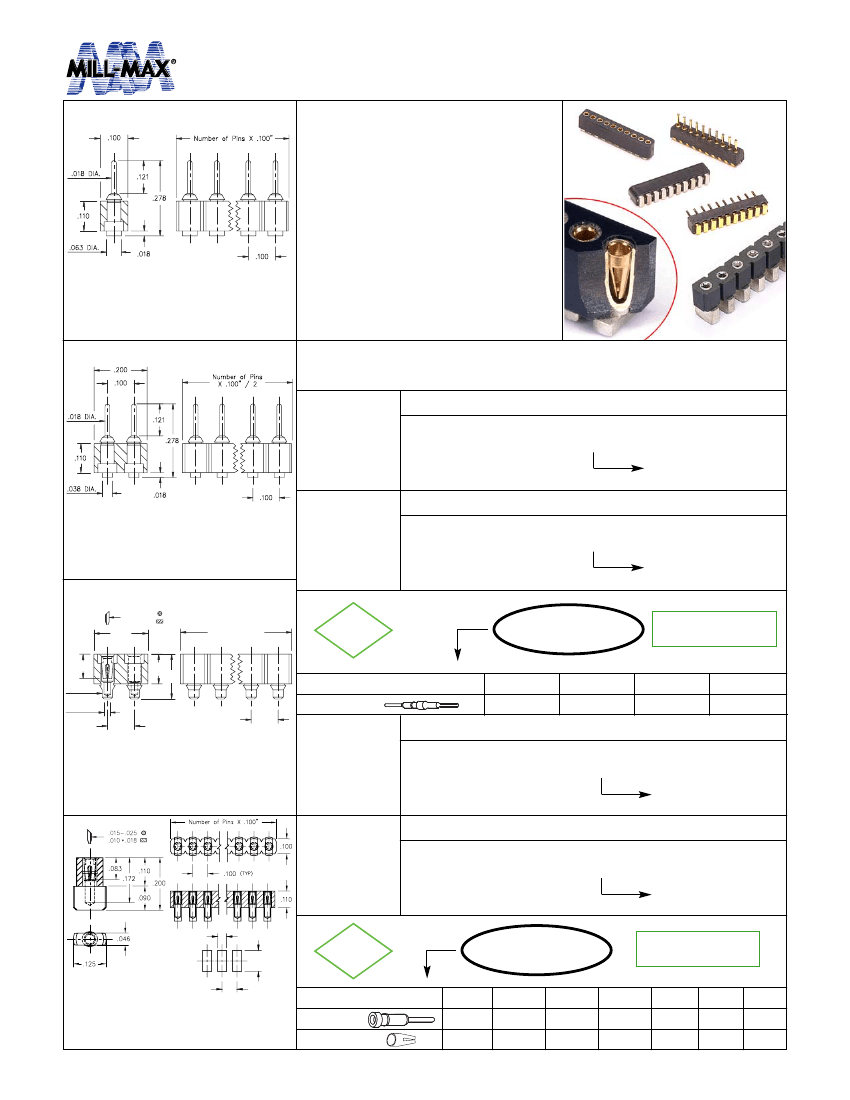

INTERCONNECTS

Surface Mount Headers and Sockets

Single and Double Row

.100

Number of Pins X .100"

Series 329, 340,

414, 429

•

Series 329 and 429 pin interconnects

offer vertical Surface Mount MM #2956-X

solder tails. See page 176 for details.

•

Series 340 Surface mount sockets use

MM #4078 pins. Series 414 sockets use

MM #1434 pins. See pages 131 and 136

for details.

.018 DIA.

.121

.278

.110

.063 DIA.

.018

.100

Coplanarity .005”. For Pin Counts >10 positions

consult Technical Support.

•

Series 340 and 414 receptacles use Hi-

Rel, 4-finger BeCu #30 contacts rated at

3 amps. Receptacles accept .015”-.025”

diameter pins. See page 208 for details.

•

Insulators are high temp. thermoplastic.

Fig. 1

.200

.100

Number of Pins

X .100" / 2

Ordering Information

Series 329...560

Surface Mount Pin Header

.018 DIA.

.121

.278

Fig. 1

.100

329-XX-1_ _-00-560000

Specify # of pins

02-64

Surface Mount Pin Header

.110

.038 DIA.

.018

Series 429...560

Coplanarity .005”. For Pin Counts >10 positions

consult Technical Support.

Fig. 2

429-XX-2 _ _-00-560000

Specify # of pins

XX= Plating Code

See Below

Fig. 2

04-72

For RoHS compliance

select plating code.

.015-.025

.010 * .018

.200

Number

of Pins

.100" / 2

.096

.038 DIA.

.025 DIA.

HOLE

.100

.110

.166

SPECIFY PLATING CODE XX=

μ”

200

μ”

Pin Plating

.100

Series 414...117

Surface Mount Socket

Coplanarity .005”. For Pin Counts >10 positions

consult Technical Support.

Fig. 3

414-XX-2 _ _-41-117000

Specify # of pins

Series 340...780

04-72

Surface Mount Socket

Fig. 3

Fig. 4

340-XX-1 _ _-30-780100

Specify # of pins

02-64

For RoHS compliance

select plating code.

200µ”Sn/Pb

.056

Footprint

.130

XX= Plating Code

See Below

SPECIFY PLATING CODE XX=

.100

Coplanarity .005”. For Pin Counts >10 positions

consult Technical Support.

10 µ” Au

30 µ” Au

Fig. 4

Sleeve (Pin)

Contact (Clip)

200µ” Sn/Pb 200µ”Sn/Pb

200µ”Sn

200µ”Sn 200µ”Sn

30 µ” Au 200µ”Sn

w w w. m i l l - m a x . c o m

77.1

516-922-6000
