HUBER+SUHNER
®
DATA SHEET

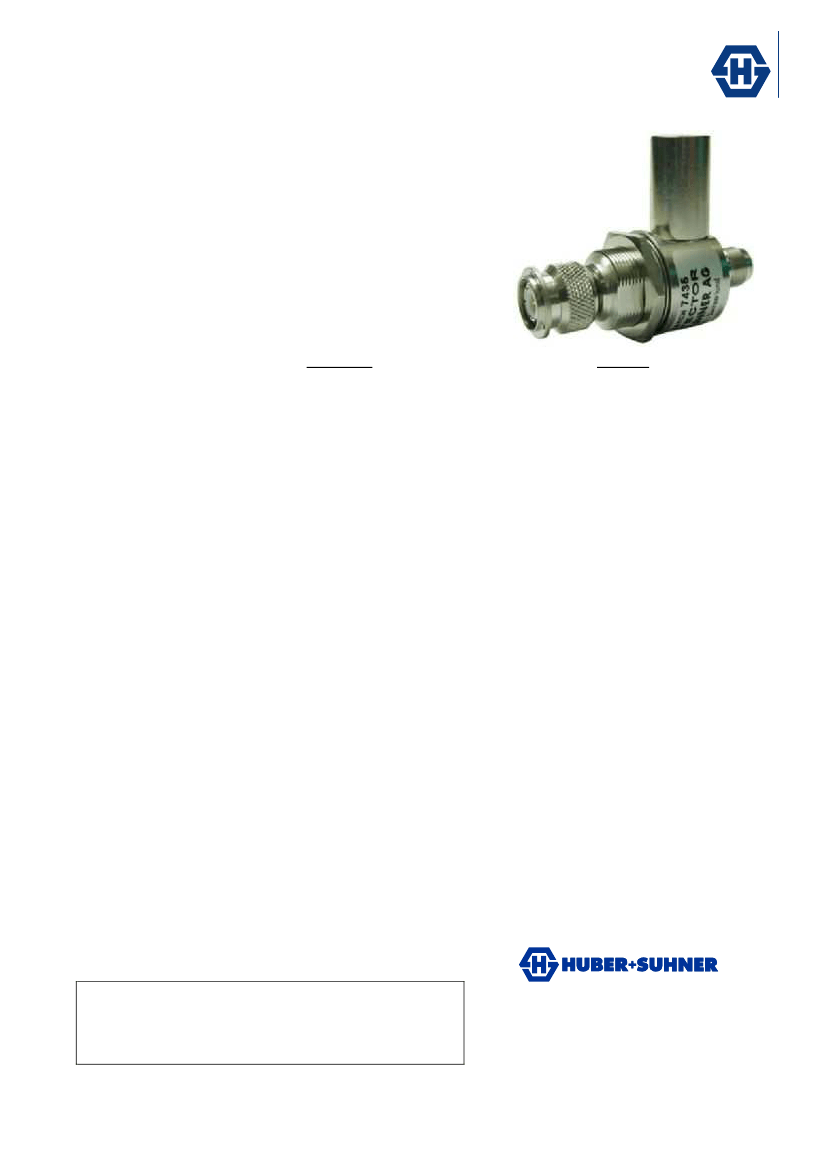

EMP Protector: 3400.99.0005
Description
Benefits
Rev.: C
Quarter-wave stub technology
The protector can also be installed reversely
Compliant to IEC 61643-21
Product Configuration
Main path connectors
Mounting and grounding
Side of bulkhead
Port 1: unprotected, TNC-R jack (female) reversed - Port 2: protected, TNC-R plug (male)
reversed
MH25 (MH=bulkhead mounting)
Technical Data
Electrical Data
Mechanical Data
Weight
Impedance
Frequency range
Return loss
Insertion loss
RF CW power
rd
PIM 3 order
Surge current handling capability
Residual pulse energy
50
Ω
2300 to 2700 MHz
≥ 20 dB
≤ 0.15 dB
≤ 400 W
not specified
25 multiple kA (test pulse 8/20
µs)
5
µJ
typically (test pulse 4 kV 1.2/50
µs
/ 2 kA 8/20
µs)
120 g
main path - protected side
Environmental Data
Operating temperature
Waterproof degree
2002/95/EC (RoHS)
Piece Parts
Housing
Port 1 center contact
Port 2 center contact
Outline drawing
Mounting instruction
Material Data
-40 °C to +85 °C
IP 20 (according to IEC 60529, data refer to the coupled state)
compliant
Material
Brass
Brass
Copper Beryllium Alloy
DOU-00003858
DOC-0000176104
Surface Plating
SUCOPLATE (R) Plating
Gold Plating (without Nickel underplating)
Gold Plating (without Nickel underplating)
Related Documents
Remarks
TNC-R: with reverse gender
HUBER+SUHNER is certified according to ISO 9001 and ISO 14001
WAIVER!
It is exclusively in written agreements that we provide our customers with warrants and
representations as to the technical contained specifications and/or the fitness for any particular
purpose. The facts and figures herein are carefully compiled to the best of our knowledge, but they are
intended for general informational purposes only.
HUBER+SUHNER AG
RF Protection
9100 Herisau, Switzerland
Phone +41 (0)71 353 41 11
Fax
+41 (0)71 353 47 51
www.hubersuhner.com
HUBER+SUHNER – Excellence in Connectivity Solutions
Document: DOC-0000176880 N
Issued: 05.02.2010 16:14:49
Uncontrolled Copy
Page 1/1
