34S22A-340L5: DescriptionRF 1.0/2.3 DIN Connector, Male, Panel Mount, Cable Mount, Crimp Terminal, Plug, ROHS COMPLIANT; CategoryThe connector The connector; File Size67KB，2 Pages; ManufacturerRosenberger; Websitehttps://www.rosenberger.com/

Download Datasheet Parametric View All

34S22A-340L5 Overview

RF 1.0/2.3 DIN Connector, Male, Panel Mount, Cable Mount, Crimp Terminal, Plug, ROHS COMPLIANT

34S22A-340L5 Parametric

Parameter Name	Attribute value
Maker	Rosenberger
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF 1.0/2.3 DIN CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Coupling type	SLIDE ON
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	34S22A-340L5
Installation method	RIGHT ANGLE
Installation type	CABLE
Maximum operating frequency	10 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	CRIMP

Preview

Download Datasheet

View All

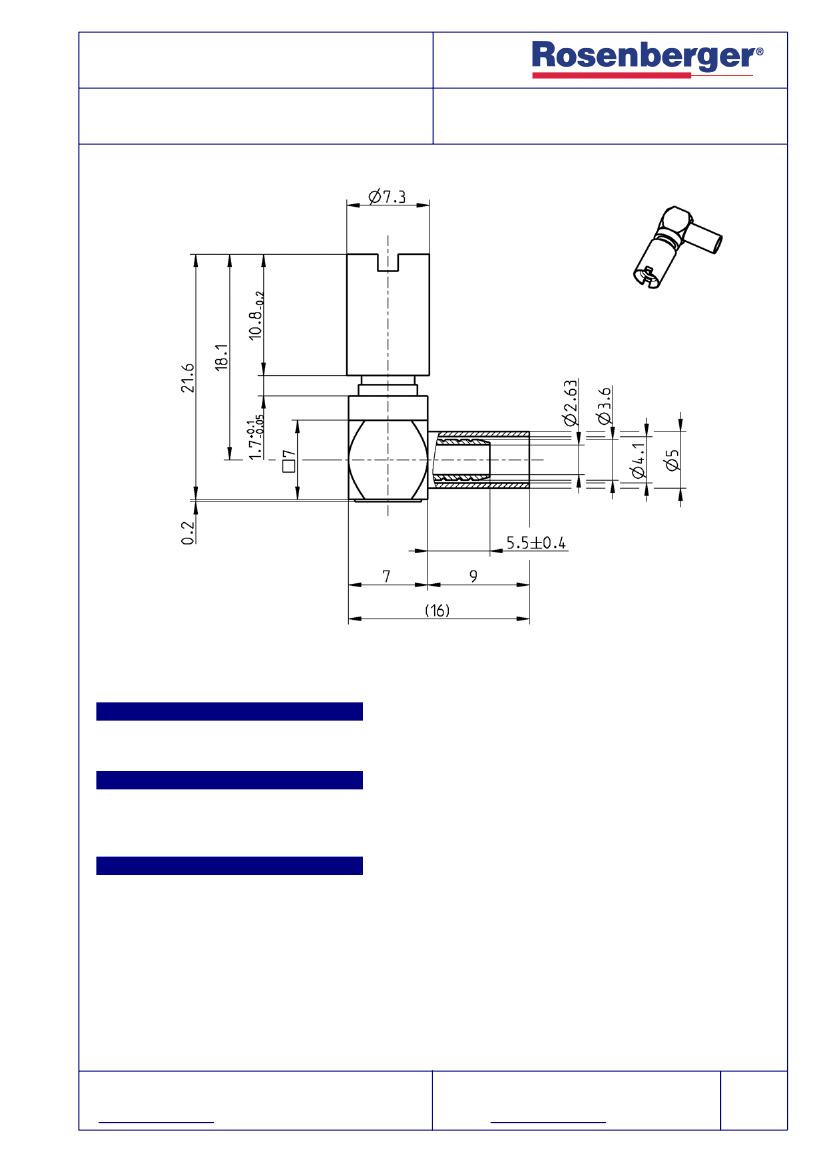

TECHNICAL DATA SHEET

1.0/2.3

RIGHT ANGLE PLUG

SLIDE-ON, FOR 75

CABLE

34S22A-340L5

All dimensions are in mm; tolerances according to ISO 2768 m-H

Interface

According to

CECC 22 230, DIN 47297

Documents

Assembly instruction

Panel piercing

34 D

B 26

Material and plating

Connector parts

Center contact

Outer contact

Body

Centering sleeve

Dielectric

Crimping ferrule

Material

CuBe

Brass

PTFE

Copper

Plating

AuroDur®, gold plated

Silver, 3-6 µm

Nickel, 2.5-5 µm

RF_35/12.04/3.0

Rosenberger Hochfrequenztechnik GmbH & Co. KG

P.O.Box 1260

D-84526 Tittmoning

Germany

www.rosenberger.de

Tel.: +49 8684 18-0

Fax: +49 8684 18-499

email: info@rosenberger.de

Page

1/2
