PA3747.205NL datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> PA3747.205NL

Preview

PA3747.205NL: DescriptionData Line Filter,; CategoryAnalog mixed-signal IC filter; File Size726KB，3 Pages; ManufacturerPulse Electronics; Environmental Compliance

Download Datasheet Parametric Compare View All

PA3747.205NL Overview

Data Line Filter,

PA3747.205NL Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Pulse Electronics
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	10 weeks

Preview

Download Datasheet

View All

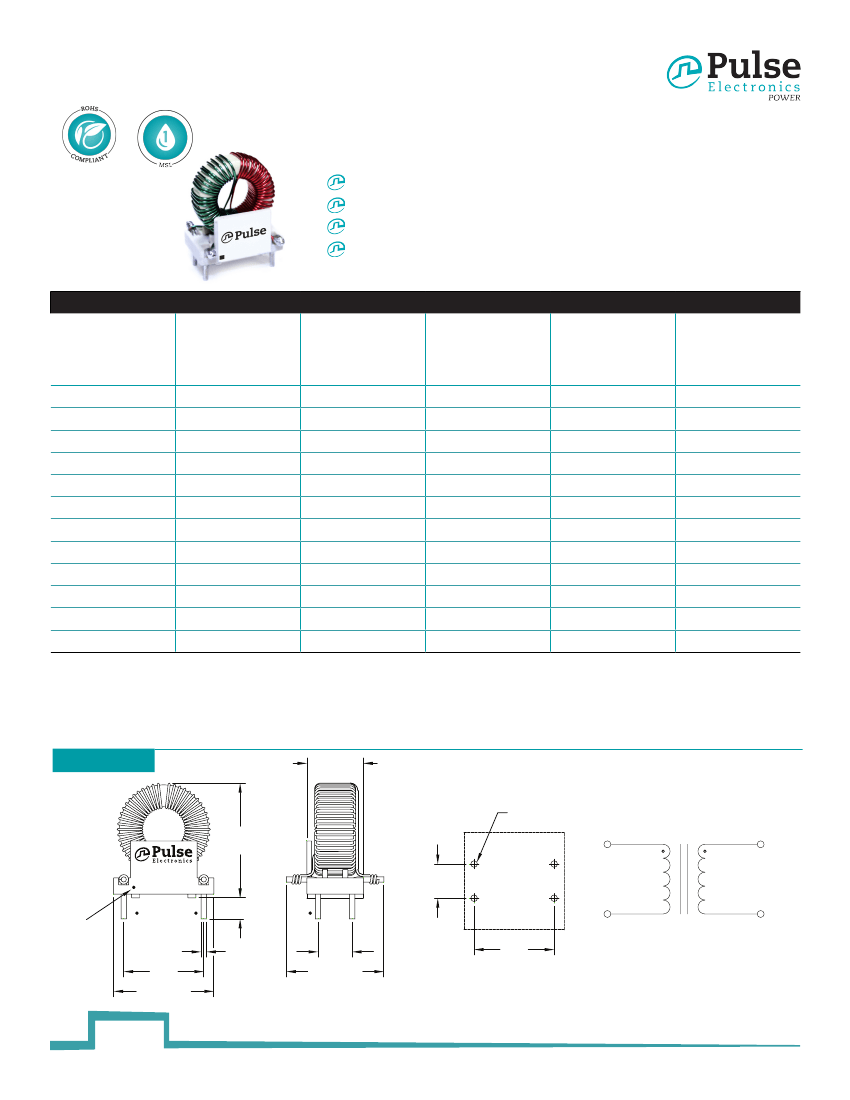

THT Common Mode Chokes

PA3747.XXXNL

Dielectric Strength: 1500Vrms

Inductance Range: 0.67mH (at 5A) to 19.5mH (at 0.75A)

Height: 22.9mm Max

Footprint: 19.3mm x 18.2mm

Electrical Specifications @ 25°C - Operating Temperature -40°C to +125°C

Inductance

(1-2)=(3-4)

(mH Min)

0.67

1.28

1.92

2.68

3.33

4.06

4.58

6.03

6.67

9.10

13.00

19.50

Current Rating

(1-2)=(3-4)

(A)

5.00

4.00

2.75

2.25

1.85

1.55

1.50

1.45

1.40

1.00

0.75

1

Part Number

PA3747.105NL

PA3747.205NL

PA3747.305NL

PA3747.405NL

PA3747.505NL

PA3747.605NL

PA3747.705NL

PA3747.905NL

PA3747.106NL

PA3747.146NL

PA3747.206NL

PA3747.306NL

DCR

(1-2)=(3-4)

(mΩ Max)

16

25.5

49.5

71.5

103.5

132

134

154

169

207

295

572

Self Resonant

Frequency

(1-2)=(3-4)

(MHz Min)

1.18

1.10

1.00

0.94

0.88

0.78

0.80

0.30

0.29

0.21

0.20

0.12

Impedance

(kOhms Min at SRF)

3.33

5.04

5.08

11.57

14.40

17.93

18.24

24.38

26.90

42.69

51.22

80.65

Notes:

1. The current rating (Irated) is based upon the temperature rise of the component and represents the rms current which will cause a typical temperature rise of 40½C.

2. The temperature of the component (ambient plus temperature rise) must be within the stated operating temperature range.

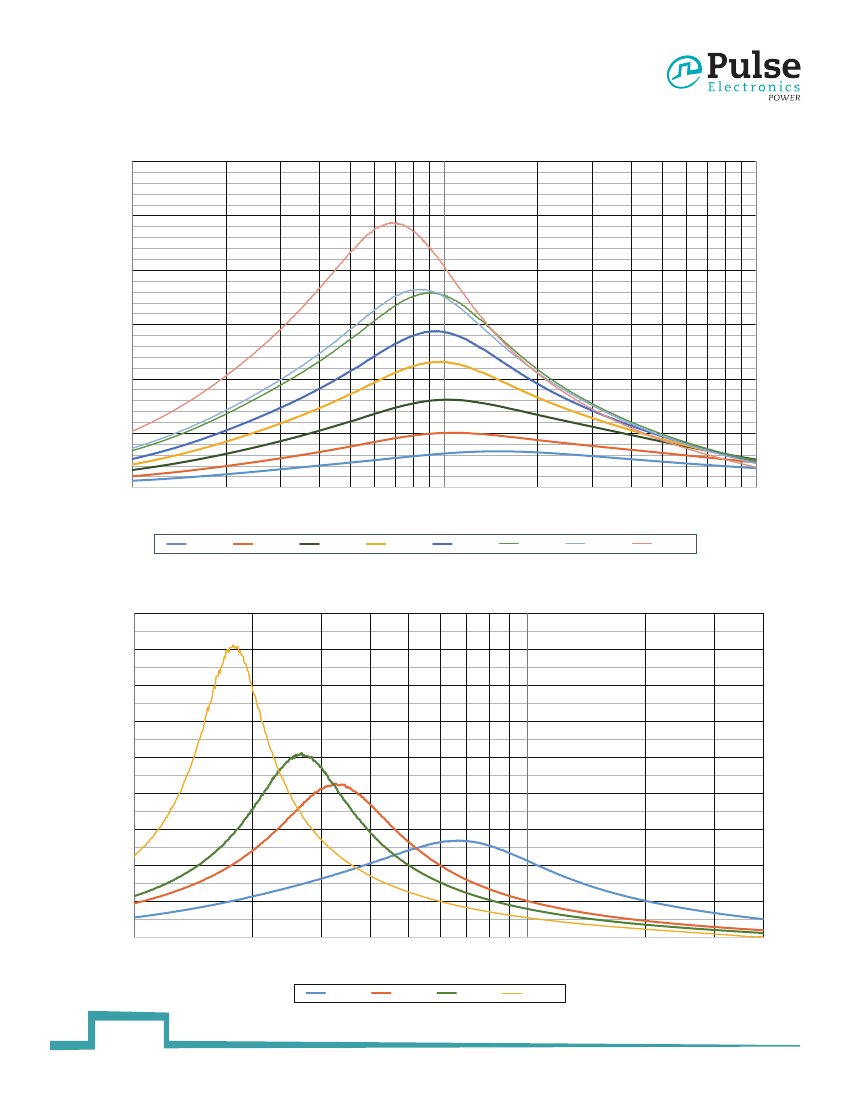

Mechanical

PA3747.XXXNL

N1

N2

10.8 MAX

Schematic

4X Ø1.27

22.9 MAX

1

6.50

3

N1

N2

4

PA3747.XXXNL

DATE CODE

CTRY OF MFG

PIN 1

INDICATOR

1

4X Ø1.0

15.2

19.3 MAX

3

4.0

3

6.5

18.2 MAX

4

15.20

THRU HOLE LAYOUT

2

1

power.pulseelectronics.com

P721.D (07/17)

http://www.power.pulseelectronics.com/contact
