1. SCOPE
Email: lge@luguang.cn
This specification shall cover the characteristics of the ceramic
resonator with the type ZTT4.00MG.
2. PART NO.:
PART NUMBER CUSTOMER PART NO SPECIFICATION NO
ZTT4.00MG

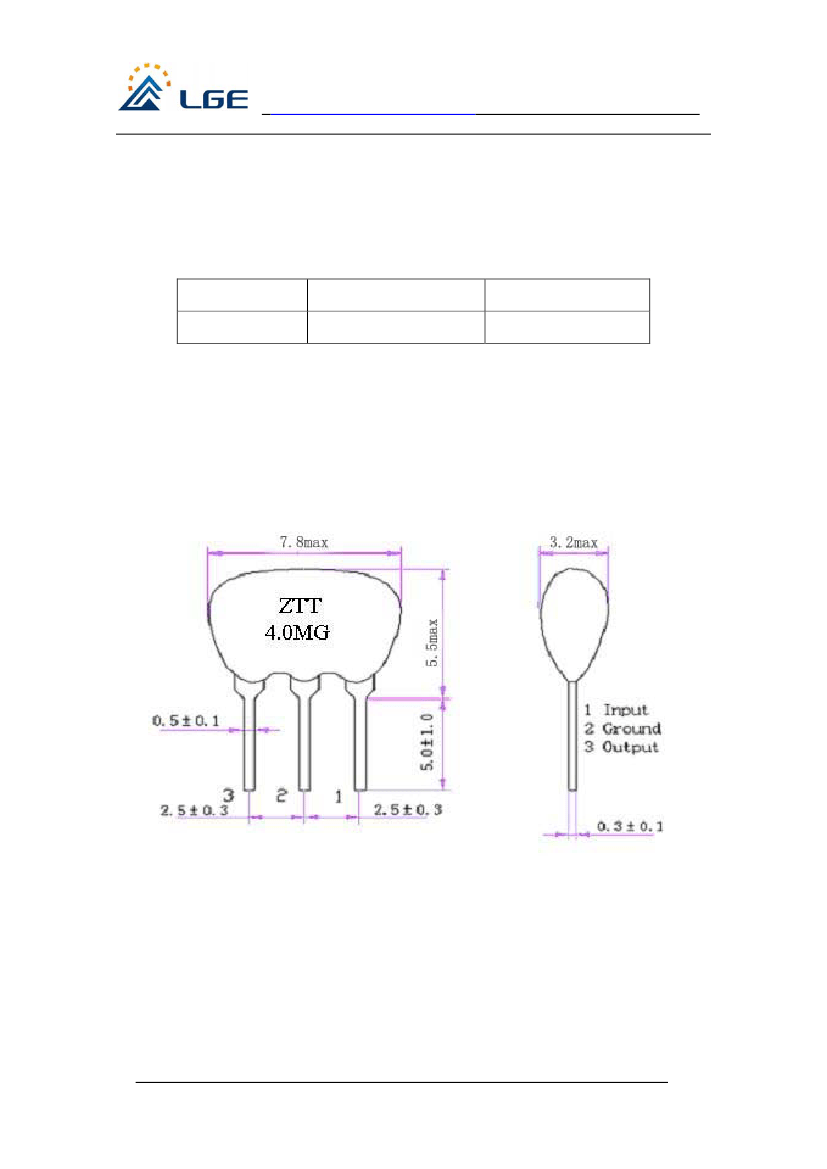

3. OUTLINE DRAWING AND DIMENSIONS:
3.1 Appearance: No visible damage and dirt.
3.2 Construction: Leads are soldered on electrode and body is molded
by resin.
3.3 Dimensions:
UNIT：mm
SHENZHEN LUGUANG ELECTRONIC TECHNOLOGY CO.,LTD.
1
http://www.luguang.cn
Email: lge@luguang.cn
4. ELECTRICAL SPECIFICATIONS:
Oscillation Frequency Fosc（MHz）
Frequency Accuracy
（%）
Resonant Impedance
Ro（Ω）max
4.000
±0.5
40
±0.3 （Oscillation
Frequency drift，
-25℃½+85℃）
±0.3 （For
Ten Years）
6VDC
15Vp-p
100
（100V，1min）
50VDC，1min
Temperature Coefficient of Oscillation
Frequency
（%）max
Aging Rate
（%）max
Rating Voltage
U
R
（V）max
Insulation Resistance Ri,（MΩ）min
Withstanding Voltage
5. MEASUREMENT:
5.1 Measurement Conditions: Parts shall be measured under a condition
( Temp.：20±15℃,Humidity
：65±20%
R.H.) unless the standard
condition(Temp.：25±3℃,Humidity
：65±5%
R.H.) is regulated to
measure.
5.2 Test Circuit:
IC：1/6TC4069UBP×2
X：CERAMIC RESONATOR
C
1
C
2
：30pF
6. PHYSICAL AND ENVIRONMENTAL CHARACTERISTICS
SHENZHEN LUGUANG ELECTRONIC TECHNOLOGY CO.,LTD.
2
http://www.luguang.cn
No
6.1
Item
Condition of Test
Email: lge@luguang.cn
6.2
6.3
6.4
6.5
6.6
6.7
6.8
Performance
Requirements
Humidity
Subject the resonator at +40
±
2
℃
and It shall fulfill the
90%-95% R.H. for 500 hours, resonator shall specifications in
be measured after being placed in natural Table 1.
conditions for 1 hour.
High
Subject the resonator to +85±5℃ for 500 It shall fulfill the
Temperature hours, resonator shall be measured after being specifications in
Exposure
placed in natural conditions for 1 hour.
Table 1.
Low
Subject the resonator to –25±5℃ for 500 It shall fulfill the
Temperature hours, resonator shall be measured after being specifications in
Exposure
placed in natural conditions for 1 hour.
Table 1.
Temperature Subject the resonator to
－25℃
for 30 min. It shall fulfill the
Cycling
followed by a high temperature of
＋85℃
specifications in
for 30 min. Cycling shall be repeated 5 times. Table 1.
Resonator shall be measured after being
placed in natural conditions for 1 hour.
Vibration
Subject the resonator to vibration for 2 hours It shall fulfill the
each in x y and z axis with the amplitude of specifications in
1.5mm, the frequency shall be varied Table 1.
uniformly between the limits of 10Hz-55Hz
and then resonator shall be measured.
Mechanical
Resonator shall be measured after 3 times' No
visible
Shock
random dropping from the height of 100cm damage and it
on concrete floor.
shall fulfill the
specifications in
Table 1.
Resistance to Lead terminals are immersed up to 2 mm It shall fulfill the
Soldering
from resonator’s body in soldering bath of specifications in
Heat
260
±
5
℃
for 5
±
1 seconds and then Table 1.
resonator shall be measured after being placed
in natural conditions for 1 hour
Solderability Lead terminals are immersed up to 2mm from More than 95%
resonator’s body in soldering bath of 250± of the terminal
5℃ for 2±0.5 sec.
surface of the
resonator shall be
covered
with
fresh solder.
6. PHYSICAL AND ENVIRONMENTAL CHARACTERISTICS
SHENZHEN LUGUANG ELECTRONIC TECHNOLOGY CO.,LTD.
3
http://www.luguang.cn
(Continued from the preceding page)
No
6.9
Item
Email: lge@luguang.cn
Terminal
Strength
6.9.1 Terminal
Pulling
6.9.2 Terminal
Bending
Performance
Requirements
No visible damage
and it shall fulfill
Force of 5N is applied to each lead in axial the specifications
direction for 10±1 sec.
in Table 1.
When force of 5N is applied to each lead in
axial direction,the lead shall folded up 90°
from the axial direction and folded back to
the axial direction. The speed of folding
shall be each 3 seconds.
Condition of Test
Table 1
Item
Oscillation Frequency Change
Δfosc/fosc （%）max
Resonant Impedance
Ro（
Ω
）max
Specification after test
±0.3（Refer
to the initial value）
40
Note
：
The limits in the above table are referenced to the initial
measurements.
