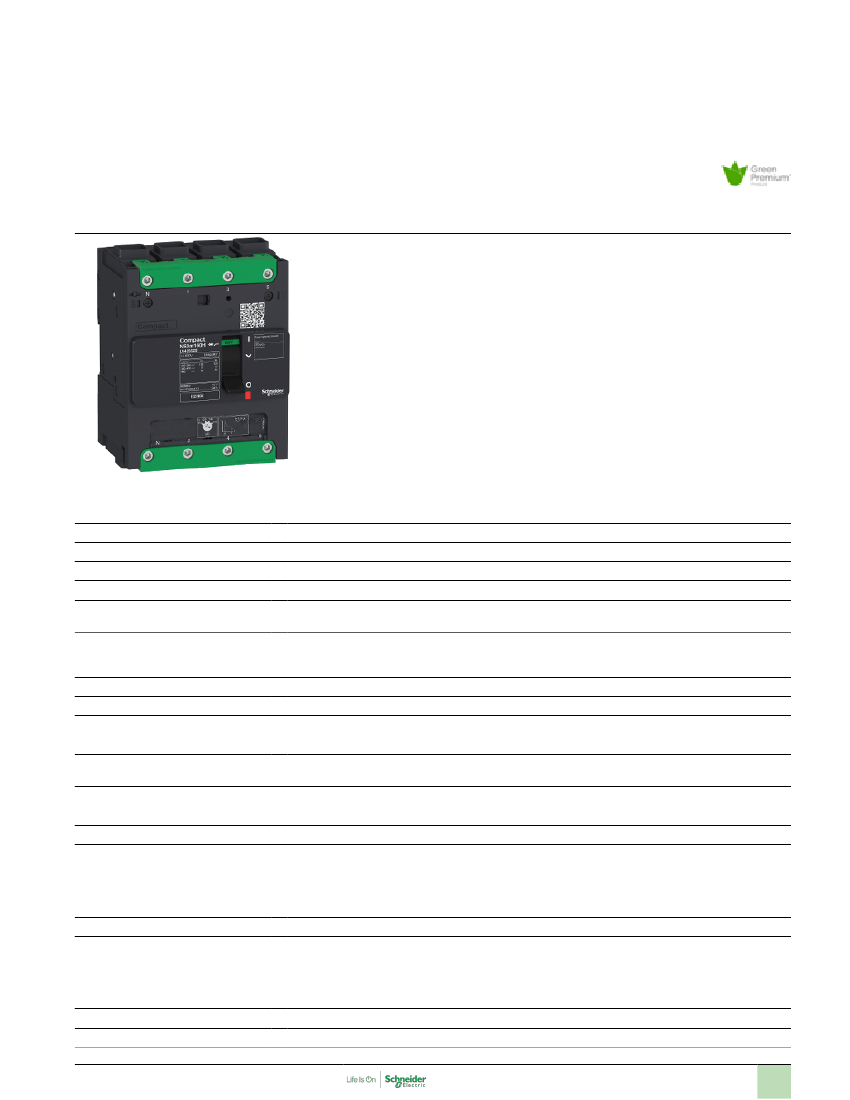

Product datasheet

Characteristics

LV426313

circuit breaker Compact NSXm 40A 4P 36kA at

380/415V(IEC) EverLink lug

Main

Range

Product name

Device short name

Product or component type

Device application

Compact

Compact NSXm

NSXm 40F

Circuit breaker

Distribution

Protection

Complementary

[In] rated current

Poles description

Neutral position

Control type

Mounting mode

Network type

Network frequency

Breaking capacity code

[Icu] rated ultimate breaking capacity

40 A

4P 3d

Left

Toggle

By screws (plate)

Clip-on (DIN rail)

50/60 Hz

36 kA 415 V AC

Icu 85 kA at 220...240 V AC 50/60 Hz conforming to IEC 60947-2

Icu 36 kA at 380...415 V AC 50/60 Hz conforming to IEC 60947-2

Icu 35 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2

Icu 15 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2

Icu 10 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2

690 V AC 50/60 Hz conforming to IEC 60947-2

10 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2

85 kA at 220...240 V AC 50/60 Hz conforming to IEC 60947-2

36 kA at 380...415 V AC 50/60 Hz conforming to IEC 60947-2

30 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2

10 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2

8 kV conforming to IEC 60947-2

800 V conforming to IEC 60947-2

[Ue] rated operational voltage

[Ics] rated service breaking capacity

[Uimp] rated impulse withstand voltage

[Ui] rated insulation voltage

Aug 17, 2019
