4N40T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 4N40T

4N40T: DescriptionSCR Output Optocoupler, 1-Element, 7500V Isolation, DIP-6; CategoryLED optoelectronic/LED photoelectric; File Size101KB，4 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

4N40T Overview

SCR Output Optocoupler, 1-Element, 7500V Isolation, DIP-6

4N40T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Motorola ( NXP )
package instruction	DIP-6
Reach Compliance Code	unknown
Other features	UL RECOGNIZED, VDE APPROVED
Configuration	SINGLE
Maximum forward current	0.06 A
Maximum input trigger current	0.03 A
Nominal input trigger current	15 mA
Maximum insulation voltage	7500 V
JESD-609 code	e0
Installation features	THROUGH HOLE MOUNT
Number of components	1
Maximum on-state current	0.3 A
Maximum on-state voltage	1.3 V
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Optoelectronic device types	SCR OUTPUT OPTOCOUPLER
Minimum off-state peak voltage	400 V
Peak surge current	10 A
Off-state repetitive peak voltage	400 V
Maximum reverse leakage current	0.00015 A
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)

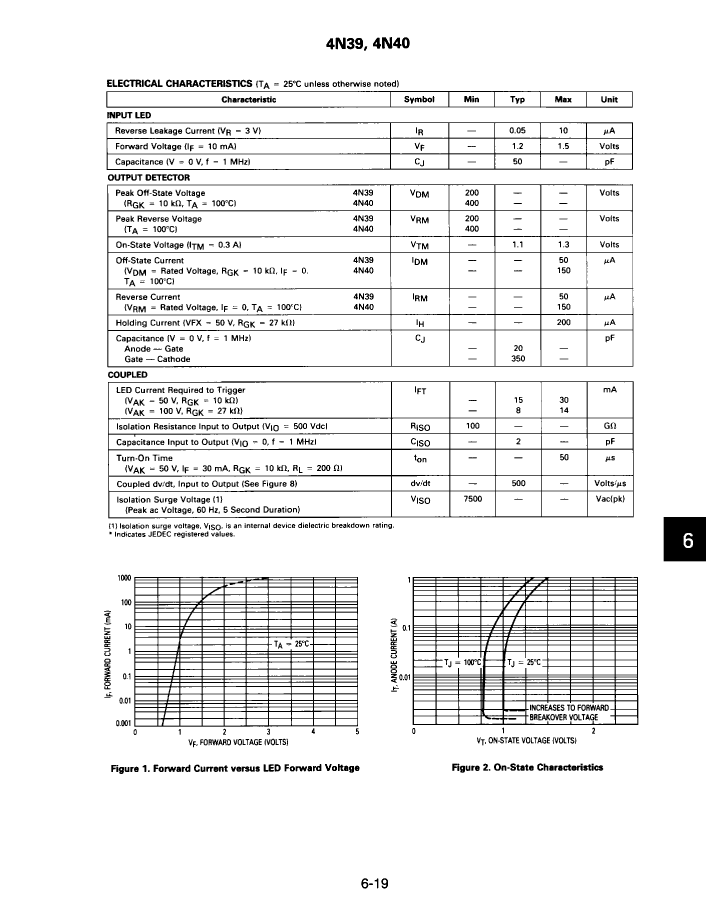

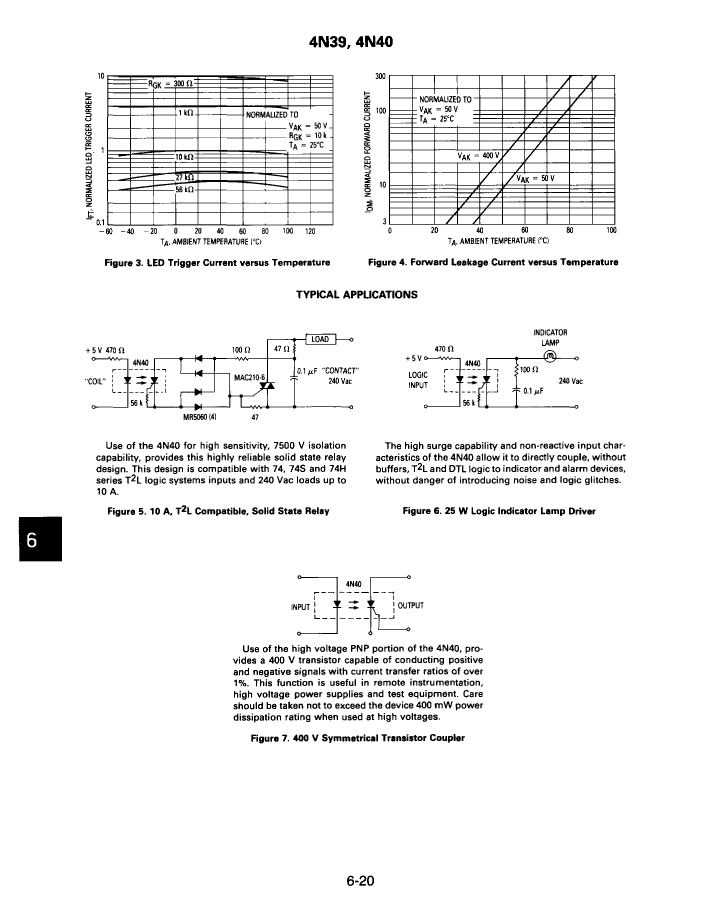

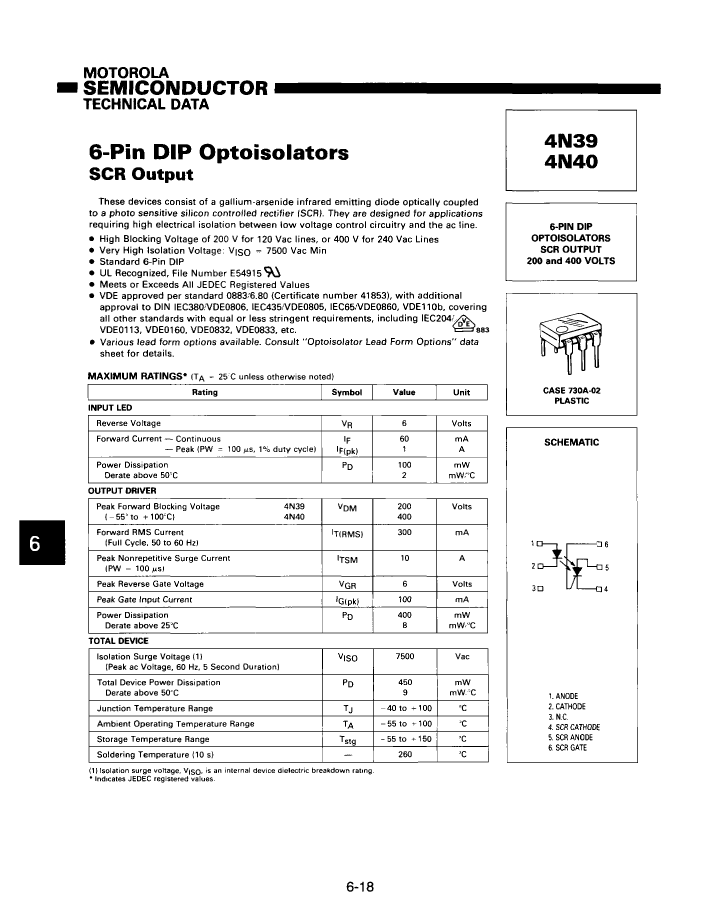

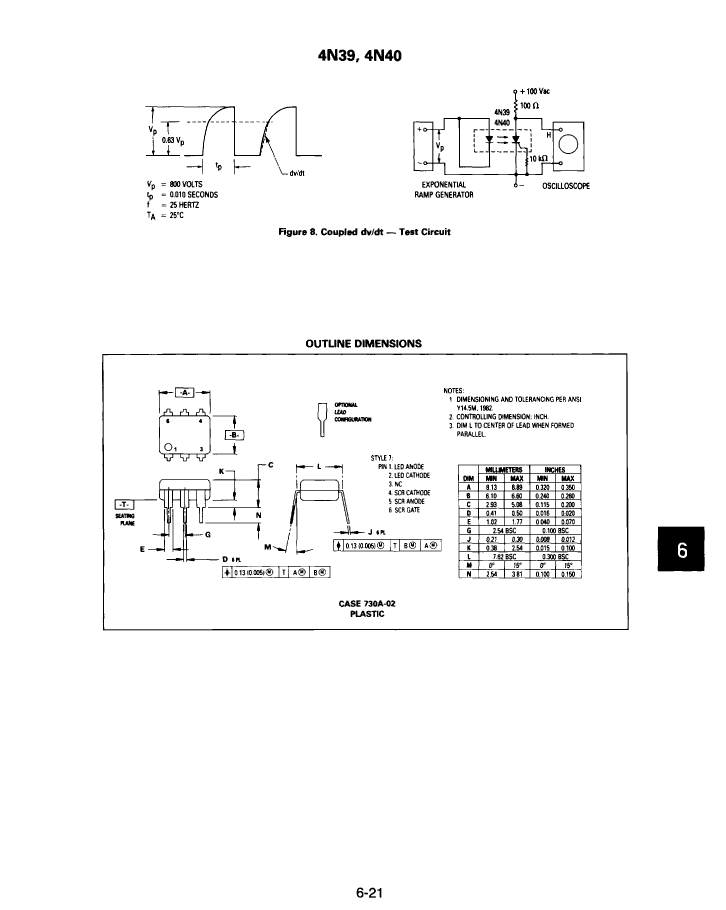

Preview

Download Datasheet

View All

4N40T Related Products

	4N40T	4N39T	4N40S	4N39S	4N40	4N40R
Description	SCR Output Optocoupler, 1-Element, 7500V Isolation, DIP-6	1 CHANNEL SCR OUTPUT OPTOCOUPLER, DIP-6	SCR Output Optocoupler, 1-Element, 7500V Isolation, DIP-6	SCR Output Optocoupler, 1-Element, 7500V Isolation, DIP-6	1 CHANNEL SCR OUTPUT OPTOCOUPLER, DIP-6	1 CHANNEL SCR OUTPUT OPTOCOUPLER, DIP-6
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	DIP-6	DIP-6	DIP-6	DIP-6	DIP-6	DIP-6
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Other features	UL RECOGNIZED, VDE APPROVED	UL RECOGNIZED, VDE APPROVED	UL RECOGNIZED, VDE APPROVED	UL RECOGNIZED, VDE APPROVED	UL RECOGNIZED, VDE APPROVED	UL RECOGNIZED, VDE APPROVED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.06 A	0.06 A	0.06 A	0.06 A	0.06 A	0.06 A
Maximum input trigger current	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A
Nominal input trigger current	15 mA	15 mA	15 mA	15 mA	15 mA	15 mA
Maximum insulation voltage	7500 V	7500 V	7500 V	7500 V	7500 V	7500 V
JESD-609 code	e0	e0	e0	e0	e0	e0
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	SURFACE MOUNT	SURFACE MOUNT	THROUGH HOLE MOUNT	SURFACE MOUNT
Number of components	1	1	1	1	1	1
Maximum on-state current	0.3 A	0.3 A	0.3 A	0.3 A	0.3 A	0.3 A
Maximum on-state voltage	1.3 V	1.3 V	1.3 V	1.3 V	1.3 V	1.3 V
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Optoelectronic device types	SCR OUTPUT OPTOCOUPLER	SCR OUTPUT OPTOCOUPLER	SCR OUTPUT OPTOCOUPLER	SCR OUTPUT OPTOCOUPLER	SCR OUTPUT OPTOCOUPLER	SCR OUTPUT OPTOCOUPLER
Minimum off-state peak voltage	400 V	200 V	400 V	200 V	400 V	400 V
Peak surge current	10 A	10 A	10 A	10 A	10 A	10 A
Off-state repetitive peak voltage	400 V	200 V	400 V	200 V	400 V	400 V
Maximum reverse leakage current	0.00015 A	0.00005 A	0.00015 A	0.00005 A	0.00015 A	0.00015 A
surface mount	NO	NO	YES	YES	NO	YES
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Base Number Matches	-	1	1	1	1	-
