R1500F datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Discrete semiconductor> Fast recovery diode> R1500F

Preview

R1500F: Description0.5 A, SILICON, SIGNAL DIODE, DO-41; CategoryDiscrete semiconductor Fast recovery diode; File Size142KB，2 Pages; ManufacturerLGE; Websitehttp://www.luguang.cn/web_en/index.html

Download Datasheet Parametric Compare View All

R1500F Overview

0.5 A, SILICON, SIGNAL DIODE, DO-41

R1500F Parametric

Parameter Name	Attribute value
Case Style	DO-41
IVA(A)	0.5
VRRM (V)	1500
IFSM (A)	30
VF (V)	2.5
@IVA(A)	0.5
Maximum reverse curre	5.0
TRR(nS)	500
class	Diodes

Preview

Download Datasheet

View All

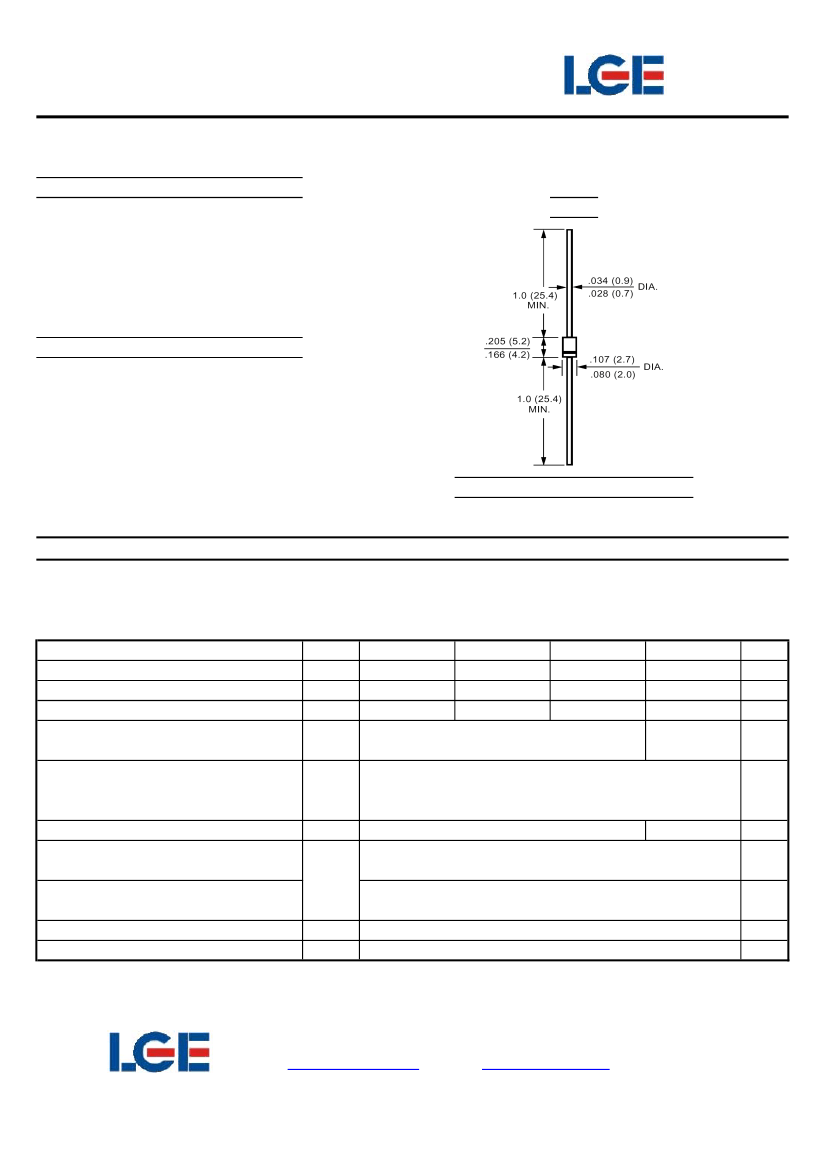

R1200F THRU R2000F

HIGH VOLTAGE FAST RECOVERY RECTIFIER

REVERSE VOLTAGE:

FORWARD CURRENT:

FEATURES

· Fast switching

· Low leakage

· Low forward voltage drop

· High current capability

· High current surge

· High reliability

(5.2) .205

(25.4) 1.0

MIN

.034 (.86)

.028 (.71)

DO-41

CO.,LTD

1200 to 2000 VOLTS

0.2 to 0.5 AMPERE

MECHANICAL DATA

Case: Molded plastic, DO-41

Epoxy: UL 94V-O rate flame retardant

Terminals: Axial leads, solderable per MIL-STD-202,

method 208 guaranteed

Polarity: Band denotes cathode

Mounting position: Any

Weight: 0.013ounce, 0.3gram

(4.1) .160

.107 (2.7)

(25.4) 1.0

MIN

.080 (2.0)

Dimensions in inches and (millimeters)

Maximum Ratings and Electrical Characteristics

Ratings at 25

℃

ambient temperature unless otherwise specified.

Single phase, half wave, 60H

Z

, resistive or inductive load.

For capacitive load, derate current by 20%.

Symbols

Maximum Recurrent Peak Reverse Voltage

Maximum RMS Voltage

Maximum DC Blocking Voltage

Maximum Average Forward Rectified Current

.375"(9.5mm) Lead Length at T

A

=50℃

Peak Forward Surge Current,

8.3ms single half-sine-wave

superimposed on rated load (JEDEC method)

Maximum Forward Voltage at 0.5/0.2A

Maximum Reverse Current

at Rated DC Blocking Voltage

T

A

=25℃

I

R

V

F

I

FSM

V

RRM

V

RMS

V

DC

I

(AV)

R1200F

R1500F

R1800F

R2000F

Units

Volts

Amp

1200

840

1200

15003

1050

1500

0.5

1800

1260

1800

2000

1400

2000

0.2

30

2.5

5.0

100

4

Amp

Volts

uAmp

Maximum Full Load Reverse Current Average,

Full Cycle .375”, (9.5mm) lead length at T

L

= 55℃

Maximum Reverse Recovery Time (Note 1)

Operating and Storage Temperature Range

uAmp

nS

℃

T

RR

T

J

，Tstg

300

-55 to +150

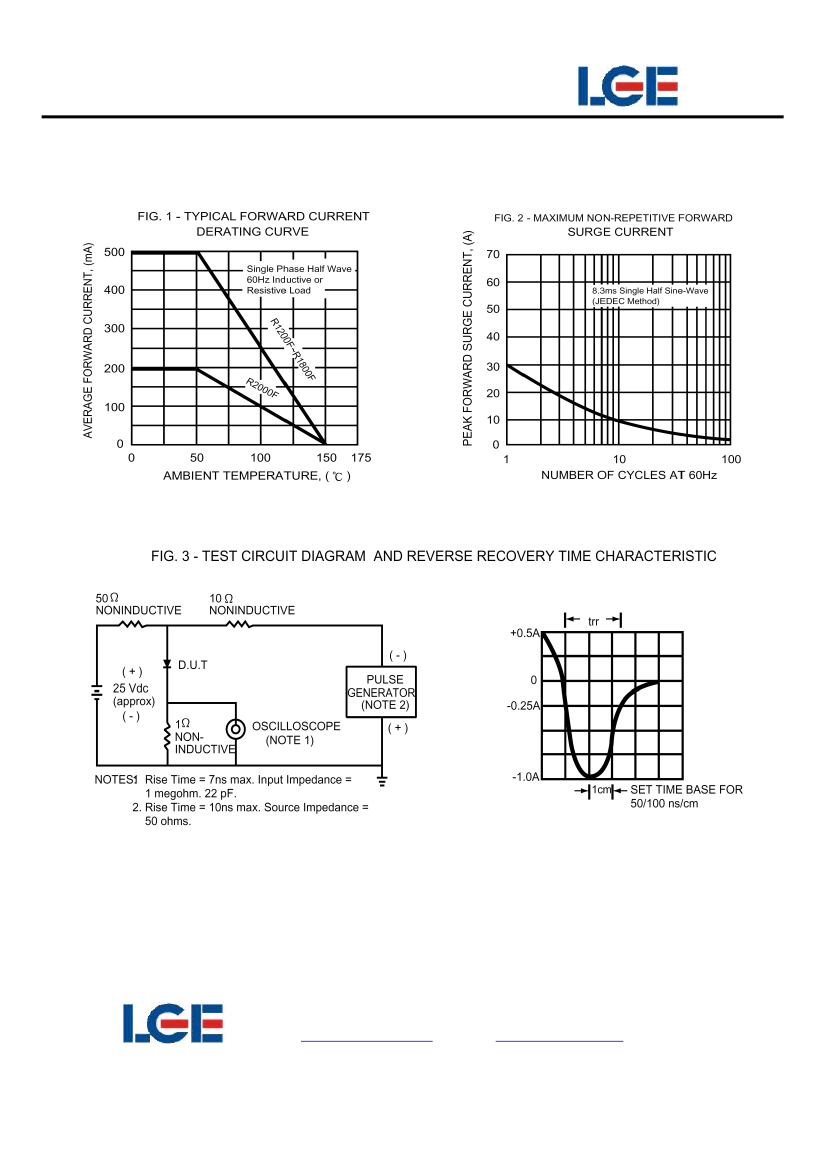

NOTES:

1- Reverse Recovery Test Conditions：I

F

=.5A，I

R

=1A，I

RR

=.25A.

Http:

www.luguang.cnE-mail: lge@luguang.cn

___________________________________________________________
