42TDRT1W4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> 42TDRT1W4

42TDRT1W4: DescriptionThree Phase EMI Filter, 480V, 50/60HzHz,; CategoryAnalog mixed-signal IC filter; File Size56KB，1 Pages; ManufacturerDelta Electronics

Download Datasheet Parametric Compare View All

42TDRT1W4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	42TDRT1W4	-	-	View	Buy Now

42TDRT1W4 Overview

Three Phase EMI Filter, 480V, 50/60HzHz,

42TDRT1W4 Parametric

Parameter Name	Attribute value
Maker	Delta Electronics
Reach Compliance Code	compliant
Factory Lead Time	24 weeks
filter type	THREE PHASE EMI FILTER
high	187 mm
length	302 mm
Manufacturer's serial number	TDR
Installation type	PANEL MOUNT
working frequency	50/60Hz Hz
physical size	L302.0XB72.0XH187.0 (mm)/L11.89XB2.835XH7.362 (inch)
Rated voltage	480 V

Preview

Download Datasheet

View All

TDR

SERIES

COMPONENTS

PART NO.

07TDRT1W4

16TDRT1W4

30TDRT1W4

42TDRT1W4

55TDRT1W4

Cx (uF)

5.9

6.6

Cy (uF)

1.5

2.2

2.3

VERTICAL 3-PHASE, 3-WIRE FILTERS

INTRODUCTIONS

L (mH) R1 (M

) R2 (MW

)

4.5

3.0

2.0

1.5

0.68

1.5

1.1

1. Applications: Electric equipment, UPS, machine tool,

copy machine, automation equipment, robot, AC motor drive

2. Voltage rating: 480VAC

3. Operating frequency: 50/60Hz

MINIMUM INSERTION LOSS IN dB

COMMON MODE (L-G) IN 50 OHM SYSTEM

FREQUENCY-MHz

PART NO.

.15 .50 1.0 5.0 10

07TDRT1W4

25 60 60

16TDRT1W4

20 60 60

30TDRT1W4

20 55 55

42TDRT1W4

20 55 55

55TDRT1W4

20 55 55

DIFFERENTIAL MODE (L-L) IN 50 OHM SYSTEM

07TDRT1W4

35 65 65

16TDRT1W4

35 65 65

30TDRT1W4

35 65 65

42TDRT1W4

30 60 60

55TDRT1W4

30 60 60

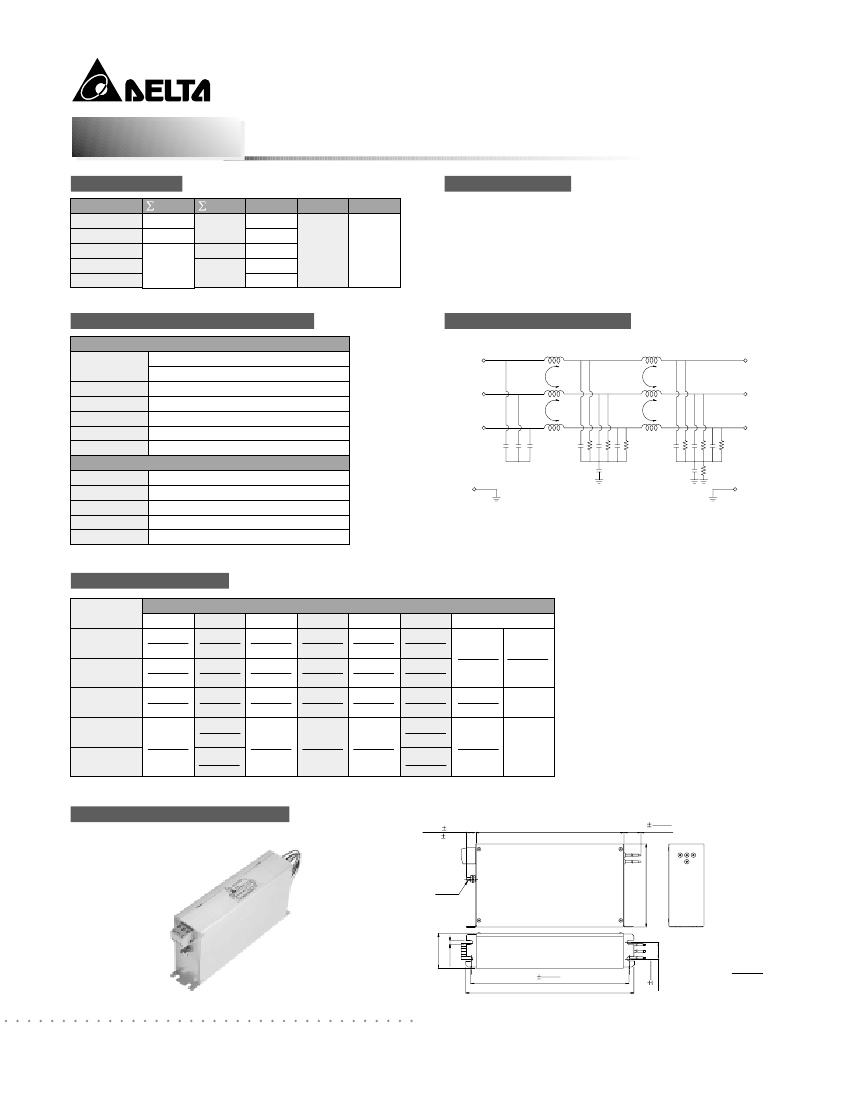

ELECTRICAL SCHEMATIC

E T

R' L

T' D

SERIES DIMENSIONS

8.937

07TDRT1W4

227.0

10.906

16TDRT1W4

227.0

12.087

30TDRT1W4

30.7.0

42TDRT1W4

55TDRT1W4

11.890

302.0

PART NO.

2.047

52.0

2.244

57.0

2.362

60.0

2.835

72.0

3.228

82.0

DIMENSIONS IN INCHES/mm

5.039

10.118

9.449

0.984

128.0

257.0

240.0

25.0

5.669

12.087 11.417

1.181

144.0

307.0

290.0

30.0

5.984

13.268 12.598

1.378

152.0

337.0

320.0

35.0

1.772

7.362

13.031 12.362

45.0

187.0

331.0

314.0

2.165

55.0

11.811

300.0

15.748

400.0

19.685

500.0

AWG18

AWG14

AWG12

AWG10

MECHANICAL CONSTRUCTION

0.551 0.079

14.0 2.0

A MAX.

0.591

15.0

M6X1.0

B MAX.

0.256

6.5

C MAX.

0.039

1.0

D MAX.

UNIT:

9-3

INCH

0.039

1.0
