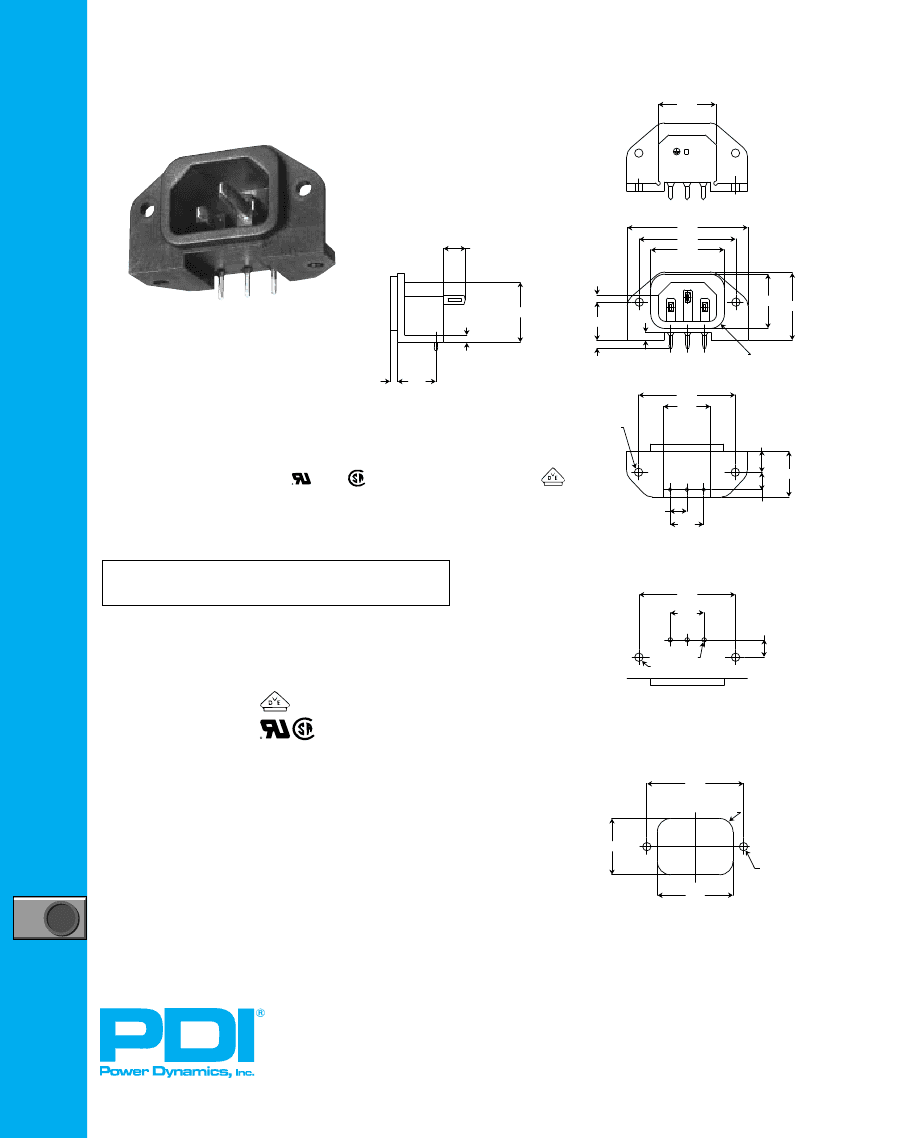

PRINTED CIRCUIT
42R65
27.0
PD-42R65
E
N
E
L
50.5
6.0
40.0
30.5
3.0
22.5
25.0
15.8
28.0
3.0
4.0
3.3
6R
3.0
16.0
40.0
19.5
Combination power cord connector with printed circuit
terminals. Conforms with all international safety requirements.
Rated 15 Amp., 250 VAC
and , 10 Amp., 250 VAC for
,
65°C operating temperature. For automated and hand assembly
operations.
PART NUMBER
Ø
3.5;
4 HOLES
8.8
19.0
7.0
14.0
7.2
IEC CONNECTORS
42R65
40.0
14.0
7.2
SPECIFICATIONS
MATERIAL AND FINISH:
Housing:
Material: P.B.T.
Rating: UL 94V-0
Contacts:
Material: Brass
Plating: Nickel
ELECTRICAL SPECIFICATIONS:
10A
250 VAC 65°C 2+Ground
15A 250 VAC 65°C 2+Ground
Insulation Resistance:
100 Megaohm min. @
500 VDC
Dielectric Strength:
2000 VAC for 1 minute
Specifications subject to change without notice. Dimensions in mm.
See pages 293-300 for mating power cords.
23.3
Ø
1.8 3 HOLES
Ø
3.5 2 HOLES
FRONT OF CONN
P.C.B. LAYOUT
40.0
5.5R
Ø
3.5 2 HOLES
31.3
18
PANEL CUT-OUT
59 Lakeside Avenue West Orange, N.J. 07052-0539 201 736-5722 FAX: 201 736-8930
210

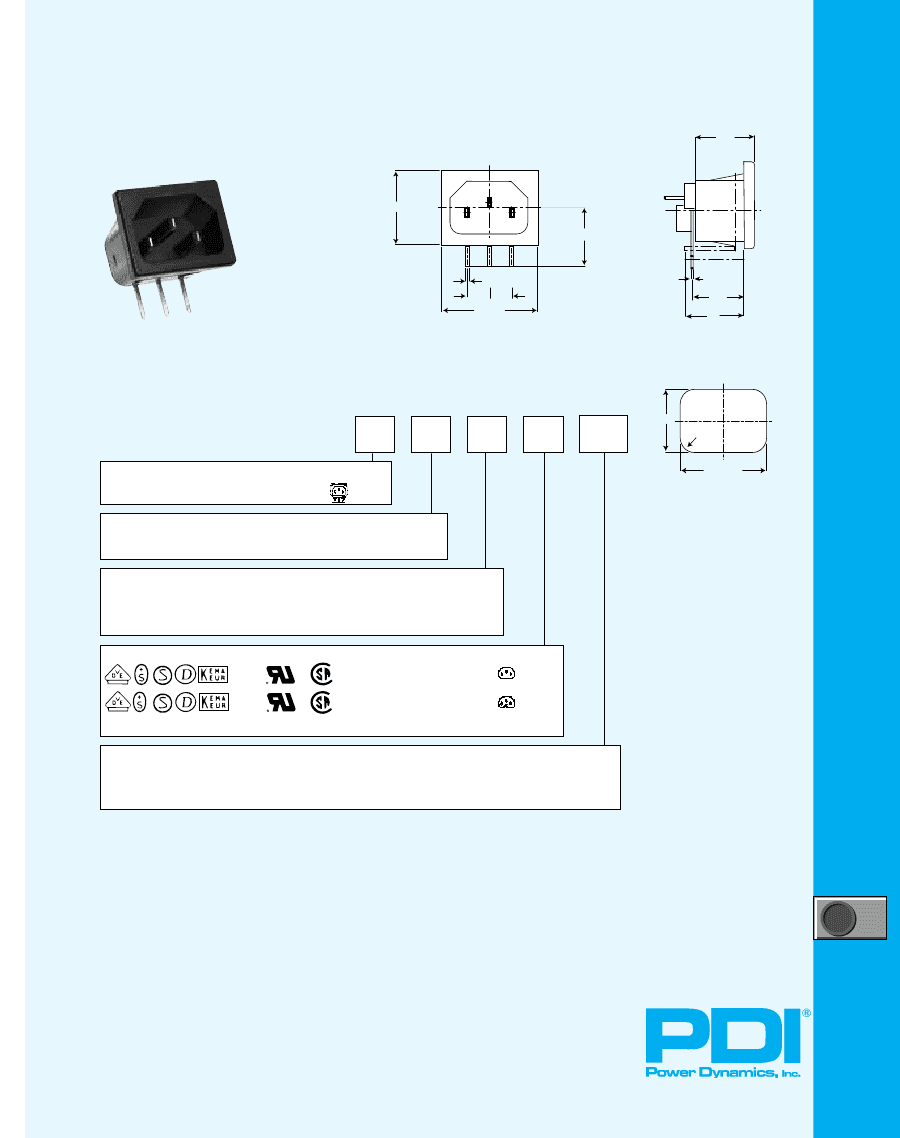

PRINTED CIRCUIT
42R05-3
FACE DIMENSIONS
SIDE VIEW
19
24
+0.2
19.25
1.3
-0.1
7
7
0.8
16.4
19
31
±0.2
EXAMPLE & ORDERING CODE
42R05- 3
MECHANICAL MOUNTING CONFIGURATION
SNAP-IN WITHOUT MOUNTING FLANGE
COLOR
Other colors available on request.
PANEL CUT-OUT
2.0
+0.2
1
1
3 - 150
4R
27.5
+0.2
=3
BLACK
GRAY
=1
=2
TERMINALS
Right Angle PC terminals, line,
neutral and ground.
10.0 mm TERMINALS FACING DOWN
=1
IEC CONNECTORS
IEC CONNECTORS
10.0 mm TERMINALS FACING UP
=2
5.0 mm TERMINALS FACING DOWN
=4
=3
=7
General purpose power
cord connector with
printed circuit terminals.
Conforms with all interna-
tional safety require-
ments. Rated 15 Amp,
120 VAC, 65°C to 155°C
operating temperature.
Available 15 Amp. for UL
and CSA.
ELECTRICAL CIRCUIT CONFIGURATION
10A
10A
15A
15A
250V 65°C 2+Ground
250V 120°C 2+Ground
Additional solder terminal on ground for hard wiring.
PANELTHICKNESS (SNAP-INS ONLY)
.06
(1.5mm)
.08
(2.0mm)
.10
(2.5mm)
Additional panel thickness available on request.
=150
=200
=250
SPECIFICATIONS
MATERIAL AND FINISH:
Housing:
Material: P.B.T.
Rating: UL 94V-0
Contacts:
Material: Brass
Plating: Nickel
ELECTRICAL SPECIFICATIONS:
Insulation Resistance:
100 Megaohm min. @
500 VDC
Dielectric Strength:
2000 VAC for 1 minute
18
Specifications subject to change without notice. Dimensions in mm.
See pages 293-300 for mating power cords.
59 Lakeside Avenue West Orange, N.J. 07052-0539 201 736-5722 FAX: 201 736-8930
211
