6
5
4
3
2
SCHEMATIC
WITH LAMP
N
FUSE
LINE
E
L
a
b c
d
e
1
3
2
4
5
6
1
D
115V
~ 18V
~
LOAD
MATERIAL AND FINISH:
Insulator: Polycarbonate,
UL-94V-0 rated
Contacts: Copper, Tin plated
ELECTRICAL SPECIFICATIONS:
Current rating: 10 A
Voltage rating: 250 VAC
Insulation resistance: 100 Mohm
min. at 500 VDC
Dielectric withstanding voltage:
2000 VAC for one minute
115V
D
54
2.8±0.1 TYP.
3.0x1.7 TYP.
ORDERING CODE:
42R41-__ __ 2 __ - __ __ __
1 2
3
4
1) SNAP-IN MOUNT
3 = WITHOUT LAMP
8 = WITH NEON LAMP
C
2) COLOR
1 = BLACK
2 = GRAY
3) ELECTRICAL CIRCUIT
CONFIGURATION
3 = 10A 250V 70°C
2+GROUND, 1 FUSE
2 POLE SWITCH
4 = 10A 250V 70°C
2+GROUND, 2 FUSE
2 POLE SWITCH
REPLACE WITH
CORRESPONDING
PANEL THICKNESS
FUSE
VOLTAGECONNECTED BY
115V
a, b, d
125V
a, b, e
230V
c, d
250V
c, e
54.0+0.2
48.6
A+0.2
36.5+0.2
R1.5 MAX. TYP.
57
3X 2.00±0.05
SEE
OPTION 1
115
250
125
230
C
PB
RECOMMENDED PANEL CUTOUT
REMOVED VDE
0.80 TYP.
0
I
16.0+0.5
B
B
40
7/27/05
A
7 = 10A 250V 120°C
2+GROUND, 1 FUSE
2 POLE SWITCH
CHNG CHCK APPR
3X 4.0±0.1
4.00
36.0
8 = 10A 250V 120°C
2+GROUND, 2 FUSE
2 POLE SWITCH
11 = 10A 250V 70°C
2 POLE, 1 FUSE
2 POLE SWITCH
12 = 10A 250V 70°C
2 POLE, 2 FUSE
2 POLE SWITCH
4) PANEL THICKNESS
6
14.0±0.2
24.0+0.5
TOLERANCE
UNLESS OTHERWISE SPECIFIED
X ± 1
X.X ± 0.4
X.XX ± 0.20
3.00
19
9.3±0.5 TYP.
REVISIONS
CHANGE
Phone: 973 560-0019
Whippany, New Jersey
Fax: 973 560-0076
A
A
MAX. PANEL THICKNESS
P/N
1.5
42R41-XX2X-150 1.5
2.0
42R41-XX2X-200 2.0
2.5
42R41-XX2X-250 2.5
ADDITIONAL PANEL THICKNESS AND ONE
POLE SWITCH AVAILABLE ON REQUEST
5
4

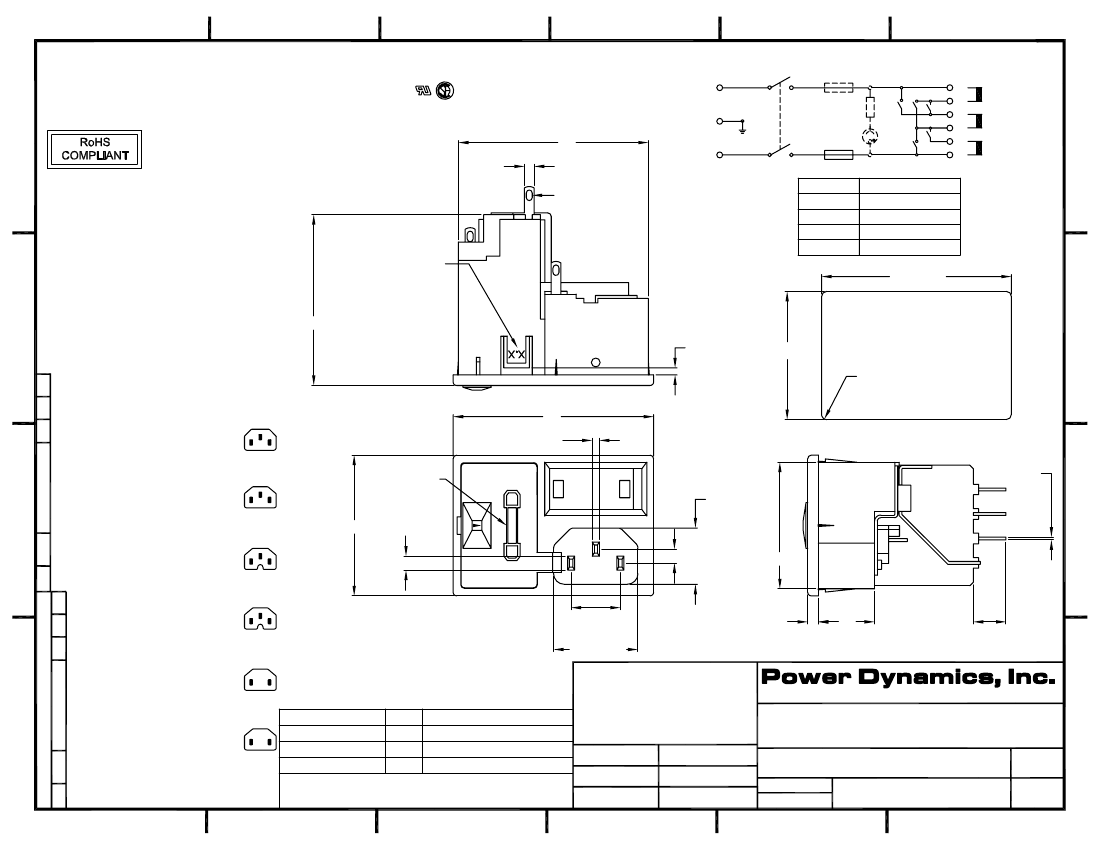

PART: IEC 60320 APPL. INLET, VOLTAGE SELECTOR,
SWITCH, FUSE HOLDER; SOLDER TERMINALS; SNAP-IN
A
DRAWN
BY
CHECK
BY
APPR
BY
DATE
GQ
TD
PB
DATE:
DATE:
DATE:
09/27/01
10/04/01
10/04/01
PART #:
42R41-XX2X-XXX
A
NTS
ALL DIMENSIONS FOR REFERENCE ONLY
DIMENSIONS ARE IN MILLIMETERS
SHEET
1 of 1
REV:
REV
SIZE:
SCALE:
A
3
2
1
