552S15BO1

Description
RES,TAPPED,WIREWOUND,5 OHMS,2.24WVDC,5% +/-TOL,800PPM TC
CategoryPassive components    The resistor
File Size273KB,4 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Download Datasheet Parametric View All

552S15BO1 Overview

RES,TAPPED,WIREWOUND,5 OHMS,2.24WVDC,5% +/-TOL,800PPM TC

552S15BO1 Parametric

Parameter NameAttribute value
MakerVishay
package instructionPanel Mount,
Reach Compliance Codeunknown
ECCN codeEAR99
structureServo Mount
Manufacturer's serial numberMODEL552
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package diameter22.22 mm
Package length26.31 mm
Package formPanel Mount
method of packingBox
Rated power dissipation(P)1 W
resistance5 Ω
Resistor typePOTENTIOMETER
rotation angle1080 deg
seriesMODEL 552
technologyWIRE WOUND
Temperature Coefficient800 ppm/°C
Tolerance5%
Operating Voltage2.24 V

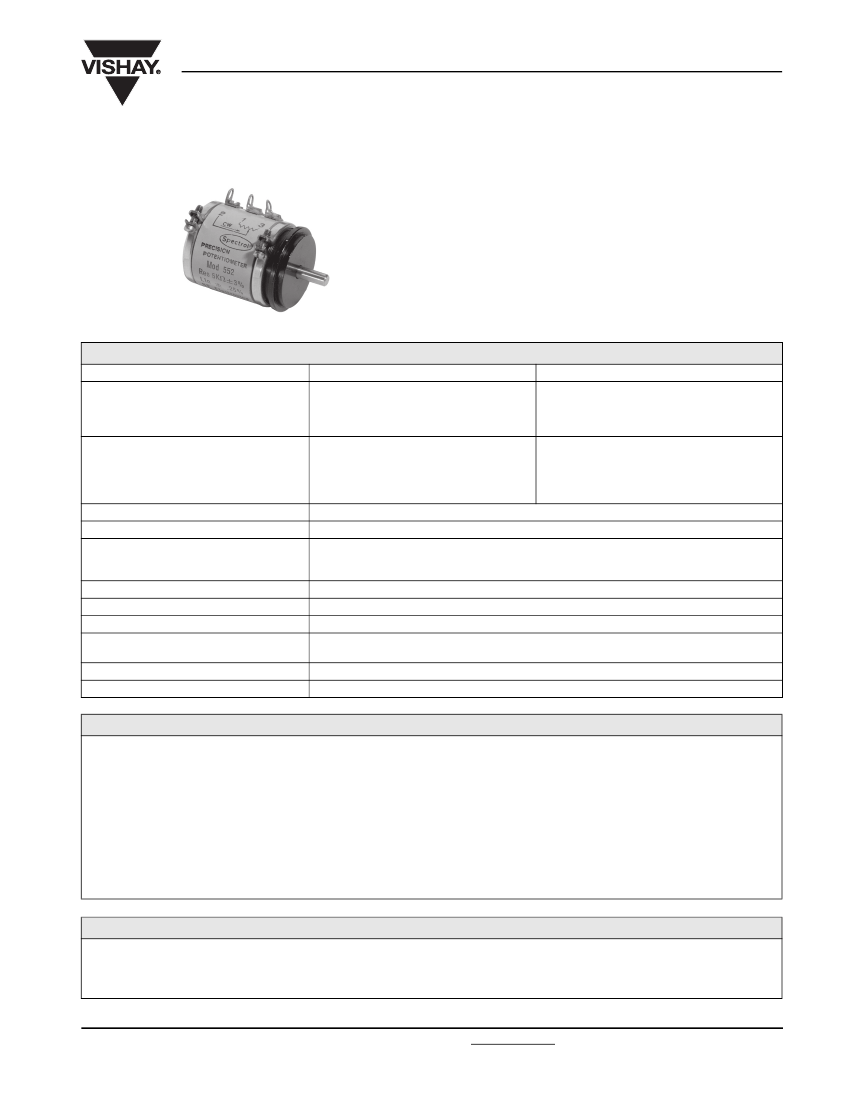

Model 552
Vishay Spectrol
(22.2 mm) Three Turn Wirewound
Upper Grade Precision Potentiometer
FEATURES
Large range of ohmic values: 5
Ω
to 20 kΩ
Bushing mount or servo mount designs are available
Gangable up to 3 sections
Extra taps available upon request
7
/
8
"
ELECTRICAL SPECIFICATIONS
PARAMETER
Total Resistance
Tolerance 50
Ω
and Above
Below 50
Ω
Linearity (Independent)
Total Resistance
5
Ω
to 500
Ω
500
Ω
to 2 kΩ
2 kΩ and Above
Noise
Electrical Rotation
Power Rating
Section 1
Additional Section
Insulation Resistance
Dielectric Strength
Absolute Minimum Resistance
End Voltage
Phasing (CCW End Points)
Taps (Extra)
STANDARD RANGE
5
Ω
to 20 kΩ
±3%
±5%
STANDARD
± 0.25 %
± 0.25 %
± 0.25 %
100
Ω
ENR
1080° + 4° - 0°
1.0 W at 70 °C ambient to zero at 125 °C
75 % of the rating of section 1 (0.75 W at 70 °C)
1000 MΩ minimum, 500 V
DC
1000 V
RMS
minimum, 60 Hz
Linearity x total resistance or 0.5
Ω,
whichever is greater
Linearity x total applied voltage for total resistance
above 20
Ω,
2.0 % of total applied voltage for 20
Ω
and below
Additional sections phased to section 1 within ± 2°
16 available as special, standard tolerance ± 2°
SPECIAL
45 kΩ
±1%
±3%
BEST PRACTICAL
± 0.25 %
± 0.20 %
± 0.125 %
ORDERING INFORMATION/DESCRIPTION
The Model 552 can be ordered from this data sheet with a variety of alternate characteristics, as shown. For most rapid service on your
order, please state:
552
MODEL
B
MOUNTING
B:
Bushing
S:
Servo
1
NUMBER OF SECTIONS
From 1 up to 3
10K
OHMIC VALUE OF
SECTION N
O
1
BO1
PACKAGING
Box of 1 piece
Other characteristics will be standard as described on this data sheet. If special characteristics are required, such as: special linearity
tolerance, special resistance tolerance, extra taps, non-linear functions, etc., please state these on your order and allow additional lead time
for delivery.
SAP PART NUMBERING GUIDELINES
552
MODEL
B
STYLE
1
NUMBER OF SECTIONS
103
OHMIC VALUE OF
SECTION N
O
1
B01
PACKAGING
Document Number: 57067
Revision: 10-Jul-07
For technical questions, contact: sfer@vishay.com
www.vishay.com
129
