50841030201D datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 50841030201D

Preview

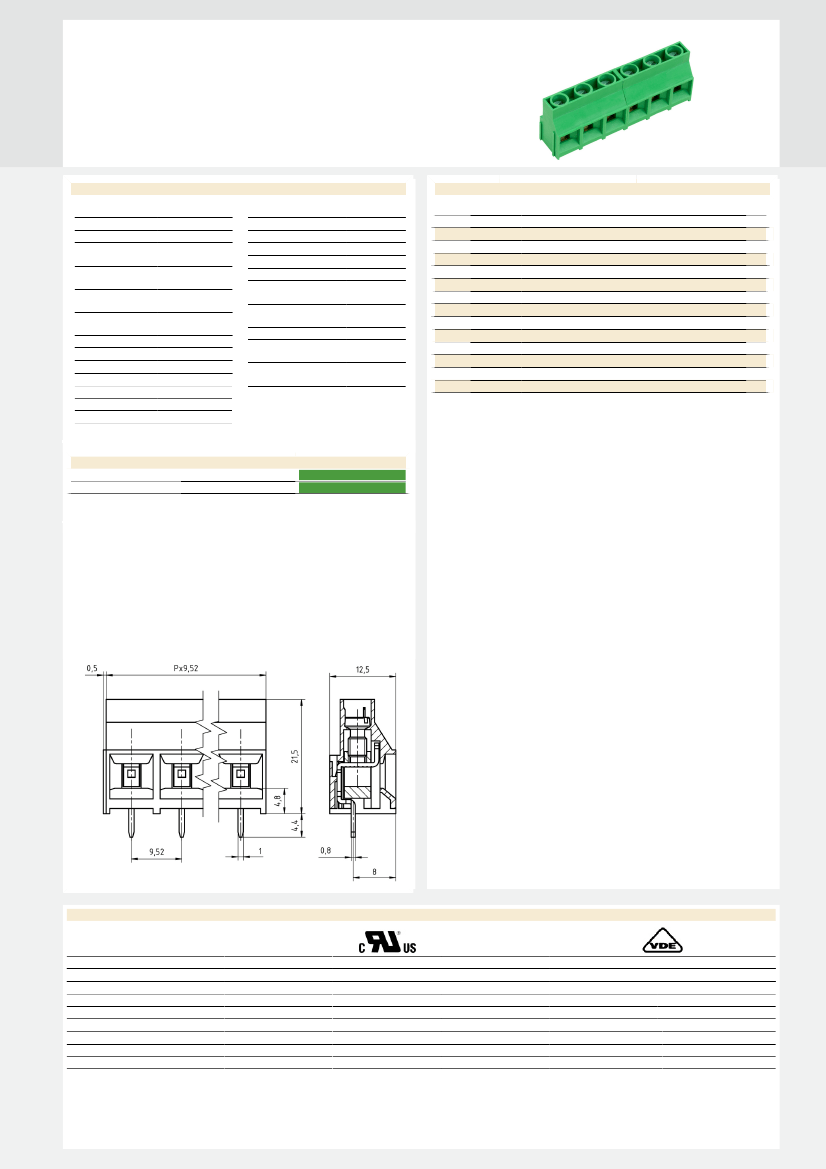

50841030201D: DescriptionBarrier Strip Terminal Block; CategoryThe connector; File Size262KB，1 Pages; ManufacturerAPEM

Download Datasheet Parametric Compare View All

50841030201D Overview

Barrier Strip Terminal Block

50841030201D Parametric

Parameter Name	Attribute value
Maker	APEM
Reach Compliance Code	compliant
ECCN code	EAR99
Manufacturer's serial number	50841
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK

Preview

Download Datasheet

View All

Lift |

Spacing 9.52 mm

AKZ841/..-9.52-V-GREEN

Technical Data

Wire Sizes

Solid min

solid max

Stranded (flexible)

min

Stranded (flexible)

max

0.2 mm²

6.0 mm²

0.2 mm²

4.0 mm²

Insulating Material

Material

Flammability Class

Temperatures

Operating Temperature

Wave Soldering Process

Soldering Temperature,

recommended

Peak Soldering Time,

recommended

Reflow Process

Soldering Temperature,

recommended

Peak Soldering Time,

recommended

Leere Zeile

-

265 °C

3-4 s

-30 °C - 105 °C

PA 6.6

UL 94 V-0

Order Data (Spacing mm)

Poles

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

Width (mm)

19.54

29.06

38.58

48.10

57.62

67.14

76.66

86.18

95.70

105.22

114.74

124.26

133.78

143.30

152.82

Article Designation

AKZ841/2-9.52-V-GREEN

AKZ841/3-9.52-V-GREEN

AKZ841/4-9.52-V-GREEN

AKZ841/5-9.52-V-GREEN

AKZ841/6-9.52-V-GREEN

AKZ841/7-9.52-V-GREEN

AKZ841/8-9.52-V-GREEN

AKZ841/9-9.52-V-GREEN

AKZ841/10-9.52-V-GREEN

AKZ841/11-9.52-V-GREEN

AKZ841/12-9.52-V-GREEN

AKZ841/13-9.52-V-GREEN

AKZ841/14-9.52-V-GREEN

AKZ841/15-9.52-V-GREEN

AKZ841/16-9.52-V-GREEN

Article Number

50841020201D

50841030201D

50841040201D

50841050201D

50841060201D

50841070201D

50841080201D

50841090201D

50841100201D

50841110201D

50841120201D

50841130201D

50841140201D

50841150201D

50841160201D

PU

50

Stranded with Ferrule 0.25 mm²

min

Stranded with Ferrule 4.0 mm²

max

Dimensions

Stripped Length

PCB Hole Diameter

Materials

Clamp

Screw

Solder Tag

Brass

Steel

Brass

7.0 mm

1.6 mm

Colours

GREEN

LIGHT GREEN

RAL6018

similar RAL 6018

RAL6018

similar RAL 6018

Colours according to RAL, there may be variations on colour due to production conditions.

Special colours on request.

Ratings

Usegroup

Rated Voltage

Rated Current

Rated Wire Size

solid

stranded

Torque

Screw Size

Test Voltage

B

300 V

30 A

AWG 28-10

0.80 Nm

M3.5

1.6 kV

C

-

D

600 V

5A

AWG 28-10

0.80 Nm

M3.5

1.6 kV

min

0.2 mm²

1000 V

32 A

max

4.0 mm²

0.80 Nm

M3.5

3.5 kV

50841030201D Related Products

	50841030201D	50841120201D	50841160201D	50841150201D	50841140201D	50841020201D	50841040201D	50841060201D	50841090201D
Description	Barrier Strip Terminal Block	Barrier Strip Terminal Block	Barrier Strip Terminal Block	Barrier Strip Terminal Block	Barrier Strip Terminal Block	Barrier Strip Terminal Block	Barrier Strip Terminal Block	Barrier Strip Terminal Block	Barrier Strip Terminal Block
Maker	APEM	APEM	APEM	APEM	APEM	APEM	APEM	APEM	APEM
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Manufacturer's serial number	50841	50841	50841	50841	50841	50841	50841	50841	50841
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK	BARRIER STRIP TERMINAL BLOCK	BARRIER STRIP TERMINAL BLOCK	BARRIER STRIP TERMINAL BLOCK	BARRIER STRIP TERMINAL BLOCK	BARRIER STRIP TERMINAL BLOCK	BARRIER STRIP TERMINAL BLOCK	BARRIER STRIP TERMINAL BLOCK	BARRIER STRIP TERMINAL BLOCK
