53608-0890 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 53608-0890

53608-0890: DescriptionBoard Connector, 8 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Terminal, Locking, Receptacle,; CategoryThe connector The connector; File Size52KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

53608-0890 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	53608-0890	-	-	View	Buy Now

53608-0890 Overview

Board Connector, 8 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Terminal, Locking, Receptacle,

53608-0890 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
Other features	ELV AND ROHS COMPLIANT
Board mount options	PEG
body width	0.268 inch
subject depth	0.63 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	NYLON
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	53608
Plug contact pitch	0.098 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
reliability	COMMERCIAL
Terminal length	0.11 inch
Terminal pitch	2.5 mm
Termination type	SOLDER
Total number of contacts	8
UL Flammability Code	94V-0

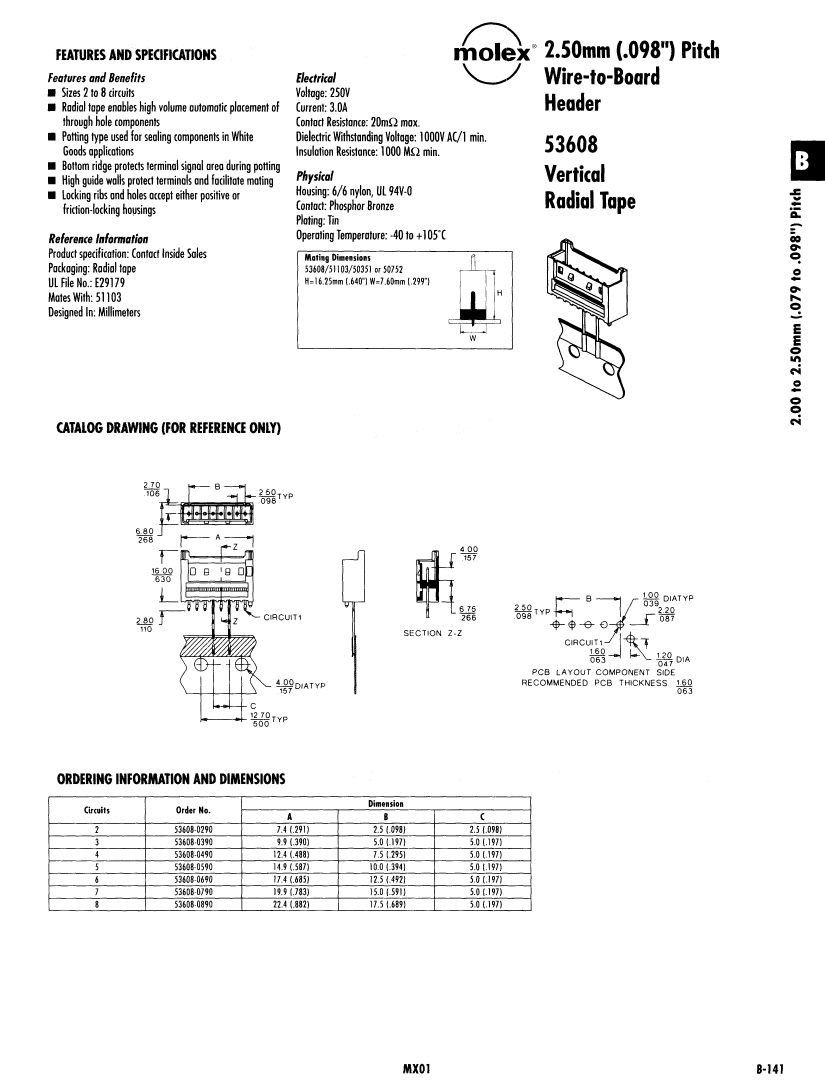

Preview

Download Datasheet

View All

53608-0890 Related Products

	53608-0890	53608-0290	53608-0390	53608-0490	53608-0690
Description	Board Connector, 8 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Terminal, Locking, Receptacle,	Board Connector, 2 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Terminal, Locking, Receptacle,	Board Connector, 3 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Terminal, Locking, Receptacle,	Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Terminal, Locking, Receptacle,	Board Connector, 6 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Terminal, Locking, Receptacle,
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Maker	Molex	Molex	Molex	Molex	Molex
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
Other features	ELV AND ROHS COMPLIANT	ELV AND ROHS COMPLIANT	ELV AND ROHS COMPLIANT	ELV AND ROHS COMPLIANT	ELV AND ROHS COMPLIANT
Board mount options	PEG	PEG	PEG	PEG	PEG
body width	0.268 inch	0.268 inch	0.268 inch	0.268 inch	0.268 inch
subject depth	0.63 inch	0.63 inch	0.63 inch	0.63 inch	0.63 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	TIN	TIN	TIN	TIN	TIN
Contact completed and terminated	TIN	TIN	TIN	TIN	TIN
Contact point gender	MALE	MALE	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
DIN compliance	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
insulator material	NYLON	NYLON	NYLON	NYLON	NYLON
JESD-609 code	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO
Manufacturer's serial number	53608	53608	53608	53608	53608
Plug contact pitch	0.098 inch	0.098 inch	0.098 inch	0.098 inch	0.098 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE
PCB row number	1	1	1	1	1
Number of rows loaded	1	1	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.11 inch	0.11 inch	0.11 inch	0.11 inch	0.11 inch
Terminal pitch	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	8	2	3	4	6
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0
