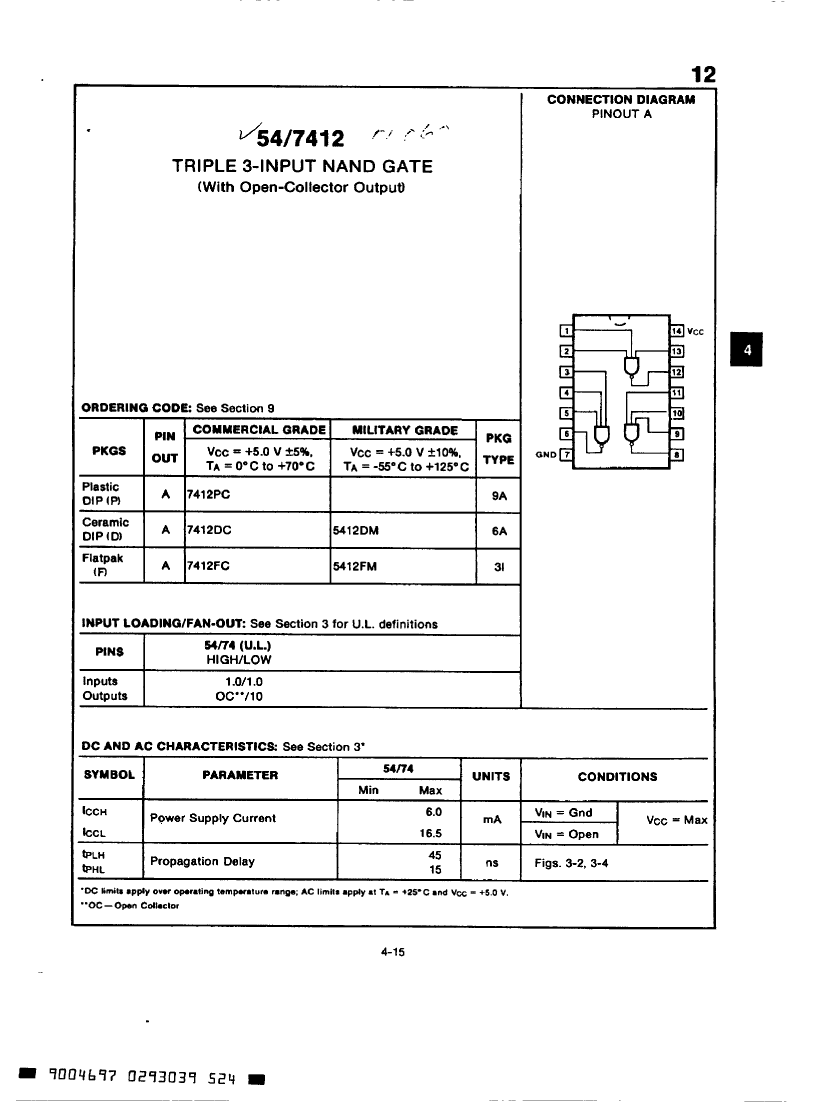

5412FM datasheet, PDF - EEWORLD Datasheet

5412FM: DescriptionNAND Gate, TTL/H/L Series, 3-Func, 3-Input, TTL, PDFP14, DFP-14; Categorylogic logic; File Size48KB，1 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric View All

5412FM Overview

NAND Gate, TTL/H/L Series, 3-Func, 3-Input, TTL, PDFP14, DFP-14

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Fairchild
package instruction	DFP, FL14,.3
Reach Compliance Code	compliant
series	TTL/H/L
JESD-30 code	R-PDFP-F14
JESD-609 code	e0
Logic integrated circuit type	NAND GATE
MaximumI(ol)	0.016 A
Humidity sensitivity level	2A
Number of functions	3
Number of entries	3
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	OPEN-COLLECTOR
Package body material	PLASTIC/EPOXY
encapsulated code	DFP
Encapsulate equivalent code	FL14,.3
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	250
power supply	5 V
Prop。Delay @ Nom-Sup	45 ns
propagation delay (tpd)	45 ns
Certification status	Not Qualified
Schmitt trigger	NO
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
