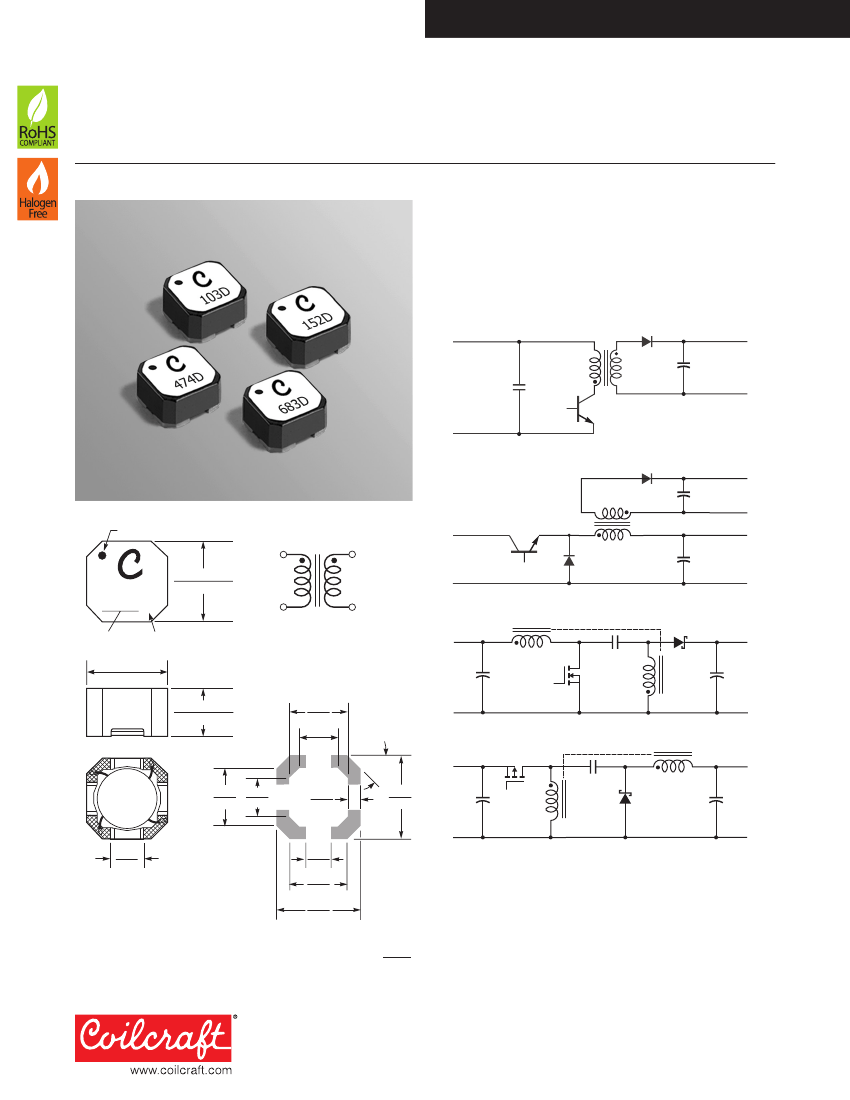

Document 757-1
Shielded Coupled Inductors
LPD5030
The LPD5030 coupled miniature shielded inductors are
only 3 mm high and 5 mm square. They are ideal for use
in flyback, multi-output buck, SEPIC and Zeta applications.
These inductors provide high inductance, high efficiency
and excellent current handling in a rugged, low cost part.
They can also be used as two single inductors connected
in series or parallel or as a common mode choke.
+
D
+
L1
V
IN
C
SW
L2
C
V
OUT
–
–
Typical Flyback Converter
+
C
V
OUT
AUX
L2
Dot indicates pin 1
1
4
D
–
+
1
0.189 ±0.003
*
4,80 ±0,076
3
+
SW
D
4
L2
3
V
IN
L1
C
V
OUT
2
XXX X
Dash
number
0.189 ±0.003
*
4,80 ±0,076
L1
2
–
–
Typical Buck Converter with auxiliary output
+
L1
C1
Q
D
Internal
code
+
C
V
OUT
Recommended
Land Pattern
0.114 ±0.004
*
2,90 ±0,10
0.138
3,50
0.090
2,30
45°
typ
0.134 0.090
3,40 2,30
0.030
0,75
0.197
5,00
V
IN
C
L2
–
Typical SEPIC schematic
–
+
Q
V
IN
+
C1
L2
D
C
V
OUT
C
L1
–
0.060
1,52
of
*
Dimensions are Forthe case not including
the termination.
maximum overall
0.060
1,50
0.134
3,40
0.197
5,00
Typical Zeta schematic
–
dimensions including the termination, add
0.005 in / 0,13 mm.
For optional tin-lead and tin-silver-copper
terminations, dimensions are for the
mounted part. Dimensions before mounting
can be an additional 0.005 inch / 0,13 mm).
Dimensions are in
inches
mm
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 757-1
Revised 08/25/16
© Coilcraft Inc. 2016
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
Document 757-2
Coupled Inductors for SEPIC Applications – LPD5030 Series
Part number
1
LPD5030-571NR_
LPD5030-781NR_
LPD5030-102NR_
LPD5030-152MR_
LPD5030-222MR_
LPD5030-332MR_
LPD5030-472MR_
LPD5030-562MR_
LPD5030-682MR_
LPD5030-103MR_
LPD5030-153MR_
LPD5030-223MR_
LPD5030-333MR_
LPD5030-473MR_
LPD5030-683MR_
LPD5030-104MR_
LPD5030-154MR_
LPD5030-224MR_
LPD5030-334MR_
LPD5030-474MR_
LPD5030-684MR_
LPD5030-105MR_
Inductance
2
(µH)
0.57 ±30%
0.78 ±30%
1.0 ±30%
1.5 ±20%
2.2 ±20%
3.3 ±20%
4.7 ±20%
5.6 ±20%
6.8 ±20%
10 ±20%
15 ±20%
22 ±20%
33 ±20%
47 ±20%
68 ±20%
100 ±20%
150 ±20%
220 ±20%
330 ±20%
470 ±20%
680 ±20%
1000 ±20%
DCR
(Ohms)
0.031
0.038
0.042
0.048
0.067
0.077
0.111
0.125
0.159
0.210
0.298
0.452
0.565
0.806
1.13
1.79
2.43
3.30
5.36
7.51
10.8
16.5
max
3
SRF
(MHz)
233
172
153
118
87.0
61.0
49.0
44.0
40.0
28.0
typ
4
Coupling Leakage
coefficient
L typ
5
typ
(µH)
0.93
0.94
0.95
0.97
0.98
0.98
0.99
0.99
0.99
0.99
0.99
>0.99
>0.99
>0.99
>0.99
>0.99
>0.99
>0.99
>0.99
>0.99
>0.99
>0.99
0.07
0.08
0.09
0.09
0.10
0.10
0.11
0.11
0.12
0.13
0.15
0.17
0.20
0.24
0.29
0.37
0.46
0.54
0.65
0.76
0.89
1.20
10%
drop
5.60
4.60
4.30
3.90
2.80
2.50
2.10
1.80
1.40
1.20
1.00
0.89
0.73
0.59
0.50
0.47
0.38
0.31
0.25
0.21
0.17
0.15
Isat
(A)
6
20%
30%
drop
drop
5.80
4.80
4.49
4.20
2.98
2.70
2.20
1.80
1.48
1.20
1.17
0.98
0.77
0.63
0.54
0.54
0.43
0.35
0.25
0.24
0.20
0.17
6.03
5.00
4.67
4.30
3.07
2.80
2.20
1.89
1.48
1.20
1.17
0.98
0.78
0.65
0.55
0.56
0.45
0.36
0.32
0.26
0.21
0.17
Irms
(A)
both
one
windings
7
winding
8
2.30
2.25
2.20
2.05
1.95
1.70
1.40
1.35
1.20
1.05
0.85
0.70
0.60
0.50
0.43
0.33
0.28
0.24
0.18
0.15
0.13
0.10
3.25
3.18
3.11
2.90
2.76
2.40
1.98
1.91
1.70
1.48
1.20
0.99
0.85
0.71
0.61
0.47
0.40
0.34
0.25
0.21
0.18
0.14
23.0
17.0
16.0
12.0
9.00
8.44
6.72
5.53
4.17
3.52
2.93
2.33
1. Please specify
termination
and
packaging
codes:
LPD5030-105MRC
Termination:R
= RoHS compliant matte tin over nickel over silver.
Special order:
Q
= RoHS tin-silver-copper (95.5/4/0.5) or
P
= non-RoHS tin-lead (63/37).
Packaging: C
= 7″ machine-ready reel. EIA-481 embossed plastic
tape (750 parts per full reel).
B
= Less than full reel. In tape, but not machine ready.
To have a leader and trailer added ($25 charge), use
code letter D instead.
D
= 13″ machine-ready reel. EIA-481 embossed plastic
tape. Factory order only, not stocked (2500 parts per
full reel).
2. Inductance shown for each winding, measured at 100 kHz, 0.1 Vrms,
0 Adc on an Agilent/HP 4284A LCR meter or equivalent. When leads
are connected in parallel, inductance is the same value. When leads are
connected in series, inductance is four times the value.
3. DCR is for each winding. When leads are connected in parallel, DCR
is half the value. When leads are connected in series, DCR is twice the
value.
4. SRF measured using an Agilent/HP 4191A or equivalent. When leads
are connected in parallel, SRF is the same value.
5. Leakage Inductance is for L1 and is measured with L2 shorted.
6. DC current at 25°C that causes the specified inductance drop from its
value without current. It is the sum of the current flowing in both windings.
7. Equal current when applied to each winding simultaneously that causes
a 40°C temperature rise from 25°C ambient. This information is for refer-
ence only and does not represent absolute maximum ratings.
8. Maximum current when applied to one winding that causes a 40°C
temperature rise from 25°C ambient. This information is for reference
only and does not represent absolute maximum ratings.
9. Electrical specifications at 25°C.
Refer to Doc 639 “Selecting Coupled Inductors for SEPIC Applications.”
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
Coupled Inductor Core and Winding Loss Calculator
This web-based utility allows you to enter frequency, peak-to-peak
(ripple) current, and
Irms
current to predict temperature rise and overall
losses, including core loss.
Go to online calculator
.
Core material
Ferrite
Core and winding loss
See www.coilcraft.com/coupledloss
Weight
210 – 225 mg
Environmental
RoHS compliant, halogen free
Terminations
RoHS compliant matte tin over nickel over silver.
Other terminations available at additional cost.
Ambient temperature
–40°C to +85°C with (40°C rise)
Irms
current.
Maximum part temperature
+125°C (ambient + temp rise).
Storage temperature
Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
Winding to winding isolation
100 V
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Mean Time Between Failures (MTBF)
26,315,789 hours
Packaging
750/7″ reel; 2500/13″ reel Plastic tape: 12 mm wide,
0.32 mm thick, 8 mm pocket spacing, 3.1 mm pocket depth
Recommended pick and place nozzle
OD: 5 mm; ID:
≤
2.5 mm
PCB washing
Tested to MIL-STD-202 Method 215 plus an additional
aqueous wash. See
Doc787_PCB_Washing.pdf.
Specifications subject to change without notice.
US
+1-847-639-6400 sales@coilcraft.com
Please check
sales@coilcraft-europe.com
UK
+44-1236-730595
our website for latest information.
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 757-2
Revised 08//25/16
© Coilcraft Inc. 2016
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
