5421FM datasheet, PDF - EEWORLD Datasheet

5421FM: DescriptionAND Gate, TTL/H/L Series, 2-Func, 4-Input, TTL, PDFP14, DFP-14; Categorylogic logic; File Size28KB，1 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

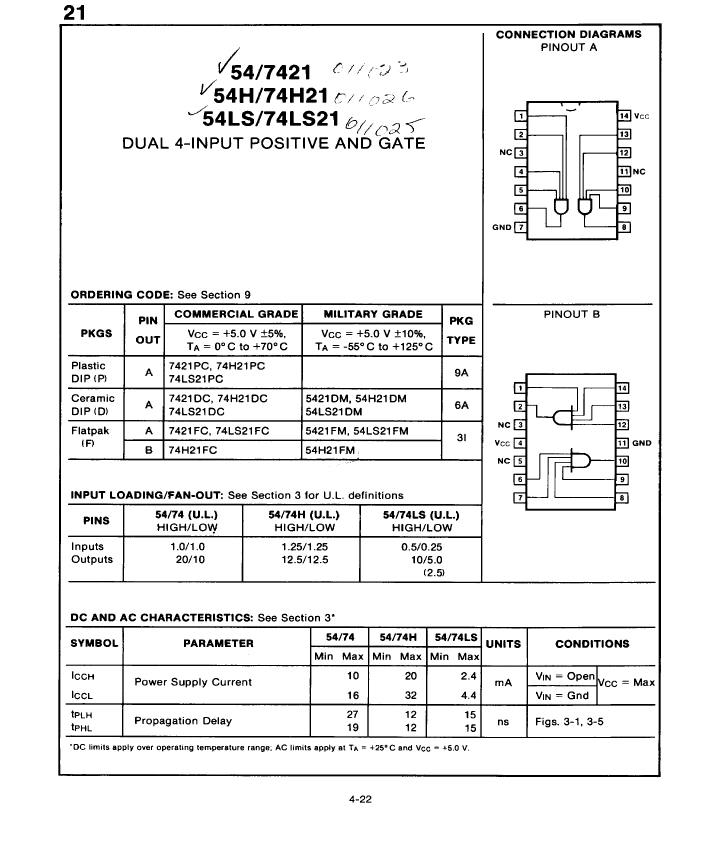

Download Datasheet Parametric Compare View All

5421FM Overview

AND Gate, TTL/H/L Series, 2-Func, 4-Input, TTL, PDFP14, DFP-14

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Fairchild
package instruction	DFP, FL14,.3
Reach Compliance Code	compliant
series	TTL/H/L
JESD-30 code	R-PDFP-F14
JESD-609 code	e0
Logic integrated circuit type	AND GATE
Humidity sensitivity level	2A
Number of functions	2
Number of entries	4
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DFP
Encapsulate equivalent code	FL14,.3
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	250
power supply	5 V
propagation delay (tpd)	27 ns
Certification status	Not Qualified
Schmitt trigger	NO
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30

This Material Copyrighted By Its Respective Manufacturer

	5421FM	5421DM
Description	AND Gate, TTL/H/L Series, 2-Func, 4-Input, TTL, PDFP14, DFP-14	AND Gate, TTL/H/L Series, 2-Func, 4-Input, TTL, CDIP14, CERAMIC, DIP-14
Is it lead-free?	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible
Maker	Fairchild	Fairchild
package instruction	DFP, FL14,.3	CERAMIC, DIP-14
Reach Compliance Code	compliant	compliant
series	TTL/H/L	TTL/H/L
JESD-30 code	R-PDFP-F14	R-CDIP-T14
JESD-609 code	e0	e0
Logic integrated circuit type	AND GATE	AND GATE
Humidity sensitivity level	2A	2A
Number of functions	2	2
Number of entries	4	4
Number of terminals	14	14
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Package body material	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP	DIP
Encapsulate equivalent code	FL14,.3	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	IN-LINE
Peak Reflow Temperature (Celsius)	250	250
power supply	5 V	5 V
propagation delay (tpd)	27 ns	27 ns
Certification status	Not Qualified	Not Qualified
Schmitt trigger	NO	NO
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	NO
technology	TTL	TTL
Temperature level	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	FLAT	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	30	30
