9
8
7
6
5
4
3
2
1
E

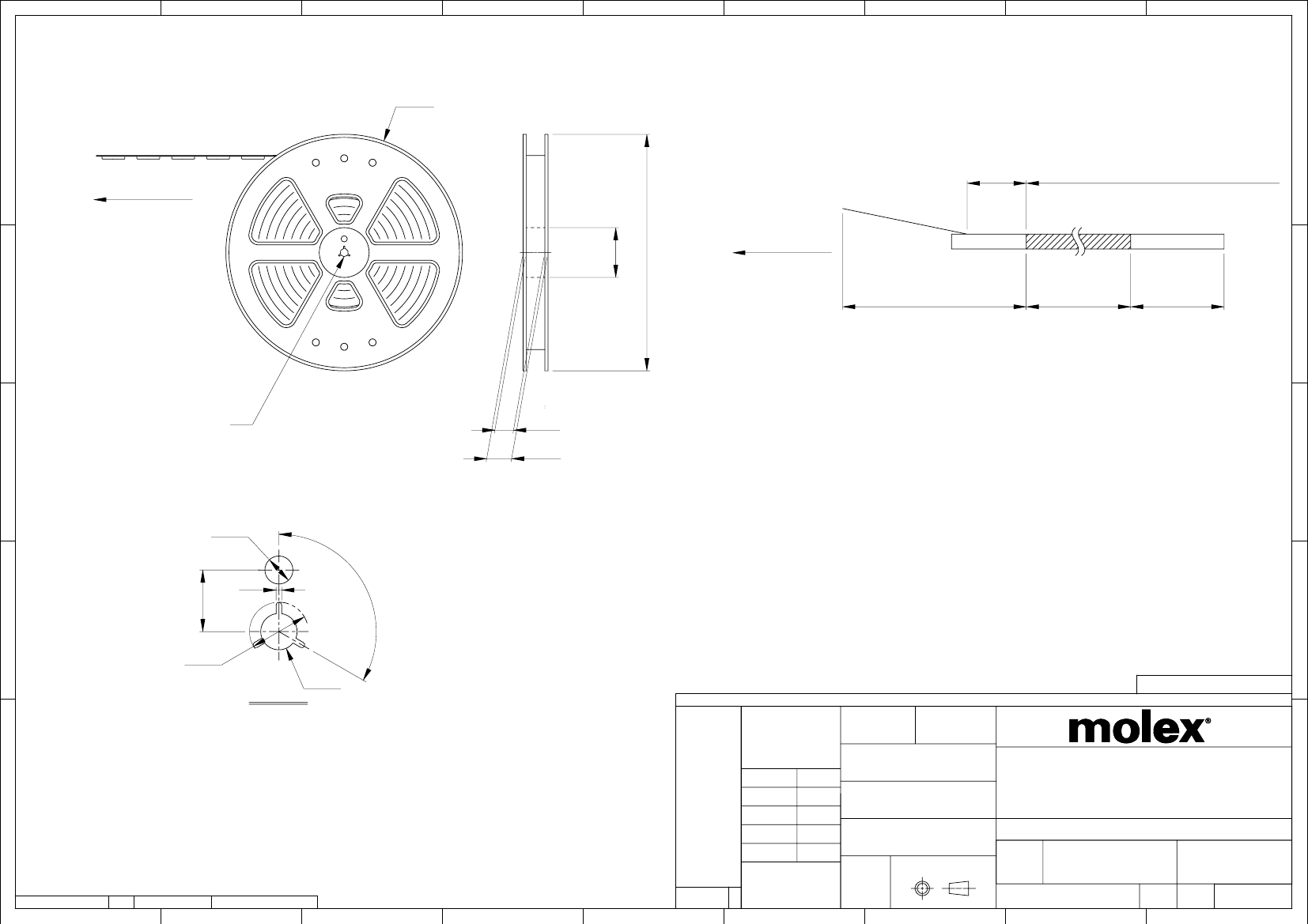

REEL
⌀
380
±
2
引き出し方向
PULL OUT
DIRECTION
(
⌀
80)
注記 NOTES
1. ½品詳細寸法については½品単½図面を参照下さい。
DETAIL DIMENSIONS, SEE PRODUCT DRAWING.
2.
梱包数量：9000個/リール
NUMBER OF CONNECTORS : 9000PCS/REEL
3. リードテープ長さ
20PCS.MIN.
トップテープ接着部（空エンボス）
LEAD TAPE LENGTH
TOP TAPE BONDED PART (EMPTY)
E
引き出し方向
PULL OUT
DIRECTION
トップテープリーダー部
TOP TAPE LEADER PART
D
400MIN.
部品挿入部
COMPONENT
SUPPLIER
.
末端部(空部)
TAIL PART
(EMPTY)
40MIN.
D
4. カバーテープの剥離強度については、IEC60286-3に準拠
COVER TAPE PEEL FORCE IS DEFINED BY IEC60286-3.
5. 材料 MATERIAL
キャリアテープ（CARRIER TAPE）：ポリスチレン（POLYSTYRENE）
トップテープ（TOP TAPE）：PET,OTHER
リール（REEL）：ポリスチレン（PS）＜リサイクル材を含む＞
POLYSTYRENE（PS）＜RECYCLE MATERIAL CONTAINED＞
"D"
B
±
1
C
C
±
1
(
⌀
10
)
6.
1リール/9000個内において、欠品はなきこと
THERE SHALL BE NO MISSING PRODUCT.
7.
ELV及びRoHS適合品
ELV AND RoHS COMPLIANT.
C
0
(
12
B
(
22
)
(
2
)
°
)
B
(
⌀
21
)
(
⌀
13
)
DETAIL "D"
2016/11/24
2017/02/21
2017/02/21
GENERAL
TOLERANCES
(UNLESS SPECIFIED)
ANGULAR TOL ±
3.0
°
DIMENSION UNITS
MODEL No. 503304-**42
THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION
SCALE
MM
DRWN BY
DATE
1:1
2016/11/24
DATE
RELEASED
4 PLACES
±
±
±
±
±
0.03
0.03
0.05
0.1
0.2
GABE
CHK'D BY
113200
GABE
KTAKAHASHI
MSASAO
A
3 PLACES
2 PLACES
1 PLACE
0 PLACES
0.4 BB CONN. H=0.7 REC. ASSY EMBSTP PKG
KTAKAHASHI
APPR BY
DATE
2017/02/21
2017/02/21
A
PRODUCT CUSTOMER DRAWING
SERIES
MATERIAL NUMBER
CUSTOMER
MSASAO
DRAWING SIZE
EC NO:
DRWN:
CHK'D:
APPR:
THIRD ANGLE PROJECTION
RELEASE STATUS
FORMAT: master-tb-prod-A3
REVISION: G
DATE: 2015/12/14
9
P1
RELEASE DATE
21.02.2017
8
05:22:40
7
6
5
A
REV
DRAFT WHERE APPLICABLE
MUST REMAIN
WITHIN DIMENSIONS
503304
DOCUMENT NUMBER
SEE CHART
GENERAL
DOC TYPE
DOC PART
SHEET NUMBER
A3
3
4
5033040001
2
PSD
000
1
1 OF 3

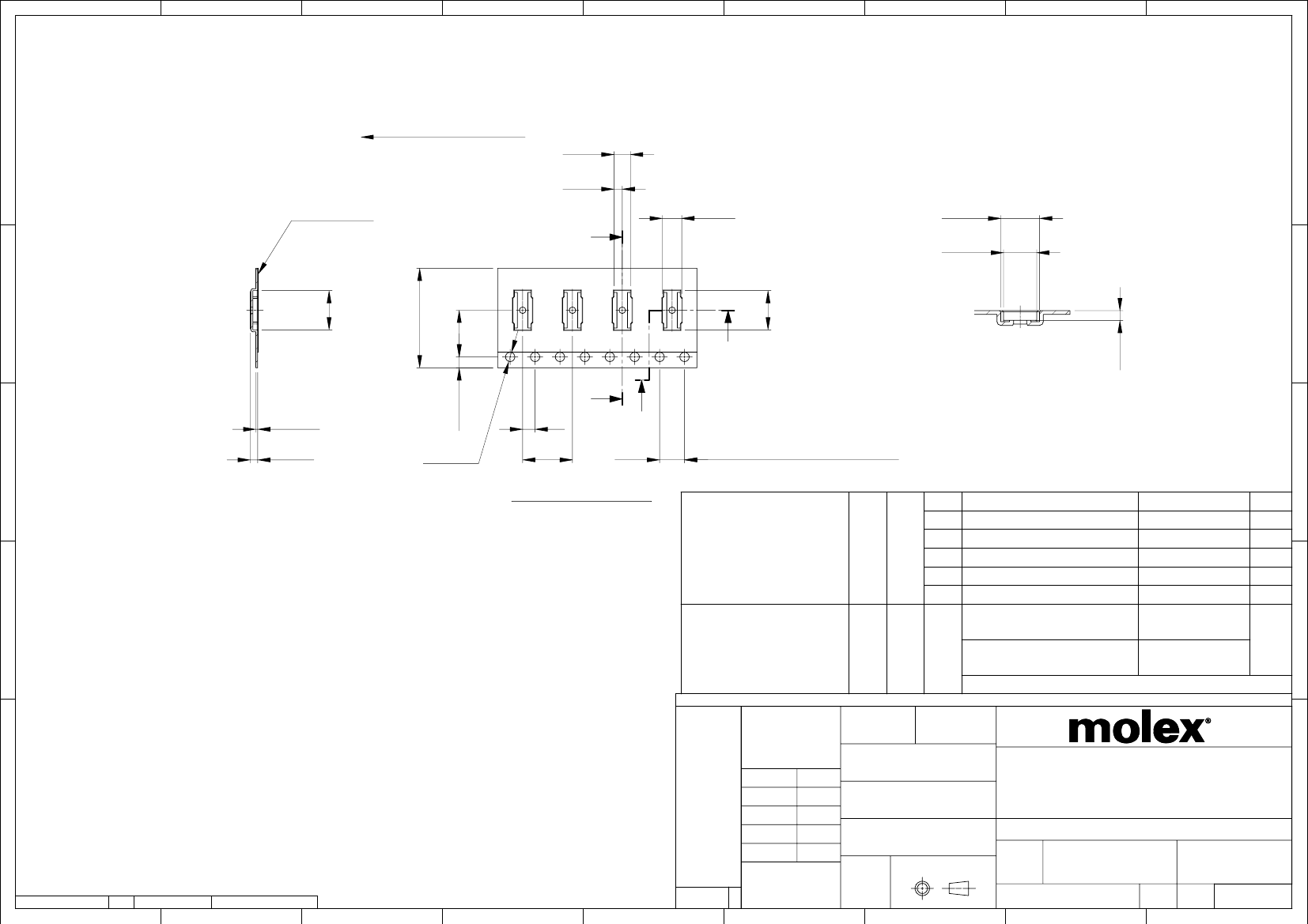

9
8
7
6
5
4
3
2
1
E
引き出し方向
PULL OUT DIRECTION
E
(
2.66
)
(
1.33
)
トップテープ
TOP TAPE
(
3.12
)
(
3.12
)
(
2.66
)
Y
16
±
0.3
(
A
)
(
A
)
D
D
(
0.78
)
SECTION
X-X
SCALE 4:1
(
7.5
)
X
(
2
)
1.75
±
0.1
0.3
±
0.05
Y
C
(
1.18
)
SECTION
Y-Y
⌀
1.5
+0.1
0
8
±
0.1
4
±
0.1
X
累積ピッチ40±0.2
ACCUMULATIVE PITCH 40±0.2
C
16mm幅キャリアテープ
16mm WIDTH CARRIER TAPE
16
7.52
7.12
6.32
21.4 17.4
5.92
5.52
4.72
B
キャリアテープ幅
CARRIER TAPE WIDTH
C
B
HIGH VOL.
B
TOOL
極数
CKT.
(A)
SAMPLE
オーダー番号 ORDER No.
PREPARATION
MODEL No. 503304-**42
EMBOSSED PACKAGE
2:1
503304-2642
503304-2442
503304-2042
503304-1842
503304-1642
503304-1242
○
○
○
○
○
○
26
24
20
18
16
12
THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION
2016/11/24
2017/02/21
2017/02/21
GENERAL
TOLERANCES
(UNLESS SPECIFIED)
ANGULAR TOL ±
3.0
°
DIMENSION UNITS
SCALE
MM
DRWN BY
DATE
RELEASED
4 PLACES
±
±
±
±
±
0.03
0.03
0.05
0.1
0.2
GABE
CHK'D BY
DATE
2016/11/24
2017/02/21
DATE
113200
GABE
KTAKAHASHI
MSASAO
A
3 PLACES
2 PLACES
1 PLACE
0 PLACES
0.4 BB CONN. H=0.7 REC. ASSY EMBSTP PKG
KTAKAHASHI
APPR BY
A
PRODUCT CUSTOMER DRAWING
SERIES
MATERIAL NUMBER
CUSTOMER
MSASAO
DRAWING SIZE
2017/02/21
THIRD ANGLE PROJECTION
EC NO:
DRWN:
CHK'D:
APPR:
RELEASE STATUS
FORMAT: master-tb-prod-A3
REVISION: G
DATE: 2015/12/14
9
P1
RELEASE DATE
21.02.2017
8
05:22:40
7
6
5
A
REV
DRAFT WHERE APPLICABLE
MUST REMAIN
WITHIN DIMENSIONS
503304
DOCUMENT NUMBER
SEE CHART
GENERAL
DOC TYPE
DOC PART
SHEET NUMBER
A3
3
4
5033040001
2
PSD
000
1
2 OF 3

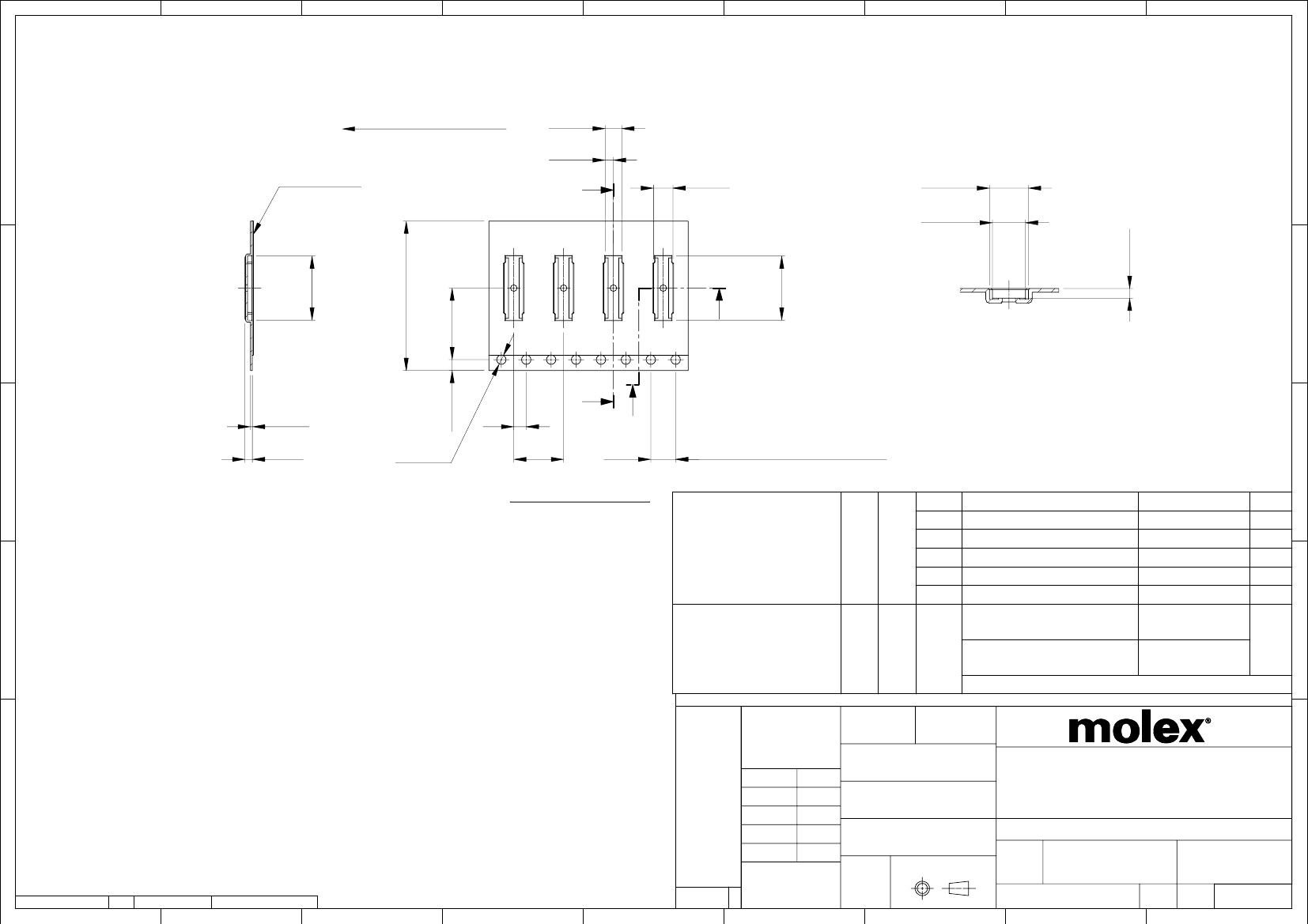

9
8
7
6
5
4
3
2
1
E
引き出し方向
PULL OUT DIRECTION
トップテープ
TOP TAPE
(
2.66
)
(
1.33
)
E
YA
(
3.12
)
(
3.12
)
(
2.66
)
(
0.78
)
24
±
0.3
(
A
)
(
11.5
)
D
(
A
)
D
XA
(
2
)
1.75
±
0.1
0.3
±
0.05
YA
8
±
0.1
SECTION
XA-XA
SCALE 4:1
C
(
1.18
)
SECTION
YA-YA
⌀
1.5
+0.1
0
4
±
0.1
XA
累積ピッチ40±0.2
ACCUMULATIVE PITCH 40±0.2
C
24mm幅キャリアテープ
24mm WIDTH CARRIER TAPE
24
14.32
12.32
11.12
29.4 25.4
10.72
10.32
8.32
B
キャリアテープ幅
CARRIER TAPE WIDTH
C
B
(A)
HIGH VOL.
B
TOOL
極数
CKT.
SAMPLE
オーダー番号 ORDER No.
PREPARATION
MODEL No. 503304-**42
EMBOSSED PACKAGE
503304-6042
503304-5042
503304-4442
503304-4242
503304-4042
503304-3042
○
○
○
○
○
○
60
50
44
42
40
30
THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION
2016/11/24
2017/02/21
2017/02/21
GENERAL
TOLERANCES
(UNLESS SPECIFIED)
ANGULAR TOL ±
3.0
°
DIMENSION UNITS
SCALE
MM
DRWN BY
DATE
2:1
2016/11/24
DATE
RELEASED
4 PLACES
±
±
±
±
±
0.03
0.03
0.05
0.1
0.2
GABE
CHK'D BY
113200
GABE
KTAKAHASHI
MSASAO
A
3 PLACES
2 PLACES
1 PLACE
0 PLACES
0.4 BB CONN. H=0.7 REC. ASSY EMBSTP PKG
KTAKAHASHI
APPR BY
DATE
2017/02/21
2017/02/21
A
PRODUCT CUSTOMER DRAWING
SERIES
MATERIAL NUMBER
CUSTOMER
MSASAO
DRAWING SIZE
EC NO:
DRWN:
CHK'D:
APPR:
THIRD ANGLE PROJECTION
RELEASE STATUS
FORMAT: master-tb-prod-A3
REVISION: G
DATE: 2015/12/14
9
P1
RELEASE DATE
21.02.2017
8
05:22:40
7
6
5
A
REV
DRAFT WHERE APPLICABLE
MUST REMAIN
WITHIN DIMENSIONS
503304
DOCUMENT NUMBER
SEE CHART
GENERAL
DOC TYPE
DOC PART
SHEET NUMBER
A3
3
4
5033040001
2
PSD
000
1
3 OF 3

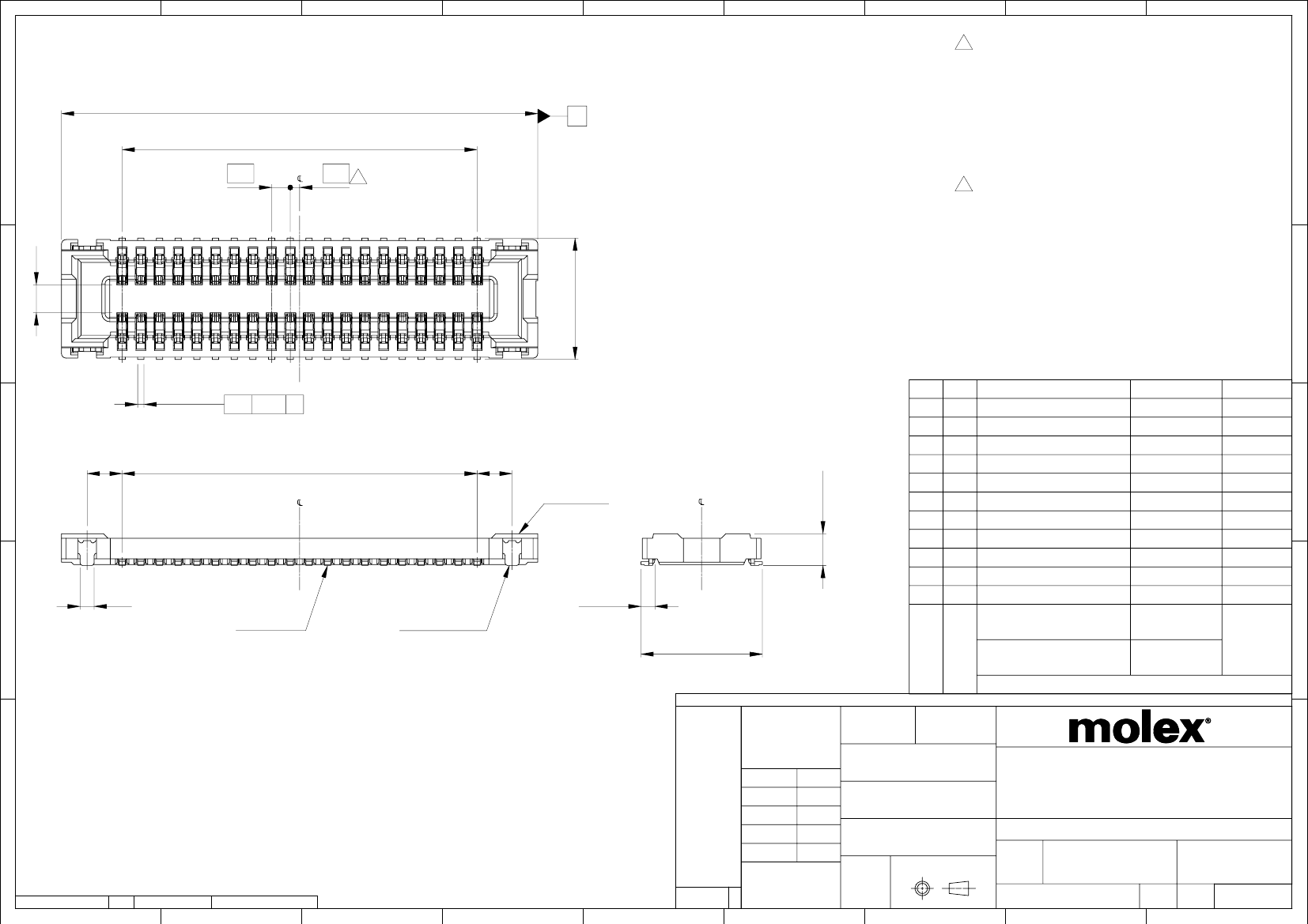

9
8
7
6
5
注記 NOTES
1. ½用材料 MATERIAL
4
3
3
2
(全極数/2)=偶数の場合に適用。
APPLY FOR (CIRCUIT/2)=EVEN.
1
E
A
±
0.2
B
±
0.2
Y
0.4
PICK-UP AREA
0.2
3
(PITCH)
D
½
2.6
½
4.
嵌合相手：503308シリーズ
ハウジング：液晶ポリマー(LCP) UL94V-0(黒)
MATE WITH : 503308 SERIES.
HOUSING : LIQUID CRYSTAL POLYMER, UL94V-0 (COLOR : BLACK)
テール平坦度は、0.08以下。
ターミナル：銅合金
5.
E
テール及び金具の平坦度は、0.1以下。
TERMINAL : COPPER ALLOY
TAIL COPLANARITY TO BE 0.08 MAXIMUM.
金具：銅合金
TAIL AND FITTING NAIL COPLANARITY TO BE 0.1 MAXIMUM.
FITTING NAIL : COPPER ALLOY
6. ELV AND RoHS COMPLIANT.
2. めっき仕様 PLATING
7
パターン及び半田禁止エリア
ターミナル TERMINAL
(½該箇所においては、これと接する回路以外の配線を禁止する。
コンタクト部：金めっき 0.1マイクロメートル以上
また、接する回路を配線する場合はレジストを½し、
CONTACT AREA : GOLD 0.1 MICROMETER MINIMUM.
この部分に半田は無きこととする。)
テール部：金めっき
PROHIBITED AREA OF PATTERN WIRING AND SOLDER.
(FOR EACH AREA, THE WIRING THAT TOUCHES
SOLDER TAIL AREA : GOLD
ON THE SOLDER CAN BE ATTACHED. THEN COVERD
下地めっき：ニッケルめっき 1.0マイクロメートル以上
WITH A FILM TO KEEP SOLDER OUT.)
UNDER PLATING : NICKEL 1.0 MICROMETER MINIMUM.
※コンタクト部とテール部は、ニッケルめっきによって
分断されている金めっきです。
DIVIDE INTO PARTS THE GOLD PLATING OF THE CONTACT
AND THE TAIL PART BY THE NICKEL PLATING.
金具 FITTING NAIL
0.6
D
0.14
TERMINAL
WIDTH
⌖
0.15
Y
0.3
B
FITTING NAIL
WIDTH
TERMINAL
FITTING NAIL
TERMINAL
LENGTH
2.6
±
0.2
0.68
±
0.1
C
0.75
±
0.1
(B)
0.75
±
0.1
11.6
9.6
下地めっき：ニッケルめっき 1.0マイクロメートル以上
UNDER PLATING : NICKEL 1.0 MICROMETER MINIMUM.
8.4
8.0
7.6
5.6
HOUSING
4.8
4.4
3.6
3.2
2.8
2.0
0.3
錫めっき：1.0マイクロメートル以上
TIN PLATING : 1.0 MICROMETER MINIMUM.
14.2
12.2
11.0
10.6
10.2
8.2
7.4
7.0
6.2
5.8
5.4
4.6
B
A
○
60
○
50
○
44
○
42
C
○
40
○
30
○
26
○
24
○
20
○
18
○
16
○
12
HIGH VOL.
B
EMBOSSED PACKAGE
TOOL
極数
CIRCUITS
SAMPLE
オーダー番号 ORDER No.
PREPARATION
CONNECTOR SERIES No. : 503304-**49
503304-6042
503304-5042
503304-4442
503304-4242
503304-4042
503304-3042
503304-2642
503304-2442
503304-2042
503304-1842
503304-1642
503304-1242
THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION
2016/11/24
2017/02/21
2017/02/21
GENERAL
TOLERANCES
(UNLESS SPECIFIED)
ANGULAR TOL ±
3.0
°
DIMENSION UNITS
SCALE
MM
DRWN BY
DATE
15:1
2016/11/24
DATE
RELEASED
4 PLACES
±
±
±
±
±
0.03
0.03
0.05
0.1
0.2
GABE
CHK'D BY
113200
GABE
KTAKAHASHI
MSASAO
A
3 PLACES
2 PLACES
1 PLACE
0 PLACES
0.4 BB CONN. H=0.7 REC. ASSY
KTAKAHASHI
APPR BY
DATE
2017/02/21
2017/02/21
A
PRODUCT CUSTOMER DRAWING
SERIES
MATERIAL NUMBER
CUSTOMER
MSASAO
DRAWING SIZE
EC NO:
DRWN:
CHK'D:
APPR:
THIRD ANGLE PROJECTION
RELEASE STATUS
FORMAT: master-tb-prod-A3
REVISION: G
DATE: 2015/12/14
9
P1
RELEASE DATE
21.02.2017
8
05:22:41
7
6
5
A
REV
DRAFT WHERE APPLICABLE
MUST REMAIN
WITHIN DIMENSIONS
503304
DOCUMENT NUMBER
SEE CHART
GENERAL
DOC TYPE
DOC PART
SHEET NUMBER
A3
3
4
5033041001
2
PSD
000
1
1 OF 2
9
8
7
6
5
4
3
2
1
E
0.75
±
0.03
0.4
±
0.03
0.5
±
0.03
(PITCH)
B
±
0.03
0.75
±
0.03
E
0.47
±
0.05
0.73
MIN.
7
1.92
±
0.05
D
(
0.54
)
0.24
±
0.03
0.45
±
0.05
D
0.47
±
0.05
0.73
MIN.
C
0.45
±
0.05
2
±
0.05
C
0.35
MIN.
7

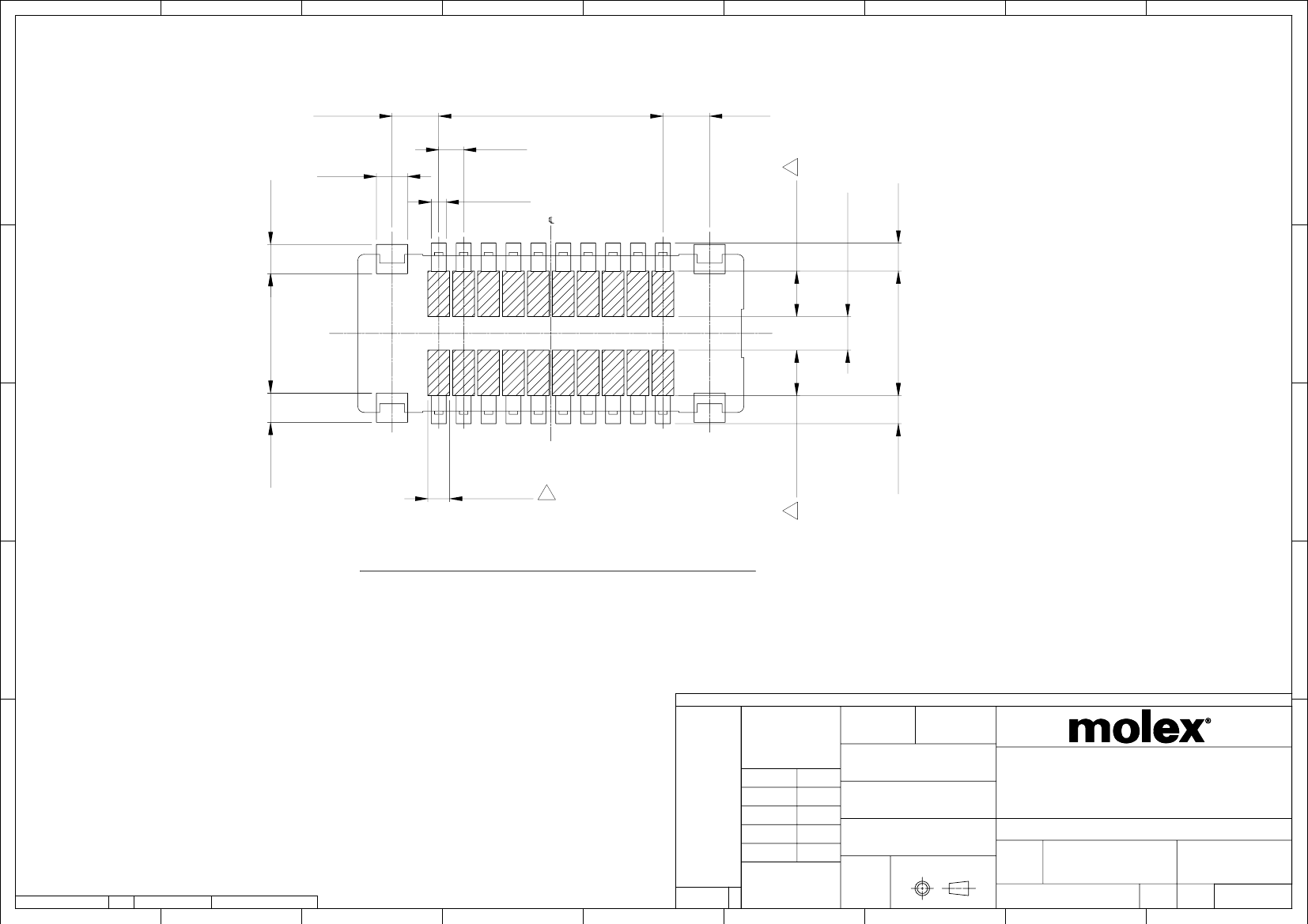

RECOMMENDED P.W.BOARD PATTERN LAYOUT (REFERENCE)
RECOMMENDED THICKNESS OF METAL MASK : t=0.1 mm
RECOMMENDED OPEN APERTURE RATIO OF METAL MASK : 100%
B
7
B
THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION
2016/11/24
2017/02/21
2017/02/21
GENERAL
TOLERANCES
(UNLESS SPECIFIED)
ANGULAR TOL ±
3.0
°
DIMENSION UNITS
SCALE
MM
DRWN BY
DATE
20:1
2016/11/24
DATE
RELEASED
4 PLACES
±
±
±
±
±
0.03
0.03
0.05
0.1
0.2
GABE
CHK'D BY
113200
GABE
KTAKAHASHI
MSASAO
A
3 PLACES
2 PLACES
1 PLACE
0 PLACES
0.4 BB CONN. H=0.7 REC. ASSY
KTAKAHASHI
APPR BY
DATE
2017/02/21
2017/02/21
A
PRODUCT CUSTOMER DRAWING
SERIES
MATERIAL NUMBER
CUSTOMER
MSASAO
DRAWING SIZE
EC NO:
DRWN:
CHK'D:
APPR:
THIRD ANGLE PROJECTION
RELEASE STATUS
FORMAT: master-tb-prod-A3
REVISION: G
DATE: 2015/12/14
9
P1
RELEASE DATE
21.02.2017
8
05:22:41
7
6
5
A
REV
DRAFT WHERE APPLICABLE
MUST REMAIN
WITHIN DIMENSIONS
503304
DOCUMENT NUMBER
SEE CHART
GENERAL
DOC TYPE
DOC PART
SHEET NUMBER
A3
3
4
5033041001
2
PSD
000
1
2 OF 2
