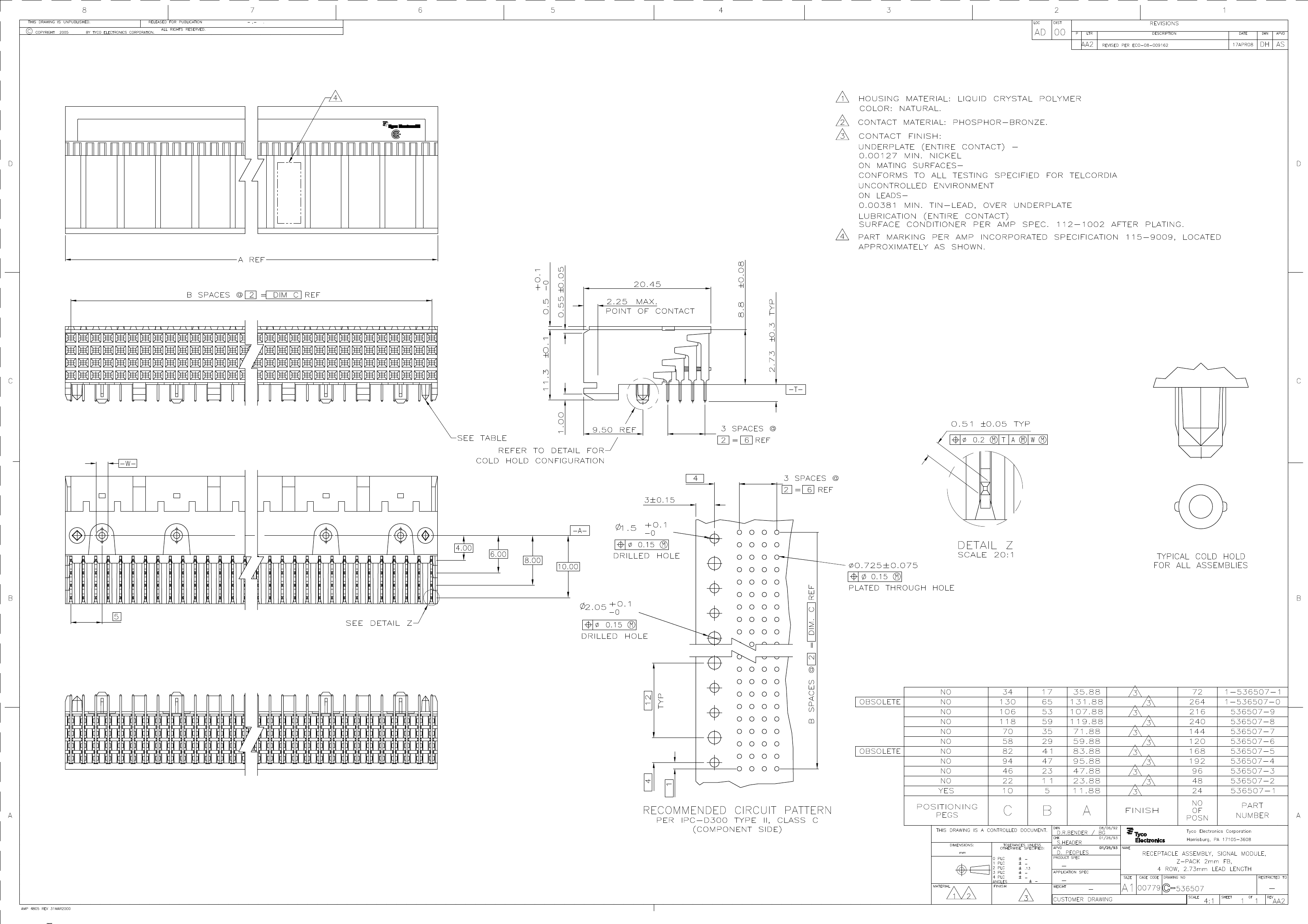

168 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE
| Parameter Name | Attribute value |
| Objectid | 1418102577 |
| Reach Compliance Code | unknown |
| Other features | Z-PACK |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact completed and terminated | TIN LEAD (150) OVER NICKEL |
| Contact point gender | FEMALE |
| DIN compliance | NO |
| Filter function | NO |
| IEC compliance | NO |
| JESD-609 code | e0 |
| MIL compliance | NO |
| Manufacturer's serial number | 536507 |
| Mixed contacts | NO |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of rows loaded | 4 |
| Options | GENERAL PURPOSE |
| Terminal pitch | 2 mm |
| Termination type | SOLDER |
| Total number of contacts | 168 |
| UL Flammability Code | 94V-0 |
| 536507-5 | 1-536507-0 | 536507-9 | 536507-8 | |
|---|---|---|---|---|
| Description | 168 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE | HEADER CONNECTOR,PCB MNT,PLUG,264 CONTACTS,SKT,0.079 PITCH,PC TAIL TERMINAL,LOCKING MECH | HEADER CONNECTOR,PCB MNT,PLUG,216 CONTACTS,SKT,0.079 PITCH,PC TAIL TERMINAL,LOCKING MECH | HEADER CONNECTOR,PCB MNT,PLUG,240 CONTACTS,SKT,0.079 PITCH,PC TAIL TERMINAL,LOCKING MECH |
| Reach Compliance Code | unknown | unknown | compliant | unknown |
| Body/casing type | RECEPTACLE | PLUG | PLUG | PLUG |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED | AU ON PD-NI | AU ON PD-NI | AU ON PD-NI |
| Contact point gender | FEMALE | FEMALE | FEMALE | FEMALE |
| Manufacturer's serial number | 536507 | 536507 | 536507 | 536507 |
| Installation method | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE |
| Installation type | BOARD | BOARD | BOARD | BOARD |
| Number of rows loaded | 4 | 4 | 4 | 4 |
| Terminal pitch | 2 mm | 2.0066 mm | 2.0066 mm | 2.0066 mm |
| Termination type | SOLDER | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 168 | 264 | 216 | 240 |
| Board mount options | - | BACK BOARD MOUNTING HOLE | BACK BOARD MOUNTING HOLE | BACK BOARD MOUNTING HOLE |
| body width | - | 0.465 inch | 0.465 inch | 0.465 inch |
| subject depth | - | 0.805 inch | 0.805 inch | 0.805 inch |
| body length | - | 5.192 inch | 4.247 inch | 4.72 inch |
| Contact material | - | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY |
| contact mode | - | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact style | - | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT |
| Durability | - | 250 Cycles | 250 Cycles | 250 Cycles |
| maximum insertion force | - | .4448 N | .4448 N | .4448 N |
| insulator material | - | LIQUID CRYSTAL POLYMER (LCP) | LIQUID CRYSTAL POLYMER (LCP) | LIQUID CRYSTAL POLYMER (LCP) |
| Plug contact pitch | - | 0.079 inch | 0.079 inch | 0.079 inch |
| Match contact row spacing | - | 0.079 inch | 0.079 inch | 0.079 inch |
| Installation option 1 | - | LOCKING MECH | LOCKING MECH | LOCKING MECH |
| Number of connectors | - | ONE | ONE | ONE |
| PCB row number | - | 4 | 4 | 4 |
| Maximum operating temperature | - | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | - | -55 °C | -55 °C | -55 °C |
| PCB contact pattern | - | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| PCB contact row spacing | - | 2.0066 mm | 2.0066 mm | 2.0066 mm |
| Plating thickness | - | FLASH inch | FLASH inch | FLASH inch |
| polarization key | - | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING |
| Rated current (signal) | - | 1 A | 1 A | 1 A |
| Guideline | - | UL, CSA | UL, CSA | UL, CSA |
| reliability | - | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal length | - | 0.107 inch | 0.107 inch | 0.107 inch |
| Evacuation force-minimum value | - | .1946 N | .1946 N | .1946 N |
