55A0811-20-8

Description
WIRE AND CABLE, FLEXIBLE CORD AND FIXTURE WIRE, 1 CONDUCTOR(S), 20AWG, 600V, ROHS COMPLIANT
CategoryThe connector    Connector bracket
File Size131KB，1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric Compare View All

55A0811-20-8 Overview

WIRE AND CABLE, FLEXIBLE CORD AND FIXTURE WIRE, 1 CONDUCTOR(S), 20AWG, 600V, ROHS COMPLIANT

55A0811-20-8 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerTE Connectivity
package instructionROHS COMPLIANT
Reach Compliance Codeunknown
applicationAIRFRAME, MEDIUM WEIGHT
Conductor surface treatmentTIN
conductor materialCOPPER
Connector bracket typeWIRE AND CABLE
structureSTRANDED
Cross-sectional area0.62 mm2
diameter1.27 mm
Number of conductors1
Maximum operating temperature150 °C
Minimum operating temperature-65 °C
Rated voltage600 V
shieldNO
stay19X32
Wire gauge20 AWG
Wire and Cable NamesFLEXIBLE CORD AND FIXTURE WIRE

Preview

Download Datasheet

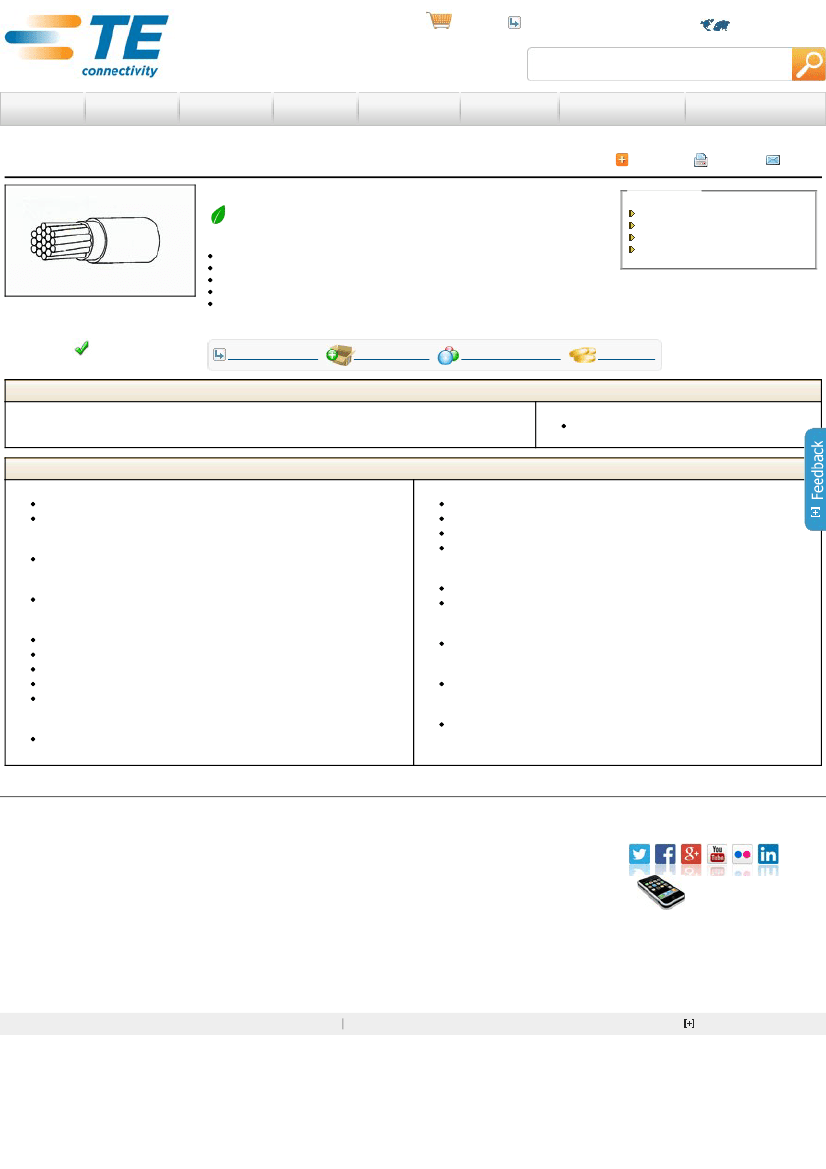

TE Connectivity
 My Cart |
 My Part Lists | Sign In/Register
English
(Change)
What can we help you find?
Products
Industries
Resources
About TE
My Account
Innovation
Support Center
Home > Products > Wire & Cable > Product Feature Selector > Product Details
55A0811­20­8 Product Details
Spec 44, Spec 55 and Spec RCW Wire and Cable

Always EU RoHS/ELV Compliant
 (
Statement of Compliance
)
Product Highlights:
Cable Type = Spec 55
Wire Source = United Kingdom, United States
Cable Style = Primary
Wire Size (AWG/CM) = 20 AWG
Voltage Rating = 600 VAC
View all Features
 Share
 Print
 Email
Quick Links
Pricing & Availability
Search for Tooling
Product Feature Selector
Contact Us About This Product
55A0811­20­8

TE Internal Number: 689587­000
 Active
Add to My Part List
Request Sample
Find Similar Products
Buy Product
Documentation & Additional Information
Documents are temporarily unavailable. We are working hard to correct the problem. Please try
again later.
Related Products:
Tooling
Product Features
(Please use the Product Drawing for all design activity)
Product Type Features:
Cable Type = Spec 55
Cable Style = Primary
Electrical Characteristics:
Voltage Rating (VAC) = 600
Dimensions:
Conductor Outer Diameter (mm [in]) = 1.01 [0.040]
Body Features:
Wire Size (AWG/CM) = 20 AWG
Conductor Type = Tin­Plated Copper
Wire Color = Gray
Nominal Outside Diameter (mm [in]) = 1.27 [0.050]
Wire Diameter (mm [in]) = 1.27 [0.050]
Configuration Features:
Number of Conductors = 1
Industry Standards:
Government/Industry Qualification = No
RoHS/ELV Compliance = RoHS compliant, ELV compliant
Lead Free Solder Processes = Not relevant for lead free process
RoHS/ELV Compliance History = Always was RoHS compliant
Conditions for Usage:
Temperature Range (°C) = ­65 – +150
Wire Size ­ Details = 20 AWG 0.62 mm², 0.00095 in², 19 x 32 AWG
Operation/Application:
Application = Airframe ­ Medium Weight
Packaging Features:
Wire Source = United Kingdom, United States
Other:
Brand = Raychem
