536526-4 datasheet, PDF - EEWORLD Datasheet

536526-4: Description192 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT; File Size272KB，15 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

536526-4 Overview

192 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT

536526-4 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Objectid	1418102925
Reach Compliance Code	unknown
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	4
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	192

Preview

Download Datasheet

View All

Application Specification

Z- PACK* 2 mm FB (Futurebus+)

Recpetacle and Pin Header Connectors

NOTE

18 MAR 11

114-- 1075

Rev E

All numerical values are in metric units [with U.S. customary units in brackets]. Dimensions are in millimeters. Unless

otherwise specified, dimensions have a tolerance of +0.13 and angles have a tolerance of +2_. Figures and

illustrations are for identification only and are not drawn to scale.

1. INTRODUCTION

This specification covers the requirements for application of the Z--PACK 2mm FB (Futurebus+) Receptacle

and Pin Header Connectors for printed circuit (pc) board applications. The connectors have in--row and

row--to--row centerline spacing of 2mm. They are available in either 4-- or 5--row configurations.

The connectors use an open pin field construction (no ground planes) for high signal density and require

minimal pc board space. The receptacles are right--angle configurations and the pin headers are both vertical

and right--angle configurations; both are available with either solder tine or press--fit compliant pin contacts.

Accessories and their identifying features are described and shown in Section 3 of this specification.

When corresponding with TE Connectivity (TE) Personnel, use the terminology provided on this specification to

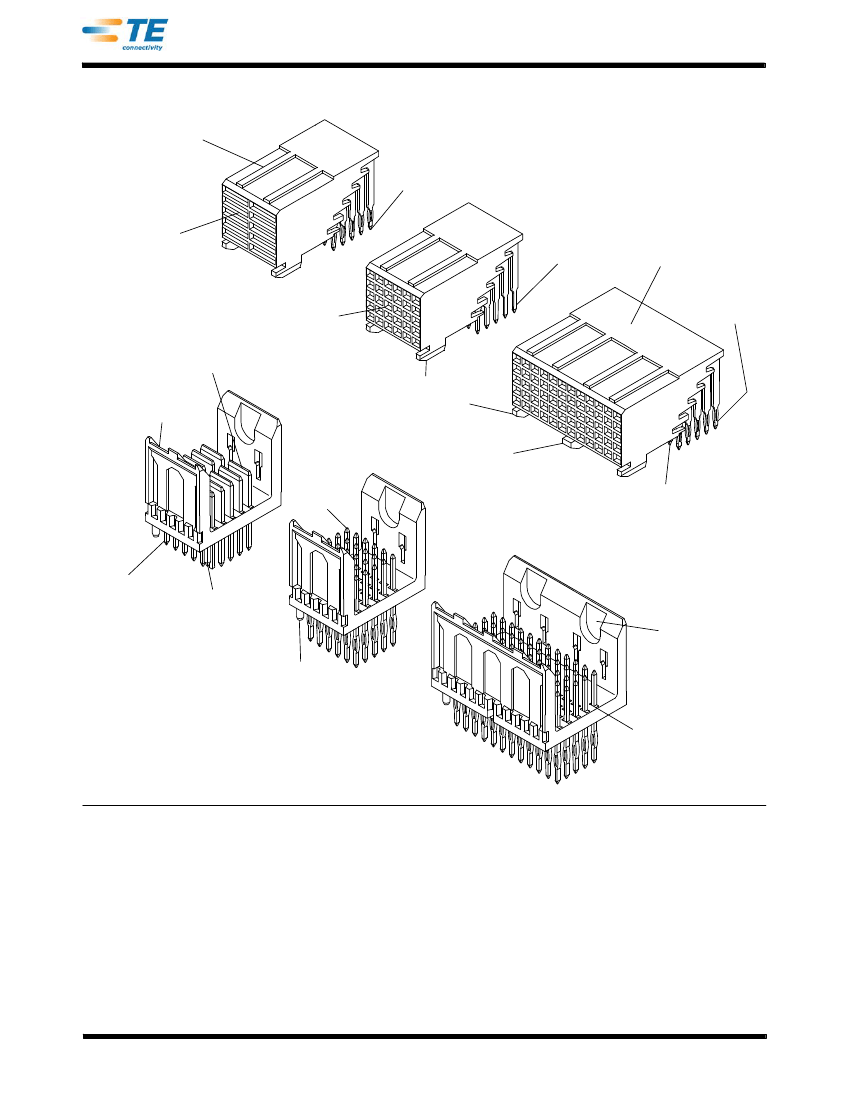

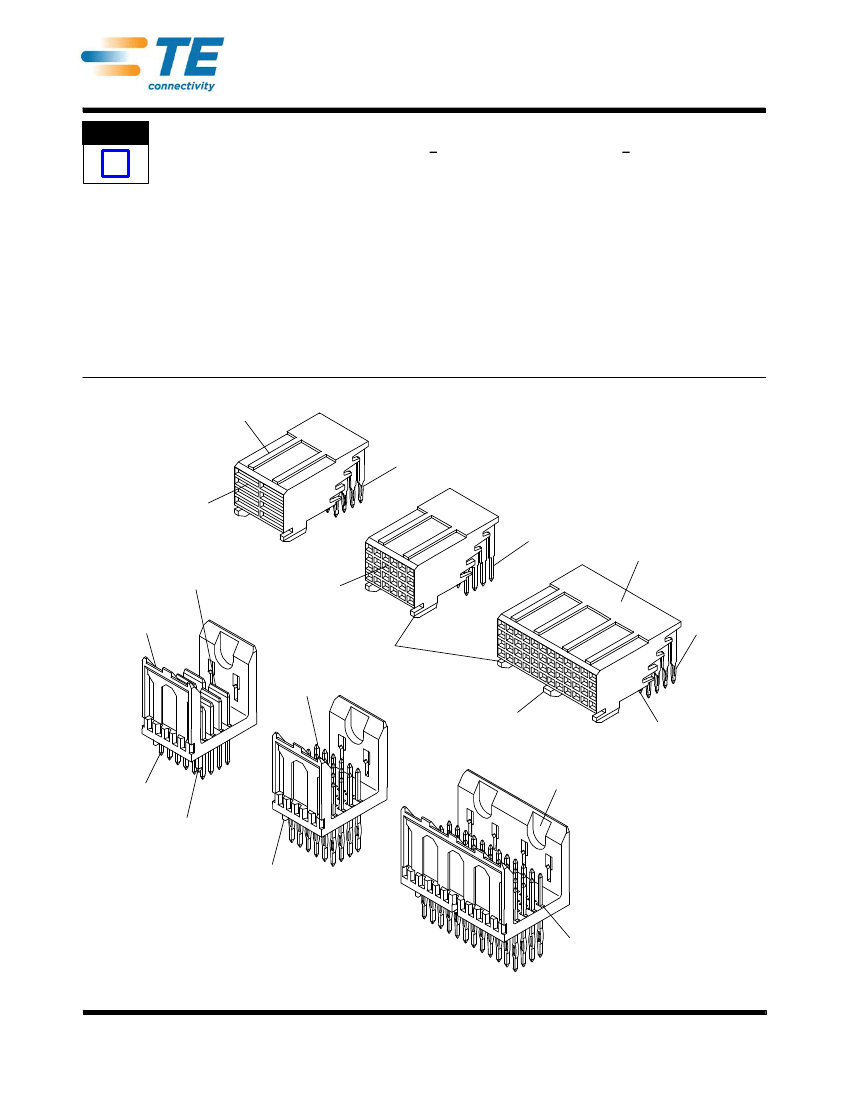

help facilitate your inquiry for information. Basic terms and features of components are provided in Figure 1.

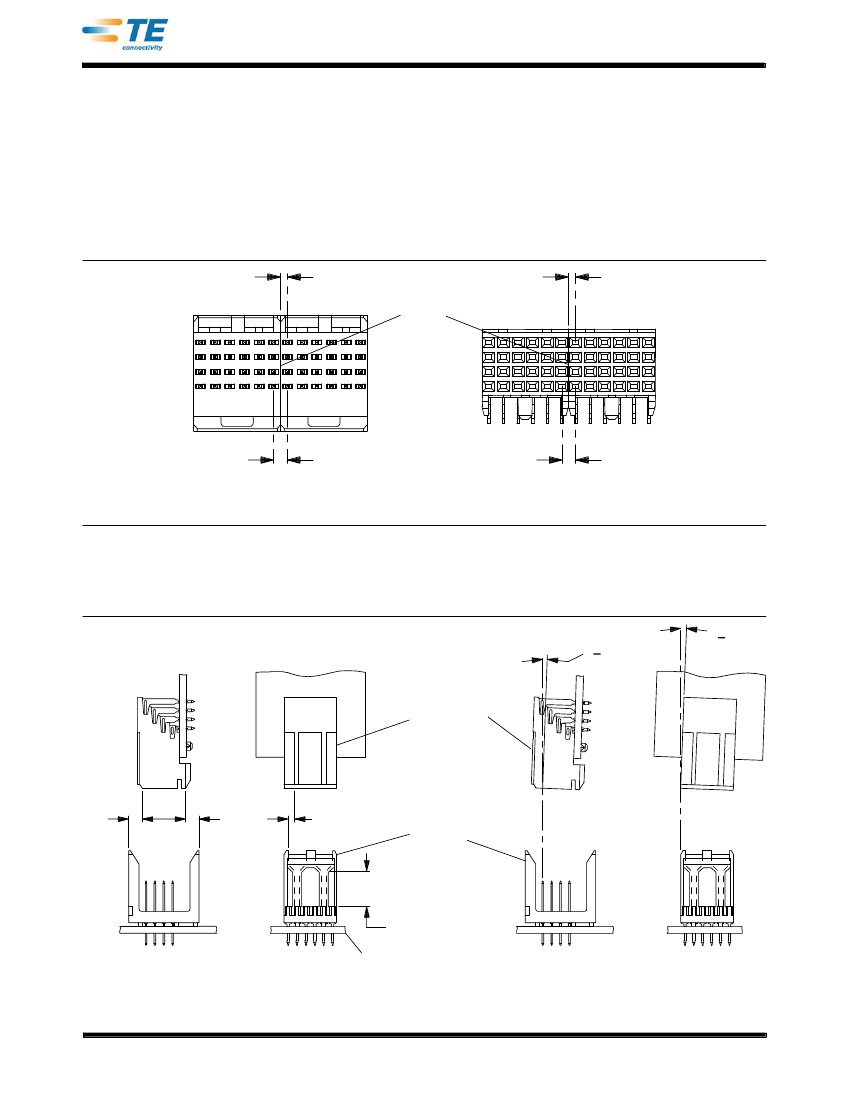

Alignment

Rib

4--Row Right - Angle Power

Receptacle Connector

Press-- Fit

Compliant Pin

Contact

Power Receptacle

Contacts (Inside)

Power Pin

Contact

Alignment Rib Slot

with Guide-- In

4--Row Right - Angle

Signal Receptacle

Connectors

Solder Tine

Contact

Signal Receptacle

Contacts (Inside)

End

Stabilizers

Back/Top Surface

of Housing

Press-- Fit

Compliant

Pin Contact

Signal Pin

Contact

Center

Stabilizer

Retention Post

Seating Area

Plastic Retention

Post

Solder Tine

Contact

Guide Post for

Solder Type Only

4--Row Vertical Power

Pin Header Connector

Standoff

4--Row Vertical Signal

Pin Header Connectors

Figure 1 (cont’d)

E2011

Tyco Electronics Corporation, a TE Connectivity Ltd. Company TOOLING ASSISTANCE CENTER 1--800--722--1111

PRODUCT INFORMATION 1--800--522--6752

TE logo is a trademark.

*Trademark. Other product names, logos, or company names might be trademarks of their respective owners.

Contact

Shoulder

This controlled document is subject to change.

For latest revision and Regional Customer Service,

visit our website at

www.te.com

of 15

LOC B

114- 1075

2.2. Customer Assistance

Reference Part Number 536507 and Product Code 1830 are representative numbers of Z--PACK 2mm FB

Receptacle and Pin Header Connectors. Use of these numbers will identify the product line and expedite your

inquiries through a service network established to help you obtain product and tooling information. Such

information can be obtained through a local TE Representative or, after purchase, by calling the Tooling

Assistance Center or Product Information number at the bottom of page 1.

2.3. Drawings

Customer Drawings for specific products are available from the service network. The information contained in

Customer Drawings takes priority if there is a conflict with this specification or with any other technical

documentation supplied by TE.

2.4. Manuals

Manual 402--40 is available from the service network. This manual provides information on various flux types

and characteristics along with the commercial designation and flux removal procedures. A checklist is included

in the manual as a guide for information on soldering problems.

2.5. Specifications

Product Specification 108--1441 provides test and performance requirements.

2.6. Instructional Material

The following list includes available instruction sheets (408--series) that provide assembly procedures for

product, operation, maintenance and repair of tooling, as well as setup and operation procedures of

applicators.

Document Number

408--4038

408--4157

408--4250

408--4488

408--9910

408--9979

Document Title

PC Board Support Fixtures 679980--1, --2 for Z--PACK 2mm FB (Futurebus) and

2mm HM Receptacle Tooling

Vertical Power Contact Header Connector Seating Tool 58512--[ ] (4--Row)

Vertical Signal Contact Header Connector Seating Tool 318860--[ ] (5--Row)

Vertical Power Contact Header Connector Seating Tool 1214224--[ ] (5--Row)

Vertical Signal Contact Header Connector Seating Tools 58511--[ ] (4--Row)

Pin Repair Kit 354687--1

3. REQUIREMENTS

3.1. Storage and Chemical Exposure Limitations

A. Storage

Connectors are packaged and shipped in protective anti--static tubes. To prevent damage to the housing

and contact tines, connectors should remain in tubes until ready for use. They should be stored at normal

room temperatures with low humidity, and used on a first in, first out basis.

B. Chemical Exposure Limitations

Do not store connectors near any chemicals listed, as they may cause stress corrosion cracking in the

components.

Alkalies

Amines

Ammonia

Carbonates

Citrates

Nitrites

Phosphates Citrates

Sulfur Nitrites

Sulfur Compounds

Tartrates

Rev E

of 15
