5394-2121 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5394-2121

5394-2121: DescriptionBoard Connector, 12 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size95KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric Compare View All

5394-2121 Overview

Board Connector, 12 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle

5394-2121 Parametric

Parameter Name	Attribute value
Maker	Conexcon Group
Reach Compliance Code	unknown
body width	0.429 inch
body length	0.902 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
maximum insertion force	8.0064 N
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	5394
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation option 2	SHORT LATCH
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	12
Evacuation force-minimum value	.7784 N

Preview

Download Datasheet

View All

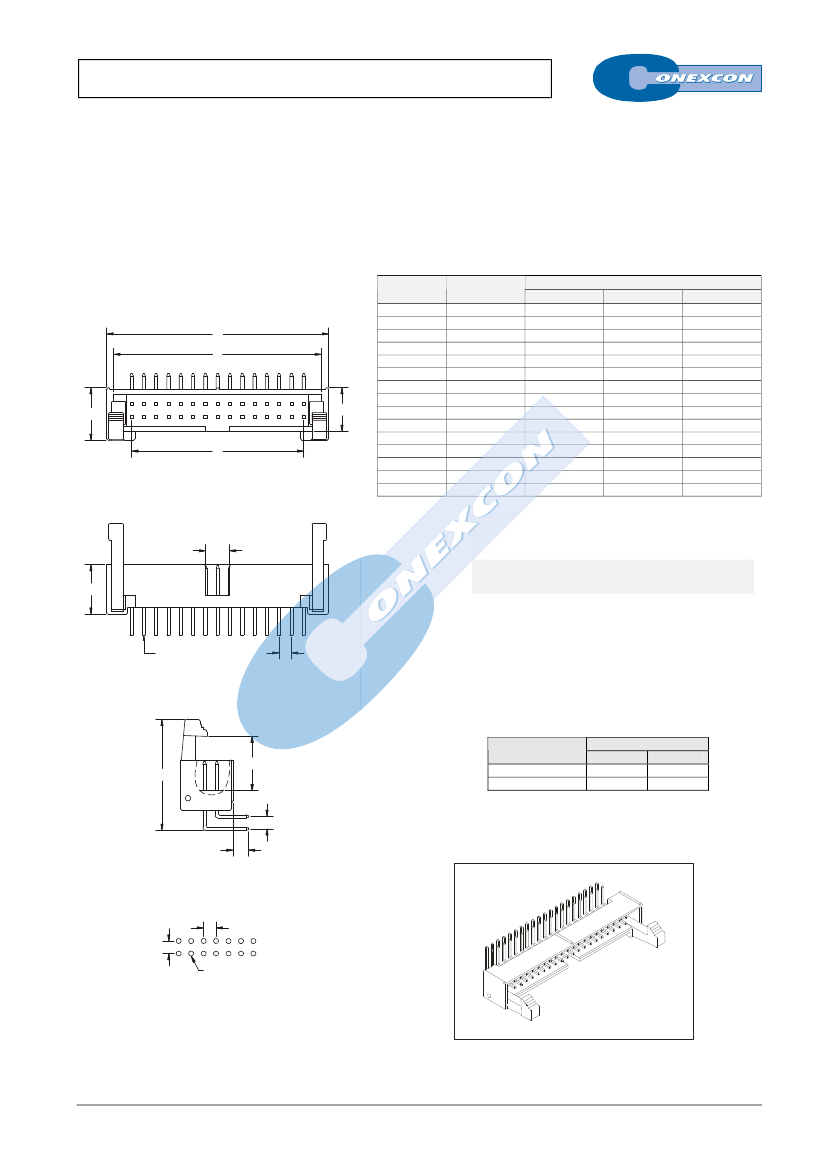

2.54mm RIGHT ANGLE SHROUDED HEADER

5394 SERIES.

2.54 x 2.54 mm. (0.100 x 0.100”). With Eject Latch Levers

Features





Available in 6, 8, 10, 12, 14, 16, 20, 24, 26, 30, 34, 40, 50,

60 and 64 circuits

Insulator Material: P.B.T UL 94V-0

Contact Material: 0.50 mm square pin in copper alloy



Mates with 2039 and 2040 series I.D.C connector

Short and long latches available

Fully shrouded. Provides fast connection / disconnection of

Flat cable assembly

Ordering and Dimensional Information

Dimensions

15.28 (0.602)

17.82 (0.702)

20.36 (0.802)

22.90 (0.902)

25.44 (1.002)

27.98 (1.102)

33.06 (1.302)

38.14 (1.502)

40.68 (1.602)

45.76 (1.802)

50.84 (2.002)

58.46 (2.302)

71.16 (2.802)

83.86 (3.302)

88.94 (3.502)

12.42 (0.489)

14.96 (0.589)

17.50 (0.688)

20.04 (0.789)

22.58 (0.889)

25.12 (0.989)

30.20 (1.189)

35.28 (1.389)

37.82 (1.489)

42.90 (1.689)

47.98 (1.889)

55.60 (2.189)

68.30 (2.689)

81.00 (3.189)

86.08 (3.389)

5.08(0.200)

7.62(0.300)

10,16(0,400)

12.70(0.500)

15,24(0,600)

17,78(0,700)

22,86(0,900)

27.94(1.100)

30,48(1,200)

35,56(1,400)

40,64(1,600)

48,26(1,900)

60,96(2,400)

73,66(2,900)

78,74(3,100)

Dimensional Information

Circuit Size

Part Number

5394-T06X

5394-T08X

5394-T10X

5394-T12X

5394-T14X

5394-T16X

5394-T20X

5394-T24X

5394-T26X

5394-T30X

5394-T34X

5394-T40X

5394-T50X

5394-T60X

5394-T64X

10.9

9.0

T = Contact Plating

5.0

10.3



T =

Tin plated.

T =

Gold flash over 50µ” nickel

Recommended Finish

T =

15µ” gold over 50µ” nickel

T =

30µ” gold over 50µ” nickel

0.64x0.64

2.54

X = Latch type



X =

Short. For use without strain relief

X =

Long. For use with strain relief

Match Type

Dimensions

26.30

22.90

14.60

10.60

Long

Short

2.54

3.2

2.54

ø1.02±0.05

RECOMMENDED HOLE PATTERN

FULL LINE CATALOGUE

H-XX

5394-2121 Related Products

	5394-2121	5394-2141	5394-2061
Description	Board Connector, 12 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 14 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 6 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle
Maker	Conexcon Group	Conexcon Group	Conexcon Group
Reach Compliance Code	unknown	unknown	unknown
body width	0.429 inch	0.429 inch	0.429 inch
body length	0.902 inch	1.002 inch	0.602 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	SN	SN	SN
Contact completed and terminated	TIN	TIN	TIN
Contact point gender	MALE	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
maximum insertion force	8.0064 N	8.0064 N	8.0064 N
insulator material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	5394	5394	5394
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch
Installation option 1	LOCKING	LOCKING	LOCKING
Installation option 2	SHORT LATCH	SHORT LATCH	SHORT LATCH
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE
PCB row number	2	2	2
Number of rows loaded	2	2	2
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.54 mm	2.54 mm	2.54 mm
Guideline	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.126 inch	0.126 inch	0.126 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	12	14	6
Evacuation force-minimum value	.7784 N	.7784 N	.7784 N
