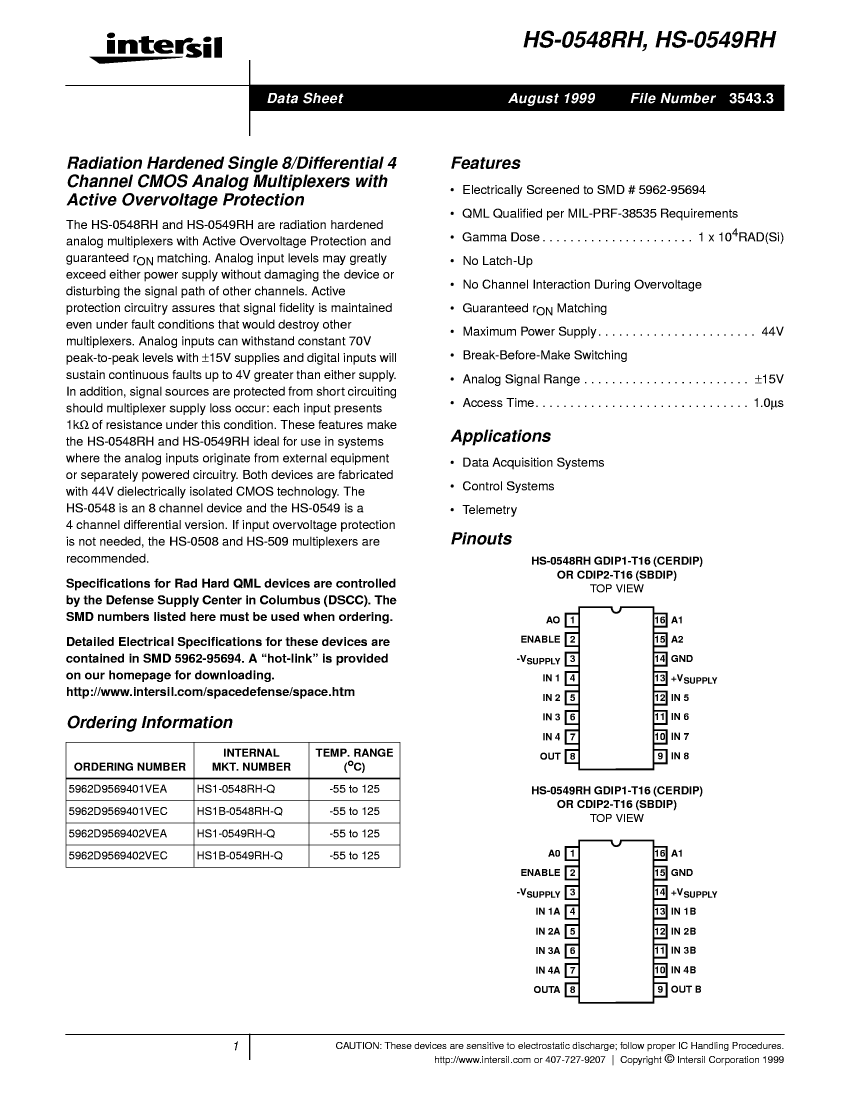

Preview

5962D9569402VEA: Description4-CHANNEL, DIFFERENTIAL MULTIPLEXER, CDIP16, CERAMIC, DIP-16; CategoryAnalog mixed-signal IC The signal circuit; File Size363KB，6 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

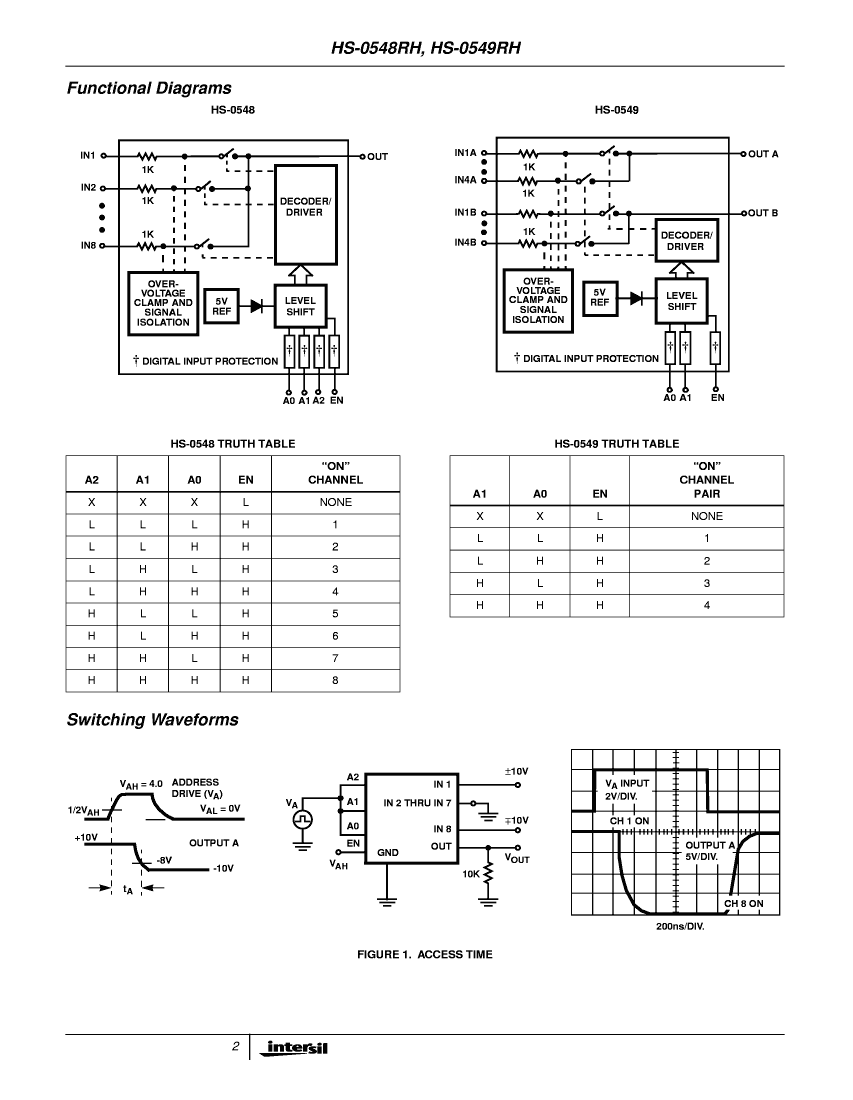

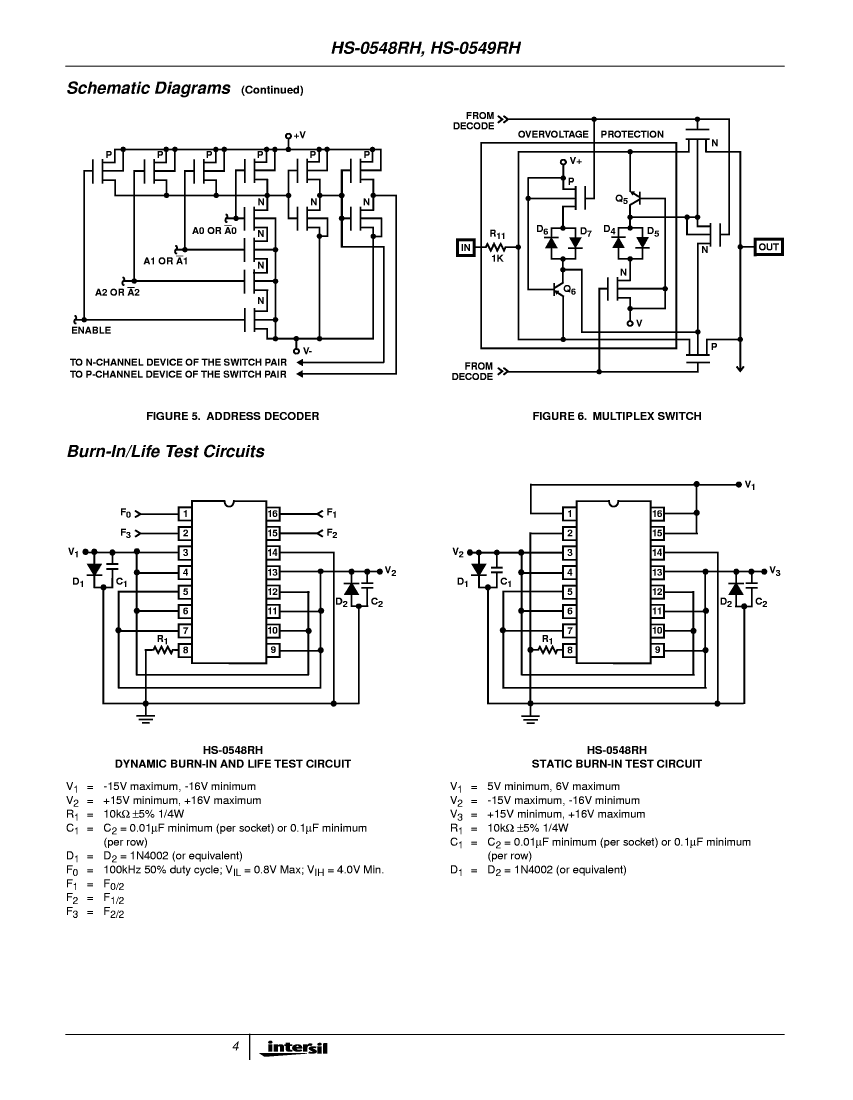

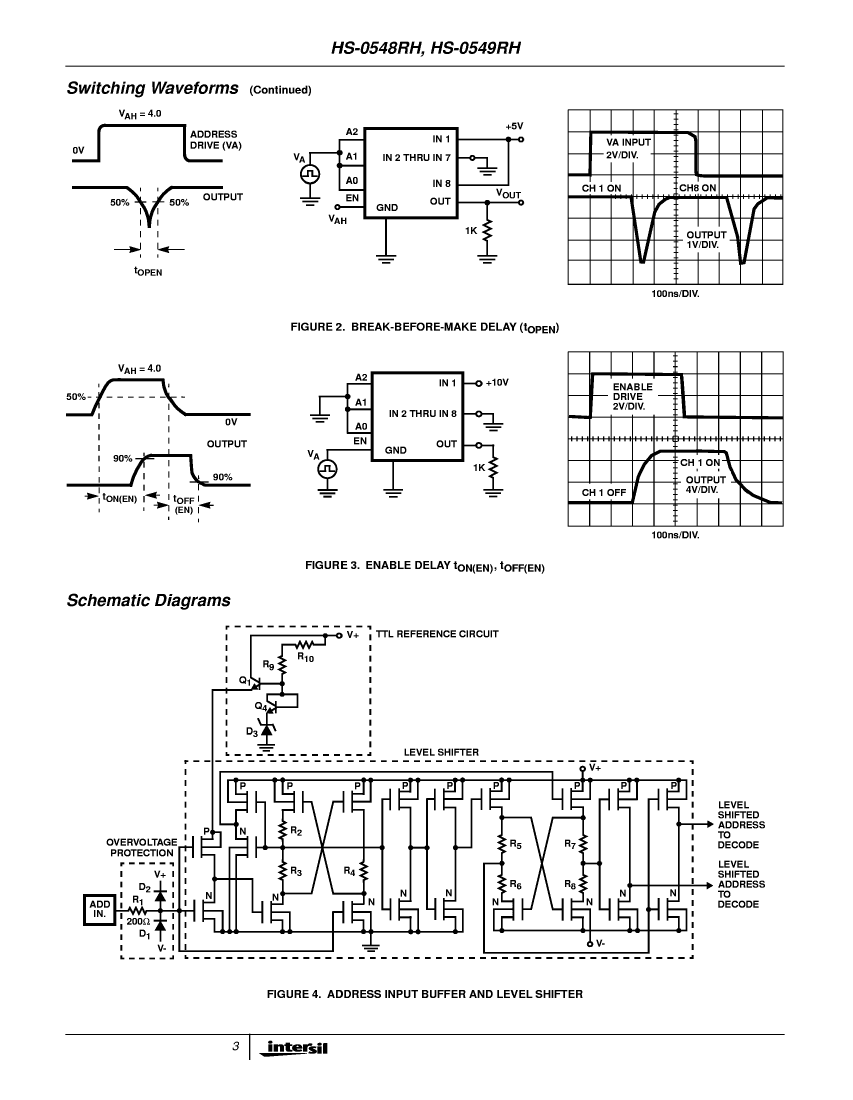

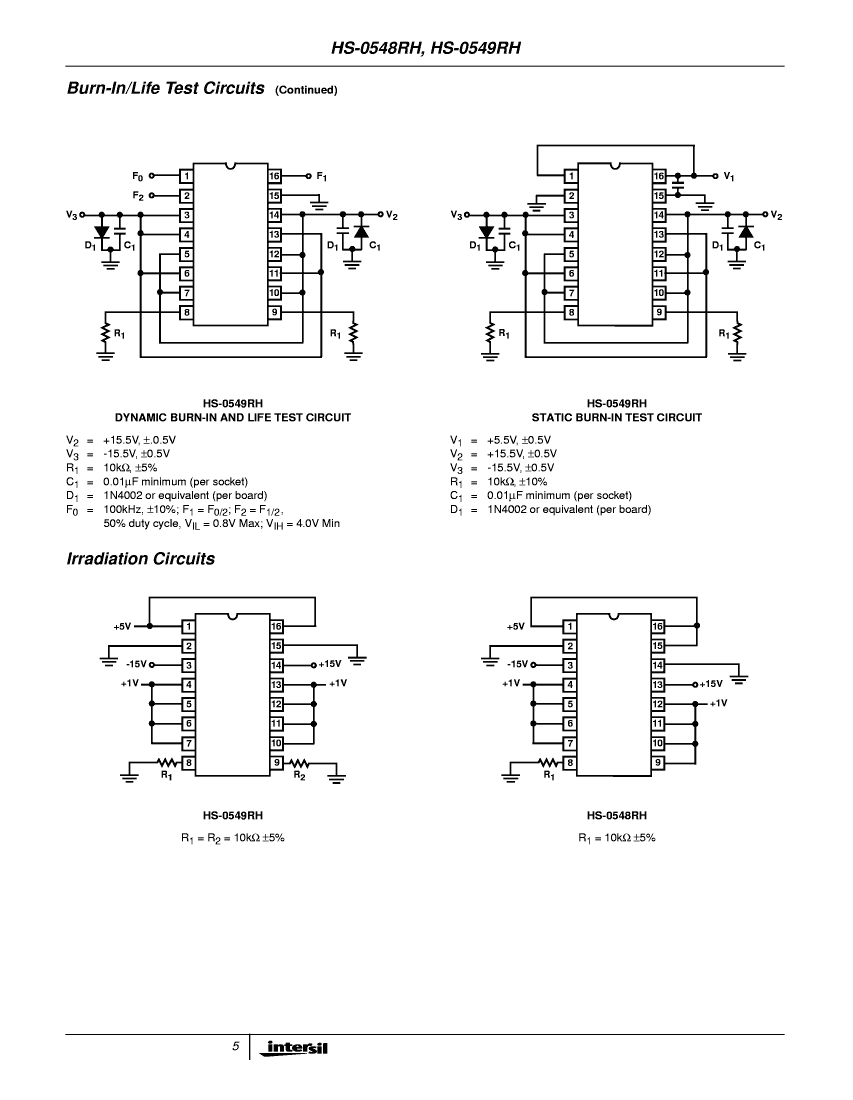

5962D9569402VEA Overview

4-CHANNEL, DIFFERENTIAL MULTIPLEXER, CDIP16, CERAMIC, DIP-16

5962D9569402VEA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Renesas Electronics Corporation
Parts packaging code	DIP
package instruction	DIP, DIP16,.3
Contacts	16
Reach Compliance Code	not_compliant
Other features	OVERVOLTAGE PROTECTION
Analog Integrated Circuits - Other Types	DIFFERENTIAL MULTIPLEXER
JESD-30 code	R-GDIP-T16
JESD-609 code	e0
length	9.585 mm
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	4
Number of functions	1
Number of terminals	16
Nominal off-state isolation	50 dB
On-state resistance matching specifications	126 Ω
Maximum on-state resistance (Ron)	1800 Ω
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	+-15 V
Certification status	Not Qualified
Filter level	MIL-PRF-38535 Class V
Maximum seat height	5.33 mm
Maximum signal current	0.008 A
Maximum supply current (Isup)	2 mA
Nominal supply voltage (Vsup)	15 V
surface mount	NO
Maximum disconnect time	1000 ns
Maximum connection time	1000 ns
switch	BREAK-BEFORE-MAKE
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
total dose	10k Rad(Si) V
width	7.62 mm

Preview

Download Datasheet

View All

5962D9569402VEA Related Products

	5962D9569402VEA	5962D9569401VEA	HS1-0549RH-Q	HS1B-0549RH-Q
Description	4-CHANNEL, DIFFERENTIAL MULTIPLEXER, CDIP16, CERAMIC, DIP-16	8-CHANNEL, SGL ENDED MULTIPLEXER, CDIP16, CERAMIC, DIP-16	4-CHANNEL, DIFFERENTIAL MULTIPLEXER, CDIP16, CERDIP-16	4-CHANNEL, DIFFERENTIAL MULTIPLEXER, CDIP16, SIDE BRAZED, CERAMIC, DIP-16
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
Parts packaging code	DIP	DIP	DIP	DIP
package instruction	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3
Contacts	16	16	16	16
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant
Analog Integrated Circuits - Other Types	DIFFERENTIAL MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	DIFFERENTIAL MULTIPLEXER	DIFFERENTIAL MULTIPLEXER
JESD-30 code	R-GDIP-T16	R-GDIP-T16	R-GDIP-T16	R-CDIP-T16
JESD-609 code	e0	e0	e0	e0
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V
Number of channels	4	8	4	4
Number of functions	1	1	1	1
Number of terminals	16	16	16	16
Nominal off-state isolation	50 dB	50 dB	50 dB	50 dB
On-state resistance matching specifications	126 Ω	126 Ω	126 Ω	126 Ω
Maximum on-state resistance (Ron)	1800 Ω	1800 Ω	1800 Ω	1800 Ω
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	+-15 V	+-15 V	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	MIL-PRF-38535 Class V	MIL-PRF-38535 Class V	MIL-PRF-38535 Class V	MIL-PRF-38535 Class V
Maximum seat height	5.33 mm	5.33 mm	5.33 mm	5.08 mm
Maximum signal current	0.008 A	0.008 A	0.008 A	0.008 A
Maximum supply current (Isup)	2 mA	2 mA	2 mA	2 mA
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V
surface mount	NO	NO	NO	NO
Maximum disconnect time	1000 ns	1000 ns	1000 ns	1000 ns
Maximum connection time	1000 ns	1000 ns	1000 ns	1000 ns
switch	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
total dose	10k Rad(Si) V	10k Rad(Si) V	10k Rad(Si) V	10k Rad(Si) V
width	7.62 mm	7.62 mm	7.62 mm	7.62 mm
length	9.585 mm	9.585 mm	9.585 mm	-
