HA-5101/883
Data Sheet
August 17, 2005
FN3931.1
Low Noise, High Performance Operational
Amplifier
The HA-5101/883 is a dielectrically isolated operational
amplifier featuring low noise and high performance. This
amplifier has an excellent noise voltage density of
4.5nV/√Hz (max) at 1kHz. The unity gain stable
HA-5101/883 yields a 10MHz unity gain bandwidth and a
6V/µs slew rate.
DC characteristics of the HA-5101/883 assure accurate
performance. The 3mV (max) offset voltage is externally
adjustable and offset voltage drift is just 3µV/°C. Low bias
currents (200nA max) reduce input current errors and the
high open loop voltage gain of 100kV/V, over temperature,
increases the loop gain for low distortion amplification.
The HA-5101/883 is ideal for audio applications, especially
low-level signal amplifiers such as microphone, tape head
and preamplifiers. Additionally, it is well suited for low
distortion oscillators, low noise function generators and high
Q filters.
Features
• This Circuit is Processed in Accordance to MIL-STD-883
and is Fully Conformant Under the Provisions of
Paragraph 1.2.1.
• Low Noise Voltage @ 1kHz . . . . . . . . . . . 4.5nV/√Hz Max
• Low Noise Current @ 1kHz . . . . . . . . . . . . . 3pA/√Hz Max
• Wide Unity Gain Bandwidth . . . . . . . . . . . . . . . 10MHz Min
• High Gain (Full Temp) . . . . . . . . . . . . . . . . . .100kV/V Min
(Room Temp) . . . . . . . . . . . . . . . . . 1MV/V Typ
• Slew Rate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6V/µs Min
• High CMRR/PSRR (Full Temp) . . . . . . . . . . . . . 80dB Min
• High Output Drive Capability (Full Temp) . . . . . . . . . 25mA
Applications
• High Quality Audio Preamplifiers
• High Q Active Filters
• Low Noise Function Generators
• Low Distortion Oscillators
• Low Noise Comparators
Ordering Information
PART NUMBER
HA7-5101/883
5962-89636012A
TEMP.
RANGE (°C)
-55 to 125
-55 to 125
PACKAGE
8 Ld CerDIP
PKG.
DWG. #
F8.3A
20 Ld Ceramic LCC J20.A
Pinouts
HA7-5101/883 (CERDIP)
TOP VIEW
NC
5962-896360 (CLCC)
TOP VIEW
BAL
NC
NC
20
NC
19
18
NC
17
V+
-
+
16 NC
15 OUT
14
NC
9
NC
10
V-
11
NC
12
BAL
13
NC
BAL
-IN
+IN
V-
1
2
3
4
8
7
6
5
NC
NC
4
5
6
7
8
V+
OUT
BAL
3
2
1
-
+
-IN
NC
+IN
NC
1
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
1-888-INTERSIL or 1-888-468-3774
|
Intersil (and design) is a registered trademark of Intersil Americas Inc.
Copyright © Intersil Americas Inc. 1994, 2005. All Rights Reserved
All other trademarks mentioned are the property of their respective owners.
HA-5101/883
Absolute Maximum Ratings
Voltage Between V+ and V- Terminals . . . . . . . . . . . . . . . . . . . 40V
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7V
Voltage at Either Input Terminal . . . . . . . . . . . . . . . . . . . . . V+ to V-
Input Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25mA
Output Short Circuit Duration. . . . . . . . . . . . . . . . . . . . . . . Indefinite
Junction Temperature (T
J
). . . . . . . . . . . . . . . . . . . . . . . . . . . +175°C
Storage Temperature Range . . . . . . . . . . . . . . . . . .-65°C to +150°C
ESD Rating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .<2000V
Lead Temperature (Soldering 10s) . . . . . . . . . . . . . . . . . . . . +300°C
Thermal Information
Thermal Resistance
θ
JA
(°C/W)
θ
JC
(°C/W)
Ceramic DIP Package . . . . . . . . . . . . .
120
30
Ceramic LCC Package. . . . . . . . . . . . .
86
26
Package Power Dissipation Limit at +75°C for T
J
≤
+175°C
Ceramic DIP Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.22W
Ceramic LCC Package. . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.35W
Package Power Dissipation Derating Factor Above +75°C
Ceramic DIP Package . . . . . . . . . . . . . . . . . . . . . . . . .12.2mW/°C
Ceramic LCC Package. . . . . . . . . . . . . . . . . . . . . . . . .13.5mW/°C
Operating Conditions
Operating Temperature Range . . . . . . . . . . . . . . . -55°C to +125°C
Operating Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . ±5V to ±15V
V
INcm
≤
1/2 (V+ - V-)
R
L
≥
500Ω
CAUTION: Stresses above those listed in “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress only rating and operation of the
device at these or any other conditions above those indicated in the operational sections of this specification is not implied.
TABLE 1. D.C. ELECTRICAL PERFORMANCE CHARACTERISTICS
Device Tested at: V
S
=
±15V,
R
S
= 100Ω, R
L
= 500kΩ, V
OUT
= 0V, Unless Otherwise Specified
GROUP A
SUBGROUP TEMP (°C)
1
2, 3
Input Bias Current
+I
B
V
CM
= 0V
+R
S
= 100kΩ
-RS = 100Ω
V
CM
= 0V
+R
S
= 100Ω
-RS = 100kΩ
V
CM
= 0V
+R
S
= 100kΩ
-RS = 100kΩ
V+ = 3V
V- = -27V
V+ = 27V
V- = -3V
V
OUT
= 0V and
+10V
R
L
= 2kΩ
V
OUT
= 0V and
−10V
R
L
= 2kΩ
∆V
CM
= +10V
V+ =+5V
V- = -25V
V
OUT
= -10V
∆V
CM
= -10V
V+ = +25V
V- = -5V
V
OUT
= +10V
1
2, 3
1
2, 3
1
2, 3
1
2, 3
1
2, 3
4
5, 6
4
5, 6
1
2, 3
+25
+125, -55
+25
+125, -55
+25
+125, -55
+25
+125, -55
+25
+125, -55
+25
+125, -55
+25
+125, -55
+25
+125, -55
+25
+125, -55
LIMITS
MIN
-3
-4
-200
-325
-200
-325
-75
-125
12
12
-
-
100
100
100
100
80
80
MAX
3
4
200
325
200
325
75
125
-
-
-12
-12
-
-
-
-
-
-
UNITS
mV
mV
nA
nA
nA
nA
nA
nA
V
V
V
V
kV/V
kV/V
kV/V
kV/V
dB
dB
PARAMETER
Input Offset Voltage
SYMBOL
V
IO
TEST CONDITIONS
V
CM
= 0V
-I
B
Input Offset Current
I
IO
Common Mode Range
+CMR
-CMR
Large Signal Voltage Gain
+A
VOL
-A
VOL
Common Mode Rejection Ratio
+CMRR
-CMRR
1
2, 3
+25
+125, -55
80
80
-
-
dB
dB
2
FN3931.1
August 17, 2005
HA-5101/883
TABLE 1. D.C. ELECTRICAL PERFORMANCE CHARACTERISTICS (Continued)
Device Tested at: V
S
=
±15V,
R
S
= 100Ω, R
L
= 500kΩ, V
OUT
= 0V, Unless Otherwise Specified
GROUP A
SUBGROUP TEMP (°C)
1
2, 3
-V
OUT1
R
L
= 2kΩ
V
S
=
±18V
R
L
= 600Ω
V
S
=
±18V
R
L
= 600Ω
V
OUT
= -15V
V
S
= ±18V
V
OUT
= +15V
V
S
= ±18V
V
OUT
= 0V
I
OUT
= 0mA
V
OUT
= 0V
I
OUT
= 0mA
∆V
S
= 10V
V+ = +10V, V- = -15V
V+ = +20V, V- = -15V
∆V
S
= 10V
V+ = +15V, V- = -10V
V+ = +15V, V- = -20V
Note 4
R
L
= 2kΩ, C
L
= 50pF
A
V
= +1V/V
1
2, 3
+V
OUT2
1
2, 3
1
2, 3
1
2, 3
1
2, 3
1
2, 3
1
2, 3
1
2, 3
1
2, 3
1
2, 3
1
2, 3
+25
+125, -55
+25
+125, -55
+25
+125, -55
+25
+125, -55
+25
+125, -55
+25
+125, -55
+25
+125, -55
+25
+125, -55
+25
+125, -55
+25
+125, -55
+25
+125, -55
+25
+125, -55
LIMITS
MIN
12
12
-
-
15
15
-
-
25
25
-
-
-
-
-6
-6
80
80
80
80
V
IO
-1
V
IO
-1
V
IO
+1
V
IO
+1
MAX
-
-
-12
-12
-
-
-15
-15
-
-
-25
-25
6
6
-
-
-
-
-
-
-
-
-
-
UNITS
V
V
V
V
V
V
V
V
mA
mA
mA
mA
mA
mA
mA
mA
dB
dB
dB
dB
mV
mV
mV
mV
PARAMETER
Output Voltage Swing
SYMBOL
+V
OUT1
TEST CONDITIONS
R
L
= 2kΩ
-V
OUT2
Output Current
+I
OUT
-I
OUT
Quiescent Power Supply Current
+I
CC
-I
CC
Power Supply Rejection Ratio
+PSRR
-PSRR
Offset Voltage Adjustment
+V
IO
Adj
-V
IO
Adj
TABLE 2. A.C. ELECTRICAL PERFORMANCE CHARACTERISTICS
Device Tested at: V
S
=
±15V,
R
S
= 50Ω, R
L
= 2kΩ, C
L
= 50pF, A
VCL
= +1V/V, Unless Otherwise Specified
GROUP A
SUBGROUP TEMP (°C)
4
4
4
5, 6
4
5, 6
4
5, 6
-OS
V
OUT
= 0V to -200mV
4
5, 6
+25
+25
+25
+125, -55
+25
+125, -55
+25
+125, -55
+25
+125, -55
LIMITS
MIN
6
6
-
-
-
-
-
-
-
-
MAX
-
-
200
400
200
400
35
35
35
35
UNITS
V/µs
V/µs
ns
ns
ns
ns
%
%
%
%
PARAMETER
Slew Rate
SYMBOL
+SR
-SR
TEST CONDITIONS
V
OUT
= -3V to +3V
V
OUT
= +3V to -3V
V
OUT
= 0V to +200mV
10%
≤
t
R
≤
90%
V
OUT
= 0V to -200mV
10%
≤
t
F
≤
90%
V
OUT
= 0V to +200mV
Rise and Fall Time
t
R
t
F
Overshoot
+OS
3
FN3931.1
August 17, 2005
HA-5101/883

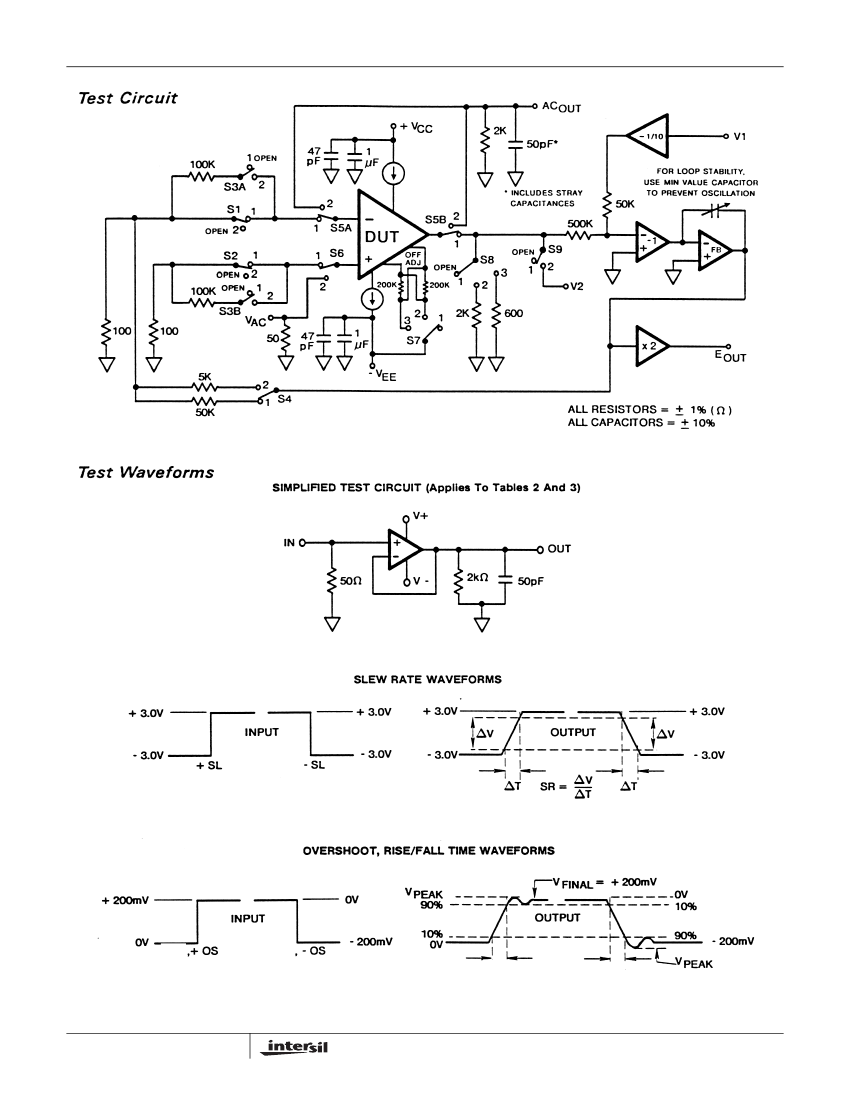

TABLE 3. ELECTRICAL PERFORMANCE CHARACTERISTICS
Device Characterized at: V
S
=
±15V,
R
L
= 2kΩ, C
L
= 50pF, A
V
= +1, Unless Otherwise Specified
LIMITS
PARAMETER
Differential Input Resistance
Low Frequency Peak-to-Peak Noise
Input Noise Voltage Density
Input Noise Current Density
Unity Gain Bandwidth
Full Power Bandwidth
Minimum Closed Loop Stable Gain
Output Resistance
Quiescent Power Consumption
NOTES:
1. Parameters listed in Table 3 are controlled via design or process parameters and are not directly tested at final production. These parameters
are lab characterized upon initial design release, or upon design changes. These parameters are guaranteed by characterization based upon
data from multiple production runs which reflect lot to lot and within lot variation.
2. Full Power Bandwidth guarantee based on Slew Rate measurement using FPBW = Slew Rate/(2πV
PEAK
).
3. Quiescent Power Consumption based upon Quiescent Supply Current test maximum. (No load on outputs.)
4. Offset adjustment range is [V
IO (Measured)
±1mV] minimum referred to output. This test is for functionality only to assure adjustment through 0V.
SYMBOL
R
IN
E
nP-P
E
n
I
n
UGBW
FPBW
CLSG
R
OUT
PC
Open Loop
V
OUT
= 0V, I
OUT
= 0mA
TEST CONDITIONS
V
CM
= 0V
0.1Hz to 10Hz
R
S
= 20Ω, f
o
= 1000Hz
R
S
= 2MΩ, f
o
= 1000Hz
V
O
= 100mV
V
PEAK
= 10V
NOTES
1
1
1
1
1
1, 2
1
1
1, 3
TEMP (°C)
+25
+25
+25
+25
+25
+25
-55 to +125
+25
-55 to +125
MIN
250
-
-
-
10
95
+1
-
-
MAX
-
0.2
4.5
3
-
-
-
150
180
UNITS
kΩ
µV
P-P
nV/√Hz
pA/√Hz
MHz
kHz
V/V
Ω
mW
TABLE 4. ELECTRICAL TEST REQUIREMENTS
MIL-STD-883 TEST REQUIREMENTS
Interim Electrical Parameters (Pre Burn-in)
Final Electrical Test Parameters
Group A Test Requirements
Groups C & D Endpoints
*PDA applies to Subgroup 1 only.
SUBGROUPS (SEE TABLES 1 & 2)
1
1*, 2, 3, 4, 5, 6
1, 2, 3, 4, 5, 6
1
4
FN3931.1
August 17, 2005
HA-5101/883
t
R
t
F
t
R
t
F
5
FN3931.1
August 17, 2005
