540-99-052-17-400204 datasheet, PDF

Datasheet> All Categories > The connector> socket> 540-99-052-17-400204

540-99-052-17-400204: DescriptionIC Socket, PLCC52, 52 Contact(s),; CategoryThe connector socket; File Size839KB，8 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric Compare View All

540-99-052-17-400204 Overview

IC Socket, PLCC52, 52 Contact(s),

540-99-052-17-400204 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mill-Max
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	POLARIZED, STANDARD: UL 94V-0
Contact to complete cooperation	TIN LEAD (150) OVER NICKEL (100)
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact material	COPPER ALLOY
Device slot type	IC SOCKET
Type of equipment used	PLCC52
Shell material	POLYPHENYLENE SULFIDE
JESD-609 code	e0
Number of contacts	52

Preview

Download Datasheet

View All

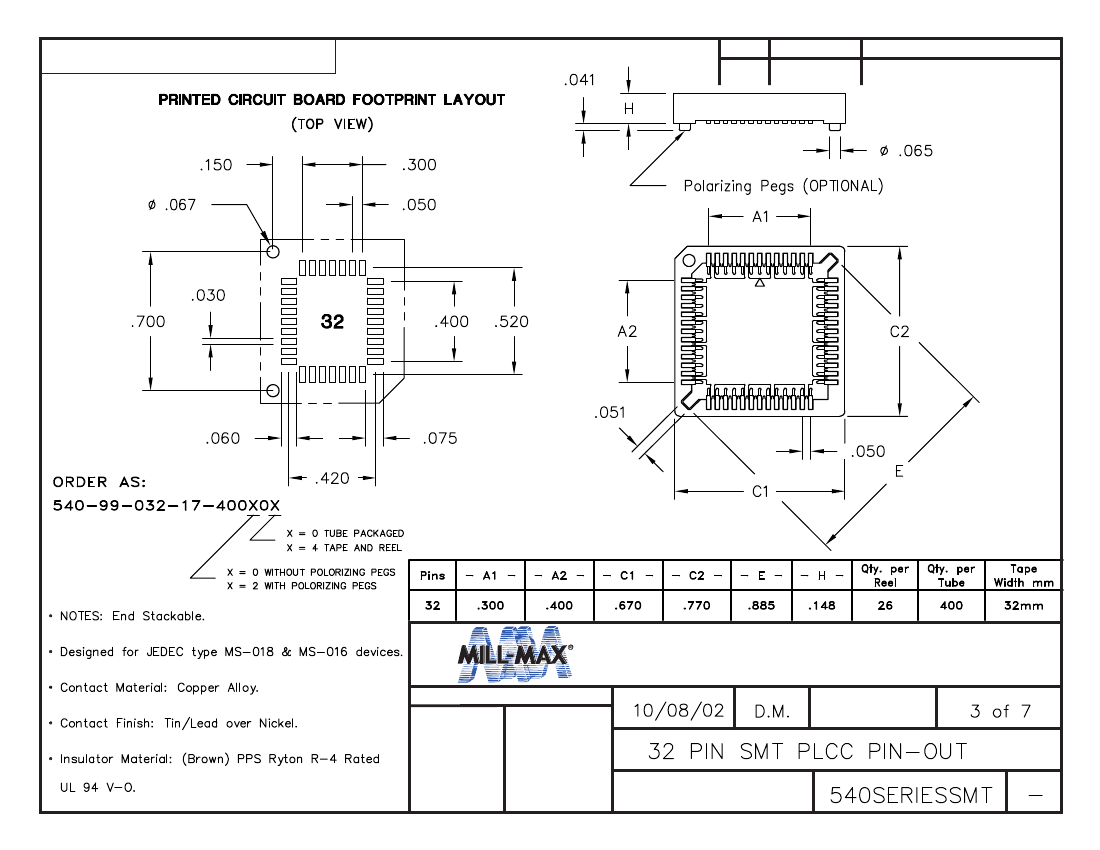

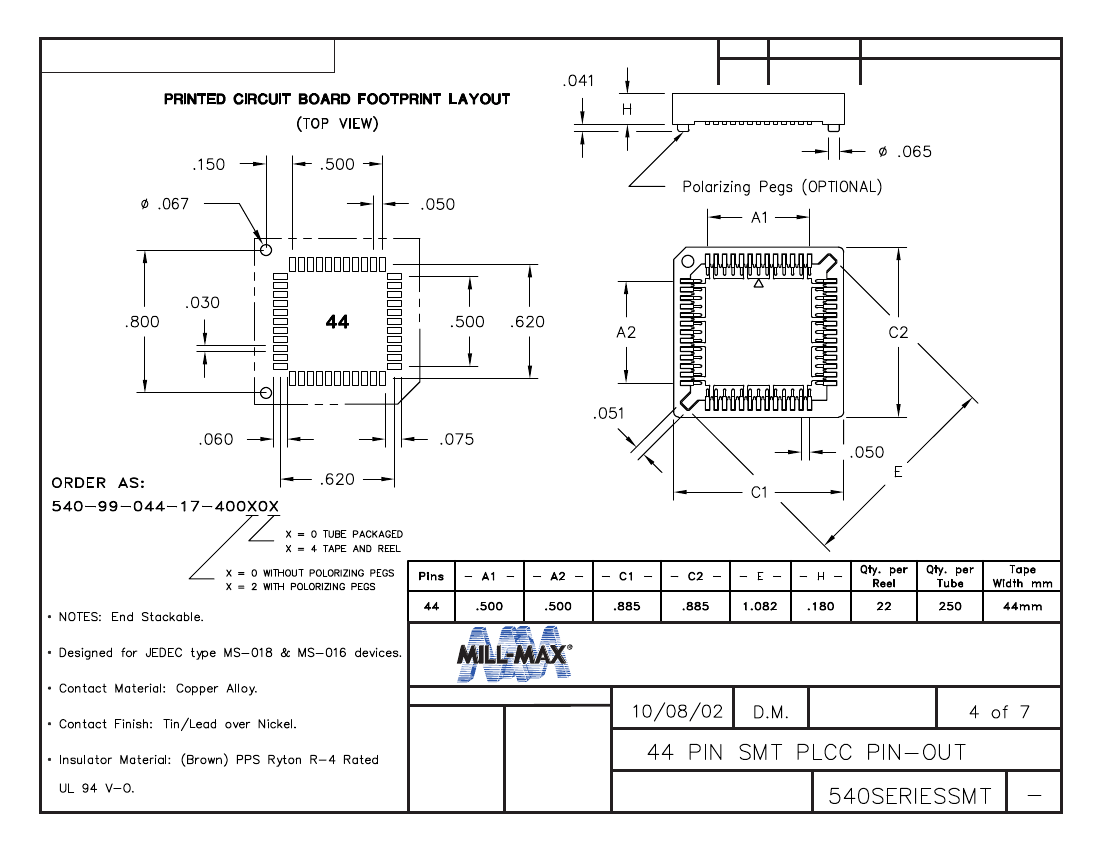

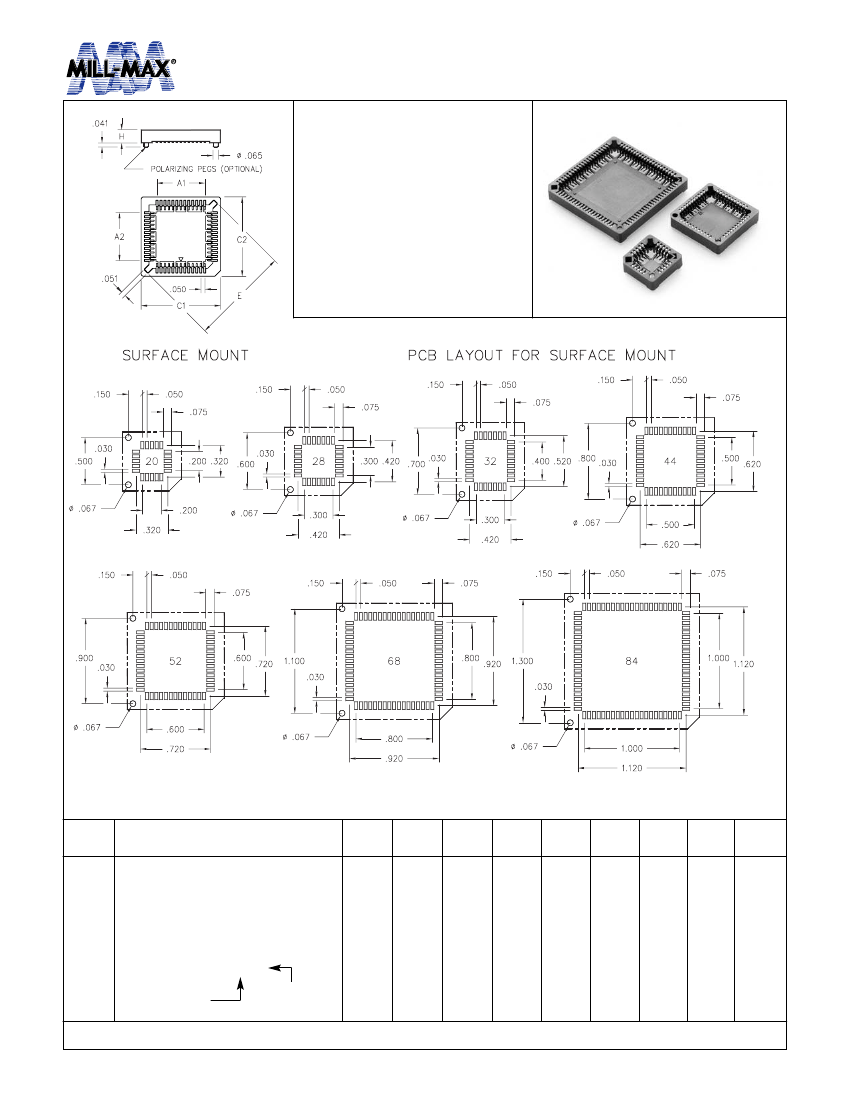

COMPACT PLCC SOCKETS

Surface Mount

•

Note: End stackable.

•

Designed for JEDEC type devices.

•

Open frame design in solder

area improves results of IR

soldering and facilitates visual

inspection of solder pads.

•

The brown PPS (Ryton R-4)

insulator has optional polorizing

pegs (PP).

•

PLCC chip extraction tool

available, see page 96.

Series 540

AVAILABLE PACKAGED IN TUBES OR ON TAPE AND REEL PER EIA-481

No. of

Pins

32*

ORDERING INFORMATION

540-99-020-17-400X0X

540-99-028-17-400X0X

540-99-032-17-400X0X

540-99-044-17-400X0X

540-99-052-17-400X0X

540-99-068-17-400X0X

540-99-084-17-400X0X

X= 0 Without PP

X= 2 With PP

.200

.300

.500

.600

.800

1.000

.200

.300

.400

.500

.600

.800

1.000

.657

.799

.885

1.082

1.224

1.507

1.791

.180

.148

.180

Qty.

per

Tube

Tape

Width

Qty.

per

Reel

*Rectangular

.585

.685

.670

.770

.885

1.000 1.000

1.202 1.202

1.400 1.400

490

400

250

200

X= 0 Tube Packaged

X= 4 Tape and Reel

ALL SERIES 540 CONTACTS ARE PLATED TIN/LEAD. SEE PAGE 96 FOR TECHNICAL SPECIFICATIONS.

w w w. m i l l - m a x . c o m

516-922-6000

540-99-052-17-400204 Related Products

	540-99-052-17-400204	540-99-032-17-400204	540-99-020-17-400204	540-99-044-17-400204	540-99-068-17-400204	540-99-028-17-400204	540-99-084-17-400204
Description	IC Socket, PLCC52, 52 Contact(s),	IC Socket, PLCC32, 32 Contact(s),	IC Socket, PLCC20, 20 Contact(s),	IC Socket, PLCC44, 44 Contact(s),	IC Socket, PLCC68, 68 Contact(s),	IC Socket, PLCC28, 28 Contact(s),	IC Socket, PLCC84, 84 Contact(s),
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	POLARIZED, STANDARD: UL 94V-0	POLARIZED, STANDARD: UL 94V-0	POLARIZED, STANDARD: UL 94V-0	POLARIZED, STANDARD: UL 94V-0	POLARIZED, STANDARD: UL 94V-0	POLARIZED, STANDARD: UL 94V-0	POLARIZED, STANDARD: UL 94V-0
Contact to complete cooperation	TIN LEAD (150) OVER NICKEL (100)	TIN LEAD (150) OVER NICKEL (100)	TIN LEAD (150) OVER NICKEL (100)	TIN LEAD (150) OVER NICKEL (100)	TIN LEAD (150) OVER NICKEL (100)	TIN LEAD (150) OVER NICKEL (100)	TIN LEAD (150) OVER NICKEL (100)
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
Device slot type	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET
Type of equipment used	PLCC52	PLCC32	PLCC20	PLCC44	PLCC68	PLCC28	PLCC84
Shell material	POLYPHENYLENE SULFIDE	POLYPHENYLENE SULFIDE	POLYPHENYLENE SULFIDE	POLYPHENYLENE SULFIDE	POLYPHENYLENE SULFIDE	POLYPHENYLENE SULFIDE	POLYPHENYLENE SULFIDE
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
Number of contacts	52	32	20	44	68	28	84
Maker	Mill-Max	Mill-Max	-	Mill-Max	Mill-Max	Mill-Max	Mill-Max
