See the Regulatory Information Appendix (RIA) in the
“RoHS compliance” section of www.3M.com/inter-
connects for compliance information
Date Modified: April 24, 2012
TS-2165-E
Sheet 1 of 2
Physical
Insulation
Material: High Temperature Thermoplastic
Flammability: UL 94V-0
Color: Black
Contact
Material: Copper Alloy
Plating
Underplating: 1.25–2.5 µm [100 µ"] Nickel
Wiping Area: 0.25 µm [10 µ"] Gold
Solder Tail Area: 1–3 µm [40–118 µ"] Matte Tin
Electrical
Current Rating:
Insulation Resistance:
Withstanding Voltage:
Transition Resistance:
1A
> 5 x 10
8
Ohm at 100 V
DC
1000 V
DC
≤ 20 mOhm
Environmental
Temperature Range:
-25 °C to +105 °C
Processing Temperature:
ax. 260 °C (Profile per J-STD-020C)
m
Moisture Sensitivity Level:
1 (per J-STD-020C)
UL File No.: E68080
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of the 3M Company
For technical, sales or ordering information
call your Local 3M Service Center
3M
™

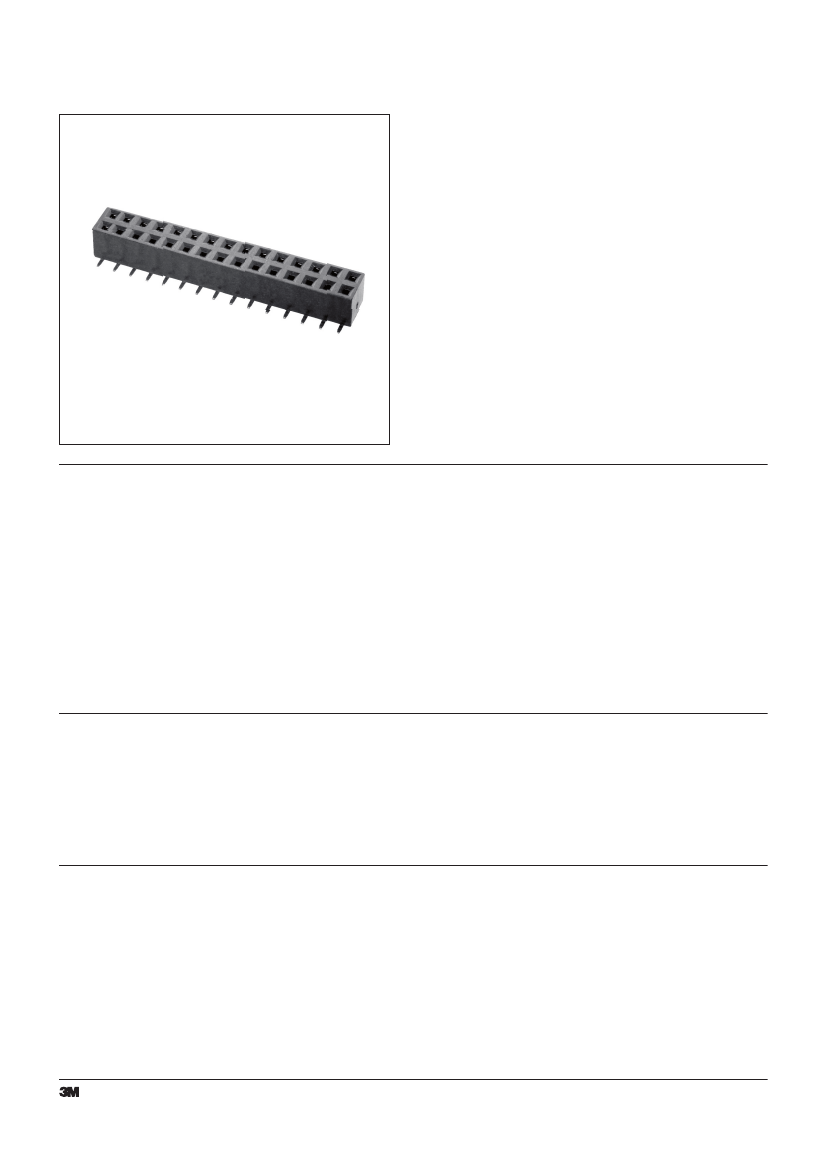

Through-Board Socket
2 mm x 2 mm Straight, Dual Entry, Surface Mount
953 Series

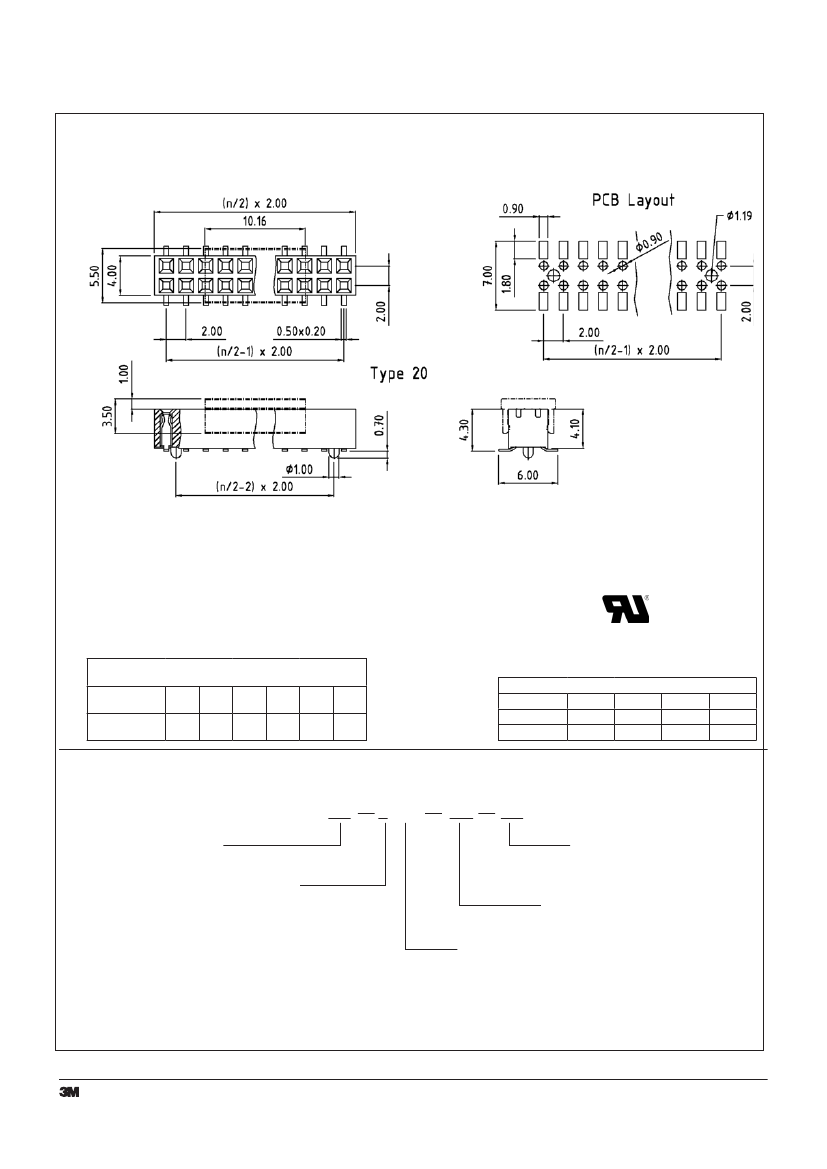

PCB-Layout
Tape & Reel Option
Contact
Quantity
Tape Width
[mm]
10–14 16–18 20–30 32–44 46–58
24
32
44
56
72
60
88
n = No. of Contacts
Tolerance Unless Noted [mm]
Nominal Size
0.5–3
3–6
6–30
Linear Dim
+/- 0.1
+/- 0.1
+/- 0.2
Radii
+/- 0.2
+/- 0.5
+/- 1
30–120
+/- 0.3
+/- 1
Ordering Information
9532XX
Contact Quantity:
06–60 Pins
Tail Style:
2 = Straight,
Surface Mount
20X0
AR
XX
Packaging:
TP = Tube
PT = Tube with Pad 10 to 60 pos
PR = Tape & Reel with Pad 10 to 60 pos
Plating:
AR = Selective Au 0.25 µm / Sn
(RIA E1 & C1 apply)
Board Location Features:
0 = none
2 = with Loc. Posts
(8–16 Contacts)
TS-2165-E
Sheet 2 of 2
see packaging option
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of the 3M Company
For technical, sales or ordering information
call your Local 3M Service Center
Important Notice
All statements, technical information, and recommendations related to 3M’s products are based on information believed to be reliable, but the accuracy or completeness
is not guaranteed. Before using this product, you must evaluate it and determine if it is suitable for your intended application. You assume all risks and liability associated
with such use. Any statements related to the product which are not contained in 3M’s current publications, or any contrary statements contained on your purchase order
VKDOO KDYH QR IRUFH RU HIIHFW XQOHVV H[SUHVVO\ DJUHHG XSRQ LQ ZULWLQJ E\ DQ DXWKRUL]HG RI FHU RI 0
Warranty; Limited Remedy; Limited Liability.
This product will be free from defects in material and manufacture for a period of 90 days from the time of purchase.
3M MAKES NO OTHER WARRANTIES
INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
If this product is defective within the warranty period stated above, your exclusive remedy shall be, at 3M’s option, to replace or repair the 3M product or refund the
purchase price of the 3M product.
Except where prohibited by law, 3M will not be liable for any indirect, special, incidental or consequential
loss or damage arising from this 3M product, regardless of the legal theory asserted.
