5-219560-7 | TE620R-VTII: CMR UTP 4/23 C6 1K'
ETL Verified Category 6 U/UTP Cable, non-plenum, violet jacket, 4 pair
count, 1000 ft (305 m) length, CommPak
OBSOLETE
Replaced By
UN884027514/10
CS37R ETL Verified Category 6 U/UTP Cable, non-plenum, violet jacket, 4 pair count, 1000 ft
non-
CS37R VLT C6 4/23 U/UTP CPK 1KFT (305 m) length, CommPak
Product Classification
Portfolio
Product Type
Regional Availability
NETCONNECT®
Twisted pair cable
Asia | Australia/New Zealand | EMEA | Latin America | North America

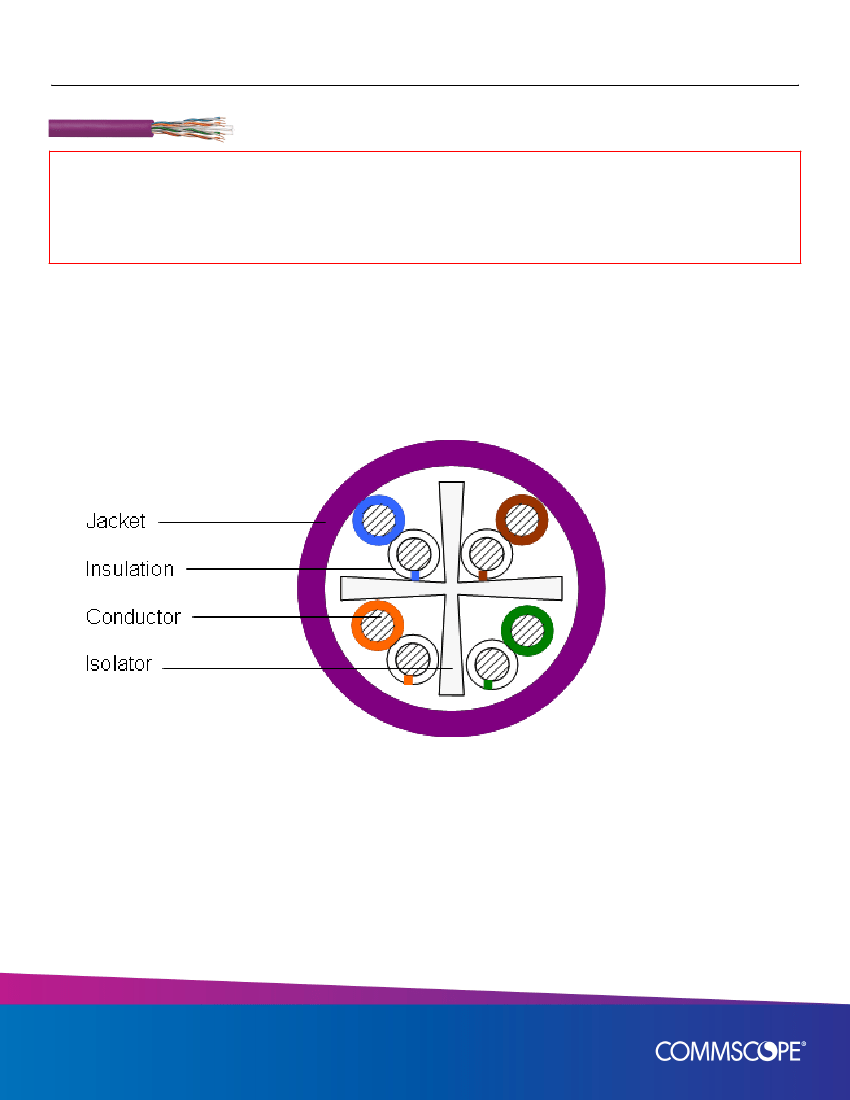

Cross Section Drawing
Construction Materials
Jacket Material
Conductor Material
Insulation Material
Separator Material
PVC
Bare copper
Polyolefin
Polyolefin
Dimensions
page 1 of 4
March 27, 2019
©2019 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks,
respectively, of CommScope.All specifications are subject to change without notice. See www.commscope.com for the
most current information. Revised: January 21, 2019
5-219560-7 | TE620R-VTII: CMR UTP 4/23 C6 1K'
Cable Length
Cable Weight
Diameter Over Jacket, nominal
Jacket Thickness
305 m | 1000 ft
24.58 lb/kft
5.766 mm | 0.227 in
0.508 mm | 0.020 in
Electrical Specifications
ANSI/TIA Category
Characteristic Impedance
dc Resistance Unbalance, maximum
dc Resistance, maximum
Delay Skew, maximum
Mutual Capacitance
Operating Frequency, maximum
Transmission Standards
Safety Voltage Rating
Dielectric Strength, minimum
Note
6
100 ohm
5%
6.66 ohms/100 m
45 ns
5.4 nF/100 m @ 1 kHz
400 MHz
ANSI/TIA-568-C.2 | CENELEC EN 50288-6-1 | ISO/IEC 11801 Class E
300 V
1500 Vac | 2500 Vdc
All electrical transmission tests include swept frequency measurements
Nominal Velocity of Propagation (NVP)
69 %
Environmental Specifications
Environmental Space
Flame Test Method
Installation Temperature
Operating Temperature
UL Temperature Rating
Non-plenum
CMR | UL 1666
0 °C to +60 °C (+32 °F to +140 °F)
-20 °C to +60 °C (-4 °F to +140 °F)
75 °C | 167 °F
General Specifications
Cable Type
Packaging Type
Pairs, quantity
Cable Component Type
Jacket Color
Product Number
Conductor Gauge, singles
Conductor Type, singles
Conductors, quantity
Separator Type
U/UTP (unshielded)
CommPak® box
4
Horizontal
Violet
620R
23 AWG
Solid
8
Isolator
Mechanical Specifications
page 2 of 4
March 27, 2019
©2019 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks,
respectively, of CommScope.All specifications are subject to change without notice. See www.commscope.com for the
most current information. Revised: January 21, 2019
5-219560-7 | TE620R-VTII: CMR UTP 4/23 C6 1K'
Pulling Tension, maximum
11 kg | 25 lb
Regulatory Compliance/Certifications
Agency
RoHS 2011/65/EU
ISO 9001:2015
Classification
Compliant
Designed, manufactured and/or distributed under this quality management system
page 3 of 4
March 27, 2019
©2019 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks,
respectively, of CommScope.All specifications are subject to change without notice. See www.commscope.com for the
most current information. Revised: January 21, 2019
5-219560-7 | TE620R-VTII: CMR UTP 4/23 C6 1K'
Electrical Performance
CS
Std
Typ
IL
NEXT
ACR
PSNEXT
PSACR
ACRF
PSACRF
RL
TCL
ELTCTL
Freq.
MHz
1
4
8
10
16
20
25
31.25
62.5
100
155
200
250
300
350
400
500
550
650
CommScope
Refers to the standard value listed under Transmission Standards in the Electrical Specifications above
Typical
Insertion Loss (dB/100m)
Near End Crosstalk (dB/100m)
Attenuation to Crosstalk Ratio (dB/100m)
Power Sum Near End Crosstalk (db/100m)
Power Sum Attenuation to Crosstalk Ratio (dB/100m)
Attenuation to Crosstalk Ratio - Far End (dB/100m)
Power Sum Attenuation to Crosstalk Ratio – Far End (dB/100m)
Return Loss (dB)
Transverse Conversion Loss (dB/100m)
Equal Level Transverse Conversion Transfer Loss (dB/100m)
IL
CS
2.0
3.8
5.3
5.9
7.5
8.4
9.4
10.6
15.3
19.7
25.0
28.8
32.6
36.2
39.5
42.7
Std
2.0
3.8
5.3
6.0
7.6
8.5
9.5
Typ
1.8
3.6
5.1
5.8
7.3
8.2
9.2
CS
77.3
68.3
63.8
62.3
59.2
57.8
56.3
54.9
50.4
47.3
44.4
42.8
41.3
40.1
39.1
38.3
NEXT
Std
74.3
65.3
60.8
59.3
56.2
54.8
53.3
51.9
47.4
44.3
41.4
39.8
38.3
Typ
90.3
82.7
78.1
76.5
73.5
72.0
70.3
68.9
63.8
60.5
58.6
55.4
54.0
52.2
50.9
49.9
47.5
50.9
46.4
CS
ACR
Std
Typ
88.5
79.1
72.9
70.7
66.1
63.8
61.0
58.6
49.0
41.6
34.7
28.0
23.2
18.2
14.0
10.2
2.3
6.0
-3.5
CS
75.3
66.3
61.8
60.3
57.2
55.8
54.3
52.9
48.4
45.3
42.4
40.8
39.3
38.1
37.1
36.3
PSNEXT
Std
72.3
63.3
58.8
57.3
54.2
52.8
51.3
49.9
45.4
42.3
39.4
37.8
36.3
Typ
88.1
80.4
75.8
74.3
71.3
69.8
68.2
66.8
61.7
58.3
56.3
53.3
51.9
50.2
48.9
47.9
45.5
48.8
44.2
CS
PSACR
Std
Typ
86.3
76.8
70.6
68.5
64.0
61.6
58.9
56.5
46.8
39.3
32.4
26.0
21.0
16.2
12.0
8.2
0.3
3.9
-5.6
CS
68.8
56.8
50.7
48.8
44.7
42.8
40.8
38.9
32.9
28.8
25.0
22.8
20.8
19.3
17.9
16.8
ACRF
Std
67.8
55.8
49.7
47.8
43.7
41.8
39.8
37.9
31.9
27.8
24.0
21.8
19.8
Typ
84.1
72.7
66.9
65.0
61.0
59.0
57.1
55.2
49.0
44.7
41.3
38.5
36.5
34.6
33.0
30.9
26.9
28.7
23.3
CS
PSACRF
Std
Typ
82.6
71.4
65.5
63.6
59.5
57.6
55.7
53.8
47.6
43.3
39.8
37.1
35.0
33.1
31.4
29.4
25.2
27.3
21.5
CS
20.0
23.6
25.4
26.0
26.0
26.0
25.3
24.6
22.5
21.1
19.8
19.0
18.3
17.8
17.3
16.9
RL
Std
20.0
23.0
24.5
25.0
25.0
25.0
24.3
23.6
21.5
20.1
18.8
18.0
17.3
Typ
32.0
30.0
34.3
34.9
35.2
35.0
36.1
36.4
34.1
32.4
30.0
29.3
28.3
28.2
28.1
28.6
28.5
33.6
25.3
TCL
CS
Std
ELTCTL
CS
35.0
23.0
16.9
15.0
10.9
9.0
7.0
Std
35.0
23.0
16.9
15.0
10.9
9.0
7.0
75.3 72.3
64.5 61.5
58.5 55.4
56.4 53.3
51.7 48.7
49.4 46.3
46.9 43.8
44.3 41.2
35.1 32.0
27.6 24.5
19.5 16.3
14.0 10.8
8.7
4.0
-0.4
-4.4
5.5
73.3 70.3
62.5 59.5
56.5 53.4
54.4 51.3
49.7 46.7
47.4 44.3
44.9 41.8
42.3 39.2
33.1 30.0
25.6 22.5
17.5 14.3
12.0
6.7
2.0
-2.4
-6.4
8.8
3.5
65.8 64.8
53.8 52.8
47.7 46.7
45.8 44.8
41.7 40.7
39.8 38.8
37.8 36.8
35.9 34.9
29.9 28.9
25.8 24.8
22.0 21.0
19.8 18.8
17.8 16.8
16.3
14.9
13.8
40.0 40.0
40.0 40.0
40.0 40.0
40.0 40.0
38.0 38.0
37.0 37.0
36.0 36.0
35.1 35.1
32.0 32.0
30.0 30.0
28.1 28.1
27.0 27.0
26.0 26.0
10.7 10.3
15.4 14.8
19.8 19.0
25.2 23.9
29.0 27.4
32.8 30.8
34.0
37.0
39.7
45.2
44.9
49.8
page 4 of 4
March 27, 2019
©2019 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks,
respectively, of CommScope.All specifications are subject to change without notice. See www.commscope.com for the
most current information. Revised: January 21, 2019
