5484BN/GADC-AKMA/R/MS datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 5484BN/GADC-AKMA/R/MS

5484BN/GADC-AKMA/R/MS: DescriptionSingle Color LED, Brilliant Green, Diffused Green, 5.2mm, ROHS COMPLIANT PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size118KB，10 Pages; ManufacturerEVERLIGHT; Websitehttp://www.everlight.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

5484BN/GADC-AKMA/R/MS Overview

Single Color LED, Brilliant Green, Diffused Green, 5.2mm, ROHS COMPLIANT PACKAGE-2

5484BN/GADC-AKMA/R/MS Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	EVERLIGHT
package instruction	ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	compliant
color	BRILLIANT GREEN
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	DIFFUSED GREEN
Nominal luminous intensity	2595.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	7 mm
method of packing	TAPE AND CARTON
peak wavelength	522 nm
shape	OVAL
size	5.2 mm
surface mount	NO
Terminal pitch	2.54 mm
perspective	40 deg

Preview

Download Datasheet

View All

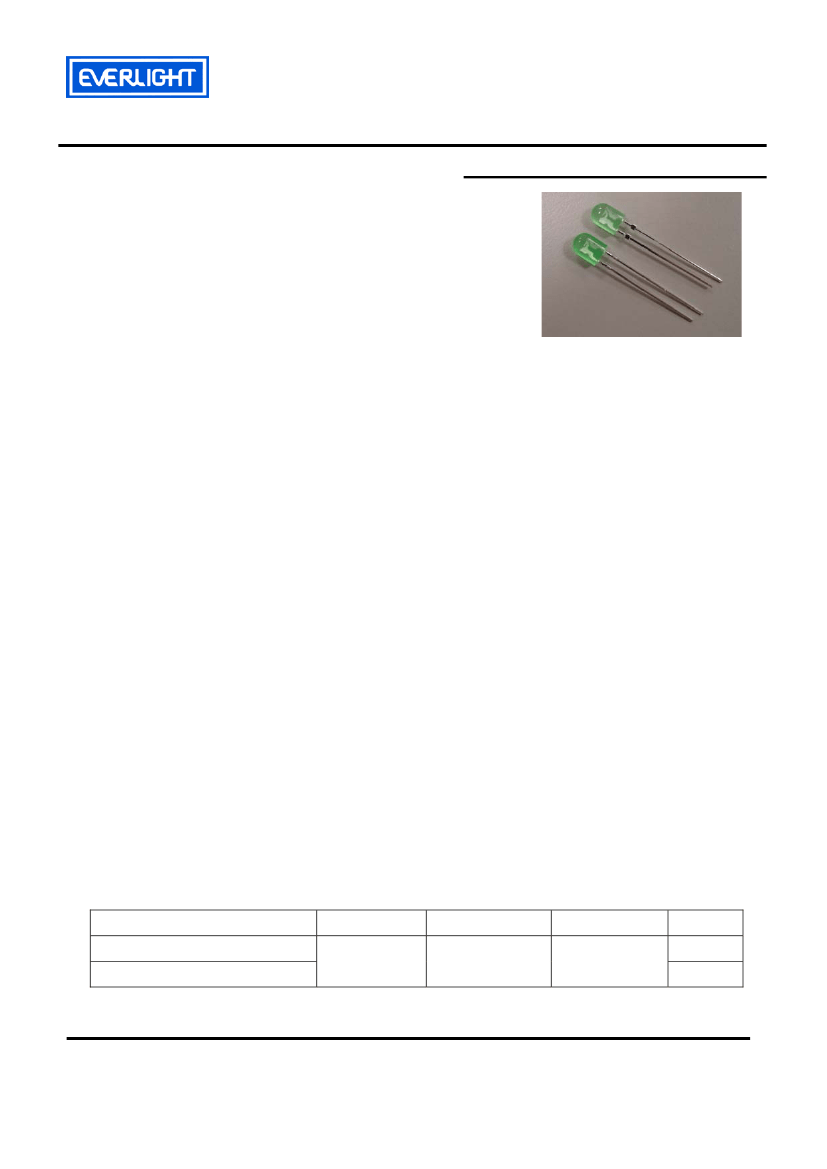

Technical Data Sheet

5484BN/GADC-AKMA/XR/MS

Features

․High

luminous intensity output

․Oval

Shape

․Well

defined spatial radiation

․Wide

viewing angle (2θ

1/2

) : 110

/ 40

․UV

resistant epoxy

․The

product itself will remain within RoHS compliant version

Descriptions

․This

precision optical performance oval LED is specifically

designed for passenger information signs

․This

lamp has matched radiation patterns with red and blue

mixing color applications

Applications

․Color

graphic signs

․Message

boards

․Variable

message signs (VMS)

․Commercial

outdoor advertising

Device Selection Guide

LED Part No.

5484BN/GADC-AKMA/R/MS

5484BN/GADC-AKMA/PR/MS

Chip Material Emitted Color

InGaN

Brilliant Green

Lens Color

Green Diffused

Stopper

Yes

Everlight Electronics Co., Ltd.

Device Number : DT1-548-047

http\\:www.everlight.com

Prepared date:03-24 -2008

Rev 1

Page: 1 of 10

Prepared by: Grace Shen

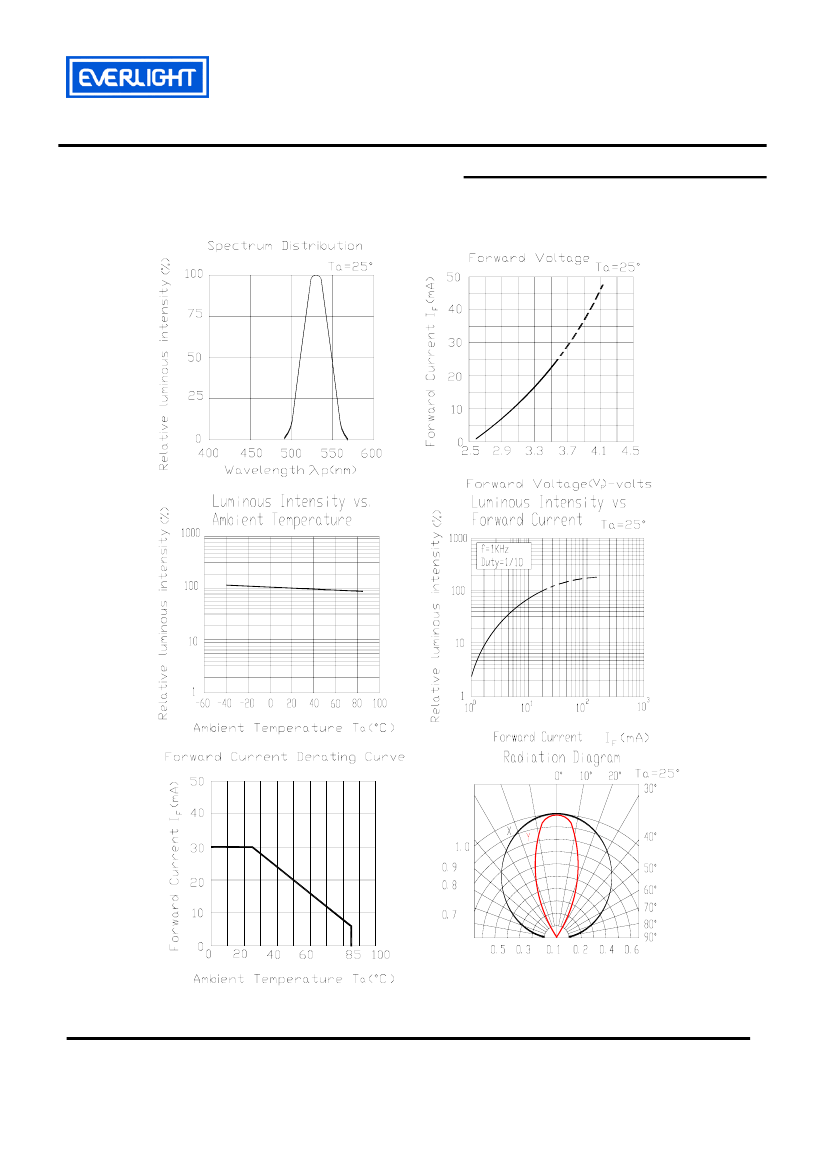

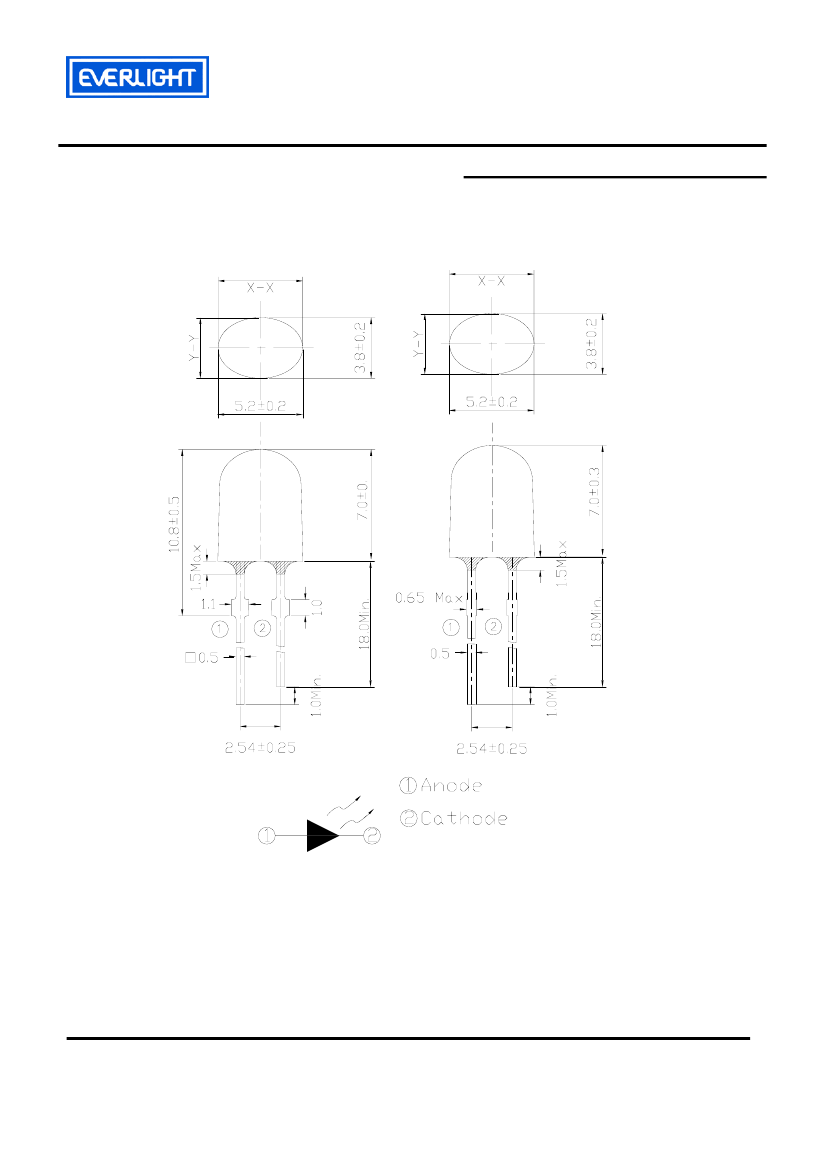

5484BN/GADC-AKMA/R/MS Related Products

	5484BN/GADC-AKMA/R/MS	5484BN/GADC-AKMA/PR/MS
Description	Single Color LED, Brilliant Green, Diffused Green, 5.2mm, ROHS COMPLIANT PACKAGE-2	Single Color LED, Brilliant Green, Diffused Green, 5.2mm, ROHS COMPLIANT PACKAGE-2
Is it Rohs certified?	conform to	conform to
Maker	EVERLIGHT	EVERLIGHT
package instruction	ROHS COMPLIANT PACKAGE-2	ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	compliant	compliant
color	BRILLIANT GREEN	BRILLIANT GREEN
Configuration	SINGLE	SINGLE
Maximum forward current	0.03 A	0.03 A
Lens type	DIFFUSED GREEN	DIFFUSED GREEN
Nominal luminous intensity	2595.0 mcd	2595.0 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1
Number of terminals	2	2
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED
total height	7 mm	7 mm
method of packing	TAPE AND CARTON	TAPE AND CARTON
peak wavelength	522 nm	522 nm
shape	OVAL	OVAL
size	5.2 mm	5.2 mm
surface mount	NO	NO
Terminal pitch	2.54 mm	2.54 mm
perspective	40 deg	40 deg
