P6SMBJ100-LFR Overview

600W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

Preview

Download Datasheet

View All

Frontier Electronics Corp.

667 E. COCHRAN STREET, SIMI VALLEY, CA 93065

TEL: (805) 522-9998

FAX: (805) 522-9989

E-mail:

frontiersales@frontierusa.com

Web:

http://www.frontierusa.com

600W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

P6SMBJ5.0-LFR THRU P6SMBJ188A-LFR

FEATURES

OPTIMIZED FOR LAN PROTECTION APPLICATION

IDEAL FOR ESD PROTECTION OF DATA LINES IN ACCORDANCE

WITH IEC 1000-4-2(IEC801-2)

IDEAL FOR EFT PROTECTION OF DATA LINE IN ACCORDANCE

WITH IEC 1000-4-4(IEC801-4)

EXCELLENT CLAMPING CAPABILITY

LOW INCREMENTAL SURGE RESISTANCE

FAST RESPONSE TIME: TYPICALLY LESS THAN 1.0 ps FROM

0 VOLTS TO V(BR) MIN

600 W PEAK PULSE POWER CAPABILITY WITH A 10/1000

μS

WAVEFORM , REPETITION RATE (DUTY CYCLE):0.01%

TYPICAL I

LESS THAN 1μA ABOVE 10V

HIGH TEMPERATURE SOLDERING GUARANTEED: 250°C/10 SECONDS

AT TERMINAL

ROHS

CATHODE

.086(2.20)

.077(1.96)

.220(5.59)

.205(5.21)

.180(4.57)

.160(4.06)

.096(2.44)

.084(2.13)

.155(3.94)

.130(3.30)

.060(1.52)

.030(0.76)

MECHANICAL DATA

CASE: MOLDED PLASTIC, DO-214AA(SMB), DIMENSIONS IN INCHES AND (MILLIMETERS)

TERMINALS: SOLDER PLATED

POLARITY: INDICATED BY CATHODE BAND

WEIGHT: 0.093 GRAMS

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS RATINGS AT 25°C AMBIENT TEMPERATURE UNLESS OTHERWISE SPECIFIED

SYMBOL

VALUE

UNITS

RATINGS

PEAK PULSE POWER DISSIPATION ON 10/1000μS WAVEFORM

PPM

MINIMUM 600

WATTS

(NOTE 1, FIG. 1)

PEAK PULSE CURRENT OF 0N 10/1000μS WAVEFORM

PPM

SEE TABLE 1

(NOTE 1,FIG. 3)

STEADY STATE POWER DISSIPATION AT T

=75°C

M(AV)

1.0

WATTS

(NOTE 2)

PEAK FORWARD SURGE CURRENT, 8.3ms SINGLE HALF

SINE-WAVE SUPERIMPOSED ON RATED LOAD, UNIDIRECTIONAL

FSM

100

ONLY(NOTE 2)

MAXIMUM INSTANTANEOUS FORWARD VOLTAGE AT 25.0A FOR

SEE NOTE 4

UNIDIRECTIONAL ONLY (NOTE 3 & 4)

OPERATING JUNCTION AND STORAGE TEMPERATURE RANGE

STG

- 55 TO + 150

°C

NOTE

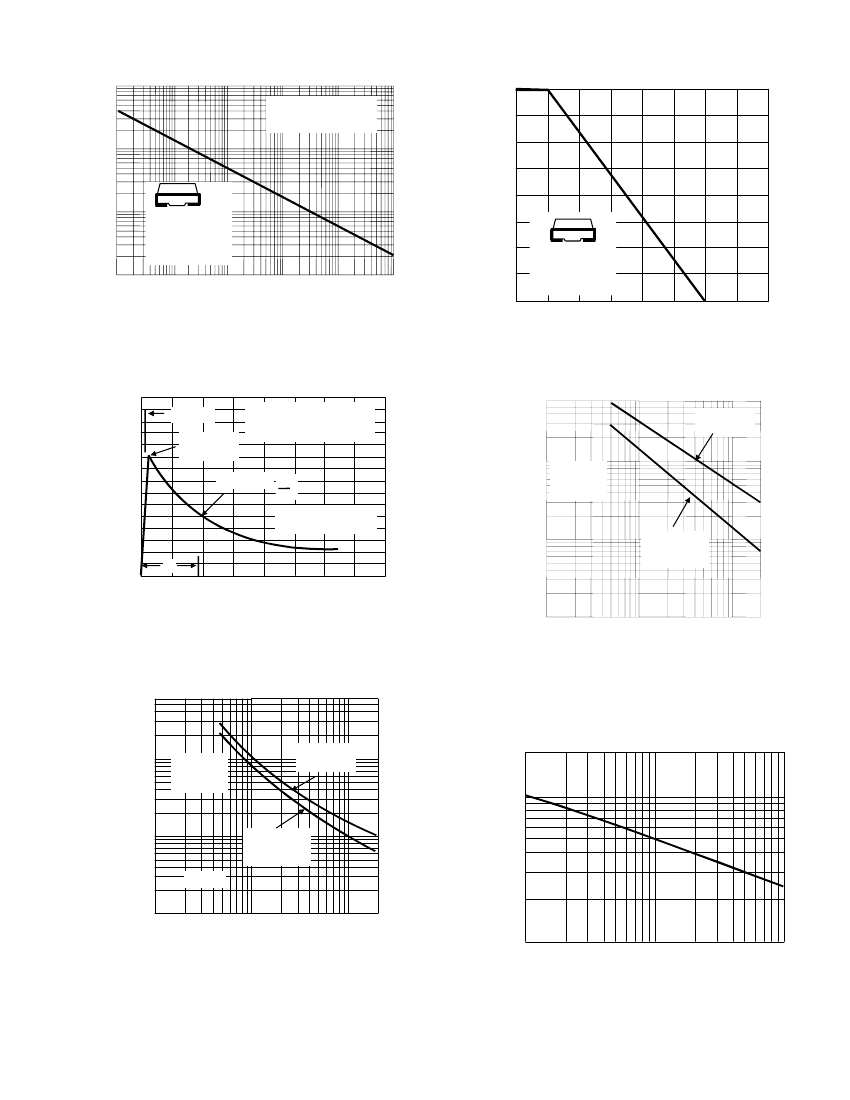

1.NON-REPETITIVE CURRENT PULSE, PER FIG.3 AND DERATED ABOVE TA=25°C PER FIG 2.

2. MOUNTED ON 5mm

COPPER PADS TO EACH TERMINAL

3. MEASURED ON 8.3mS SINGLE HALF SINE-WAVE OR EQUIVALENT SQUARE WAVE, DUTY CYCLE = 4 PULSES

PER MINUTE MAXIMUM

4. VF=3.5V ON P6SMBJ5.0 THRU P6SMBJ90A DEVICES AND VF=5.0V ON P6SMBJ100 THRU P6SMBJ188A

P6SMBJ5.0-LFR THRU P6SMBJ188A-LFR

Page: 1
