54F777/B2A datasheet, PDF - EEWORLD Datasheet

54F777/B2A: DescriptionRegistered Bus Transceiver, F/FAST Series, 3-Func, 1-Bit, True Output, TTL, CQCC20; Categorylogic logic; File Size245KB，7 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

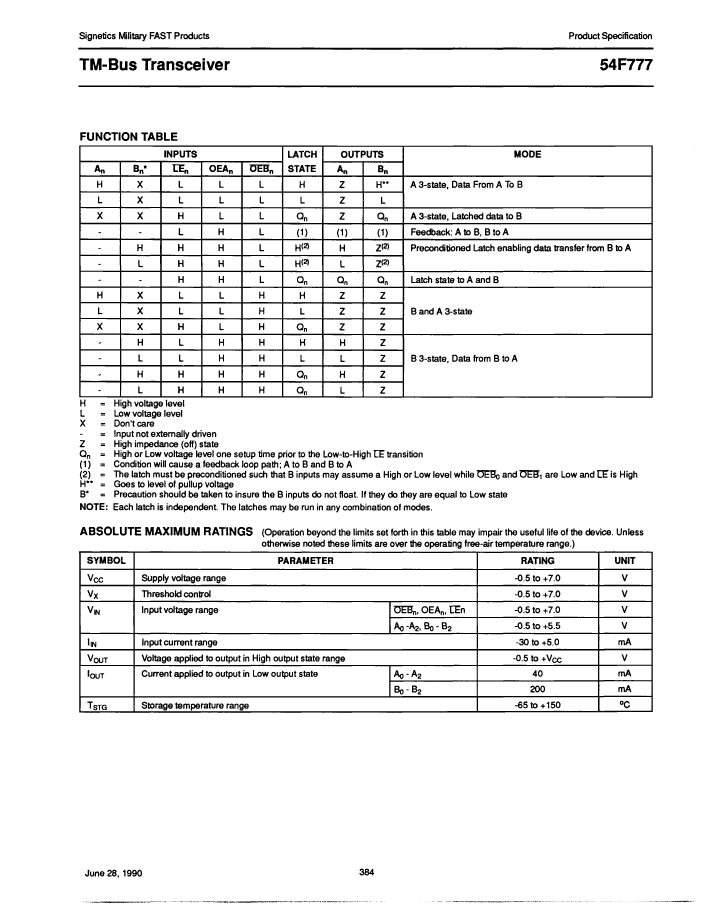

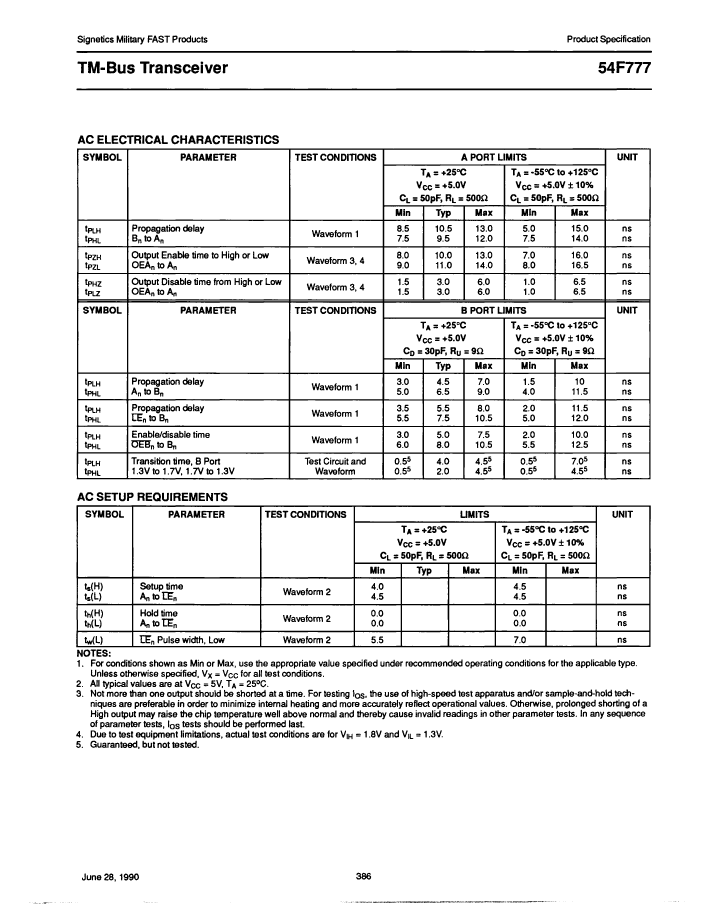

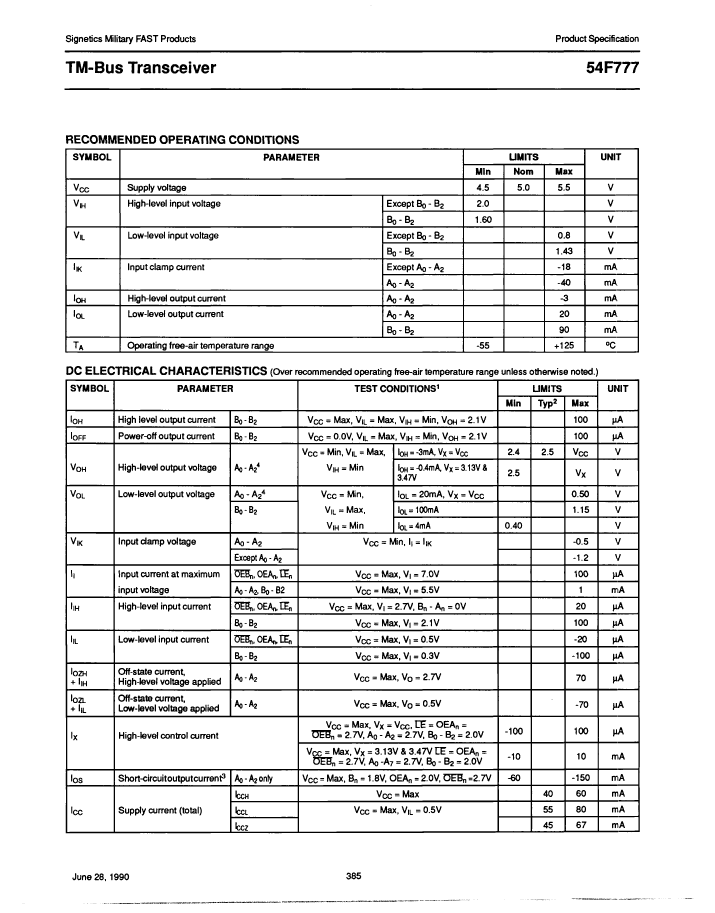

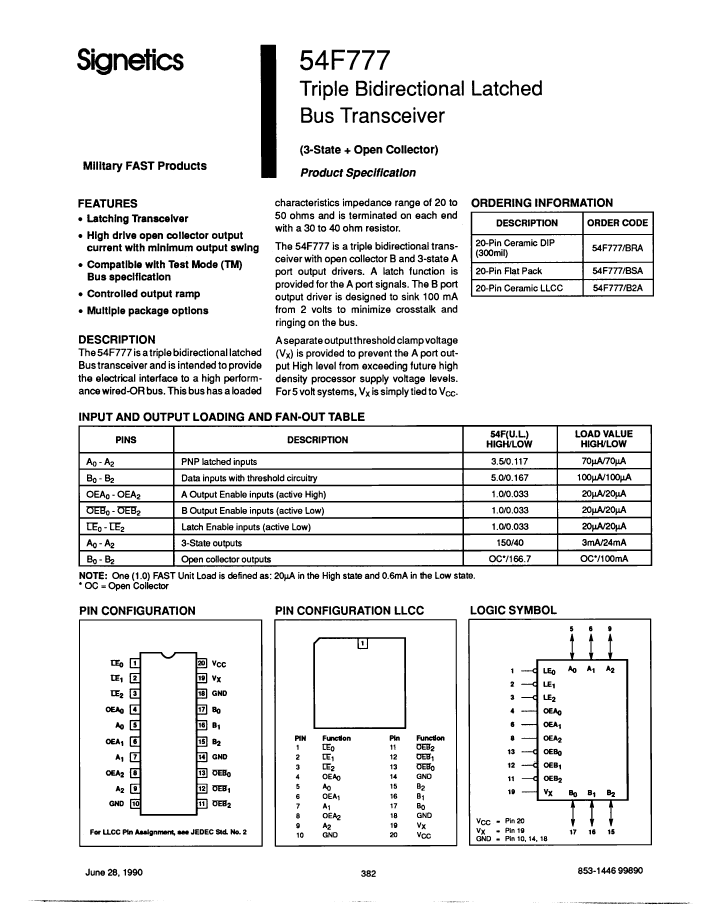

54F777/B2A Overview

Registered Bus Transceiver, F/FAST Series, 3-Func, 1-Bit, True Output, TTL, CQCC20

Parameter Name	Attribute value
Maker	YAGEO
package instruction	,
Reach Compliance Code	unknown
Other features	PORT B WITH STANDARD INPUTS AND OPEN COLLECTOR OUTPUTS
series	F/FAST
JESD-30 code	S-CQCC-N20
Load capacitance (CL)	9 pF
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER
Number of digits	1
Number of functions	3
Number of ports	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	OPEN-COLLECTOR/3-STATE
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE
Package form	CHIP CARRIER
Maximum supply current (ICC)	80 mA
propagation delay (tpd)	12 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal location	QUAD

	54F777/B2A	54F777/BRA
Description	Registered Bus Transceiver, F/FAST Series, 3-Func, 1-Bit, True Output, TTL, CQCC20	Registered Bus Transceiver, F/FAST Series, 3-Func, 1-Bit, True Output, TTL, CDIP20
Maker	YAGEO	YAGEO
Reach Compliance Code	unknown	unknown
Other features	PORT B WITH STANDARD INPUTS AND OPEN COLLECTOR OUTPUTS	PORT B WITH STANDARD INPUTS AND OPEN COLLECTOR OUTPUTS
series	F/FAST	F/FAST
JESD-30 code	S-CQCC-N20	R-CDIP-T20
Load capacitance (CL)	9 pF	9 pF
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER
Number of digits	1	1
Number of functions	3	3
Number of ports	2	2
Number of terminals	20	20
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Output characteristics	OPEN-COLLECTOR/3-STATE	OPEN-COLLECTOR/3-STATE
Output polarity	TRUE	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE	RECTANGULAR
Package form	CHIP CARRIER	IN-LINE
Maximum supply current (ICC)	80 mA	80 mA
propagation delay (tpd)	12 ns	12 ns
Certification status	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	NO
technology	TTL	TTL
Temperature level	MILITARY	MILITARY
Terminal form	NO LEAD	THROUGH-HOLE
Terminal location	QUAD	DUAL
