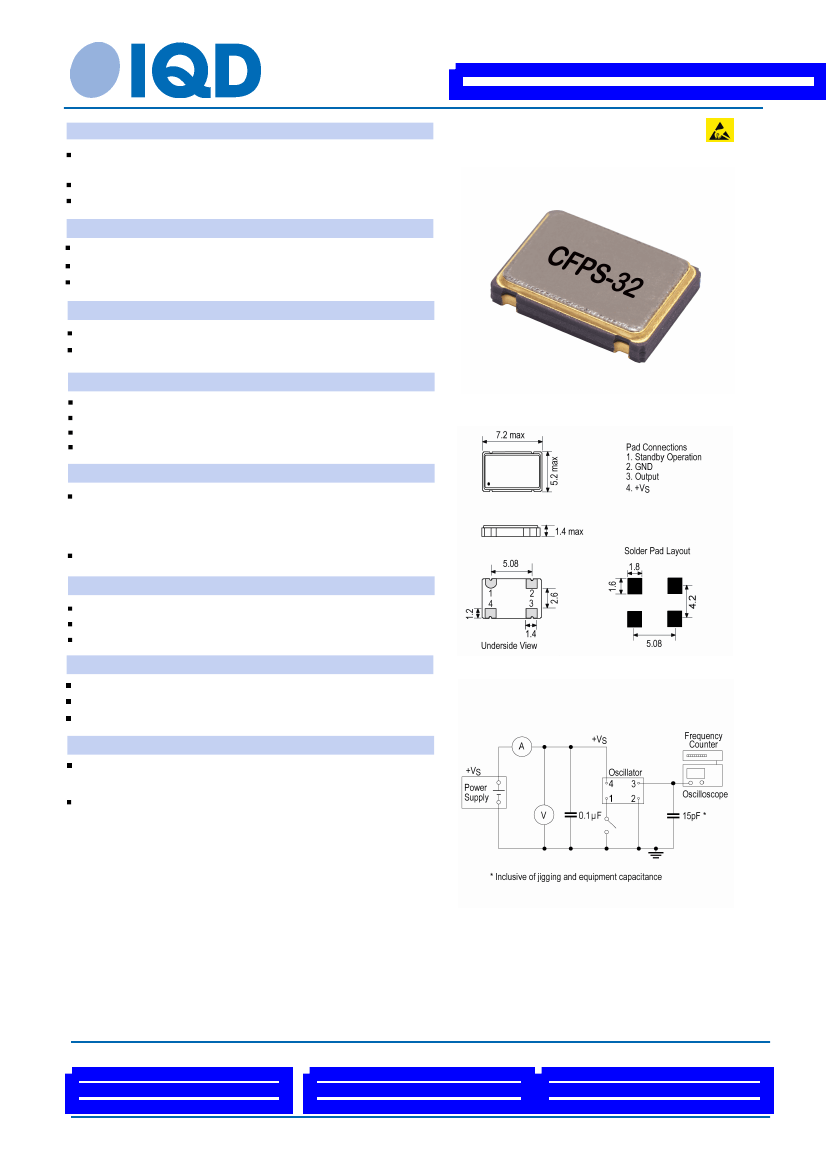

Crystal Clock Oscillator Specification

Part No. + Packaging:

LFSPXO054825Reel

Description

Surface mount oscillator in a ceramic package with a

hermetically sealed metal lid

Model

CFPS-32

Model Issue number

12

Frequency Parameters

Frequency

Frequency Stability

Operating Temperature Range

Electrical Parameters

25.0MHz

±30.00ppm

-40.00 to 85.00°C

Supply Voltage

Current Draw

Output Details

2.5V ±5%

8.00mA

Output Compatability

Drive Capability

Rise and Fall Time

Duty Cycle

Output Control

CMOS

15pF max

5.0ns max

40/60%

Outline (mm)

Logic ‘1’ (>70% VS) to pad 1 enables oscillator output

Logic ‘0’ (<30% VS) to pad 1 disables oscillator output; the

oscillator output goes to the high impedance state

No connection to pad 1 enables oscillator output

Standby Current: 10μA max

Environmental Parameters

Storage Temperature Range: –55 to 125°C

Shock: MIL-STD-202, Method 213, Condition E

Vibration: MIL-STD-883, Method 2007, Condition A

Compliance

Test Circuit

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: Reel

Pack Size: 1,000

Tape & reel in accordance with EIA-481-D

Alternative packing option available

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 2

Printed on 3 Oct 16 18:45 using Part Data Sheet V1.00014
