5BXX46H3-24VDC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> 5BXX46H3-24VDC

5BXX46H3-24VDC: DescriptionPower/Signal Relay, DPDT, Latched, 0.292A (Coil), 24VDC (Coil), 7000mW (Coil), 30A (Contact), 28VDC (Contact), DC Input, AC/DC Output, Panel Mount,; CategoryMechanical and electronic products relay; File Size132KB，3 Pages; ManufacturerStruthers-Dunn

Download Datasheet Parametric View All

5BXX46H3-24VDC Overview

Power/Signal Relay, DPDT, Latched, 0.292A (Coil), 24VDC (Coil), 7000mW (Coil), 30A (Contact), 28VDC (Contact), DC Input, AC/DC Output, Panel Mount,

5BXX46H3-24VDC Parametric

Parameter Name	Attribute value
Maker	Struthers-Dunn
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	RELAY FUNCTION 4PST ALSO AVAILABLE
body width	102.4 mm
body height	68.4 mm
Body length or diameter	178.2 mm
Maximum coil current (DC)	0.292 A
Coil operating voltage (DC)	19.2 V
Coil power	7000 mW
Coil release voltage (DC)	2.4 V
Coil resistance	82.19 Ω
Maximum coil voltage (DC)	24 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	30A@240VAC
Maximum contact current (AC)	30 A
Maximum contact current (DC)	30 A
Contact (DC) maximum rated R load	30A@28VDC
Maximum contact voltage (AC)	240 V
Maximum contact voltage (DC)	28 V
Contact/Output Power Type	AC/DC
Electrical life	100000 Cycle(s)
Installation features	PANEL MOUNT
operating hours	50 ms
Maximum operating temperature	60 °C
Minimum operating temperature	-20 °C
physical size	178.2mm x 102.4mm x 68.4mm
Relay action	LATCHED
Relay function	DPDT
Relay type	POWER/SIGNAL RELAY
release time	50 ms
surface mount	NO
Termination type	SCREW

Preview

Download Datasheet

View All

Struthers-Dunn

407 East Smith Street - Suite B

Timmonsville, SC 29161 US

Phone:

(843) 346-4427 •

Fax:

(843) 346-4465

E-Mail:

info@struthers-dunn.com •

Web site:www.struthers-dunn.com

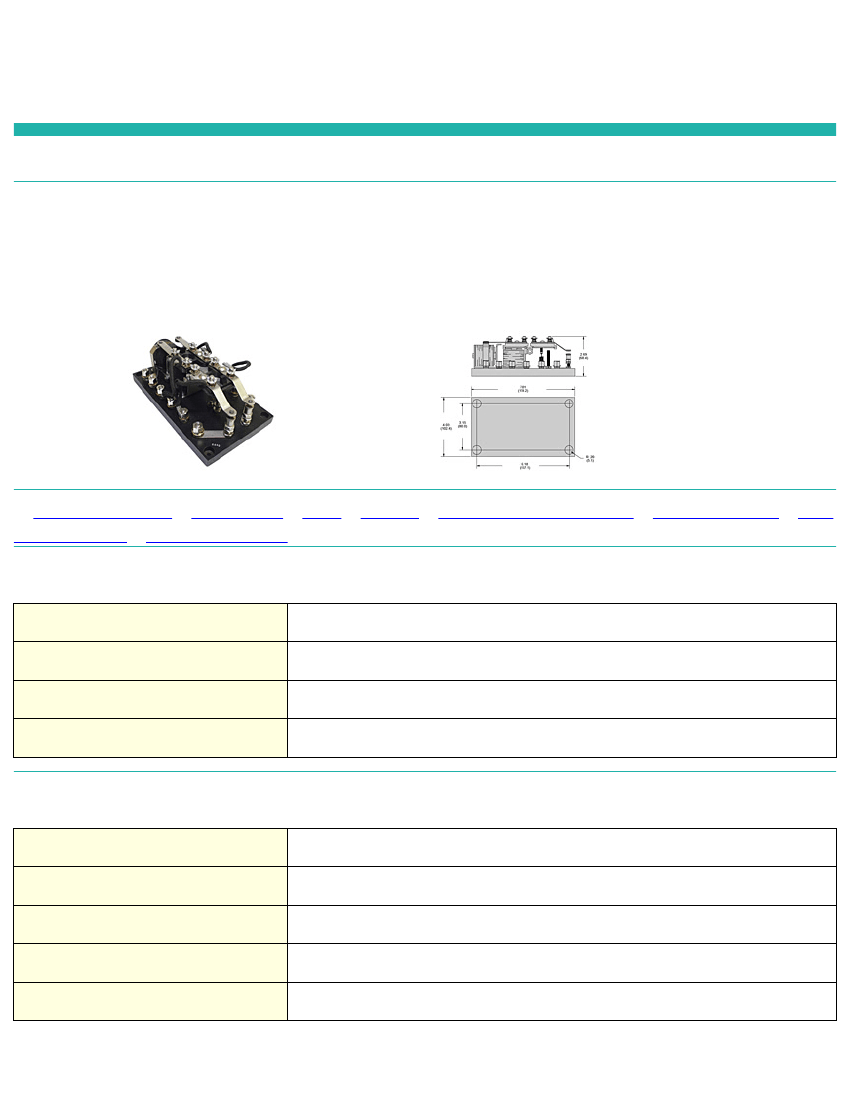

Item # 5BXX46H3-24VDC, 5 Series - Mechanical Latch Electrical Reset Power Relays

5 Series - Mechanical Latch Electrical Reset Power Relays

The 5 series is a 2 coil mechanical latch electrical reset power relay. It is panel mounted with screw terminals, and has 600 volt spacing. The 5 series is supplied with

continuous duty coils, and is suitable for applications ranging from supervisory and interlocking functions to control of small motors, heaters, solenoids or for

transferring power from a main auxiliary supply or load.

For Additional Configuration please contact the manufacturer.

SPECIFICATIONS

CONTACTS

COIL

TIMING

DIELECTRIC STRENGTH

TEMPERATURE

LIFE

EXPECTANCY

MISCELLANEOUS

SPECIFICATIONS

Series

Contact Arrangement

BXX (2 Pole NO)

Optional Features

Open style construction

Coil Voltage

24 VDC

CONTACTS

Contact Configuration

Up to 2PDT or 4PST

Contact Material

Silver Alloy Gold Diffused

Contact Rating

30 A

Contact Rating 120 / 240VAC Resistive

30 A

Contact Rating 28VDC Resistive

30 A

1/12/2012 | Page 1 of 3
