Datasheet> All Categories > Power management> transformer> 50830R
PDF
Preview

50830R

Description
Telecom Transformer, PDSO-G16
CategoryPower management    transformer
File Size90KB，2 Pages
ManufacturerWurth Elektronik
Download Datasheet Parametric Compare View All

50830R Overview

Telecom Transformer, PDSO-G16

50830R Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerWurth Elektronik
package instructionPDSO-G16
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresTURNS RATIO: 1.26CT:1; 1.26CT:1
CertificationUL
high5.23 mm
length12.95 mm
Manufacturer's serial number50830R
Installation featuresSURFACE MOUNT
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
physical sizeL12.95XB7.11XH5.23 (mm)
main impedance100 OHMS
surface mountYES
Transformer typeTELECOM TRANSFORMER
width7.11 mm

Preview

Download Datasheet

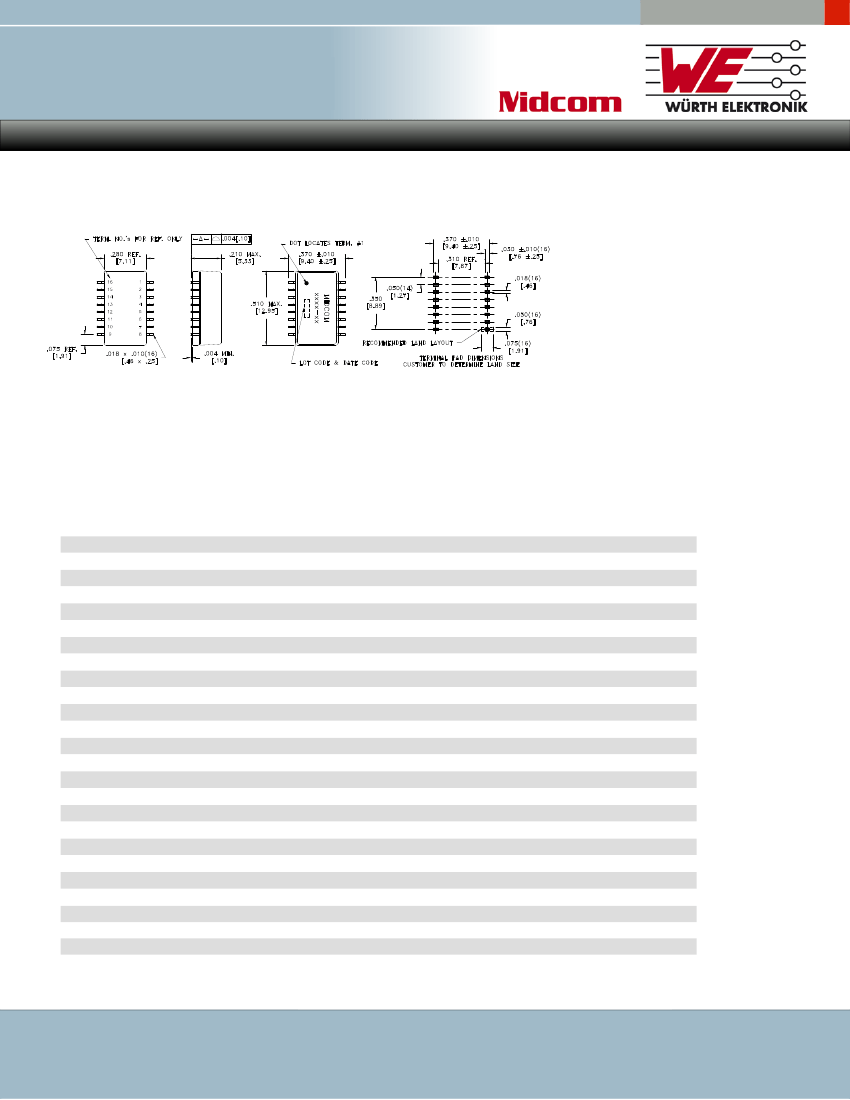

more than you expect
T1/E1 ISDN-PRI Single Port
SMD PDSO-G16
DigitalTelecom
Features
•
RoHS compliant versions available
•
Industry standard PDSO-G16
package
•
Transfer molded for high reliability
•
Transmit and receive in the same
package
•
Optional pin-outs
•
Meets ITU G.703 ISDN-Primary
rate recommendations
•
Operating temperature range of
–40°C to +85°C
•
Matched to IC manufacturers’
transceivers
•
Designed to meet UL1459, UL1950
and IEC60950 requirements
Transmit
Receive
LPRI @20°C Leakage L
(mH Min)
(µH Max)
(PRI1:SEC1) (PRI2:SEC2)
Part Number
50661R
1CT:1
1CT:1
1.2
0.5
51114R
1CT:1CT
1CT:1CT
1.2
0.5
1CT:2.4CT
1CT:1CT
1.0
0.8
51350R
50650R
1.15CT:1
1CT:1
1.2
0.5
1.26CT:1
1CT:1
1.2
0.5
50651R
50652R
1.36CT:1
1CT:1
1.2
0.5
1.66CT:1
1CT:1
1.2
0.5
50653R
50654R
1.15CT:1
1.15CT:1
1.2
0.5
1.36CT:1
1.15CT:1
1.2
0.5
50655R
50830R
1.26CT:1
1.26CT:1
1.2
0.5
1CT:1CT
1.36CT:1CT
1.2
0.5
51226R
50656R
1.36CT:1
1.36CT:1
1.2
0.5
1.41CT:1
1.41CT:1
1.2
0.5
50657R
50658R
1CT:1
2CT:1
1.2
0.5
1CT:1
2CT:1
1.2
0.5
50893R
51416R
1CT:1CT
2CT:1CT
1.2
0.5
1CT:2CT
2CT:1CT
1.2
0.5
51057R
50659R
1.15CT:1
2CT:1
1.2
0.5
1.15CT:1
2CT:1CT
1.2
0.5
51441R
50660R
1.26CT:1
2CT:1
1.2
0.5
1.35CT:1CT
2CT:1CT
1.2
0.5
50649R
50648R
2CT:1CT
2CT:1CT
1.2
0.5
2.32CT:1
2CT:1
1.2
0.5
50662R
2.2CT:1CT
2.2CT:1CT
1.2
0.5
51716R
50663R
2.42CT:1CT 2.42CT:1CT
1.2
0.5
(Schematics on following page)
DCR PRI DCR SEC
(ohms Max)
(ohms Max)
0.7
0.7
0.85
0.7
0.7
0.7
0.7
0.7
0.7
0.7
0.7
0.7
0.7
0.7
0.7
0.7
0.7
0.7
0.7
0.7
0.7
0.7
0.7
0.7
0.7
0.7
0.7
1.5
0.7
0.7
0.7
0.7
0.7
0.7
0.7
0.7
0.7
0.7
0.7
0.7
0.7
0.7
0.7
0.7
0.7
0.7
0.7
0.7
0.7
0.7

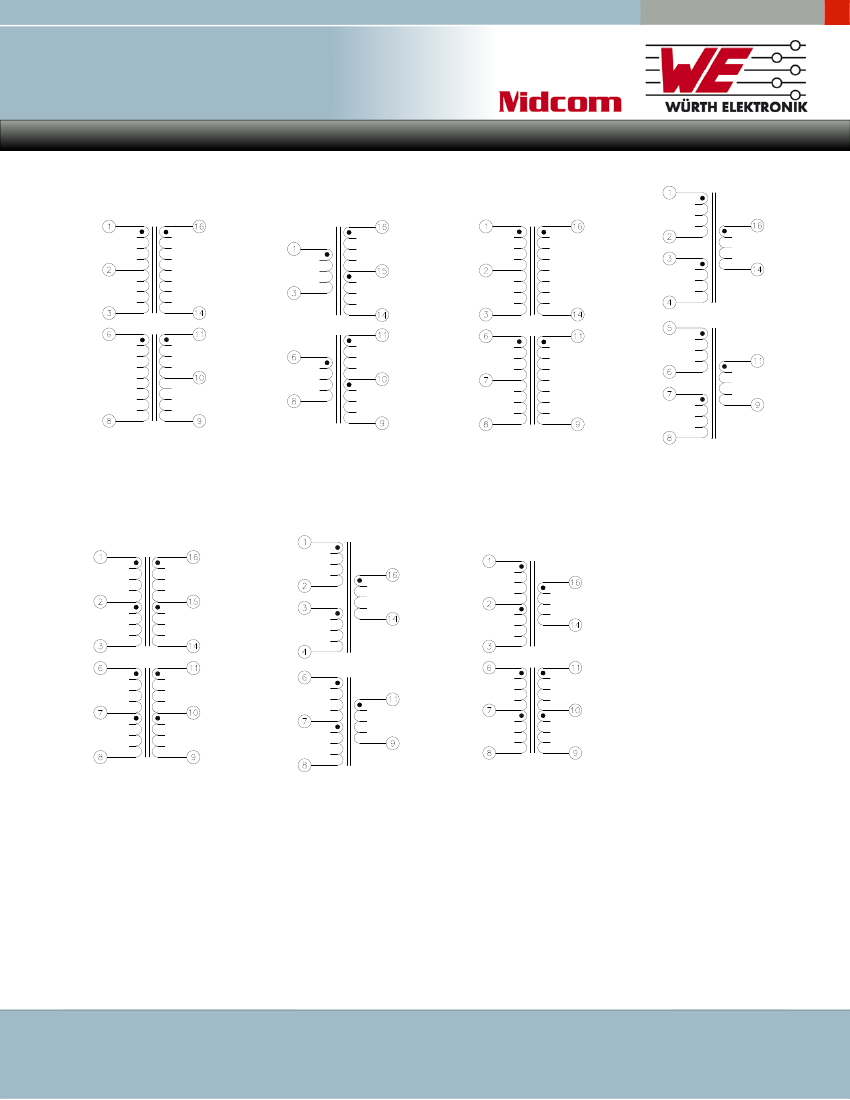

Schematic
1
5
5
1
1
1
1
2
1
4
5
1
3
1
6
5
1
1
7
1
5
5
1
5
2
Wurth Electronics Midcom, Inc.
121 Airport Drive—PO Box 1330
Watertown, SD 57201
T: 605.886.4385 ~ 605.886.4486
www.we-online.com ~ email: sales@midcom-inc.com
5-Apr-07
1/2
