50950046021E

Description

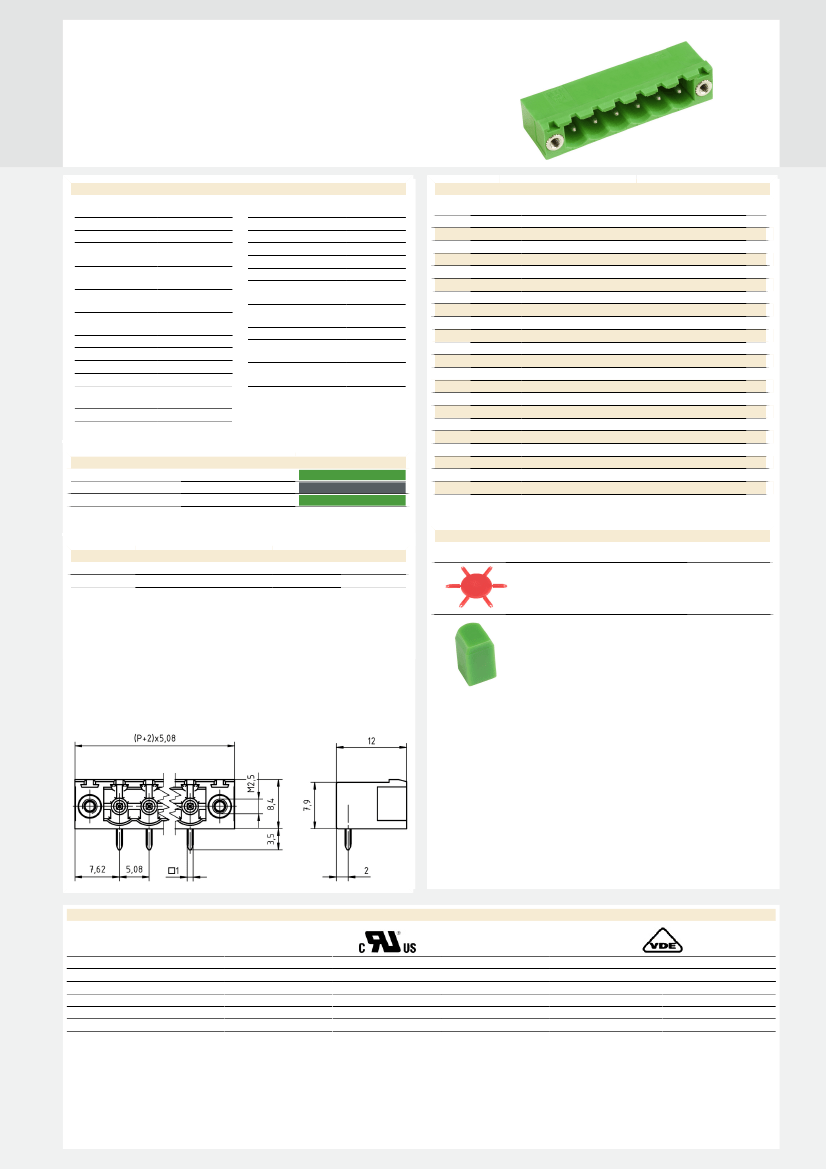

Strip Terminal Block
CategoryThe connector
File Size281KB,1 Pages
ManufacturerAPEM
Environmental Compliance
Download Datasheet Parametric Compare View All

50950046021E Overview

Strip Terminal Block

50950046021E Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerAPEM
Reach Compliance Codecompliant
ECCN codeEAR99
Terminal and terminal strip typesSTRIP TERMINAL BLOCK
Pin strip |
Spacing 5.08 mm
STLZ950/..F-5.08-H-GREEN
Technical Data
Wire Sizes
Solid min
solid max
Stranded (flexible)
min
Stranded (flexible)
max
-
-
-
-
Insulating Material
Material
Flammability Class
Temperatures
Operating Temperature
Wave Soldering Process
Soldering Temperature,
recommended
Peak Soldering Time,
recommended
Reflow Process
Soldering Temperature,
recommended
1.4 mm
Brass
Copper Alloy
Peak Soldering Time,
recommended
Leere Zeile
-
-
265 °C
3-4 s
-30 °C - 105 °C
PA 6.6
UL 94 V-0
Order Data (Spacing mm)
Poles
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Width (mm)
20.32
25.40
30.48
35.56
40.64
45.72
50.80
55.88
60.96
66.04
71.12
76.20
81.28
86.36
91.44
96.52
101.60
106.68
111.76
116.84
121.92
127.00
132.08
Article Designation
STLZ950/2F-5.08-H-GREEN
STLZ950/3F-5.08-H-GREEN
STLZ950/4F-5.08-H-GREEN
STLZ950/5F-5.08-H-GREEN
STLZ950/6F-5.08-H-GREEN
STLZ950/7F-5.08-H-GREEN
STLZ950/8F-5.08-H-GREEN
STLZ950/9F-5.08-H-GREEN
STLZ950/10F-5.08-H-GREEN
STLZ950/11F-5.08-H-GREEN
STLZ950/12F-5.08-H-GREEN
STLZ950/13F-5.08-H-GREEN
STLZ950/14F-5.08-H-GREEN
STLZ950/15F-5.08-H-GREEN
STLZ950/16F-5.08-H-GREEN
STLZ950/17F-5.08-H-GREEN
STLZ950/18F-5.08-H-GREEN
STLZ950/19F-5.08-H-GREEN
STLZ950/20F-5.08-H-GREEN
STLZ950/21F-5.08-H-GREEN
STLZ950/22F-5.08-H-GREEN
STLZ950/23F-5.08-H-GREEN
STLZ950/24F-5.08-H-GREEN
Article Number
50950026021E
50950036021E
50950046021E
50950056021E
50950066021D
50950076021D
50950086021D
50950096021D
50950106021D
50950116021D
50950126021D
50950136021D
50950146021D
50950156021D
50950166021D
50950176021D
50950186021D
50950196021D
50950206021D
50950216021D
50950226021D
50950236021D
50950246021D
PU
100
100
100
100
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
Stranded with Ferrule -
min
Stranded with Ferrule -
max
Dimensions
Stripped Length
PCB Hole Diameter
Materials
Flansch
Gewindeeinsatz
Contact Pin
Colours
GREEN
BASALT GREY
LIGHT GREEN
21
RAL6018
RAL7012
similar RAL 6018
RAL6018
22
23
24
RAL7012
similar RAL 6018
Colours according to RAL, there may be variations on colour due to production conditions.
Special colours on request.
Accessories
Counterparts (Spacing 5.08 mm)
Pin Strip/Terminal Blocks
AKZ950
AKZ4951
AKZ1110
Figure
AKZ1100
AKZ1200
Designation
Coding star CS2-5.0/5.08-RED
Article Number
50000000024
Dividing element SE-STL950-GREEN
50950000002
Ratings
Usegroup
Rated Voltage
Rated Current
Overvoltage Category
Test Voltage
Pollution Degree
B
300 V
15 A
1.6 kV
C
150 V
15 A
1.6 kV
D
300 V
10 A
1.6 kV
250 V
12 A
III
4.0 kV
3

50950046021E Related Products

50950046021E 50950156021D 50950126021D 50950206021D 50950056021E 50950166021D 50950236021D 50950216021D
Description Strip Terminal Block Strip Terminal Block Strip Terminal Block Strip Terminal Block Strip Terminal Block Strip Terminal Block Strip Terminal Block Strip Terminal Block
Reach Compliance Code compliant compli compliant compliant compliant compliant compliant compliant
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
Terminal and terminal strip types STRIP TERMINAL BLOCK STRIP TERMINAL BLOCK STRIP TERMINAL BLOCK STRIP TERMINAL BLOCK STRIP TERMINAL BLOCK STRIP TERMINAL BLOCK STRIP TERMINAL BLOCK STRIP TERMINAL BLOCK
Maker APEM - APEM APEM APEM APEM APEM APEM
Manufacturer's serial number - 50950 50950 50950 50950 50950 50950 50950
Base Number Matches - 1 1 1 1 1 1 1
