51362R: DescriptionTelecom Transformer, CHIP; CategoryPower management transformer; File Size123KB，1 Pages; ManufacturerWurth Elektronik

Download Datasheet Parametric Compare View All

51362R Overview

Telecom Transformer, CHIP

51362R Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Wurth Elektronik
package instruction	CHIP
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	BREADTH AND HEIGHT DIM INCLUDES TERMINALS ALSO, TURNS RATIO: 2:1
Certification	IEC
high	10.54 mm
length	9.78 mm
Manufacturer's serial number	51362R
Installation features	SURFACE MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	L9.78XB9.14XH10.54 (mm)
main impedance	100 OHMS
surface mount	YES
Transformer type	TELECOM TRANSFORMER
width	9.14 mm

Preview

Download Datasheet

View All

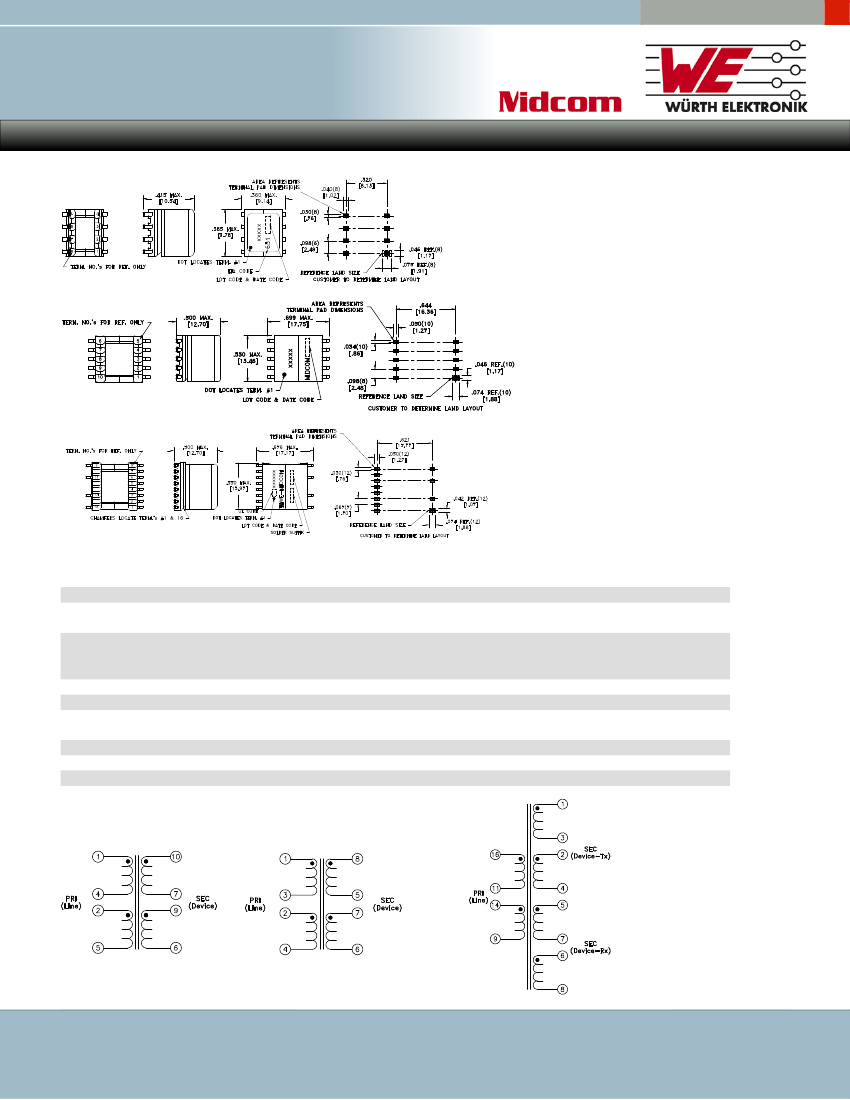

more than you expect

Broadcom ADSL

recommendations

DigitalTelecom

EP7-SMD

Features

•

RoHS versions available

•

Designed for Broadcom chipsets

•

Good total harmonic distortion

characteristics

•

Optimized for size and

performance

•

Customization available

•

For IC approval status, contact

Wurth Electronics Midcom

•

100 Ohm Line Impedance

•

Designed to meet IEC950 re-

quirements for 250VAC working

EP13-SMD

EP13-SMD-16P

Part Number

52186R

52191R

52191R-1

52133R

52134R

51362R

50702R-1

51617R

51524R

52096R

IC Number

12 Volt

BCM6348, BCM6338,

BCM6301 Driver

5 Volt

BCM6410, BCM6424

BCM6345

BCM6348

BCM6410, BCM6420

BCM6411, BCM6421

Application

POTS

POTS Low THD

5 Volt Annex A,C for

Transmit & Receive

Annex B

CO & CPE

Single Chip ADSL2 CPE Router

Single Chip ADSL2+ CPE

CO Annex A

Turns Ratio

Pri : Sec

2:1

4.29:4.29:1

4.25:4.25:1

2:1

1.41:1

2:1

1.2:1

IEC950

Supplementary

Functional

Supplementary

Functional

Mechanical

EP13-SMD

EP13-SMD-16P

EP7-SMD

EP13-SMD

EP7-SMD

Schematic

1

3

2

1

2

Schematic 1

Schematic 2

Schematic 3

Wurth Electronics Midcom, Inc.

121 Airport Drive—PO Box 1330

Watertown, SD 57201

T: 605.886.4385 ~ 605.886.4486

www.we-online.com ~ email: sales@midcom-inc.com

29-Apr-08

1/1

51362R Related Products

	51362R	51617R	52134R-LF1	52134R	52186R-LF1	52186R	52191R-1
Description	Telecom Transformer, CHIP	Telecom Transformer, CHIP	Telecom Transformer, CHIP, ROHS COMPLIANT	Telecom Transformer, CHIP	Telecom Transformer, CHIP, ROHS COMPLIANT	Telecom Transformer, CHIP	Telecom Transformer, CHIP
Is it lead-free?	Contains lead	Contains lead	Lead free	Contains lead	Lead free	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	conform to	incompatible	conform to	incompatible	incompatible
Maker	Wurth Elektronik	Wurth Elektronik	Wurth Elektronik	Wurth Elektronik	Wurth Elektronik	Wurth Elektronik	Wurth Elektronik
package instruction	CHIP	CHIP	CHIP, ROHS COMPLIANT	CHIP	CHIP, ROHS COMPLIANT	CHIP	CHIP
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	BREADTH AND HEIGHT DIM INCLUDES TERMINALS ALSO, TURNS RATIO: 2:1	BREADTH AND HEIGHT DIM INCLUDES TERMINALS ALSO, TURNS RATIO: 1.41:1	BREADTH AND HEIGHT DIM INCLUDES TERMINALS ALSO, TURNS RATIO: 4.25:4.25:1	BREADTH AND HEIGHT DIM INCLUDES TERMINALS ALSO, TURNS RATIO: 4.25:4.25:1	BREADTH AND HEIGHT DIM INCLUDES TERMINALS ALSO, TURNS RATIO: 2:1	BREADTH AND HEIGHT DIM INCLUDES TERMINALS ALSO, TURNS RATIO: 2:1	BREADTH AND HEIGHT DIM INCLUDES TERMINALS ALSO, TURNS RATIO: 2:1
Certification	IEC	IEC	IEC	IEC	IEC	IEC	IEC
high	10.54 mm	10.54 mm	12.7 mm	12.7 mm	12.7 mm	12.7 mm	12.7 mm
length	9.78 mm	9.78 mm	13.97 mm	13.97 mm	13.46 mm	13.46 mm	13.46 mm
Manufacturer's serial number	51362R	51617R	52134R	52134R	52186R	52186R	52191R-1
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
physical size	L9.78XB9.14XH10.54 (mm)	L9.78XB9.14XH10.54 (mm)	L13.97XB17.17XH12.7 (mm)	L13.97XB17.17XH12.7 (mm)	L13.46XB17.75XH12.7 (mm)	L13.46XB17.75XH12.7 (mm)	L13.46XB17.75XH12.7 (mm)
main impedance	100 OHMS	100 OHMS	100 OHMS	100 OHMS	100 OHMS	100 OHMS	100 OHMS
surface mount	YES	YES	YES	YES	YES	YES	YES
Transformer type	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER
width	9.14 mm	9.14 mm	17.17 mm	17.17 mm	17.75 mm	17.75 mm	17.75 mm
