5962-8952211UC Overview

MIL-STD-1553 Data Bus Transceiver, PDFP36, FP-36

5962-8952211UC Parametric

Parameter Name	Attribute value
Maker	Cobham Semiconductor Solutions
Parts packaging code	DFP
package instruction	DFP,
Contacts	36
Reach Compliance Code	unknown
JESD-30 code	R-PDFP-F36
Number of functions	2
Number of terminals	36
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum seat height	4.445 mm
Nominal supply voltage	5 V
surface mount	YES
Telecom integrated circuit types	MIL-STD-1553 DATA BUS TRANSCEIVER
Temperature level	MILITARY
Terminal form	FLAT
Terminal pitch	2.54 mm
Terminal location	DUAL

Preview

Download Datasheet

View All

Standard Products

ACT4453 Single Supply Dual Transceiver

www.aeroflex.com/Avionics

October 9, 2006

for MIL-STD-1553A/B, MIL-STD-1760 & SAE-AS15531

FEATURES

❑

Small size, light weight and low standby power dual transceiver

Single +5V power supply

Outstanding MIL-STD-1553 / SAE-AS15531 performance

Monolithic construction

Input and output TTL compatible design

Designed for commercial, industrial and aerospace applications

MIL-PRF-38534 compliant devices available

Aeroflex-Plainview is a Class H & K MIL-PRF-38534 manufacturer

DSCC Standard Microcircuit Drawing (SMD): 5962–89522

GENERAL DESCRIPTION

The Aeroflex-Plainview ACT4453 is the next generation monolithic transceiver design which provides full

compliance with MIL-STD-1553A/B, MIL-STD-1760 and meets SAE-AS15531 requirements in the smallest

packages with low power consumption and single power supply operation. The series performs the front-end analog

function of inputting and outputting data through a transformer to the MIL-STD-1553 data bus.

Design of these transceivers reflects particular attention to active filter performance. This results in low bit and word

error rate with superior waveform purity and minimal zero crossover distortion. Efficient transmitter electrical and

thermal design provides low internal power dissipation and heat rise at high as well as low duty cycles.

Each channel of the dual transceiver is completely separate from the other and fully independent. This includes

power leads as well as signal lines. Hence, each channel may be connected to a different data bus with no

interaction.

The Transmitter section accepts bi-phase TTL data at the input and when coupled to the data bus with a 1:2.12 ratio

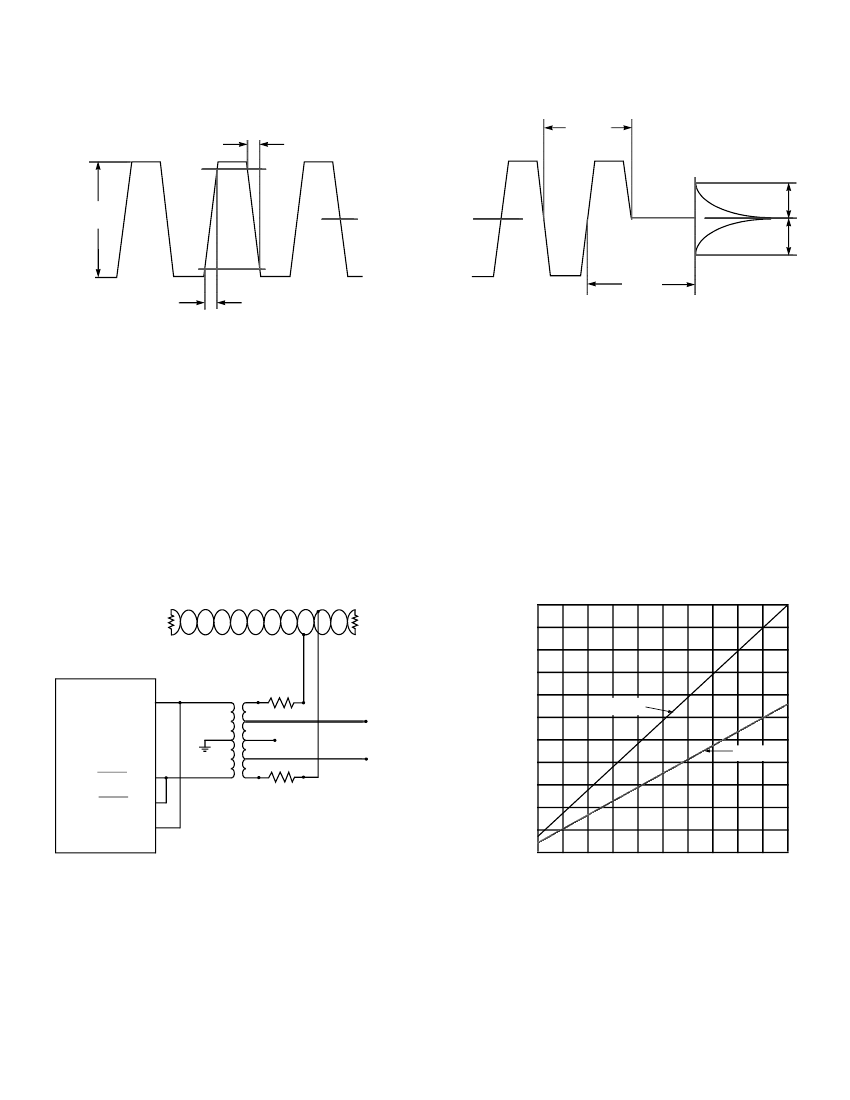

transformer the data bus signal is typically 7.0 Volts P-P at A-A' (See Figure 5). When both DATA and DATA

inputs are held low or high, the transmitter output becomes a high impedance and is “removed” from the line. In

addition, an overriding “INHIBIT input provides for the removal of the transmitter output from the line. A logic “1”

applied to the “INHIBIT” takes priority over the condition of the data inputs and disables the transmitter (See Figure

1 Transmitter Logic Waveform). The Transmitter may be safely operated for an indefinite period with the bus (point

A-A') short circuited at 100% duty cycle.

TRANSMITTER

RECEIVER

The Receiver section accepts bi-phase differential data at the input and produces two TTL signals at the output. The

outputs are DATA and DATA, and represent positive and negative excursions of the input beyond a pre-determined

threshold (See Figure 2 Receiver Logic Waveform) .

The pre-set internal thresholds will detect data bus signals exceeding 1.20 Volts P-P and reject signals less than 0.6

Volts P-P when used with a transformer (See Figure 5 for transformer data and typical connections).

A low level at the Strobe input inhibits the DATA and DATA outputs. If unused, a 2K pull-up to +5 Volts is

recommended.

SCD4453 Rev C
