55472RMQB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> 55472RMQB

55472RMQB: DescriptionNAND Gate Based Peripheral Driver, 2 Driver, BIPolar, HERMETIC SEALED, DIP-8; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size211KB，7 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

55472RMQB Overview

NAND Gate Based Peripheral Driver, 2 Driver, BIPolar, HERMETIC SEALED, DIP-8

55472RMQB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Fairchild
Parts packaging code	DIP
package instruction	DIP, DIP8,.3
Contacts	8
Reach Compliance Code	unknown
ECCN code	EAR99
Number of drives	2
Interface integrated circuit type	NAND GATE BASED PERIPHERAL DRIVER
JESD-30 code	R-XDIP-T8
JESD-609 code	e0
Number of functions	2
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output current flow direction	SOURCE AND SINK
Package body material	UNSPECIFIED
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	BIPOLAR
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Disconnect time	0.05 µs
connection time	0.065 µs

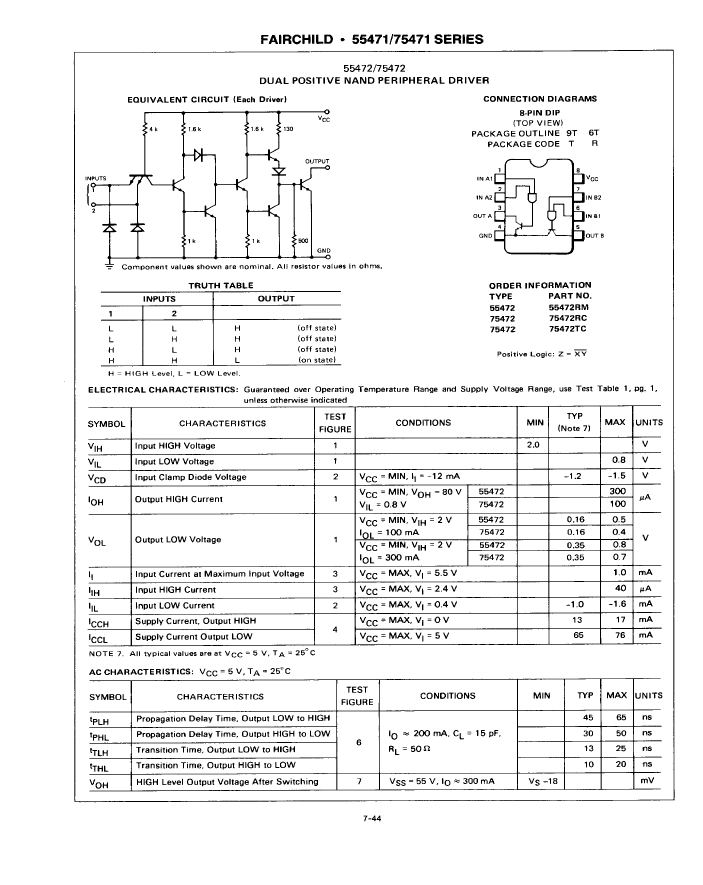

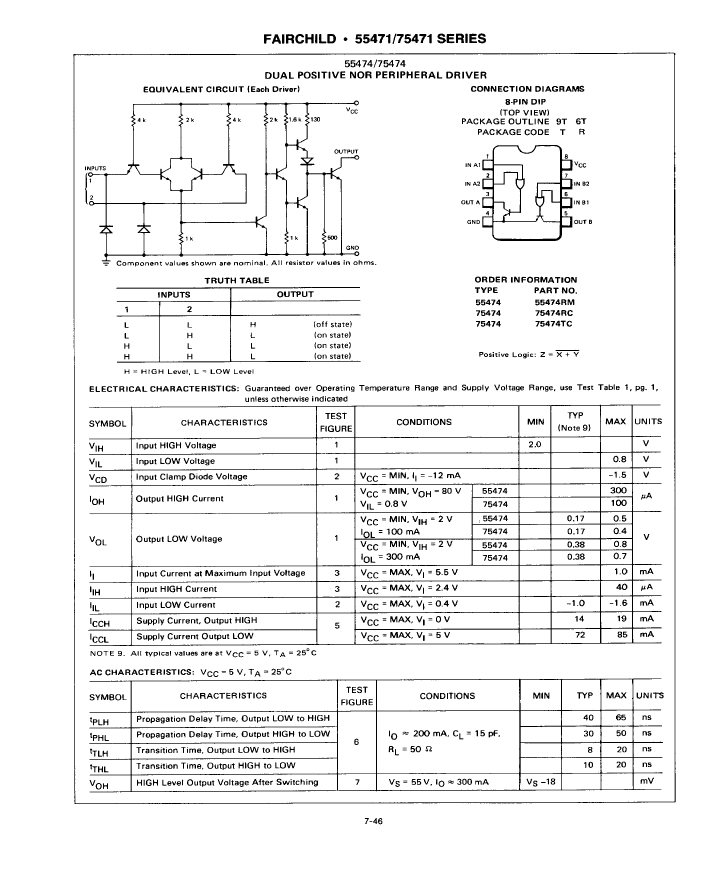

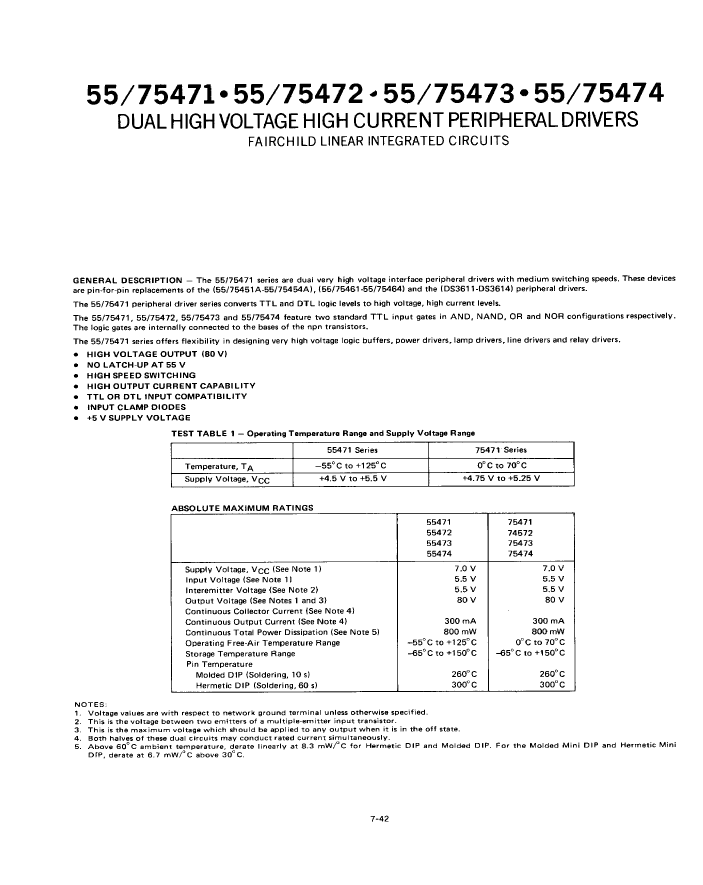

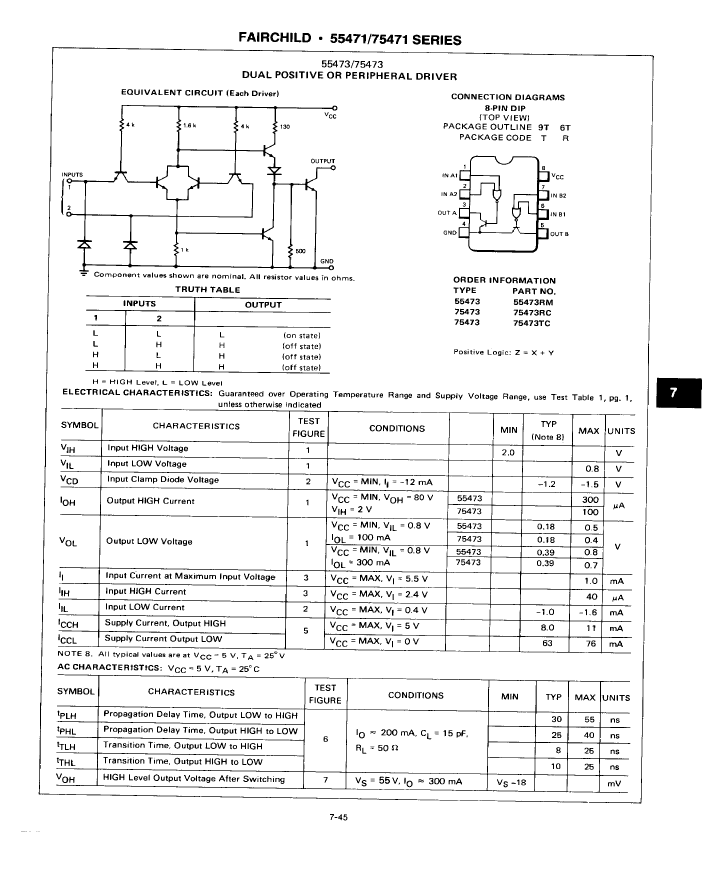

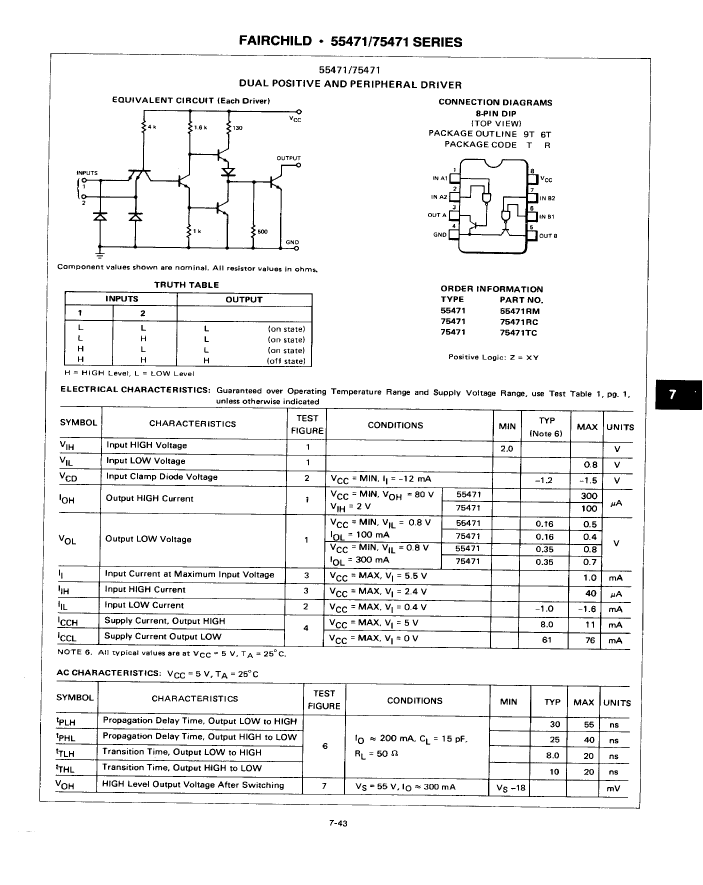

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

55472RMQB Related Products

	55472RMQB	75471TC	75471RC	55471RMQB
Description	NAND Gate Based Peripheral Driver, 2 Driver, BIPolar, HERMETIC SEALED, DIP-8	Buffer/Inverter Based Peripheral Driver, 2 Driver, BIPolar, DIP-8	Buffer/Inverter Based Peripheral Driver, 2 Driver, BIPolar, DIP-8	NAND Gate Based Peripheral Driver, 2 Driver, BIPolar, HERMETIC SEALED, DIP-8
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Parts packaging code	DIP	DIP	DIP	DIP
package instruction	DIP, DIP8,.3	DIP, DIP8,.3	DIP, DIP8,.3	DIP, DIP8,.3
Contacts	8	8	8	8
Reach Compliance Code	unknown	unknown	unknown	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Number of drives	2	2	2	2
Interface integrated circuit type	NAND GATE BASED PERIPHERAL DRIVER	BUFFER OR INVERTER BASED PERIPHERAL DRIVER	BUFFER OR INVERTER BASED PERIPHERAL DRIVER	NAND GATE BASED PERIPHERAL DRIVER
JESD-30 code	R-XDIP-T8	R-XDIP-T8	R-XDIP-T8	R-XDIP-T8
JESD-609 code	e0	e0	e0	e0
Number of functions	2	2	2	2
Number of terminals	8	8	8	8
Maximum operating temperature	125 °C	70 °C	70 °C	125 °C
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP8,.3	DIP8,.3	DIP8,.3	DIP8,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage	5.5 V	5.25 V	5.25 V	5.5 V
Minimum supply voltage	4.5 V	4.75 V	4.75 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	MILITARY	COMMERCIAL	COMMERCIAL	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Disconnect time	0.05 µs	40 µs	40 µs	0.04 µs
connection time	0.065 µs	55 µs	55 µs	0.055 µs
Maker	Fairchild	Fairchild	Fairchild	-
Base Number Matches	-	1	1	1
