1A GLASS PASSIVATED SUPER FAST RECOVERY RECTIFIER
SF10-005G-LFR THRU SF10-06G-LFR
FEATURES
LOW FORWARD VOLTAGE
HIGH SURGE CAPABILITY
SUPER FAST SWITCHING SPEED
GOOD FOR SWITCHING MODE CIRCUIT
GLASS PASSIVATED CHIP JUNCTION
ROHS
MECHANICAL DATA
CASE: MOLDED PLASTIC,
DO41, DIMENSIONS IN INCHES
AND (MILLIMETERS)
1.0(25.4)
MIN
.034(0.9)
.028(0.7)
.205(5.2)
.166(4.2)
.107(2.7)
.080(2.0)
EPOXY: UL 94V-0 FLAME RETARDANT PLASTIC CASE
LEADS: AXIAL LEADS, SOLDERABLE PER MIL-STD-202,
METHOD 208
MOUNTING POSITION: ANY
WEIGHT: 0.34 GRAMS
1.0(25.4)
MIN
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS RATINGS AT 25°C AMBIENT TEMPERATURE UNLESS OTHERWISE SPECIFIED
SINGLE PHASE, HALF WAVE, 60 HZ, RESISTIVE OR INDUCTIVE LOAD. FOR CAPACITIVE LOAD, DERATE CURRENT BY 20%
SF10
SF10
SF10
SF10
SF10
SF10
SF10
SF10
-06G UNITS
-05G
-04G
-03G
RATINGS
SYMBOL -005G -01G -015G -02G
-LFR
-LFR
-LFR
-LFR
-LFR
-LFR
-LFR
-LFR
MAXIMUM RECURRENT PEAK REVERSE VOLTAGE
V
RRM
50
100
150
200
300
400
500
600
V
MAXIMUM RMS VOLTAGE
V
RMS
35
70
105
140
210
280
350
420
V
MAXIMUM DC BLOCKING VOLTAGE
V
DC
50
100
150
200
300
400
500
600
V
MAXIMUM AVERAGE FORWARD RECTIFIED CURRENT
I
O
1.0
A
0.375”(9.5mm) LEAD LENGTH AT TA=55°C
PEAK FORWARD SURGE CURRENT, 8.3ms SINGLE HALF
I
FSM
30
A
SINE-WAVE SUPERIMPOSED ON RATED LOAD
TYPICAL JUNCTION CAPACITANCE (NOTE 1)
C
J
15
10
PF
TYPICAL THERMAL RESISTANCE (NOTE 2)
STORAGE TEMPERATURE RANGE
OPERATING TEMPERATURE RANGE
R
θjc
T
STG
T
OP
50
- 55 TO + 150
- 55 TO + 150
℃/W
℃
℃
ELECTRICAL CHARACTERISTICS (A
T
T
A
=25°C UNLESS OTHERWISE NOTED)
SF10
SF10
SF10
CHARACTERISTICS
SYMBOL -005G -01G -015G
-LFR
-LFR
-LFR
MAXIMUM FORWARD VOLTAGE AT I
O
DC
V
F
0.95
MAXIMUM REVERSE CURRENT AT 25℃
MAXIMUM REVERSE CURRENT AT 100℃
I
R
I
R
SF10
-02G
-LFR
10
100
SF10
SF10
-04G
-03G
-LFR
-LFR
1.25
SF10
SF10
-06G
-05G
-LFR
-LFR
1.85
UNITS
V
μA
μA
nS
MAXIMUM REVERSE RECOVERY TIME (NOTE 3)
T
RR
35
NOTE : 1. MEASURED AT 1 MHZ AND APPLIED REVERSE VOLTAGE 0F 4.0 VOLTS
2. BOTH LEADS ATTACHED TO HEAT SINK 20x20x1t(mm) COPPER PLATE AT LEAD LENGTH 5mm
3. REVERSE RECOVERY TEST CONDITIONS: I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A
SF10-005G-LFR THRU SF10-06G-LFR
Page: 1

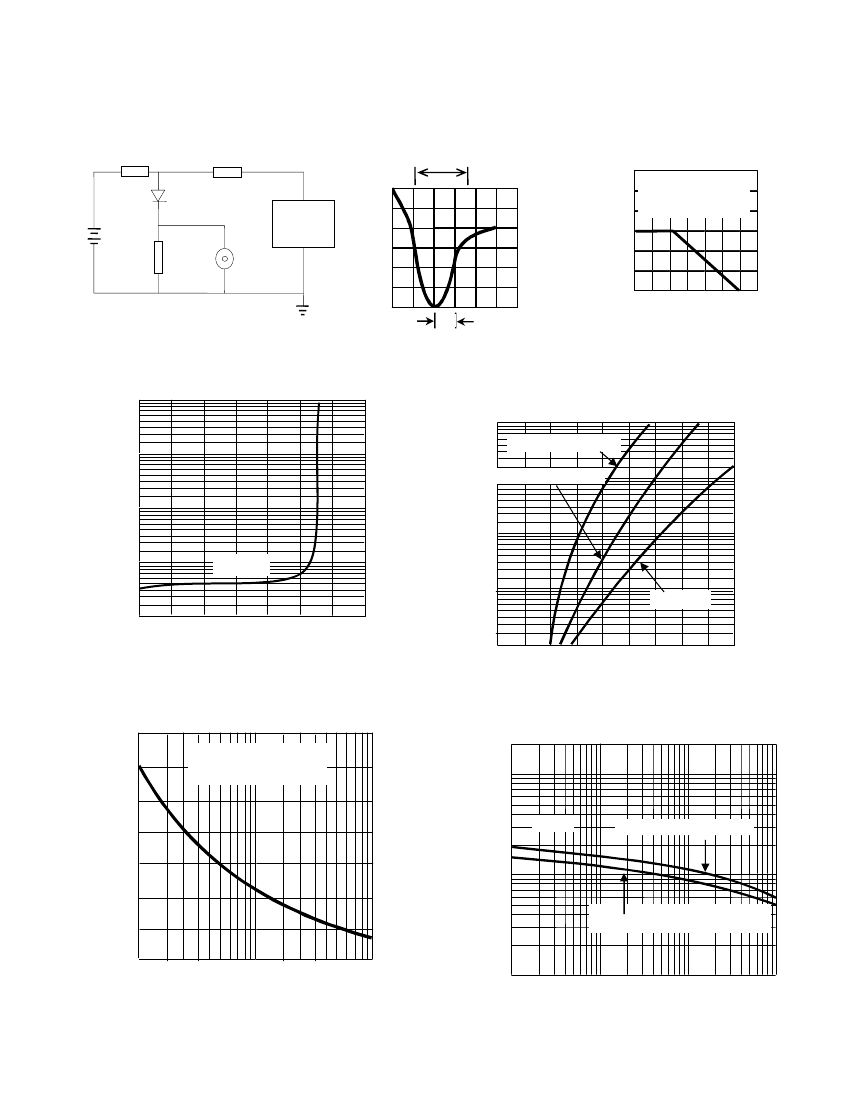

RATINGS AND CHARACTERISTIC CURVE SF10-005G-LFR THRU SF10-06G-LFR
FIG. 1-TEST CIRCUIT DIAGRAM AND REVERSE
RECOVERY TIME CHARACTERISTIC
50Ω
NO INDUCTIVE
100Ω
NO INDUCTIVE
Trr
FIG. 2-TYPICAL FORWARD
CURRENT DERATING CURVE
2.0
AVERAGE FORWARD
(-)
Single Phase Half
Wave 60 Hz Resistive
or Inductive Load
D.U.T.
(+)
25 V
dc
(approx)
PULSE
GENERATOR
( NOTE 2 )
1Ω
NON
INDUCTIVE
+0.5A
CURRENT (A)
1.0
0
OSCILLOSCOPE
( NOTE 1 )
(-)
(+)
-0.25A
0
25 50 75 100 125 150 175
AMBIENT TEMPERATURE (
o
C)
NOTE: 1. RISE TIME=7ns MAX. INPUT
IMPEDANCE=1 MOhms 22PF
2. RISE TIME =10ns MAX. SOURCE
IMPEDANCE=50 OHMS
FIG. 3-TYPICAL REVERSE CHARACTERISTICS
INSTANTANEOUS REVERSE CURRENT (uA)
1000
1cm
SET TIME BASE
FOR 10/20 ns/cm
FIG. 4-TYPICAL INSTANTANEOUS
FORWARD CHARACTERISTICS
INSTANTANEOUS FORWARD CURRENT (A)
10
SF10-005G-LF~10-02G-LF
100
SF10-03G-LF~10-04G-LF
1.0
10
.1
1.0
T
J
=25
o
C
.01
SF10-06G-LF
0.1
0
20
40
60
80
100
120 140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
.001
0
.2
.4
.6
.8
1.0
1.2 1.4
1.6 1.8
INSTANTANEOUS FORWARD VOLTAGE (V)
FIG. 5-MAXIMUM NON-REPETITIVE
FORWARD SURGE CURRENT
PEAK FORWARD SURGE CURRENT (A)
40
8.3 ms Single Half Sine Wave
30
25
20
15
10
5
0
1
5
10
20
50
NUMBER OF CYCLES AT 60 Hz
100
1
.1
.2
.4
1.0
2
4
10
20
40
100
REVERSE VOLTAGE (V)
JUNCTION CAPACITANCE (pF)
(JEDEC Method)
200
100
40
T
J
=25
o
C
20
10
6
4
2
SF10-005G-LF~10-02G-LF
FIG. 6-TYPICAL JUNCTION CAPACITANCE
SF10-03G-LF~10-06G-LF
SF10-005G-LFR THRU SF10-06G-LFR
Page: 2
