550011MREDX datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 550011MREDX

550011MREDX: DescriptionPushbutton Switch, SPDT, Momentary, 0.3A, 12VDC, Solder Terminal, Through Hole-straight; CategoryMechanical and electronic products switch; File Size317KB，3 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com

Download Datasheet Parametric View All

550011MREDX Overview

Pushbutton Switch, SPDT, Momentary, 0.3A, 12VDC, Solder Terminal, Through Hole-straight

550011MREDX Parametric

Parameter Name	Attribute value
Maker	E-Switch
Reach Compliance Code	compliant
ECCN code	EAR99
body width	12.4 mm
body height	8 mm
Body length or diameter	17.5 mm
Maximum contact current (DC)	0.3 A
Contact (DC) maximum rated R load	.3A@12VDC
Maximum contact voltage (DC)	12 V
Electrical life	500000 Cycle(s)
JESD-609 code	e4
Manufacturer's serial number	5500
Installation features	THROUGH HOLE-STRAIGHT
Maximum operating force	2.5 N
Maximum operating temperature	65 °C
Minimum operating temperature	-25 °C
surface mount	NO
Switch action	MOMENTARY
switch function	SPDT
Switch type	PUSHBUTTON SWITCH
Terminal surface	GOLD
Termination type	SOLDER

Preview

Download Datasheet

View All

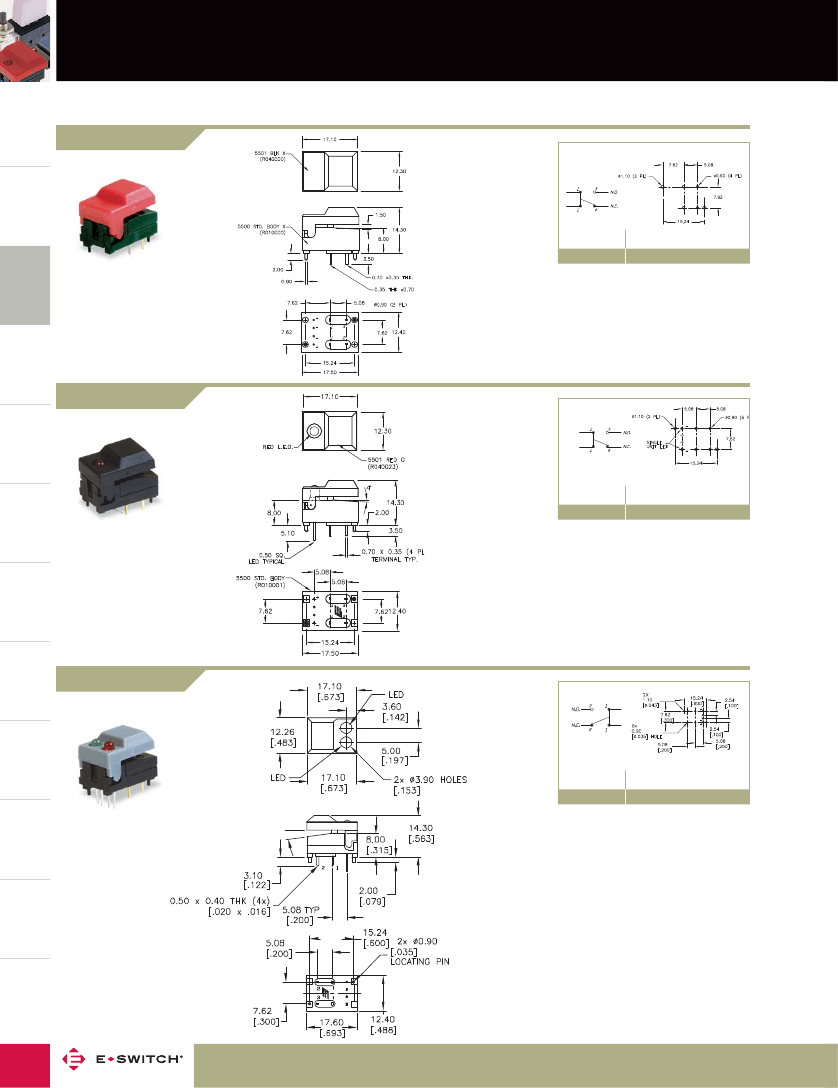

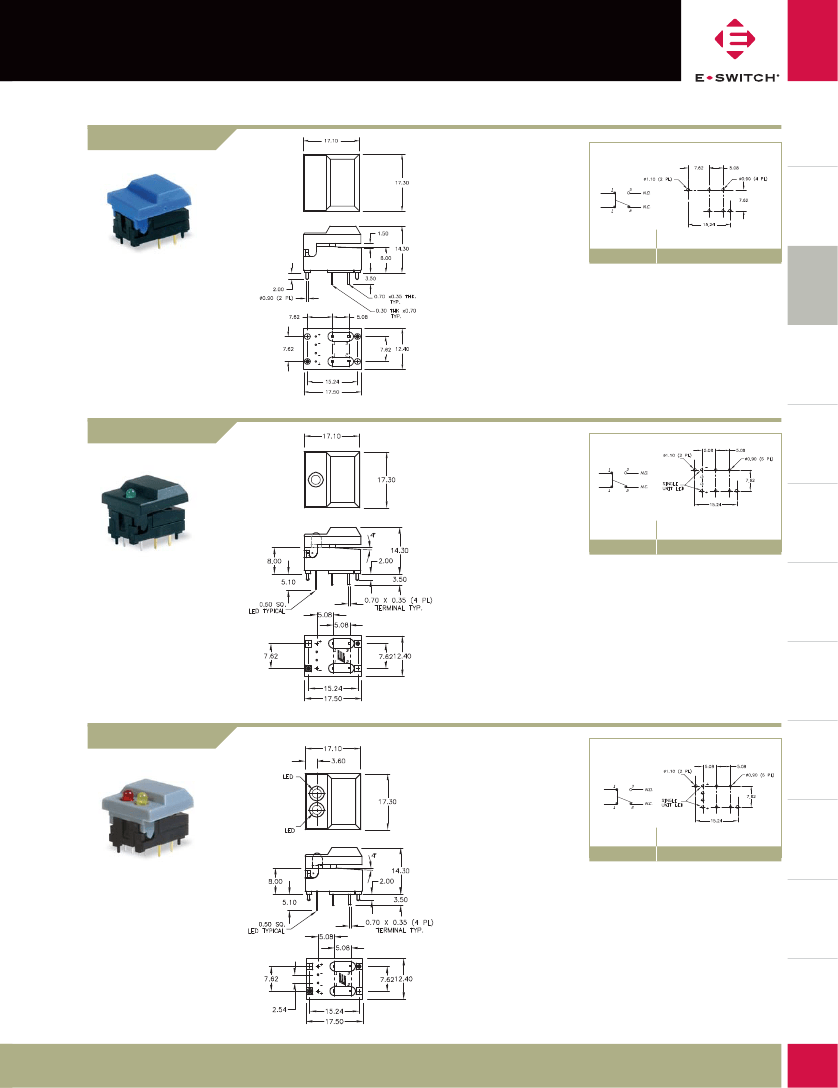

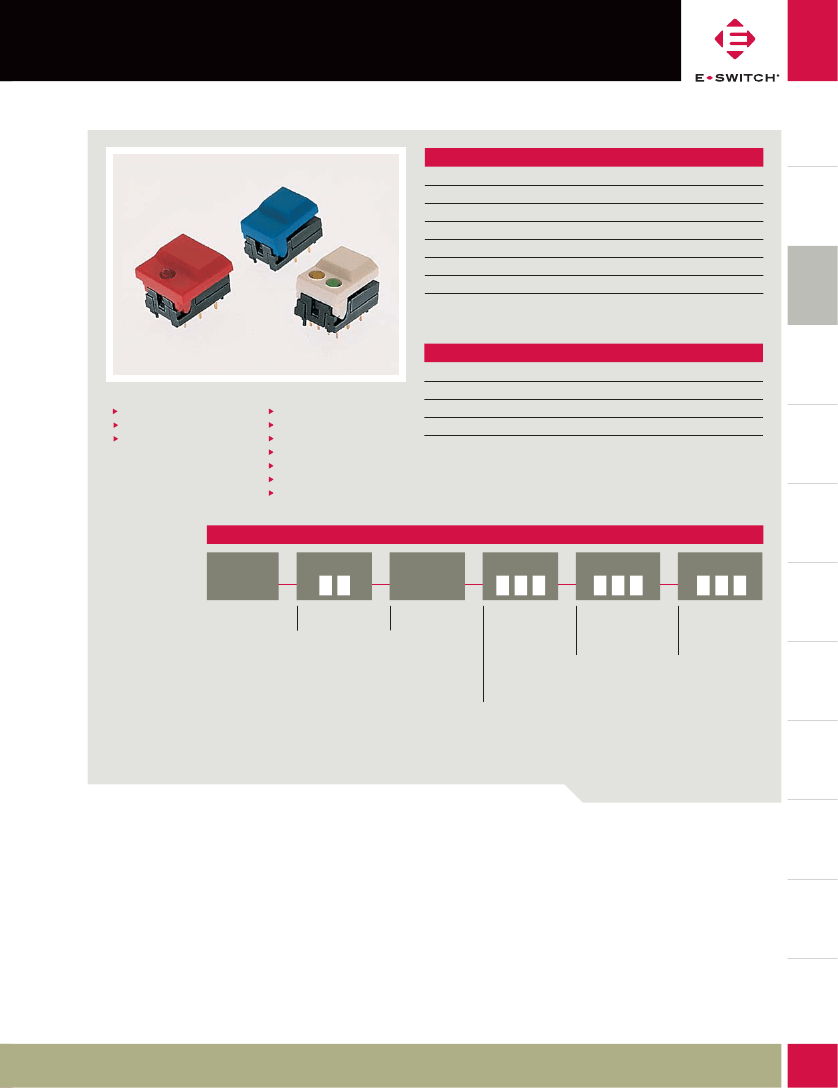

SERIES 5500 SWITCHES

SPECIFICATIONS

Life Expectancy:

Contact Resistance:

Insulation Resistance:

Dielectric Strength:

Actuation Force:

500,000 cycles typical

50mΩ max. typical @ 2-4 VDC, 100mA

50 MΩ min.

>1,000 V rms at sea level

255 grams max.

PUSHBUTTON

SWITCHES

2nd LED COLOR

NAVIGATION

SWITCHES

CAP

OPTIONS

DETECTOR

SWITCHES

ROTARY

SWITCHES

KEYLOCK

SWITCHES

Specifications subject to change without notice.

Contact Ratings:

300mA @ 12 VDC

Operating Temperature: -25°C to +65°C

MATERIALS

Housing:

Nylon

ABS

Gold over nickel over copper alloy

Cap:

Contacts:

Terminals:

FEATURES & BENEFITS

Single or dual LED options

Hinged pushbutton design

High operating life

APPLICATIONS/MARKETS

Telecommunications

Networking

Computers/servers

Performance audio

Instrumentation

Low power on/off designs

External hard drives and modems

HOW TO ORDER

SERIES

CAP STYLE

MECHANICAL

CONFIGURATION

CAP COLOR

1st LED COLOR

(1-LED cap styles only)

(2-LED cap styles only)

01 = Small

11 = Large

M = Momentary

BLK = Black

GRY = Grey

YEL = Yellow

BLU = Blue

RED = Red

ORG = Orange

GRN = Green

WHT= White

X = No LED

RED = Red LED

GRN = Green LED

YEL = Yellow LED

RED = Red LED

GRN = Green LED

YEL = Yellow LED

Example Ordering Number

55_ 11_ M_ BLU

55_ 01_ M_ WHT_ RED, GRN
