5SGT30J6004 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Trigger device> 5SGT30J6004

5SGT30J6004: DescriptionGate Turn-Off SCR, 1030000mA I(T), 6000V V(DRM); CategoryAnalog mixed-signal IC Trigger device; File Size329KB，9 Pages; ManufacturerABB; Websitehttp://www.abb.com/

Download Datasheet Parametric View All

5SGT30J6004 Overview

Gate Turn-Off SCR, 1030000mA I(T), 6000V V(DRM)

5SGT30J6004 Parametric

Parameter Name	Attribute value
Maker	ABB
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum DC gate trigger current	1000 mA
Maximum DC gate trigger voltage	1.2 V
JESD-30 code	O-CEDB-X2
On-state non-repetitive peak current	24000 A
Number of terminals	2
Maximum on-state current	1030000 A
Maximum operating temperature	110 °C
Minimum operating temperature	-40 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	ROUND
Package form	DISK BUTTON
Certification status	Not Qualified
Off-state repetitive peak voltage	6000 V
surface mount	YES
Terminal form	UNSPECIFIED
Terminal location	END
Trigger device type	GATE TURN-OFF SCR

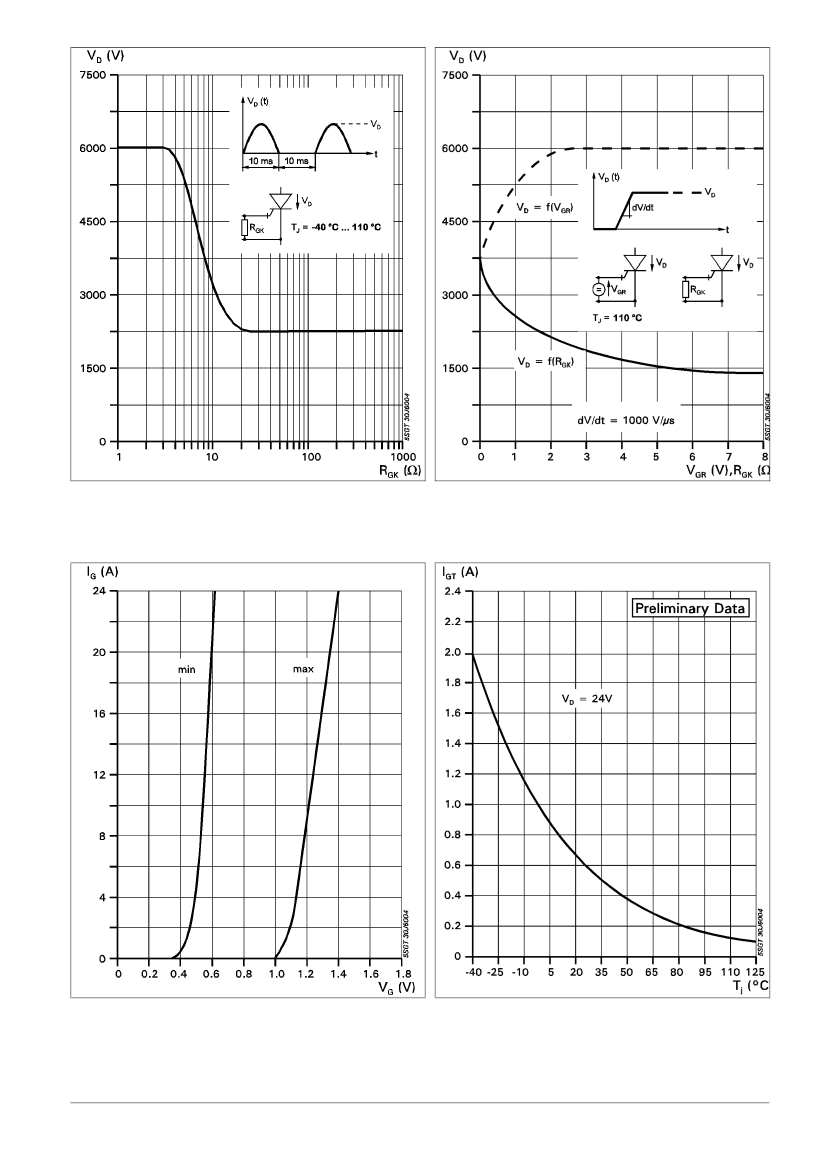

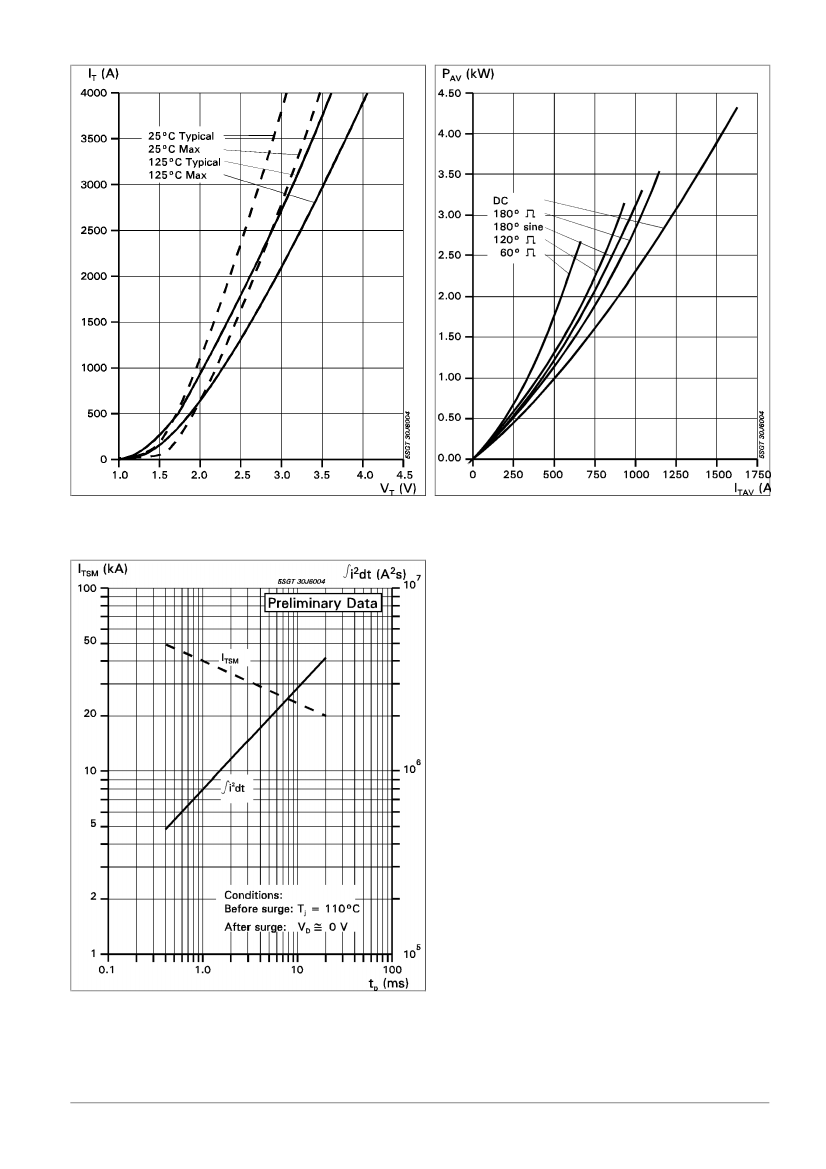

Preview

Download Datasheet

View All

DRM

TGQM

TSM

DClin

6000

3000

1.70

0.60

3800

mΩ

Gate turn-off Thyristor

5SGT 30J6004

Doc. No. 5SYA 1212-04 Aug. 2000

•

Patented free-floating silicon technology

•

Low on-state and switching losses

•

Annular gate electrode

•

Industry standard housing

•

Cosmic radiation withstand rating

The 5SGT 30J6004 is an 85 mm buffered layer, Transparent Emitter (non-shorted anode)

GTO with exceptionally low dynamic and static losses and gate drive requirements.

Housed in an industry-standard 108 mm wide housing, it is ideally suited for high reliability

applications such as Transportation and Medium Voltage Drives.

Blocking

DRM

RRM

DRM

RRM

DClink

Repetitive peak off-state voltage

Repetitive peak reverse voltage

Repetitive peak off-state current

Repetitive peak reverse current

Permanent DC voltage for 100

FIT failure rate

≤

6000 V

17 V

100 mA

50 mA

3800 V

= V

DRM

= V

RRM

≥

∞

≥

-40

≤

110 °C. Ambient cosmic

radiation at sea level in open air.

Mechanical data

(see Fig. 19)

Mounting force

Acceleration:

Device unclamped

Device clamped

Weight

Surface creepage distance

Air strike distance

≥

50 m/s

200 m/s

1.3 kg

33 mm

15 mm

min.

max.

36 kN

44 kN

ABB Semiconductors AG reserves the right to change specifications without notice.
