5925A-FREQ-NSA3039B: DescriptionSine Output Oscillator, 10MHz Min, 25MHz Max, ROHS COMPLIANT PACKAGE-4; CategoryPassive components oscillator; File Size282KB，1 Pages; ManufacturerNDK; Websitehttp://www.ndk.com/en/; Environmental Compliance

Download Datasheet Parametric Compare View All

5925A-FREQ-NSA3039B Overview

Sine Output Oscillator, 10MHz Min, 25MHz Max, ROHS COMPLIANT PACKAGE-4

5925A-FREQ-NSA3039B Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	NDK
Reach Compliance Code	unknown
Ageing	1 PPM/YEAR
Frequency Adjustment - Mechanical	NO
frequency stability	2%
Manufacturer's serial number	5925A
Installation features	THROUGH HOLE MOUNT
Maximum operating frequency	25 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	75 °C
Minimum operating temperature	-30 °C
Oscillator type	SINE
Output impedance	10000 Ω
Output level	1 V
physical size	25.0mm x 25.0mm x 15.0mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO

Preview

Download Datasheet

View All

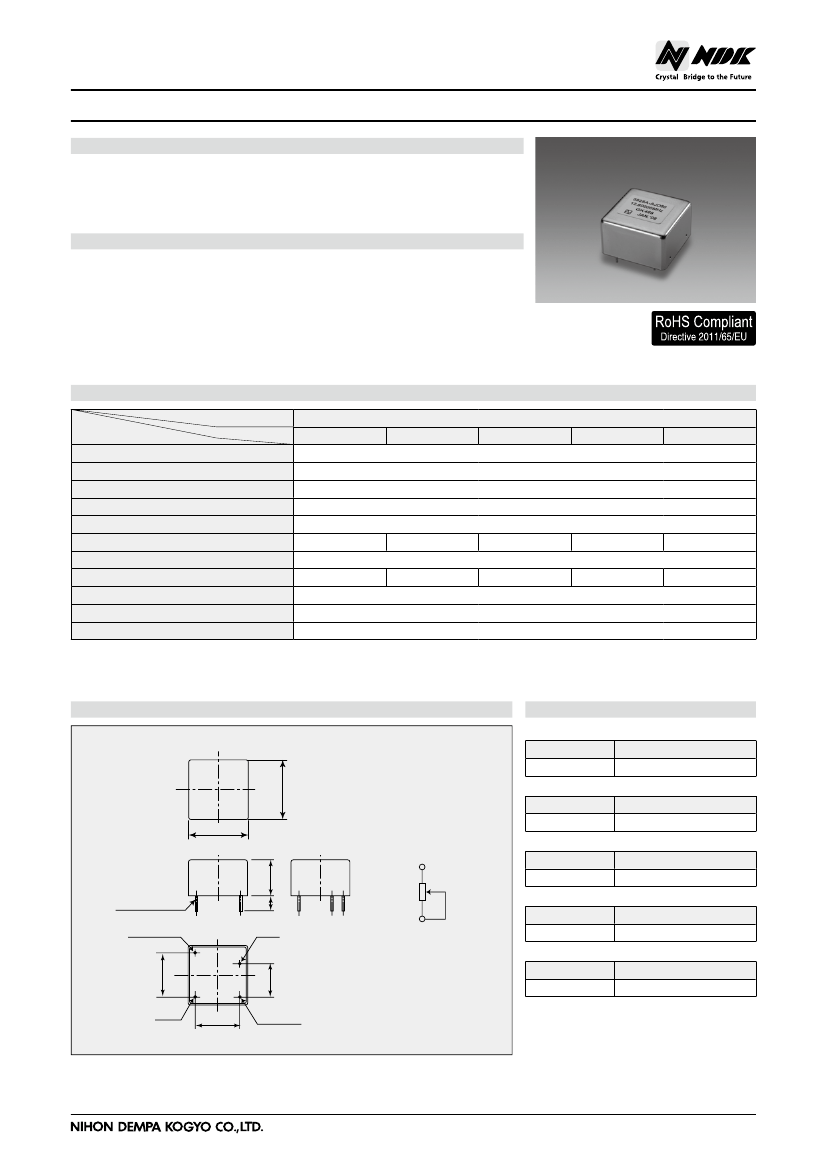

Crystal Oscillator

Model Name 5925A

■

Main Application

For communication equipment

Temperature-Compensated Crystal Oscillator (TCXO) 5900 Series

■

Features

● Stable frequencies can be obtained across a wide temperature range.

● Low power consumption.

■

Specifications

Item

Supply voltage [V

] (V)

Current consumption (mA)

Output level

Load impedance

Operating temperature range (°C)

Storage temperature range (°C)

Frequency/Temperature characteristics

Frequency/Voltage coefficient

Long-term frequency stability

Frequency adjustment range

Max. ±0.5 × 10

−6

Max. ±1 × 10

−6

−10 to +50

−20 to +60

Model

Classification

5925A

AJD50

AKG50

ALH50

10 to 25

+5 ± 5 %

Max. 5

Min. 1 V (p -p)

10 kΩ //10 pF

−20 to +70

−40 to +85

Max. ±1.5 × 10

−6

Max. ±0.2 × 10

−6

Max. ±1 × 10

−6

/ year

Min. ±3 × 10

−6

(Note)

Max. ±2 × 10

−6

Max. ±5 × 10

−6

−30 to +75

−40 to +85

AML50

AQP50

Nominal frequency range (MHz)

Note: See “FREQ.ADJ. method” with an external variable resistor used in the figure of Case Code 25A.

*If you require a product with other than standard characteristics, please contact us.

■

Dimensions

■

List of Ordering Codes

5925A-AJD50

Frequency (MHz)

10 to 25

Ordering Code

5925A-[

]M-NSA3039E

5925A-AKG50

Frequency (MHz)

Ordering Code

5925A-[

]M-NSA3039D

10 to 25

FREQ.ADJ. method

FREQ.ADJ.

5925A-ALH50

Frequency (MHz)

10 to 25

5925A-AML50

Ordering Code

5925A-[

]M-NSA3039C

4 − φ0.8 ± 0.05

FREQ.ADJ.

17 ± 0.3

GND

Frequency (MHz)

10 to 25

5925A-AQP50

Frequency (MHz)

10 to 25

Ordering Code

5925A-[

]M-NSA3039B

GND

14 ± 0.3

Ordering Code

5925A-[

]M-NSA3039A

17 ± 0.3

OUT PUT

Tolerance ±1.0

Specify a frequency in the square brackets.

Specify the frequency in seven digits

(the decimal point is not included).

tcxo17_100512_5925A_e
