Preview

5921A-20M-NSA3038B: DescriptionSine Output Oscillator, 20MHz Nom, ROHS COMPLIANT PACKAGE-4; CategoryPassive components oscillator; File Size92KB，1 Pages; ManufacturerNDK; Websitehttp://www.ndk.com/en/; Environmental Compliance

Download Datasheet Parametric Compare View All

5921A-20M-NSA3038B Overview

Sine Output Oscillator, 20MHz Nom, ROHS COMPLIANT PACKAGE-4

5921A-20M-NSA3038B Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	NDK
Reach Compliance Code	unknown
Ageing	1 PPM/YEAR
Frequency Adjustment - Mechanical	NO
frequency stability	1%
Manufacturer's serial number	5921A
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	20 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-20 °C
Oscillator type	SINE
Output impedance	10000 Ω
Output level	1 V
physical size	21.0mm x 13.0mm x 9.2mm
Maximum supply voltage	8.4 V
Minimum supply voltage	7.6 V
Nominal supply voltage	8 V
surface mount	NO

Preview

Download Datasheet

View All

Crystal Oscillator

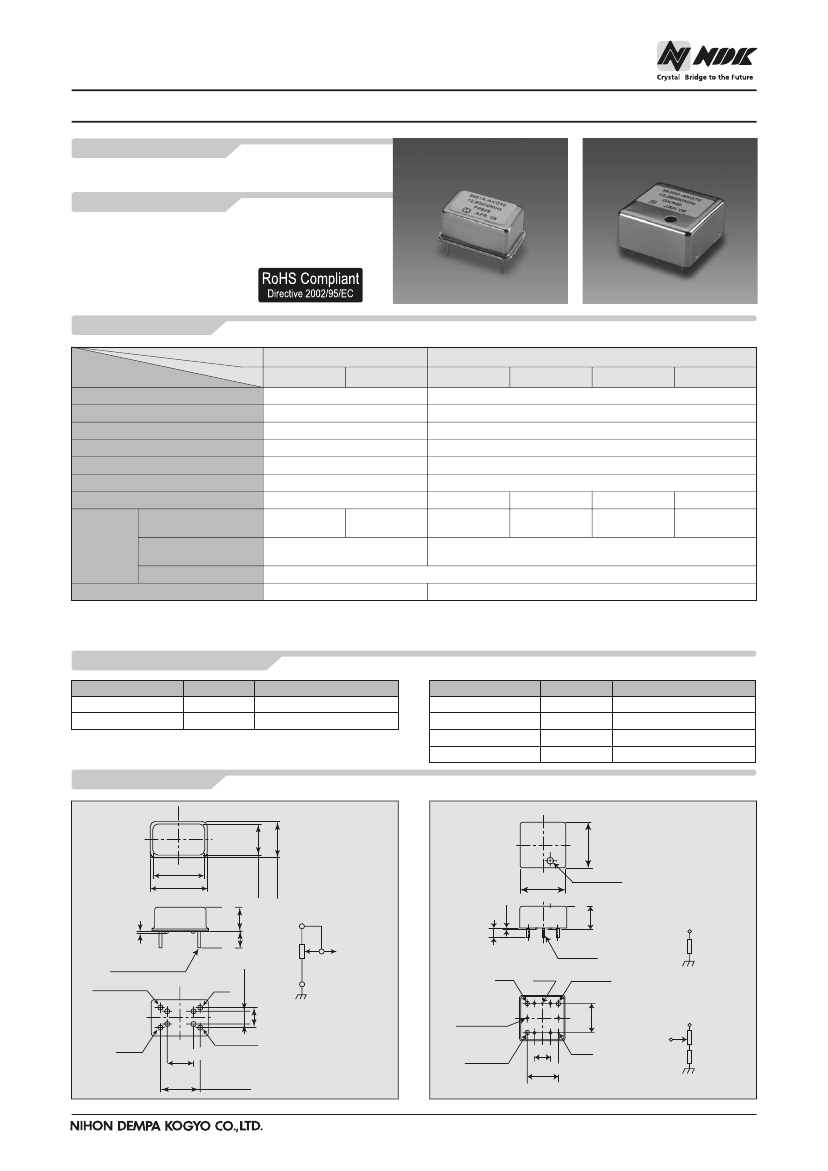

Model Name 5921A, 5930D

n

Main Application

For communication equipment

Temperature-Compensated Crystal Oscillator (TCXO) 5900 Series

n

Features

l

Compact and light.

l

Stable frequencies can be obtained across a wide

temperature range.

l

Low power consumption.

5921A

5930D

n

Specifications

Item

Model

Classification

5921A

AKG50

10 to 20

+8 ± 5 %

Max. 5

Min. 1 V (Peak to Peak)

−

10 kΩ // 10 pF

−20 to +60

Max. ± 1 × 10

−6

−10 to +50

Temperature

characteristic

Frequency

stability

Power supply variation

characteristics

Aging

Frequency adjustment range

Min. ± 3 × 10

−6

(Note1)

AMG50

AJD70

AKG70

10 to 25

+5 ± 5 %

Max. 15

TTL level (V

OL

: Max. 0.4 V, V

OH

: Min. 2.4 V)

40 to 60 (1.4V)

N-TTL 2

−20 to +60

−20 to +70

− 30 to +75

5930D

ALH70

AML70

Nominal frequency range (MHz)

Power supply voltage [VCC] (V)

Current consumption (mA)

Output level

Duty cycle (%)

Load

Operating temperature range (°C)

Max. ± 2 × 10

−6

Max. ± 0.5 × 10

−6

Max. ± 1 × 10

−6

Max. ± 1.5 × 10

−6

Max. ± 2 × 10

−6

Max. ± 0.2 × 10

−6

Max. ± 1 × 10

−6

/ year

Min. ± 3 × 10

−6

(Note2)

Max. ± 0.5 × 10

−6

Note1: See “FREQ.ADJ. method” with an external variable resistor used in the figure of Case Code 21A.

Note2: See “FREQ.ADJ. method” with an external variable resistor used in the figure of Case Code 30D.

*If you require a product with other than standard characteristics, please contact us.

n

List of Ordering Codes

Model Name and Classification Frequency (MHz)

Ordering Code

Model Name and Classification Frequency (MHz)

Ordering Code

5921A-AKG50

5921A-AMG50

10 ≤ F < 20

5921A-[ ]M-NSA3038B

5921A-[ ]M-NSA3038A

5930D-AJD70

5930D-AKG70

5930D-ALH70

5930D-AML70

10 ≤ F < 25

5930D-[ ]M-NSA3088E

5930D-[ ]M-NSA3088D

5930D-[ ]M-NSA3088C

5930D-[ ]M-NSA3088B

Specify a frequency in the square brackets.

Specify the frequency in seven digits (the decimal point is not included).

n

Dimensions

21A

mm

30D

30

mm

Max. 19

Max. 21

Max. 9.2

Max. 0.5

Max. 13

Max. 11

30

FREQ ADJ. method

CCW

6

FREQ ADJ

Wiper

+DC

V REF

(1)

FREQ ADJ

Max. 16

FREQ ADJ. method

1. With an internal

variable resistor used

FREQ ADJ

2 kΩ

6.35

2 kΩ

4.6 ± 1

CW

5− φ 0.6

FREQ ADJ

20.32 ± 0.5

4− φ 0.45 ± 0.1

FREQ ADJ

GND

7.62 ± 0.2

2. With an external

variable resistor used

V REF

FREQ

ADJ

5 kΩ

510 Ω

+DC

OUT PUT

12.2 ± 1

15.24 ± 0.2

Standoff

(6 locations)

OUT PUT

(10.16)

GND

20.32 ± 0.5

co21_080926_5921A_e
